WA200-8 S/N 91001-UP

1 2 3 4 5 6 7 8 9 10 11 12 13 19 20 21 22 23 24 25 26 27 33 11 3 27 19 14 15 16 17 18 28 29 30 31 32

#	Part Number	Partname	Quantity	Options	Reference
1	01010-81235	Bolt	2	SN: 85001-@
2	01643-31232	Washer	2	SN: 85001-@
3	418-62-33353	Clamp	2	SN: 85001-@
4	418-62-23780	Plate	1	SN: 85001-@
5	417-62-23690	Spacer	2	SN: 85001-@
6	418-62-23790	Spacer	2	SN: 85001-@
7	418-62-34480	Rubber	1	SN: 85001-@
8	418-62-23810	Plate	1	SN: 85001-@
9	01011-81030	Bolt	2	SN: 85001-@
10	01580-11008	Nut	2	SN: 85001-@
11	01643-31032	Washer	4	SN: 85001-@
12	01010-81240	Bolt	2	SN: 85001-@
13	01643-31232	Washer	2	SN: 85001-@
14	418-62-23790	Spacer	1	SN: 85001-@
15	417-62-63690	Rubber	1	SN: 85001-@
16	01010-81055	Bolt	1	SN: 85001-@
17	01643-31032	Washer	1	SN: 85001-@
18	418-V88-4750	Bracket	1	SN: 85001-@
19	417-62-63350	Clamp	2	SN: 85001-@
20	417-62-63412	Bracket	1	SN: 85977-87927
\|$20	417-62-63411	Bracket	1	SN: 85001-85976 \| SCC: A2
21	417-62-23690	Spacer	2	SN: 85001-@
22	418-62-23790	Spacer	2	SN: 85001-@
23	417-62-64491	Rubber	1	SN: 85001-@
24	417-62-63810	Plate	1	SN: 85001-@
25	01011-81030	Bolt	2	SN: 85001-@
26	01580-11008	Nut	2	SN: 85001-@
27	01643-31032	Washer	4	SN: 85001-@
28	418-62-23790	Spacer	1	SN: 85001-@
29	417-62-63690	Rubber	1	SN: 85001-@
30	01010-81055	Bolt	1	SN: 85001-@
31	01643-31032	Washer	1	SN: 85001-@
32	418-V88-4750	Bracket	1	SN: 85001-@
33	417-V88-6830	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-001005A
\|$34	417-V88-6830	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-016005A
\|$35	417-V88-6830	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-004005A
\|$36	417-V88-6830	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-017005A
\|$37	417-V88-6830	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-021005A
\|$38	417-V88-6830	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-044005A
\|$39	417-V88-6830	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-048005A
\|$40	417-V88-6830	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-049005A
\|$41	417-V88-6830	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-001005
\|$42	417-V88-6830	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-016005
\|$43	417-V88-6830	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-004005
\|$44	417-V88-6830	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-017005
\|$45	417-V88-6830	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-021005
\|$46	417-V88-6830	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-044005
\|$47	417-V88-6830	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-048005
\|$48	417-V88-6830	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-049005
\|$49	417-V88-6830	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-053005
\|$50	417-V88-6830	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-057005
\|$51	417-V88-6731	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-001005A
\|$52	417-V88-6731	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-016005A
\|$53	417-V88-6731	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-004005A
\|$54	417-V88-6731	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-017005A
\|$55	417-V88-6731	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-021005A
\|$56	417-V88-6731	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-044005A
\|$57	417-V88-6731	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-048005A
\|$58	417-V88-6731	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-049005A
\|$59	417-V88-6731	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-001005
\|$60	417-V88-6731	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-016005
\|$61	417-V88-6731	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-004005
\|$62	417-V88-6731	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-017005
\|$63	417-V88-6731	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-021005
\|$64	417-V88-6731	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-044005
\|$65	417-V88-6731	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-048005
\|$66	417-V88-6731	Bracket(Hydraulic Piping,Related Parts)	-1	SN: UP	H4200-049005
\|$67		[A2]-The part specified in the line above can be used instead of this part.	-1	SN: UP

Komatsu WA200-8 S/N 91001-UP parts catalog PDF

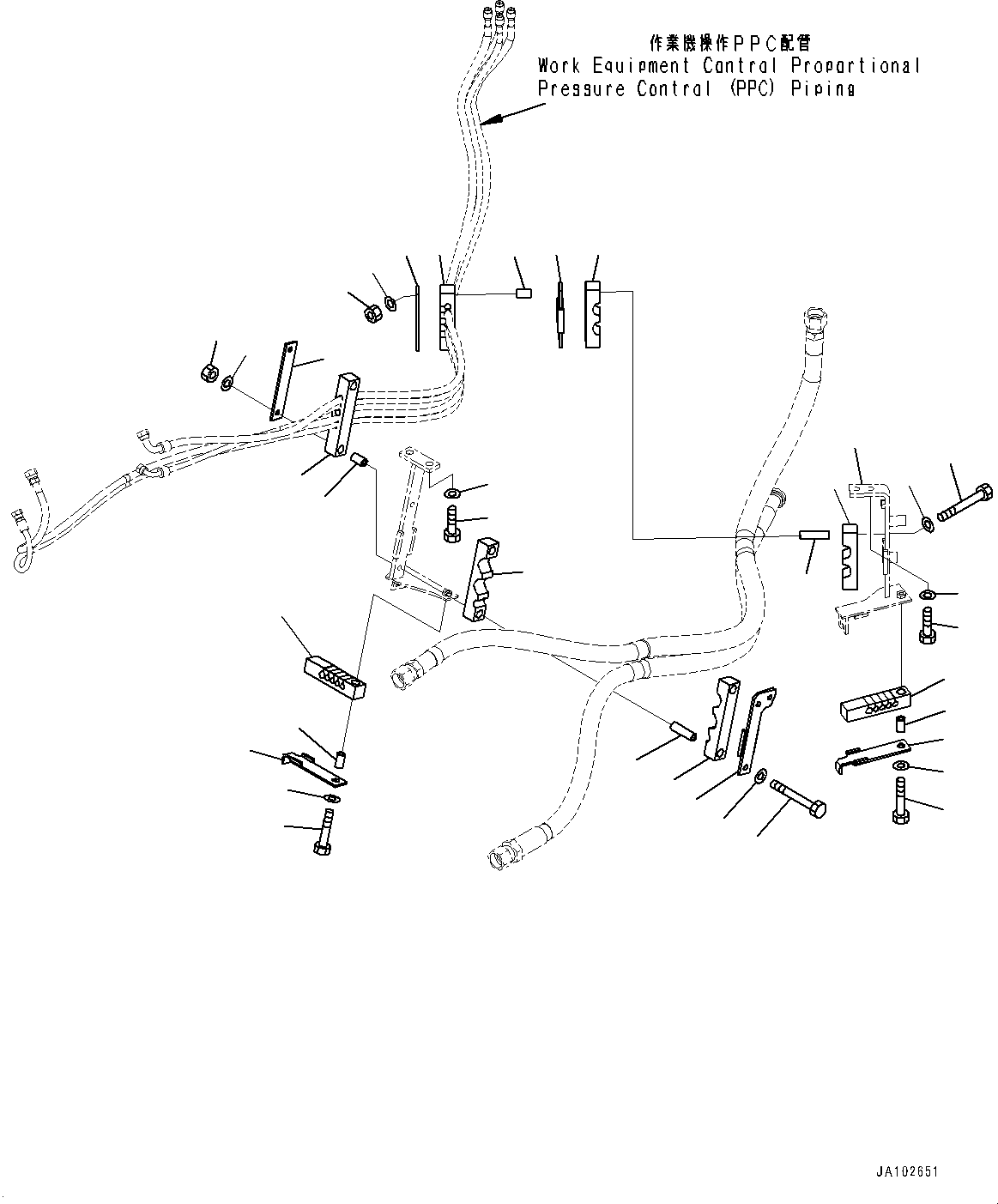

HYDRAULIC PIPING, WORK EQUIPMENT CONTROL PROPORTIONAL PRESSURE CONTROL (PPC) PIPING MOUNTING(#85001-87927) (H4200-001002) in WA200-8 S/N 91001-UP. Diagram image and parts list.
