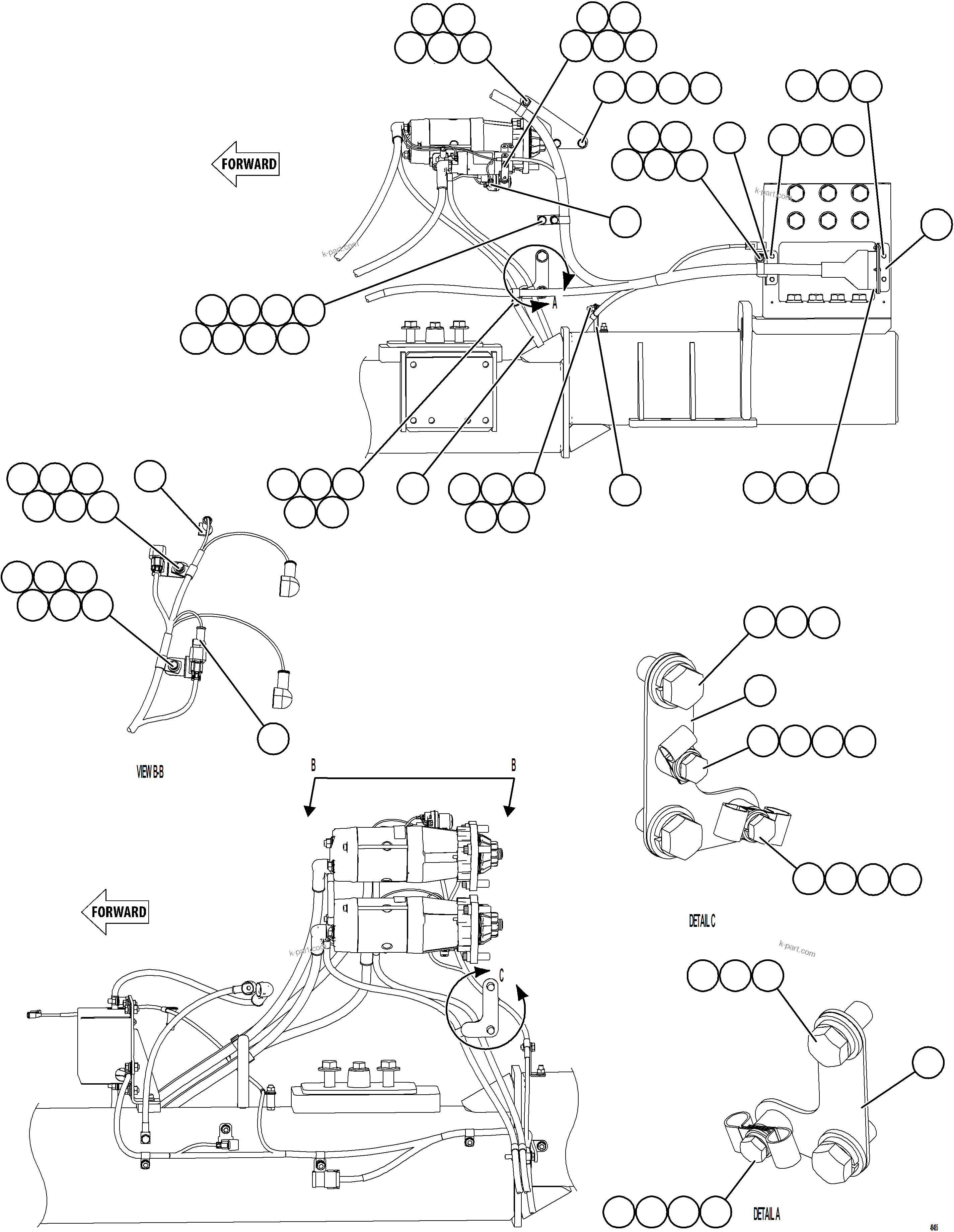

EXTERNAL ENGINE WIRING HARNESS INSTALLATION 2/3 | AFE92-D 980E-5SE S/N A60019 KMMP

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE92-D 980E-5SE S/N A60019 KMMP

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58B-06-12730	PLATE, BENT	1
?	58B-06-12700	BRACKET	1
?	58B-03-10320	PLATE, BENT	1
?	58B-80-05070	BRACKET ASSEMBLY	1
?	426-06-11570	BRACKET	1
?	58B-06-12900	BRACKET	1
?	58B-06-20020	BRACKET	3
?	EM8447	PLATE, BENT	1
?	WB3855	CLAMP, CUSHIONED - 13/16"	1
?	WB3093	CLAMP, CUSHIONED - 1"	2
?	WB1304	CLAMP, CUSHIONED - 9/16"	5
?	WB3856	CLAMP, CUSHIONED - 1 1/8"	1
?	MM0604	CAPSCREW - M10 X 1.50 X 20	4
?	TY8375	SPACER	1
?	WB3098	CLAMP, CUSHIONED - 3/8"	1
?	MM0581	CAPSCREW - M6 X 1.00 X 16	7
?	MM0469	LOCKWASHER - M6	7
?	MM0459	FLAT WASHER - M6	7
?	MM0343	MACHINE SCREW - M4 X 0.7 X 16	4
?	MM0378	LOCKWASHER, EXTERNAL TOOTH - M4	4
?	MM0372	NUT - M4 X 0.7	4
?	MM0178	NUT - M10 X 1.50	6
?	MM0471	LOCKWASHER - M10	10
?	MM0461	FLAT WASHER - M10	12
?	58B-80-05860	BRACKET ASSEMBLY	1
?	58D-90-00700	CLAMP, CUSHIONED - 7/16"	1
?	MM0460	FLAT WASHER - M8	3
?	MM0617	CAPSCREW - M12 X 1.75 X 25	1
?	MM0706	FLAT WASHER, HARDENED - M16	4
?	MM0474	LOCKWASHER - M16	4
?	MM0038	CAPSCREW - M16 X 2.00 X 35	4
?	MM0462	FLAT WASHER - M12	3
?	MM0472	LOCKWASHER - M12	3
?	MM0606	CAPSCREW - M10 X 1.50 X 30	2
?	MM0616	CAPSCREW - M12 X 1.75 X 20	2
?	08038-00519	CAP, TERMINAL	3
?	WB1302	CLAMP, CUSHIONED - 5/16"	1
