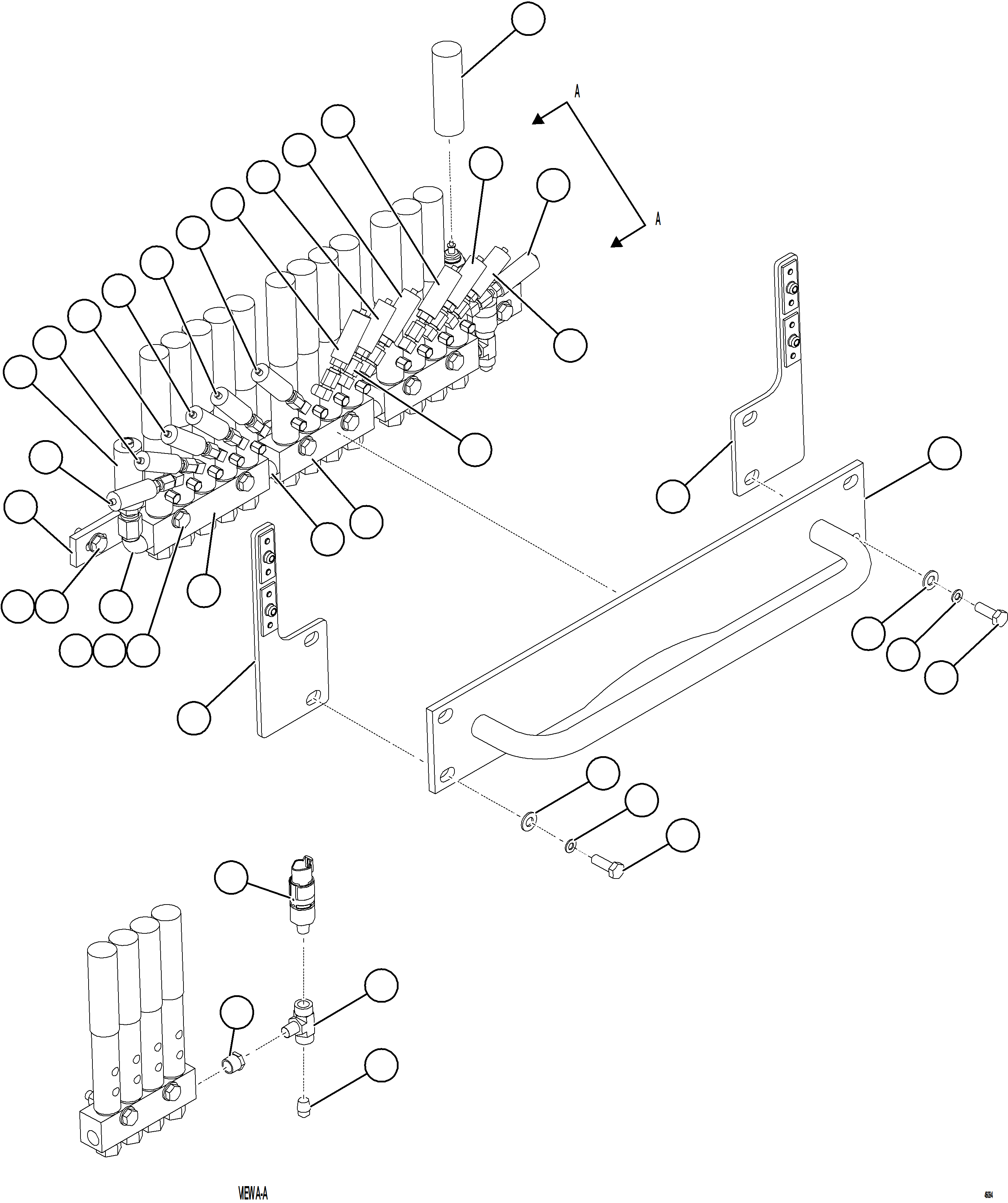

AUTOMATIC LUBRICATION SYSTEM PIPING - REAR 1/3 | AFE84-R 730E-10 S/N A50056 - A50058 KSA

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE84-R 730E-10 S/N A50056 - A50058 KSA

28 27 26 25 24 23 22 21 20 18 19 11 5 16 4 20 19 20 15 17 13 2 1 12 7 10 3 4 2 1 6 2 14 4 9 14 8 29 29

#	Part Number	Partname	Quantity
1	58D-80-03400	PLATE	2
2	MM0606	CAPSCREW - M10 X 1.50 X 30	6
3	EM2059	GRAB RAIL, REAR HATCH	1
4	MM0461	FLAT WASHER - M10	12
5	EJ4053	PLATE, MOUNTING	1
6	TA4411	INJECTOR ASSEMBLY, REAR - 5 PIECE (1)	1
7	VW7989	INJECTOR ASSEMBLY, REAR - 4 PIECE (1)	2
8	VW7990	CAP, PROTECTIVE	13
9	MM0611	CAPSCREW - M10 X 1.50 X 60	6
10	WB0252	FITTING, ELBOW - 90 DEG	13
11	WB0262	FITTING, ELBOW - 90 DEG	1
12	TB8803	NIPPLE, PIPE - 3/8"	2
13	R0086	BUSHING, PIPE - 1/4" X 3/8"	1
14	MM0178	NUT - M10 X 1.50	6
15	58F-60-41700	FITTING, TEE	1
16	58E-06-30700	SWITCH, PRESSURE	1
17	C5769	PLUG, PIPE - 1/4"	1
18	58B-60-20420	HOSE (TO UNION FIT)	1
19	HA1146	HOSE (TO BOTTOM OF REAR SUSPENSIONS)	2
20	HA3434	HOSE (TO BOTTOM OF HOIST CYLINDERS)	3
21	HA0588	HOSE (TO LH END OF SWAY BAR)	1
22	HA1196	HOSE (TO TOP OF REAR SUSPENSIONS)	1
23	HA0994	HOSE (TO TOP OF HOIST CYLINDERS)	1
24	HA0567	HOSE (TO BODY PIVOT PINS)	1
25	HA0631	HOSE (TO BODY PIVOT PINS)	1
26	HA5050	HOSE (TO TOP OF REAR SUSPENSIONS)	1
27	HA1179	HOSE (TO RH END OF SWAY BAR)	1
28	HA2995	HOSE (TO REAR AXLE PIVOT)	1
29	MM0471	LOCKWASHER - M10	4
\|$30			-1
		NOTE: (1) FOR SINGLE INJECTOR. ORDER VS1947.	-1
