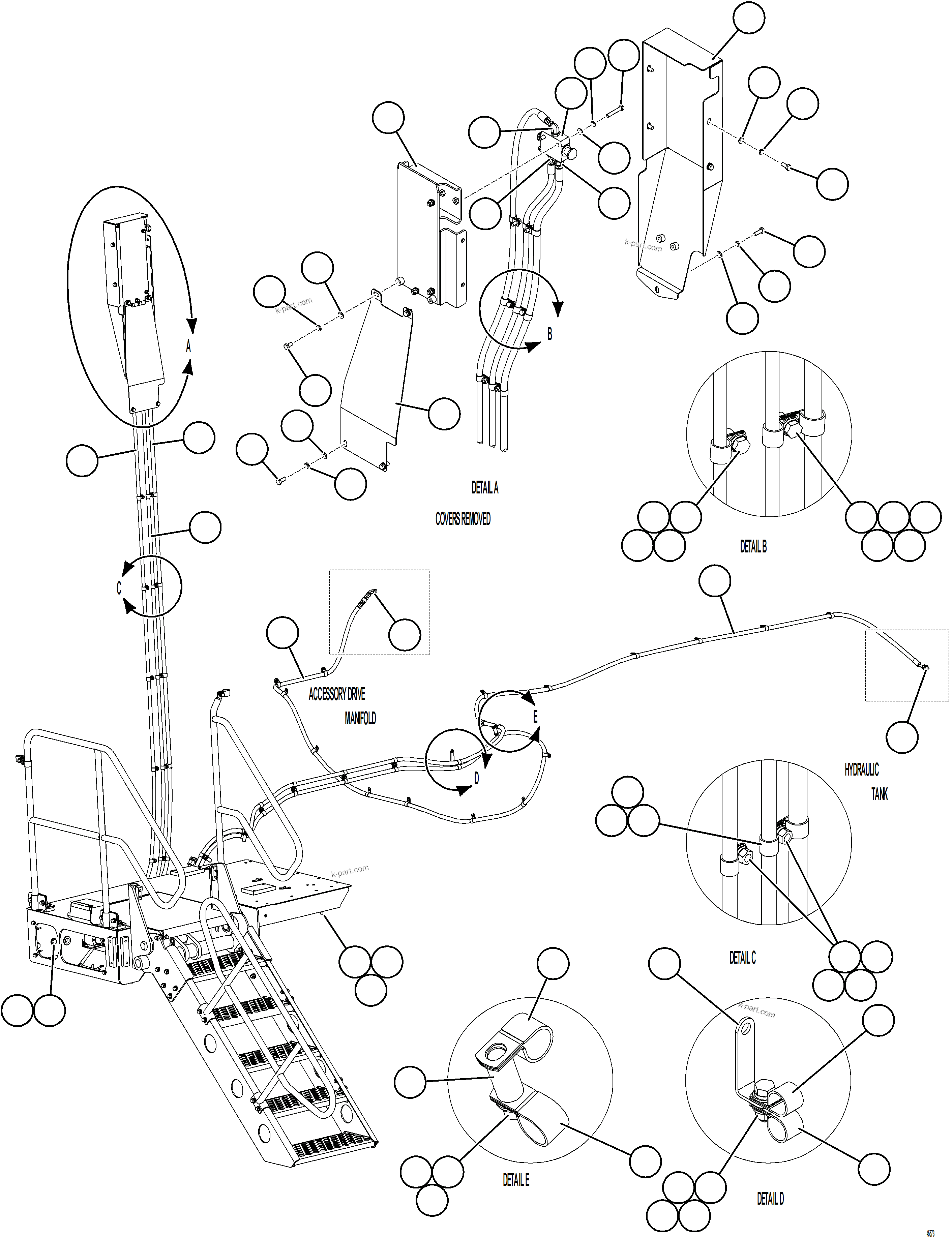

RETRACTABLE LADDER HYDRAULICS | AFE84-R 730E-10 S/N A50056 - A50058 KSA

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE84-R 730E-10 S/N A50056 - A50058 KSA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58E-60-10550	HOSE (TO CYLINDER ASSEMBLY)	1
?	HA8868	HOSE (TO LADDER VALVE MANIFOLD)	1
?	HA8866	HOSE (TO LADDER VALVE MANIFOLD)	1
?	58D-60-80590	HOSE (TO ACCUMULATOR MANIFOLD)	1
?	58D-60-80530	HOSE (TO HYDRAYLIC TANK)	1
?	58D-90-10100	BRACKET	1
?	58D-90-10071	PLATE	1
?	MM0461	FLAT WASHER - M10	47
?	MM0471	LOCKWASHER - M10	45
?	MM0604	CAPSCREW - M10 X 1.50 X 20	2
?	MM0605	CAPSCREW - M10 X 1.50 X 25	13
?	WB3922	CLAMP, CUSHIONED - 11/16"	20
?	WB3855	CLAMP, CUSHIONED - 13/16"	24
?	58D-60-80220	VALVE, DIRECTIONAL	1
?	MM0611	CAPSCREW - M10 X 1.50 X 60	2
?	58D-90-10120	COVER	1
?	MM0606	CAPSCREW - M10 X 1.50 X 30	2
?	MM0178	NUT - M10 X 1.50	28
?	EM8447	PLATE, BENT	1
?	WB3092	CLAMP, CUSHIONED - 7/8"	18
?	TY8375	SPACER	3
?	58D-54-10690	FITTING, STRAIGHT	1
?	WB0506	FITTING, ELBOW - 90 DEG	1
?	WB0537	FITTING, ELBOW - 45 DEG	1
?	WB0582	FITTING, STRAIGHT	1
?	WB0583	FITTING, STRAIGHT	1
?	MM0071	CAPSCREW - M16 X 2.00 X 45	4
?	58E-09-00400	FLAT WASHER, HARDENED - M16	4
?	MM0619	CAPSCREW - M12 X 1.75 X 35	2
?	MM0462	FLAT WASHER - M12	4
?	MM0179	NUT - M12 X 1.75	2
