WA800-8E0 S/N 84001-UP

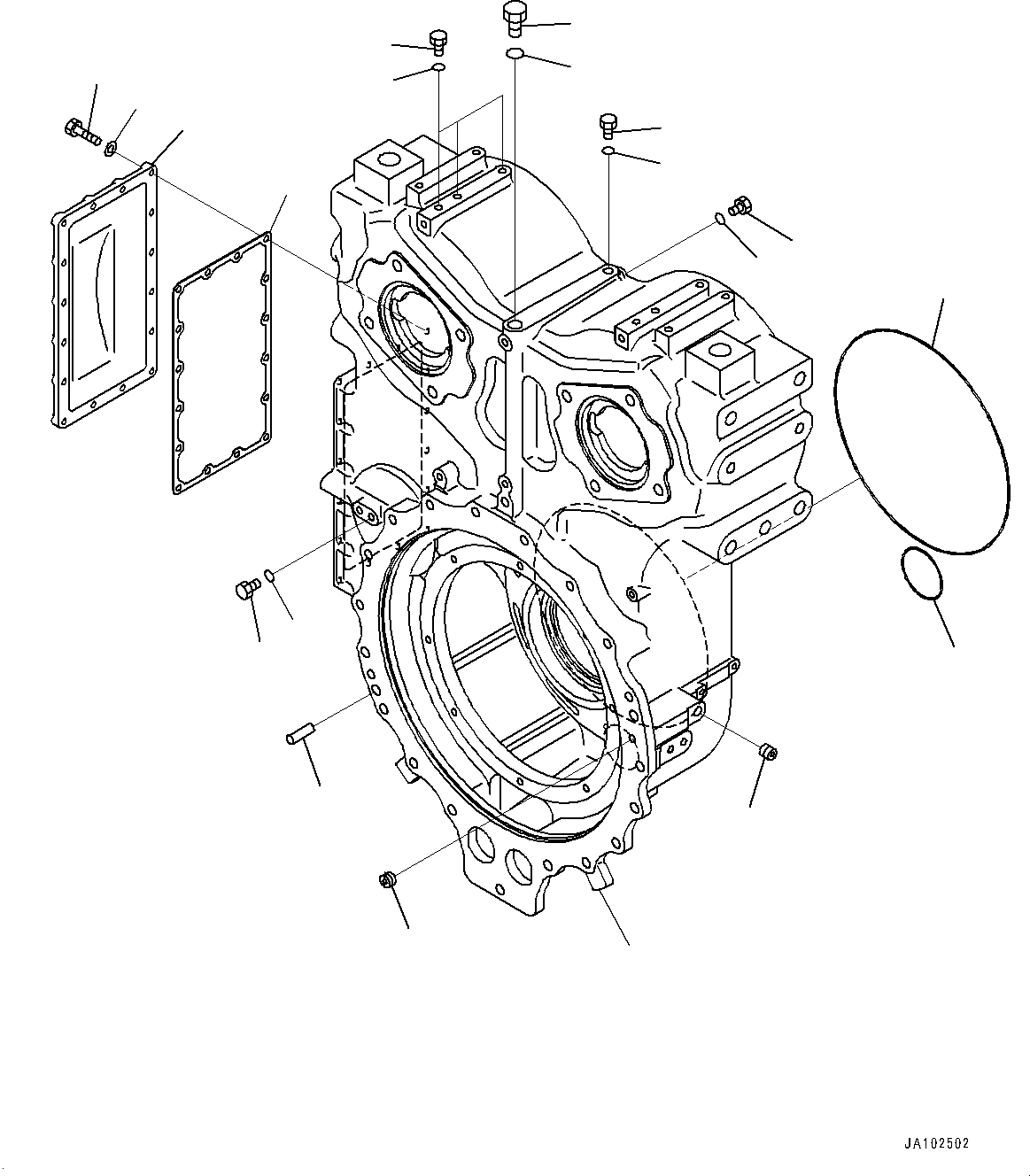

Komatsu parts book diagram for WA800-8E0 S/N 84001-UP: TORQUE CONVERTER AND TRANSMISSION, TORQUE CONVERTER CASE (2/2)(#83001-)

1 6 2 3 12 11 11 12 14 15 13 16 16 15 4 5 7 8 9 10

	#	Part Number	Partname	Quantity	Options	Reference
	\|$0	427-13-30000	Torque Converter and Transmission Assembly	1	SN: 83001-UP
	\|$1	427-13-31000	Torque Converter Assembly	1	SN: 83001-UP
	1	427-13-35111	Case	1	SN: 83001-UP
	2	427-13-35950	Orifice	1	SN: 83001-UP
	3	7720-30-2660	Screw, Set	1	SN: 83001-UP
	4	07000-75405	O-ring, (Kit : K01)	1	SN: 83001-UP
	5	07000-72095	O-ring, (Kit : K01)	1	SN: 83001-UP
	6	04020-01842	Pin, Dowel	1	SN: 83001-UP
	7	427-13-35270	Cover	1	SN: 83001-UP
	8	427-13-35280	Gasket, (Kit : K01)	1	SN: 83001-UP
	9	01010-81035	Bolt	16	SN: 83001-UP
	10	01643-31032	Washer	16	SN: 83001-UP
	11	07040-11007	Plug	7	SN: 83001-UP
	12	07002-61023	O-ring, (Kit : K01)	7	SN: 83001-UP
	13	07040-12012	Plug	1	SN: 83001-UP
	14	07002-62034	O-ring, (Kit : K01)	1	SN: 83001-UP
	15	07040-11409	Plug	2	SN: 83001-UP
	16	07002-61423	O-ring, (Kit : K01)	2	SN: 83001-UP

Komatsu WA800-8E0 S/N 84001-UP parts catalog PDF

TORQUE CONVERTER AND TRANSMISSION, TORQUE CONVERTER CASE (2/2)(#83001-) (F4320-002003) in WA800-8E0 S/N 84001-UP. Diagram image and parts list.
