WA800-8E0 S/N 84001-UP

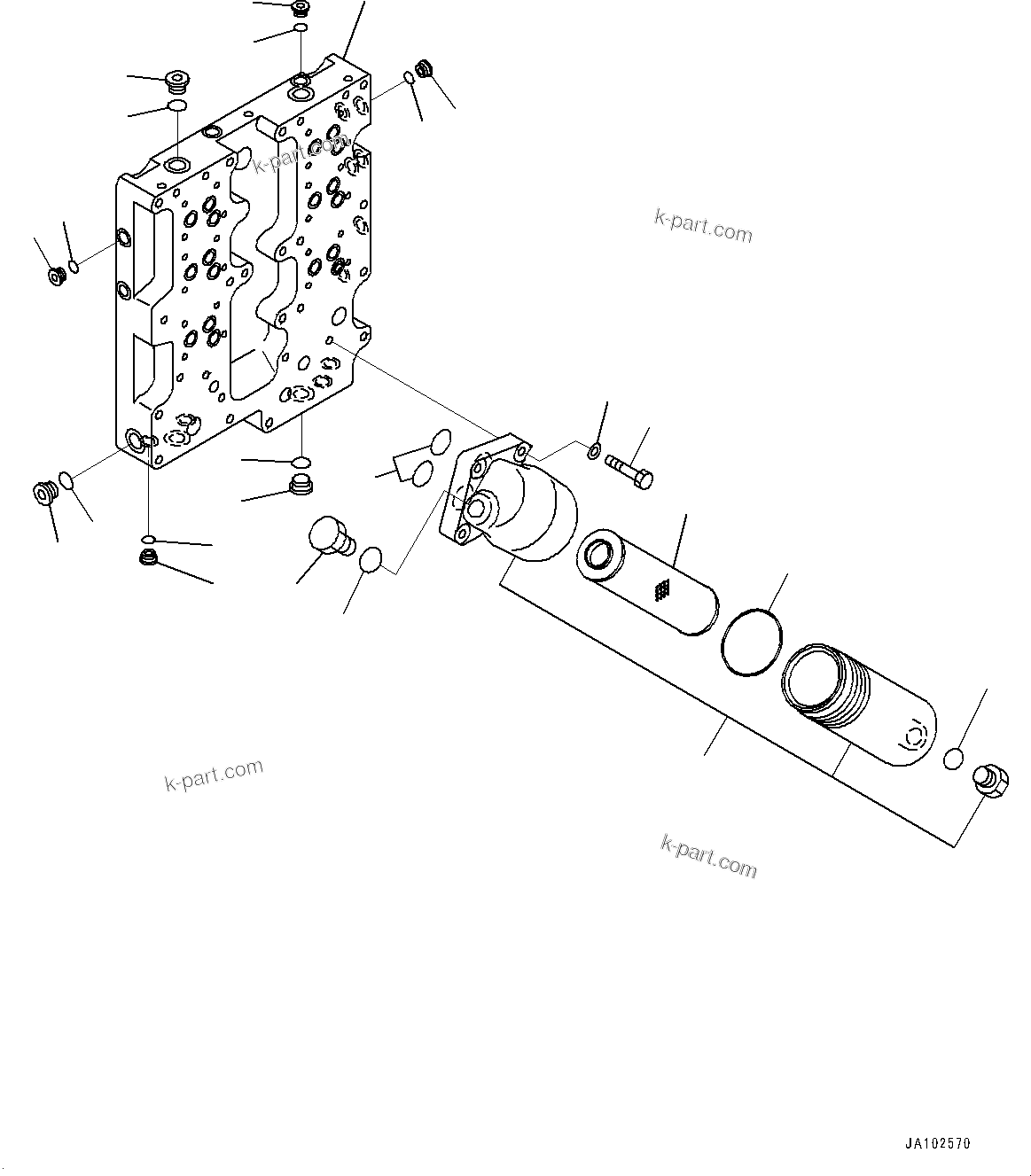

Komatsu parts book diagram for WA800-8E0 S/N 84001-UP: TORQUE CONVERTER AND TRANSMISSION, TRANSMISSION CONTROL VALVE, SEAT(#83001-)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	427-13-30000	Torque Converter and Transmission Assembly	1	SN: 83001-UP
	?	427-15-31000	Transmission Assembly	1	SN: 83001-UP
	?	427-15-35001	Valve Assembly, Control	1	SN: 83001-UP
	?	427-15-35131	Seat, Valve	1	SN: 83001-UP
	?	720-2M-11550	Plug	5	SN: 83001-UP
	?	07002-62034	O-ring, (Kit : K04)	5	SN: 83001-UP
	?	723-11-15110	Plug	14	SN: 83001-UP
	?	07002-61623	O-ring, (Kit : K04)	14	SN: 83001-UP
	?	561-15-55650	Filter Assembly	1	SN: 83001-UP
	?	170-09-17130	O-ring, (Kit : K04)	1	SN: 83001-UP
	?	07000-12080	O-ring, (Kit : K04)	1	SN: 83001-UP
	?	561-15-55660	Filter	1	SN: 83001-UP
	?	07040-11812	Plug	1	SN: 83001-UP
	?	07002-61823	O-ring, (Kit : K04)	1	SN: 83001-UP
	?	07000-73028	O-ring, (Kit : K04)	2	SN: 83001-UP
	?	01010-81045	Bolt	2	SN: 83001-UP
	?	01643-31032	Washer	2	SN: 83001-UP

Komatsu WA800-8E0 S/N 84001-UP parts catalog PDF

TORQUE CONVERTER AND TRANSMISSION, TRANSMISSION CONTROL VALVE, SEAT(#83001-) (F4320-002024) in WA800-8E0 S/N 84001-UP. Diagram image and parts list.
