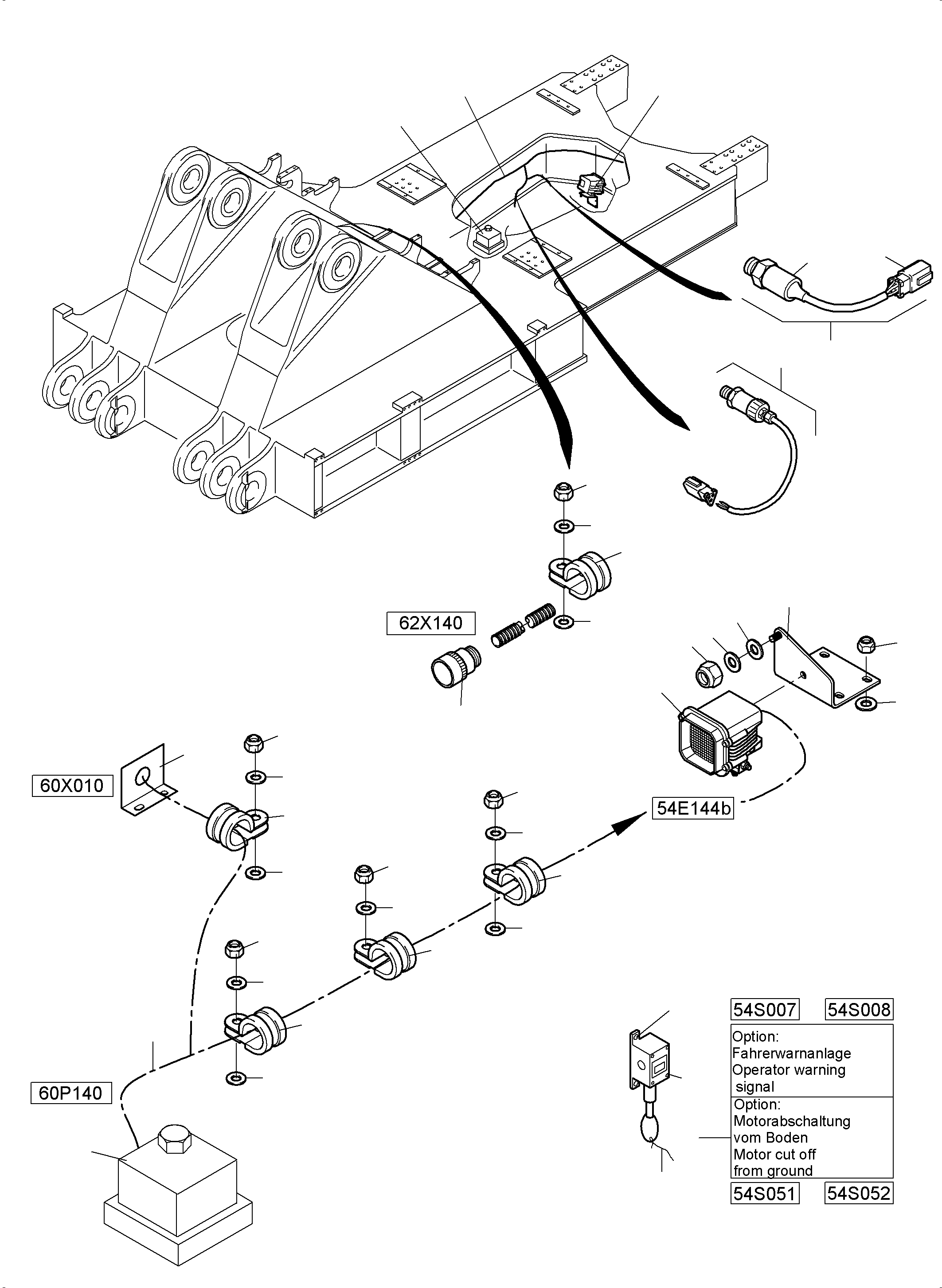

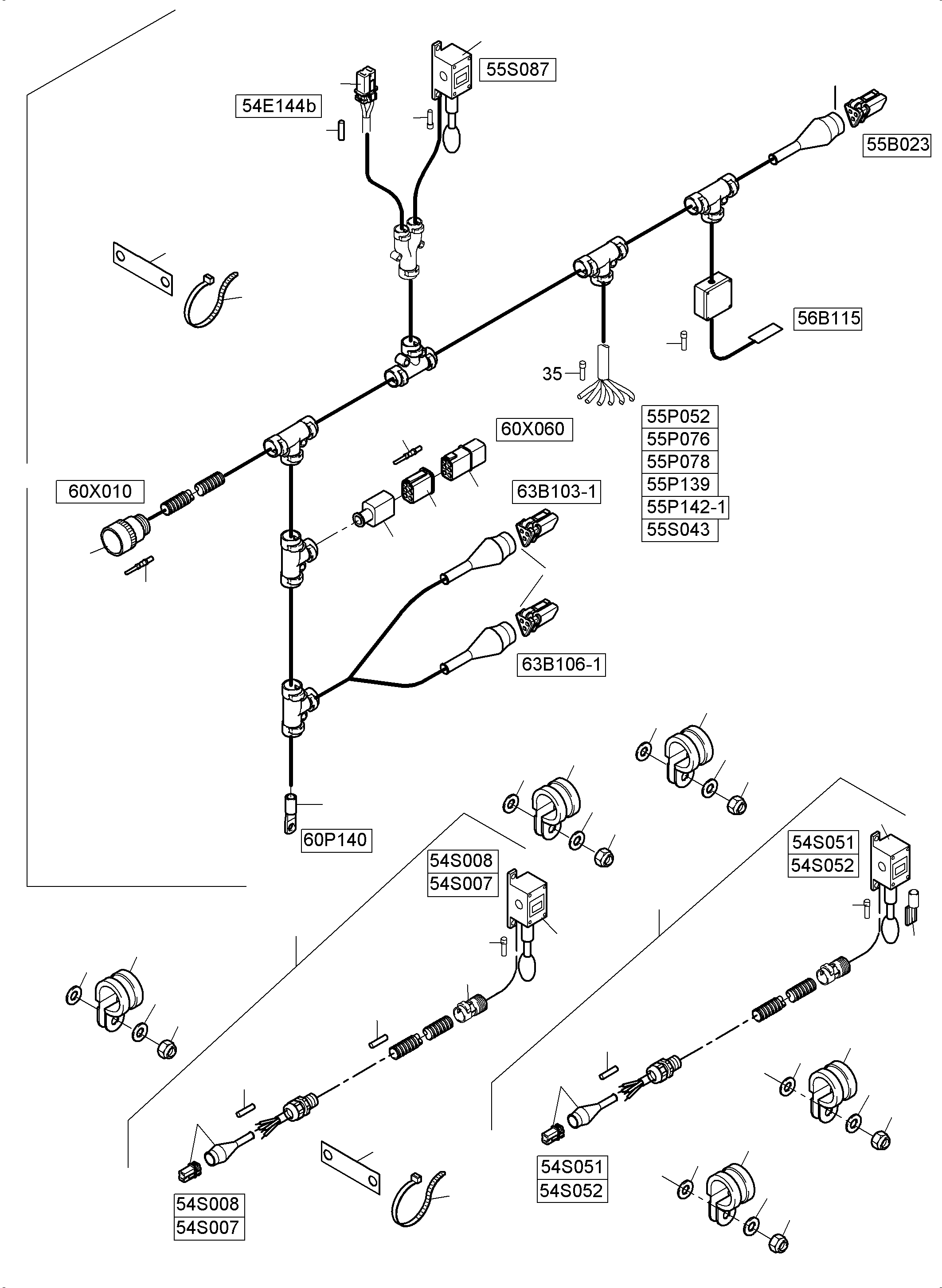

ELECT. PARTS - MOVEM. SIGNAL / MOTOR SWITCH-OFF / WARNING SYSTEM ASSY. | PC4000-6 S/N 08239

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity
01	979 814 40	Harness Movement signal/refueling arm	1
02	938 318 40	Level probe assy.	1
03	896 746 40	Horn	1
04	948 816 40	Plate	1
05	975 564 40	Retainer	1
06	950 737 40	Head light assy.	1
07	950 280 40	Sensor with cable and plug	1
08	0443451210	Clip Ш 12	13
09	0443451510	Clip Ш 15	26
10	0443451910	Clip Ш 19	13
11	0443452711	Clip Ш 27	7
12	0443453211	Clip Ш 32	1
13	332 113 99	Nut	46
14	518 547 98	Lock washer	51
15	332 197 99	Nut	4
16	507 596 98	Washer	42
17	944 019 40	Sealing plug	1
21	950 112 40	Plug	1
22	56B0611510	Socket	1
23	966 667 40	Plug assy. with rubber grommet	1
24	955 627 40	Plug assy.	3
25	950 951 40	Plug	1
26	255 680 40	Pull switch	3
27	950 940 40	Protective cover	1
28	950 132 40	Protection cap	1
29	0819105320	Pin contact	22
30	621 698 40	Contact plug 1-2 qmm	2
31	0819105420	Female contact	5
32	621 699 40	Female contact 1-2 qmm	1
33	940 852 40	Plug	7
34	907 641 40	Wire end ferrule	4
35	056 070 40	Cable sleeve 1,0-1,5	28
36	055 104 40	Cable lug 1,5	2
37	896 520 40	End pin	6
38	941 777 40	Plate	11
39	174 411 40	Cable strap	22
41	950 346 40	Level probe	1
42	955 670 40	Plug	1
45	979 852 40	Harness Movement signal 54S007	1
46	979 853 40	Harness Movement signal 54S008	1
47	472 688 99	Chain	4
48	098 955 40	Ring	4
49	0819320010	Clip	4
50	0443452110	Clip Ш 21,5	1
51	507 037 98	Nut	22
52	340 465 99	Washer	22
53	319 171 99	Bolt	16
54	340 459 99	Washer	16
61	0819216810	Socket assy.	4
62	0819100770	Sealing plug	10
63	907 972 40	Union	1
65	979 850 40	Harness engine shut-off device 54S051	1
66	979 851 40	Harness engine shut-off device 54S052	1
67	044 345 27 10	Clip Ш 27	1
70	947 400 40	Pull switch	2
71	055 103 40	Cable shoe	8
