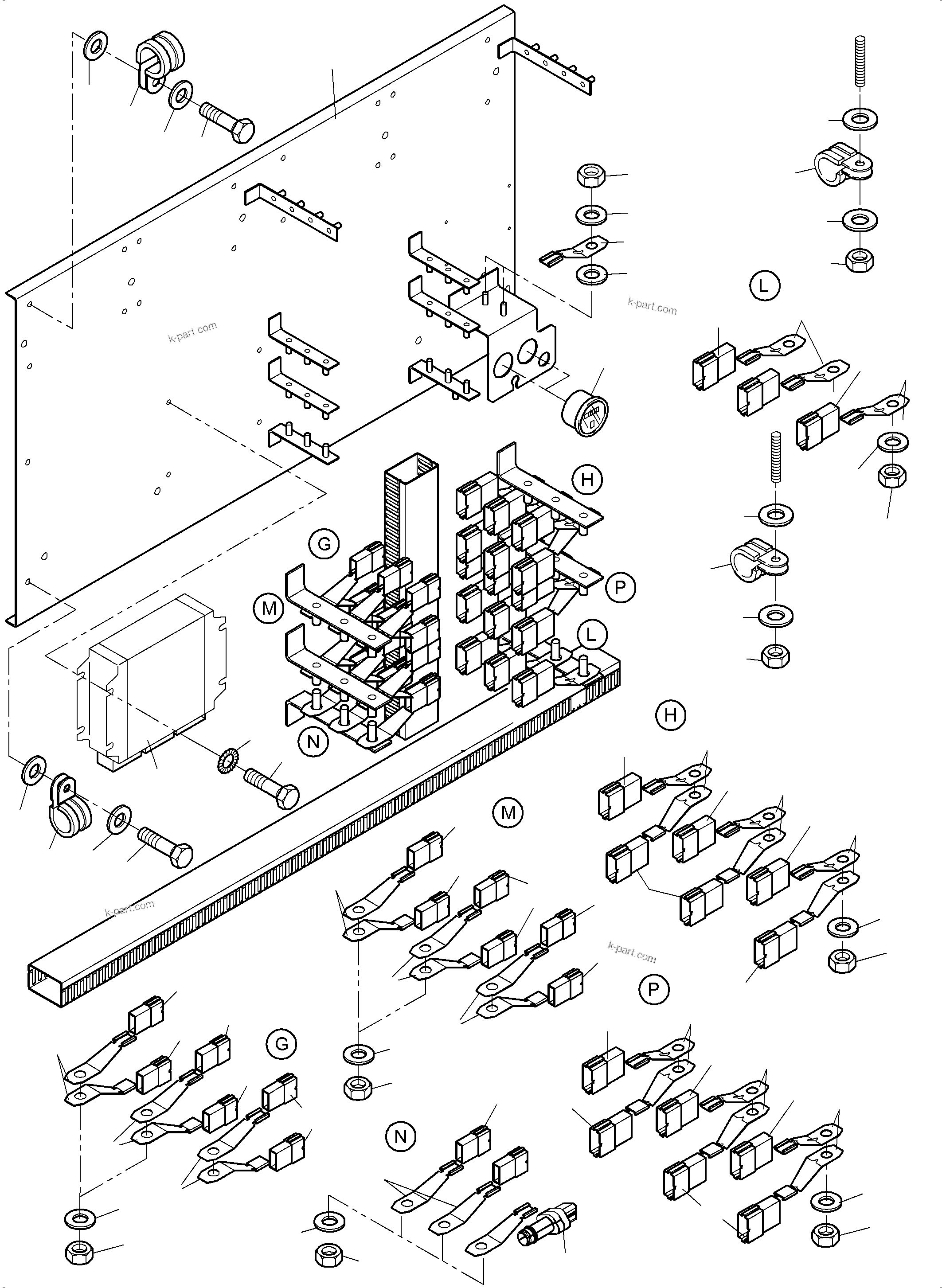

Diagram image 1 of 2

PC4000-6 S/N 08239

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 08239

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	975 700 40	Controller plate	1
?	7835712000	Controller	3
?	7835711000	Controller	1
?	7826531101	Controller	1
?	896 716 40	Hour meter	2
?	950 865 40	Socket	17
?	950 869 40	Socket	2
?	950 938 40	Socket	9
?	56B0611510	Socket	4
?	56B0611540	Socket	1
?	56B0611530	Socket	2
?	950 866 40	Socket	2
?	950 939 40	Socket	1
?	960 642 40	Socket assy. with protective housing	2
?	950 867 40	Socket	1
?	941 144 40	End resistor	1
?	507 596 98	Washer	27
?	0819320010	Clip	43
?	340 465 99	Washer	27
?	507 037 98	Nut	27
?	519 182 98	Wiring channel	-2
?	518 546 98	Lock washer	16
?	224 320 99	Screw	16
?	081 933 00 10	Clip	2
?	2086238370	Clamp ш 60	2
?	950 933 40	Socket	1
?	0443453211	Clamp ш 32	1
?	518 594 98	Lock washer	4
?	307 629 99	Bolt	4
?	340 111 99	Washer	2
?	518 200 98	Lock washer	2
?	512 857 98	Bolt	2
?	942 142 40	Controller	1
?			-2

Komatsu PC4000-6 S/N 08239 parts catalog PDF

CONTROLLER-CAB SUPPORT-LOCATION 14 (359-2260a) in PC4000-6 S/N 08239. Diagram image and parts list.
