TRACK GROUP - DRIVE SPROCKET SIDE, R.H. AND L.H. | PC8000-1E S/N 12024

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

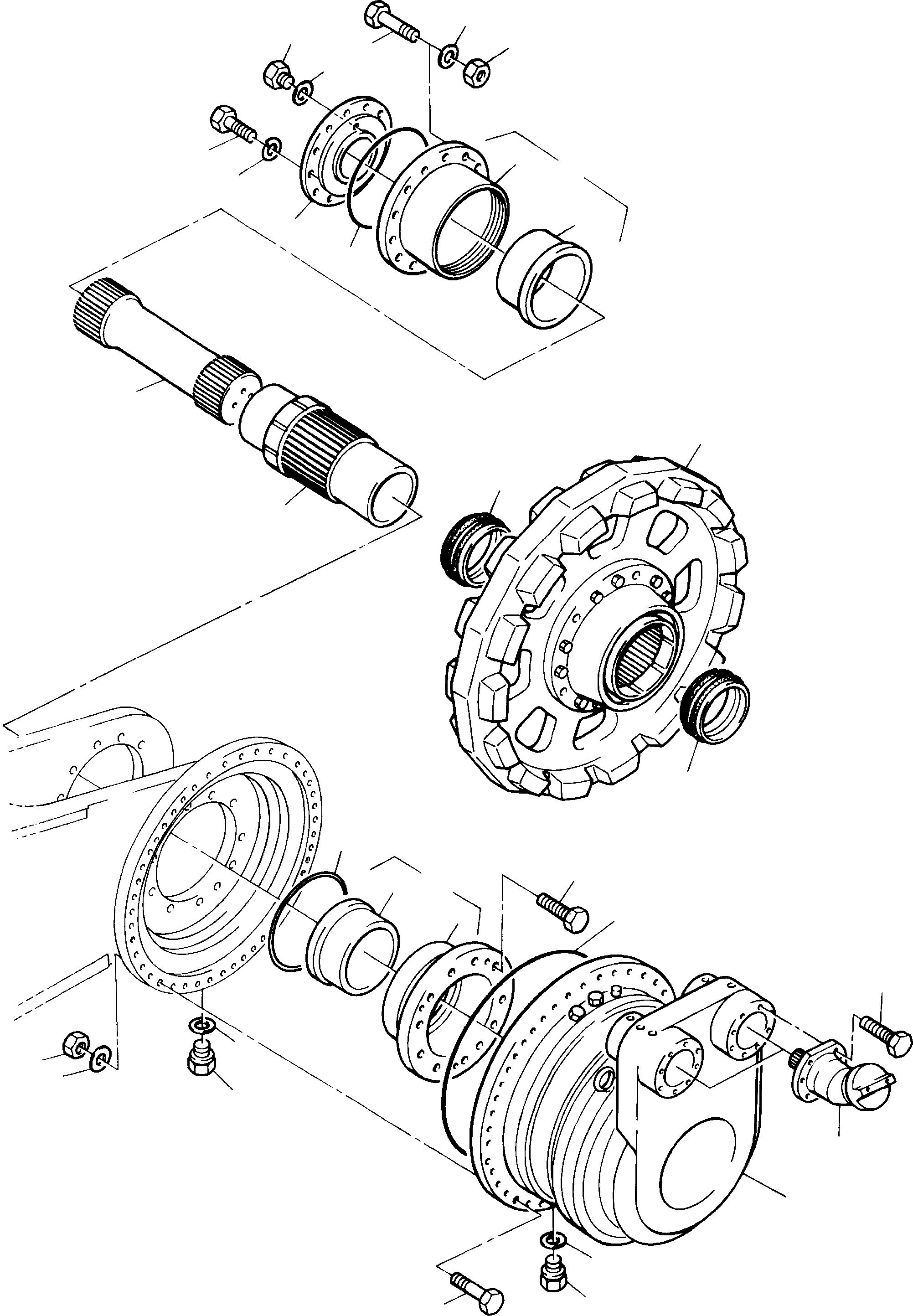

Diagram image 1 of 2

PC8000-1E S/N 12024

01 02 02 03 04 05 06 07 07 08 09 10 11 12 13 14 15 16 19 19 20 20 21 22 23 24 25 26 27 28 29 30 31

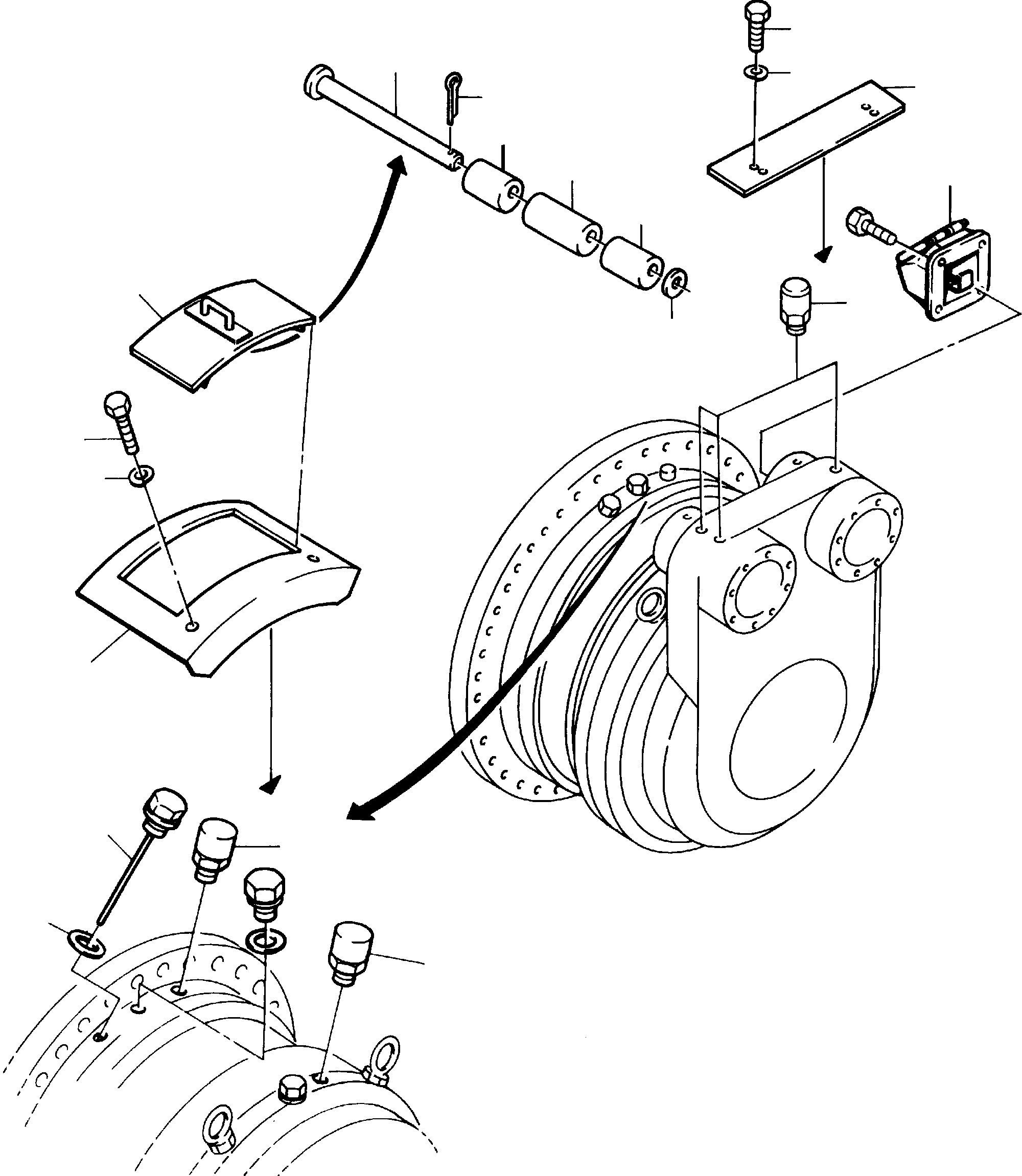

PC8000-1E S/N 12024

40 41 42 42 42 45 46 47 48 49 50 51 51 52 53 54 55 56 57

#	Part Number	Partname	Quantity	Reference
\|$1		Graphic 1	-1
01		Drive sprocket	2	112-3125f
02	358 603 40	Lifetime seal	4
03	313 346 40	Sleeve shaft	2
04	429 246 40	Drive shaft	2
05	313 355 40	Bearing, assy.	2
06	429 650 40	Bearing	2
07	429 649 40	Freeze-in bush	4
08	501 132 98	Nut	24
09	255 057 40	Washer	24
10	501 131 98	Bolt	24
11	504 347 98	O-ring	2
12	429 270 40	Bearing cap	2
13	343 817 99	Lock washer	24
14	429 266 40	Bolt	8
15	339 907 99	Seal ring	4
16	313 267 99	Plug	1
19	501 532 98	Plug	4
20	339 796 99	Seal ring	4
21	505 111 98	O-ring	2
22	313 356 40	Bearing, assy.	2
23	429 651 40	Bearing	2
24	504 384 98	Bolt	24
25	504 850 98	O-ring	2
26		Travelling gear	2	090-0909
27	504 389 98	Nut	88
28	501 716 98	Washer	88
29	504 385 98	Bolt	88
30		Travelling gear motor	4	991-0080
31	500 536 98	Bolt	32
\|$31		Graphic 2	-1
40	339 907 99	Seal	2
41	365 591 40	Oil dip stick	2
42	323 460 40	Vent valve	10
45	519 520 40	Protecting plate	2
46	426 010 40	Cover	2
47	308 887 99	Bolt	4
48	340 470 99	Washer	4
49	504 730 98	Pin	2
50	342 061 99	Cotter pin	2
51	390 600 40	Bush	4
52	390 601 40	Bush	2
53	340 612 99	Washer	2
54	519 517 40	Cover	2
55	307 777 99	Bolt	8
56	346 500 99	Lock washer	8
57	576 164 40	Operation meter	1
