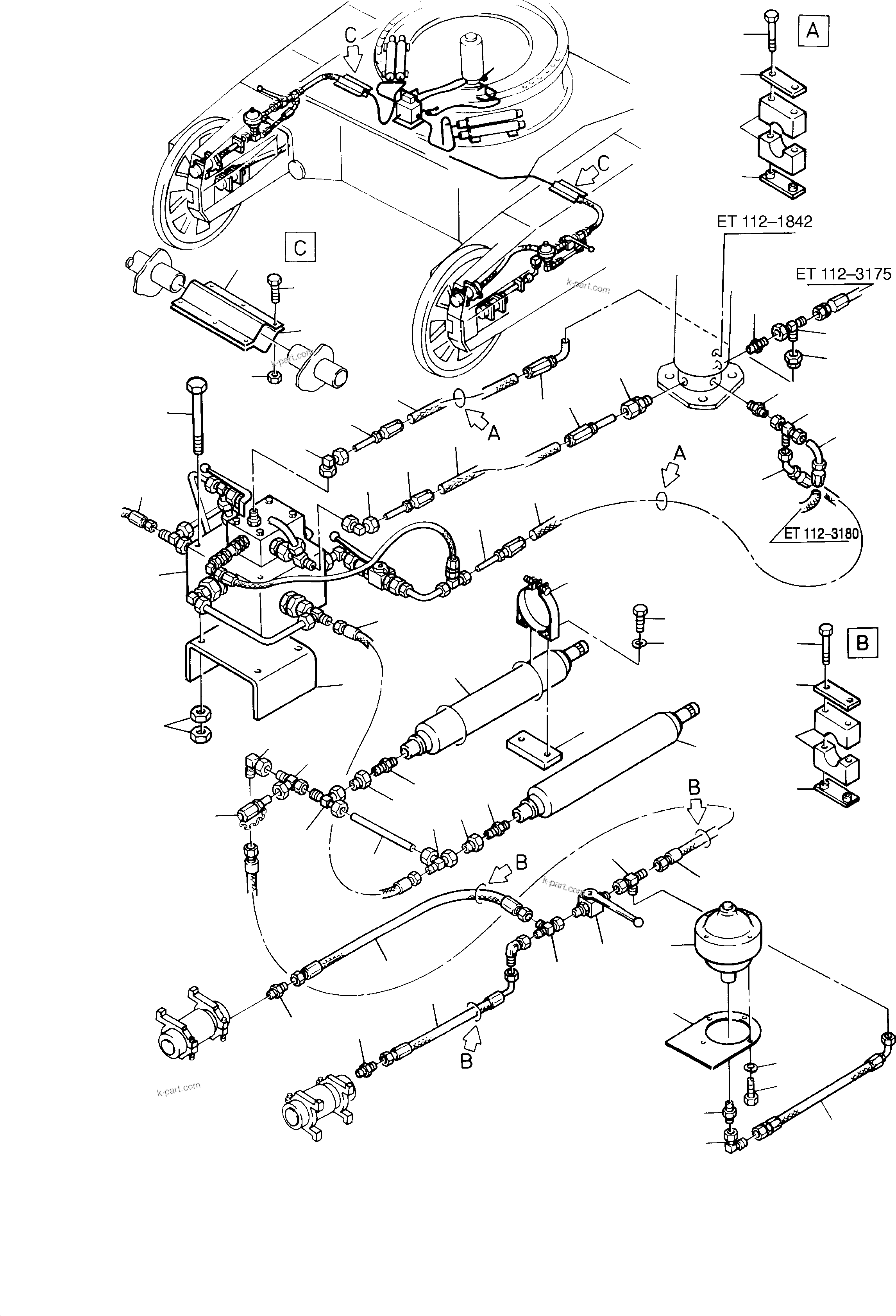

HYDRAULIC TRACK ADJUSTER | PC8000-1E S/N 12024 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC8000-1E S/N 12024

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?		Valve block	1	114-3190a
?	462 811 40	Retainer	1
?	308 433 99	Bolt	4
?	332 200 99	Nut	20
?	372 173 99	Union	1
?	269 972 40	Hose fittings	2
?	255 007 40	Hose DN 12 Bulk ware, state length required	-2
?	414 222 40	Hose fittings	2
?	372 915 99	Union	1
?	371 957 99	Union	1
?	374 431 99	Nut	1
?	370 506 99	Union	5
?	461 929 40	Hose fittings	2
?	323 634 40	Hose DN 16 Bulk ware, state length required	-2
?	372 185 99	Union	5
?	324 612 40	Hose fittings	1
?	374 407 99	Socket	1
?	371 954 99	Union	1
?	462 808 40	Hose assy. DN 16x610 lg.	2
?	004 132 98	Test socket	2
?	374 419 99	Socket	4
?	372 981 99	Union	4
?	372 133 99	Union	2
?	371 977 99	Union	8
?	490 610 40	Hose assy. DN 16x4600 lg.	2
?	307 804 99	Bolt	12
?	519 583 40	Roof protection arr.	4
?	534 002 99	Weld on plate	4
?	502 655 98	Half clamp	4
?	534 001 99	Cover plate	4
?	308 579 99	Bolt	8
?	502 682 98	Half clamp	4
?	489 251 40	Thread plate	8
?	323 992 40	Clamp	8
?	307 750 99	Bolt	16
?	343 094 99	Lock washer	16
?	566 513 40	Retainer	2
?	307 752 99	Bolt	8
?	374 418 99	Socket	2
?	551 715 40	Hose assy. DN 16x390 lg.	2
?	461 133 40	Ball cock	2
?	462 806 40	Hose assy. DN 16x1540 lg.	2
?	462 805 40	Hose assy. DN 16x1260 lg.	2
?	215 219 99	Pipe Ш 20x60 lg. Bulk ware, state length required	2
?		Accumulator	4
?		Diaphragm-type accumulator	2
