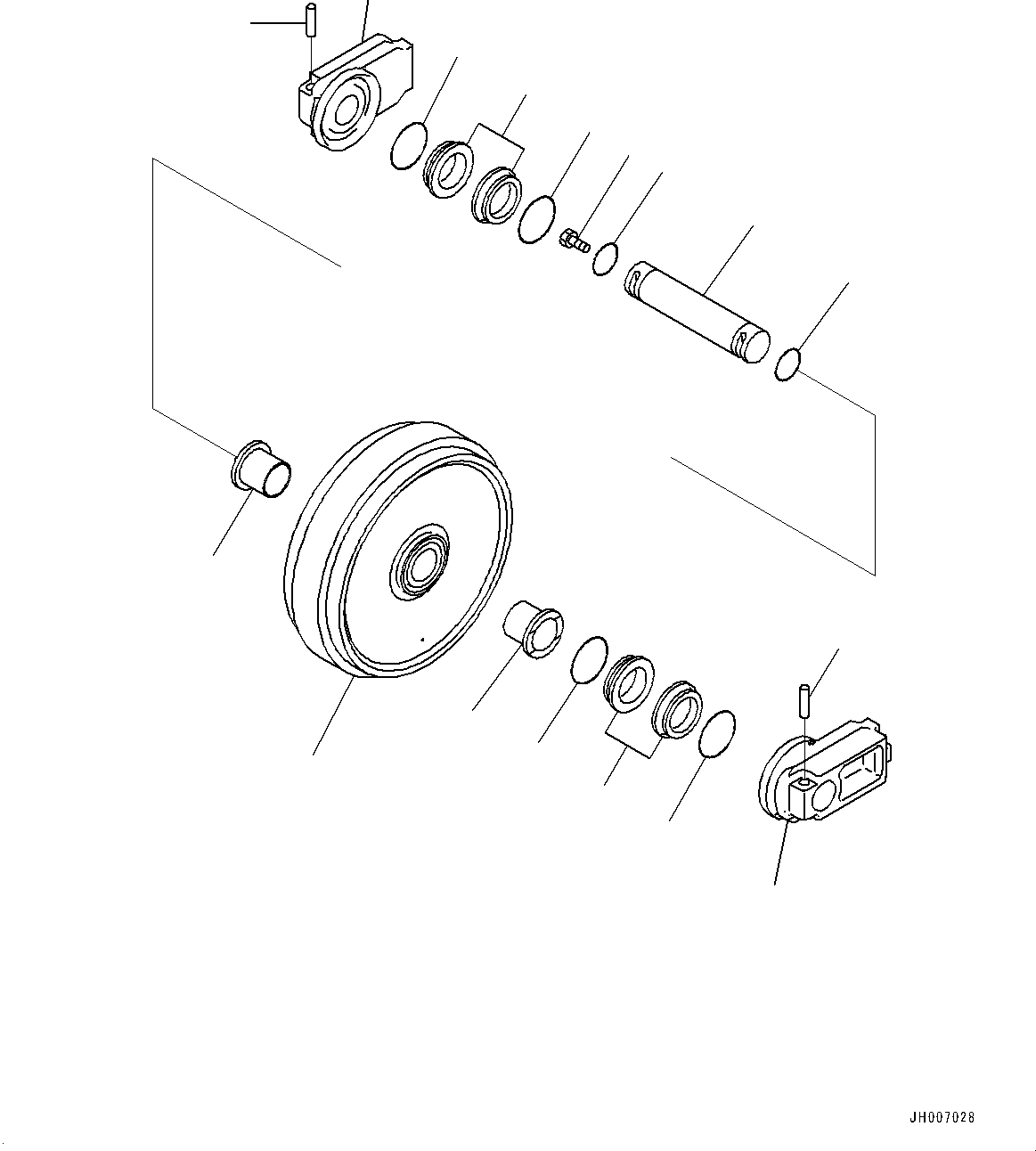

Komatsu parts book diagram for PC170LC-11 S/N 37001-UP: FRONT IDLER AND IDLER CUSHION, FRONT IDLER(#35001-)

5 6 7 8 9 2 2 3 4 5 1 7 7 7 6 9 8

	#	Part Number	Partname	Quantity	Options	Reference
	\|$0	20Y-30-00643	Idler Assembly	2	SN: 36798-UP
	\|$1	20Y-30-00642	Idler Assembly	2	SN: 35338-36797 \| SCC: A1
	\|$2	20Y-30-00641	Idler Assembly	2	SN: 35001-35337 \| SCC: A2
	1	20Y-30-43310	Idler	1	SN: 35001-UP
	2	20Y-30-43341	Bushing	2	SN: 35338-UP
	\|$5	20Y-30-43340	Bushing	2	SN: 35001-35337 \| SCC: A2
	3	20Y-30-13131	Shaft	1	SN: 35001-UP
	4	07052-31624	Plug	1	SN: 35001-UP
	5	07000-12060	O-ring	2	SN: 35001-UP
	\|$9	20Y-30-01160	Seal Ring Assembly	2	SN: 36798-UP
	\|$10	20Y-30-00710	Floating Seal Assembly	2	SN: 35001-36797 \| SCC: A1
	6		Seal	2	SN: 36798-UP \| SCC: C1
	\|$12		Seal	2	SN: 35001-36797 \| SCC: C1
	7		O-ring	2	SN: 35001-UP \| SCC: C1
	8	20Y-30-31650	Support	2	SN: 35001-UP
	9	205-30-76190	Pin	2	SN: 35001-UP
	\|$16		[A1]-This part and the part specified in the line immediately above are interchangeable.	-1	SN: UP
	\|$17		[A2]-The part specified in the line above can be used instead of this part.	-1	SN: UP
	\|$18		[C1]-This part cannot be supplied as an individual part. It is supplied as an assembly.	-1	SN: UP

Komatsu PC170LC-11 S/N 37001-UP parts catalog PDF

FRONT IDLER AND IDLER CUSHION, FRONT IDLER(#35001-) (R0110-001001) in PC170LC-11 S/N 37001-UP. Diagram image and parts list.
