D61PX-24 S/N 48001-UP

2 20 17 18 19 21 22 23 25 3 11 12 15 14 13 5 6 4 10 9 1 7 8 29 16 28 26 27 2 2 24

#	Part Number	Partname	Quantity	Options
\|$0	720-2G-00013	Pump Assembly	1	SN: 46308-46683
\|$1	720-2G-00012	Pump Assembly	1	SN: 45067-46307 \| SCC: B1
\|$2	720-2G-00011	Pump Assembly	1	SN: 40387-45066 \| SCC: A2
\|$3	720-2G-00010	Pump Assembly	1	SN: 40001-40386 \| SCC: A2
\|$4		Pump Subassembly	1	SN: 46308-46683 \| SCC: C1
\|$5		Pump Subassembly	1	SN: 45067-46307 \| SCC: C1
\|$6		Pump Subassembly	1	SN: 40387-45066 \| SCC: C1
\|$7	720-2G-01010	Pump Subassembly	1	SN: 40001-40386 \| SCC: C2
\|$8	720-2G-03110	Valve Assembly, Servo, Rear	1	SN: 40001-46683 \| SCC: C2
\|$9		Piston Assembly	1	SN: 40001-46683 \| SCC: C1
1		Piston	1	SN: 40001-46683 \| SCC: C1
2		Plug	10	SN: 40001-46683 \| SCC: C1
3	720-2L-14120	Spool	1	SN: 40001-46683 \| SCC: C2
4	720-2M-14550	Retainer	1	SN: 40001-46683 \| SCC: C2
5	720-2M-14560	Retainer	1	SN: 40001-46683 \| SCC: C2
6	720-2G-14130	Spring	1	SN: 40001-46683 \| SCC: C2
7	723-11-17150	Washer	1	SN: 40001-46683 \| SCC: C2
8	01252-60612	Bolt, Hexagon Socket Head	1	SN: 40001-46683 \| SCC: C2
9	720-2M-14581	Sleeve	1	SN: 40001-46683 \| SCC: C2
10	07000-B3032	O-ring	1	SN: 40001-46683 \| SCC: C2
11	720-2M-14590	Plug	1	SN: 40001-46683 \| SCC: C2
12	07000-B3024	O-ring	1	SN: 40001-46683 \| SCC: C2
13	720-2M-14610	Plug	1	SN: 40001-46683 \| SCC: C2
14	07000-B2012	O-ring	1	SN: 40001-46683 \| SCC: C2
15	720-2G-14140	Screw	1	SN: 40001-46683 \| SCC: C2
16	01582-11210	Nut	1	SN: 40001-46683 \| SCC: C2
17	720-2M-14630	Retainer	2	SN: 40001-46683 \| SCC: C2
18	720-2M-14640	Plug	1	SN: 40001-46683 \| SCC: C2
19	720-2G-14150	Rod	1	SN: 40001-46683 \| SCC: C2
20	07000-B2010	O-ring	1	SN: 40001-46683 \| SCC: C2
21	720-2L-14130	Retainer	1	SN: 40001-46683 \| SCC: C2
22	720-2G-14160	Spring	1	SN: 40001-46683 \| SCC: C2
23	720-2L-14140	Retainer	1	SN: 40001-46683 \| SCC: C2
24	720-2G-14170	Washer	1	SN: 40001-46683 \| SCC: C2
25	720-2G-14180	Ring, Snap	1	SN: 40001-46683 \| SCC: C2
26	01582-11210	Nut	1	SN: 40001-46683 \| SCC: C2
27	720-2G-14190	Cover	1	SN: 40001-46683 \| SCC: C2
28	720-2M-14170	Screw	1	SN: 40001-46683 \| SCC: C2
29	07000-B1010	O-ring	1	SN: 40001-46683 \| SCC: C2
\|$39		[A2]-The part specified in the line above can be used instead of this part.	-1	SN: UP
\|$40		[B1]-This shows discontinued part. The part specified in the above line is supplied instead.	-1	SN: UP
\|$41		[C1]-This part cannot be supplied as an individual part. It is supplied as an assembly.	-1	SN: UP
\|$42		[C2]-This part is supplied for authorized Komatsu distributors only. It cannot be supplied as an individual part. It is supplied as an assembly.	-1	SN: UP

Komatsu D61PX-24 S/N 48001-UP parts catalog PDF

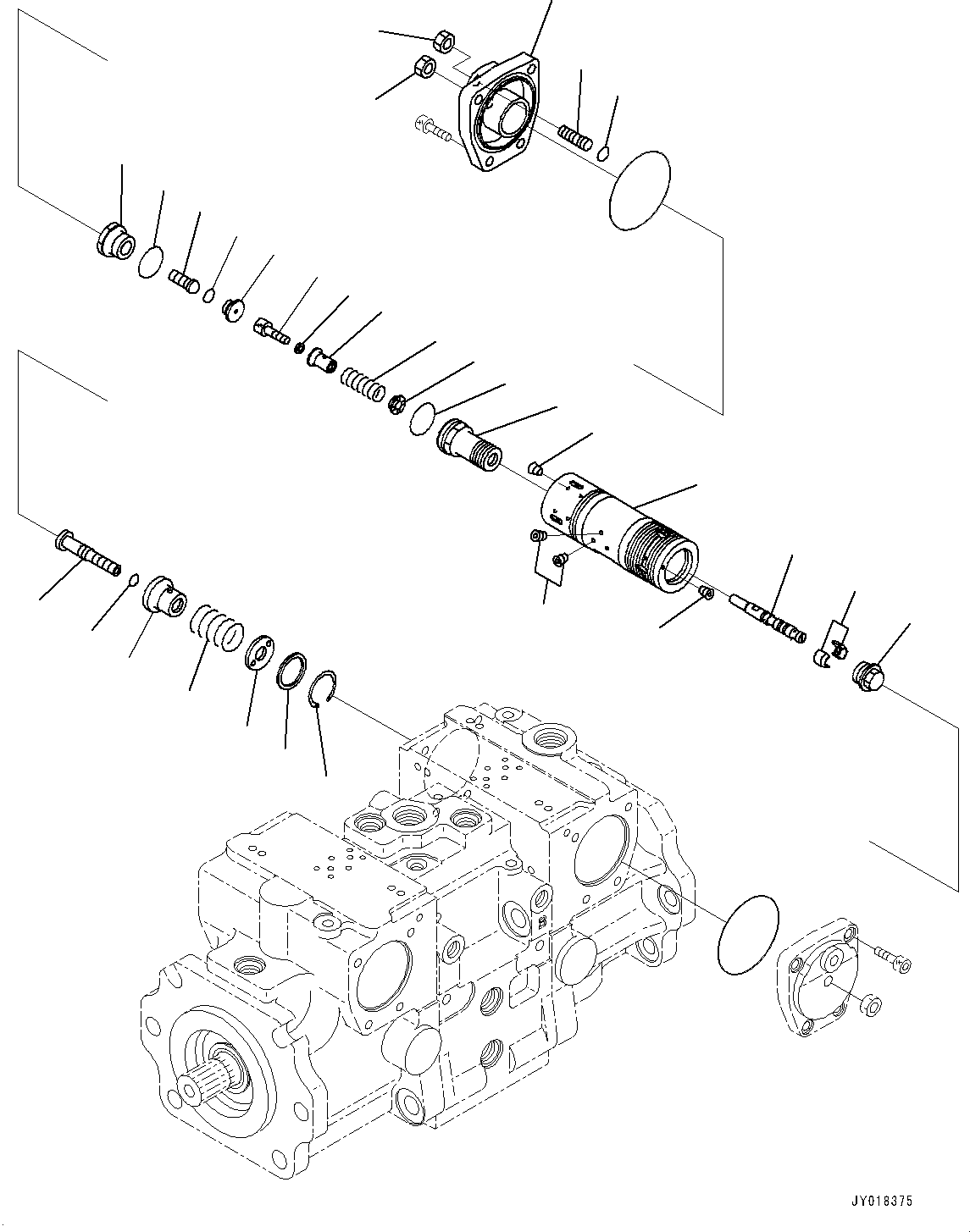

HYDRAULIC PUMP, HST PUMP (8/11)(#40001-46683) (H0210-001008) in D61PX-24 S/N 48001-UP. Diagram image and parts list.
