HD785-7 S/N 37001-UP

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	561-13-70012	TORQFLOW Assembly	1	SN: (113580)-UP
?	561-13-70011	TORQFLOW Assembly	1	SN: 33227-(113579) \| SCC: A2
?	561-13-70010	TORQFLOW Assembly	1	SN: 30001-33226 \| SCC: B1
?	561-15-72011	Transmission Assembly	1	SN: (113580)-UP
?	561-15-72010	Transmission Assembly	1	SN: 30001-(113579) \| SCC: A2
?	561-15-52671	Drum	1	SN: 30001-UP
?	561-15-71211	Housing	1	SN: 30001-UP
?	561-15-71211	Housing	1	SN: 30001-UP
?	04020-01228	Pin, Dowel	2	SN: 30001-UP
?	04020-01228	Pin, Dowel	2	SN: 30001-UP
?	01010-81230	Bolt	24	SN: 30001-UP
?	01643-31232	Washer	24	SN: 30001-UP
?	01010-81230	Bolt	24	SN: 30001-UP
?	01643-31232	Washer	24	SN: 30001-UP
?	561-15-72880	Piston	1	SN: 30001-UP
?	561-15-72880	Piston	1	SN: 30001-UP
?	561-15-72320	Cover	1	SN: 30001-UP
?	561-15-72320	Cover	1	SN: 30001-UP
?	232-15-19270	Seal Ring, (Kit : K07, K08, K09, K20, K05)	1	SN: 30001-UP
?	232-15-19270	Seal Ring, (Kit : K07, K08, K09, K20, K05)	1	SN: 30001-UP
?	569-15-12860	Seal Ring, (Kit : K07, K08, K09, K20, K05)	1	SN: 30001-UP
?	569-15-12860	Seal Ring, (Kit : K07, K08, K09, K20, K05)	1	SN: 30001-UP
?	561-15-79220	Seal Ring, (Kit : K07, K08, K09, K20, K05)	1	SN: 30001-UP
?	561-15-79220	Seal Ring, (Kit : K07, K08, K09, K20, K05)	1	SN: 30001-UP
?	01010-81025	Bolt	8	SN: 30001-UP
?	01643-31032	Washer	8	SN: 30001-UP
?	01010-81025	Bolt	8	SN: 30001-UP
?	01643-31032	Washer	8	SN: 30001-UP
?	569-15-52930	Disc	5	SN: 30001-UP
?	569-15-52930	Disc	4	SN: 30001-UP
?	561-15-52961	Plate	4	SN: 30001-UP
?	561-15-52961	Plate	3	SN: 30001-UP
?	561-15-79811	Wave Spring	5	SN: 30001-UP
?	561-15-79811	Wave Spring	4	SN: 30001-UP
?	561-15-72651	Gear	1	SN: 30001-UP
?	561-15-71261	Collar	1	SN: 30001-UP
?	144-15-62890	Seal Ring, (Kit : K07, K08, K09, K20, K05)	4	SN: 30001-UP
?	561-15-61230	Bushing, (Kit : K05)	1	SN: 30001-UP
?	561-15-61230	Bushing, (Kit : K05)	1	SN: 30001-UP
?	561-15-69540	Ring	1	SN: 30001-UP
?	561-15-69540	Ring	1	SN: 30001-UP
?	561-15-59610	Bearing, (Kit : K05)	1	SN: 30001-UP
?	561-15-59610	Bearing, (Kit : K05)	1	SN: 30001-UP
?	561-15-59310	Bearing, (Kit : K05)	1	SN: 30001-UP
?	04260-00635	Ball, Steel	1	SN: 30001-UP
?	04260-00635	Ball, Steel	1	SN: 30001-UP
?	561-15-71270	Cage	1	SN: 30001-UP
?	01010-81030	Bolt	6	SN: 30001-UP
?	01643-31032	Washer	6	SN: 30001-UP
?		[A2]-The part specified in the line above can be used instead of this part.	-1	SN: UP
?		[B1]-This shows discontinued part. The part specified in the above line is supplied instead.	-1	SN: UP

Komatsu HD785-7 S/N 37001-UP parts catalog PDF

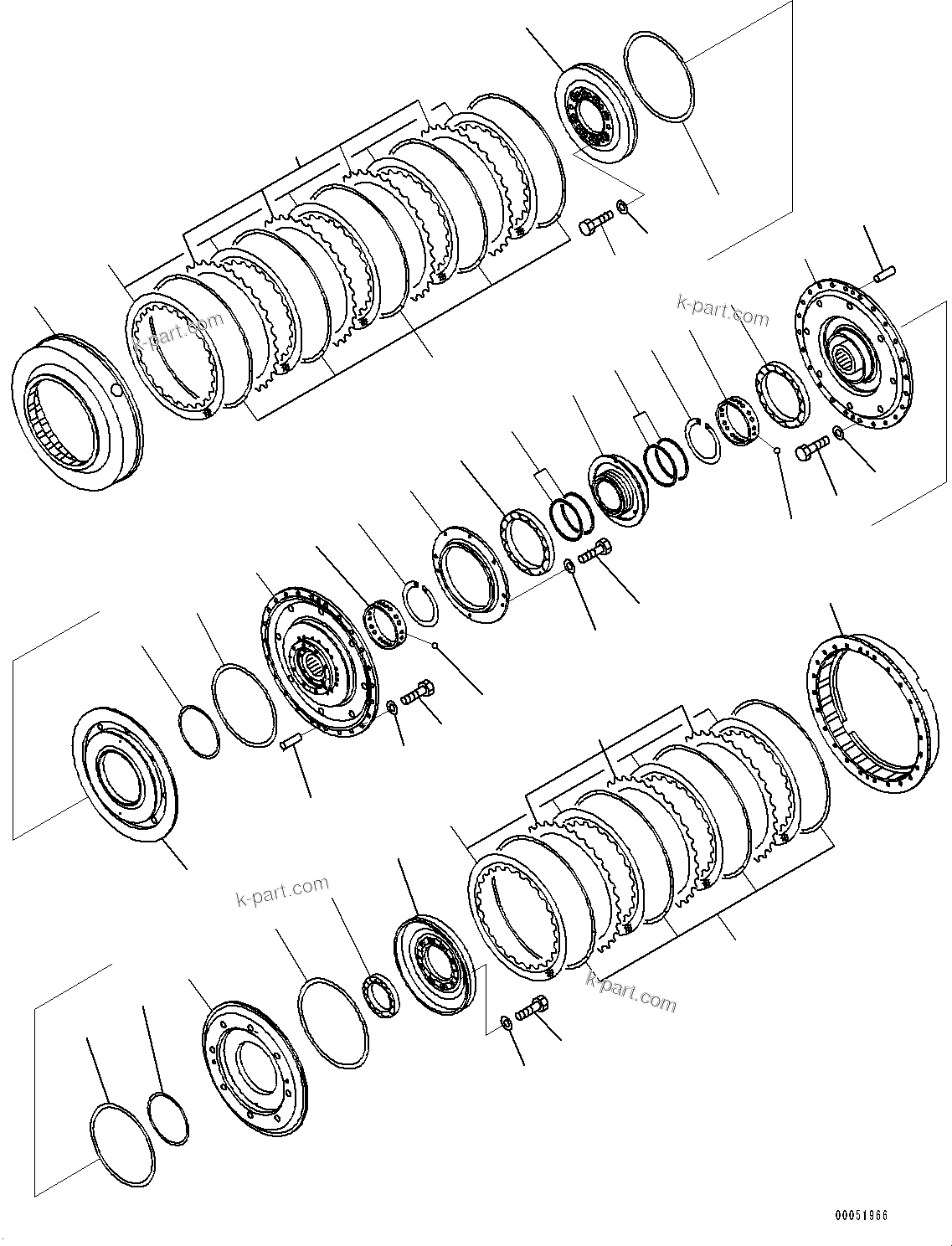

TORQUE CONVERTER AND TRANSMISSION, LOW AND 4TH SPEED CLUTCH(#30001-) (F3300-010012) in HD785-7 S/N 37001-UP. Diagram image and parts list.
