HD785-7 S/N 37001-UP

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	561-13-70012	TORQFLOW Assembly	1	SN: (113580)-UP
?	561-13-70011	TORQFLOW Assembly	1	SN: 33227-(113579) \| SCC: A2
?	561-13-70010	TORQFLOW Assembly	1	SN: 30001-33226 \| SCC: B1
?	561-15-72011	Transmission Assembly	1	SN: (113580)-UP
?	561-15-72010	Transmission Assembly	1	SN: 30001-(113579) \| SCC: A2
?	561-15-74003	Valve Assembly	1	SN: 30001-UP
?		Valve Body	1	SN: 30001-UP \| SCC: C1
?	561-15-74611	Spool	1	SN: 30001-UP
?	561-13-76620	Piston	1	SN: 30001-UP
?	561-15-74690	Spring	1	SN: 30001-UP
?	561-15-74631	Cover	1	SN: 30001-UP
?	561-15-74641	Cover	1	SN: 30001-UP
?	07000-72012	O-ring, (Kit : K07, K08, K09, K20, K05)	1	SN: 30001-UP
?	07000-72045	O-ring, (Kit : K07, K08, K09, K20, K05)	1	SN: 30001-UP
?	07000-73030	O-ring, (Kit : K07, K08, K09, K20, K05)	1	SN: 30001-UP
?	01010-81025	Bolt	4	SN: 30001-UP
?	01643-31032	Washer	4	SN: 30001-UP
?	07040-10807	Plug	3	SN: 30001-UP
?	07002-60823	O-ring, (Kit : K07, K08, K09, K20, K05)	3	SN: 30001-UP
?	708-8E-16150	Plug	1	SN: 30001-UP
?	07002-61023	O-ring, (Kit : K07, K08, K09, K20, K05)	1	SN: 30001-UP
?		Valve	1	SN: 30001-UP \| SCC: C1
?		Ball	1	SN: 30001-UP \| SCC: C1
?		Plug	1	SN: 30001-UP \| SCC: C1
?		O-ring, (Kit : K05)	2	SN: 30001-UP \| SCC: C1
?		O-ring, (Kit : K05)	1	SN: 30001-UP \| SCC: C1
?	56D-15-35220	Solenoid Assembly	1	SN: (105501)-UP
?	425-15-35220	Solenoid Assembly	1	SN: 30001-(105500) \| SCC: A2
?	561-15-74660	Switch, Pressure, Flow Variable Valve	1	SN: 30001-UP
?	07002-61023	O-ring, (Kit : K07, K08, K09, K20, K05)	1	SN: 30001-UP
?	7861-93-3320	Sensor, Temperature, Oil Temperature, (Kit : K05)	1	SN: 30001-UP
?	01010-81085	Bolt	3	SN: 30001-UP
?	01643-31032	Washer	3	SN: 30001-UP
?	07000-72020	O-ring, (Kit : K07, K08, K09, K20, K05)	2	SN: 30001-UP
?	07000-73045	O-ring, (Kit : K07, K08, K09, K20, K05)	2	SN: 30001-UP
?	561-15-76741	Tube	1	SN: 30001-UP
?	02781-00313	Union	1	SN: 30001-UP
?	02781-0031D	Nipple	1	SN: 30001-UP
?	02896-11009	O-ring, (Kit : K07, K08, K09, K20, K05)	2	SN: 30001-UP
?	07002-61823	O-ring, (Kit : K07, K08, K09, K20, K05)	1	SN: 30001-UP
?	07002-61423	O-ring, (Kit : K07, K08, K09, K20, K05)	1	SN: 30001-UP
?		[A2]-The part specified in the line above can be used instead of this part.	-1	SN: UP
?		[B1]-This shows discontinued part. The part specified in the above line is supplied instead.	-1	SN: UP
?		[C1]-This part cannot be supplied as an individual part. It is supplied as an assembly.	-1	SN: UP

Komatsu HD785-7 S/N 37001-UP parts catalog PDF

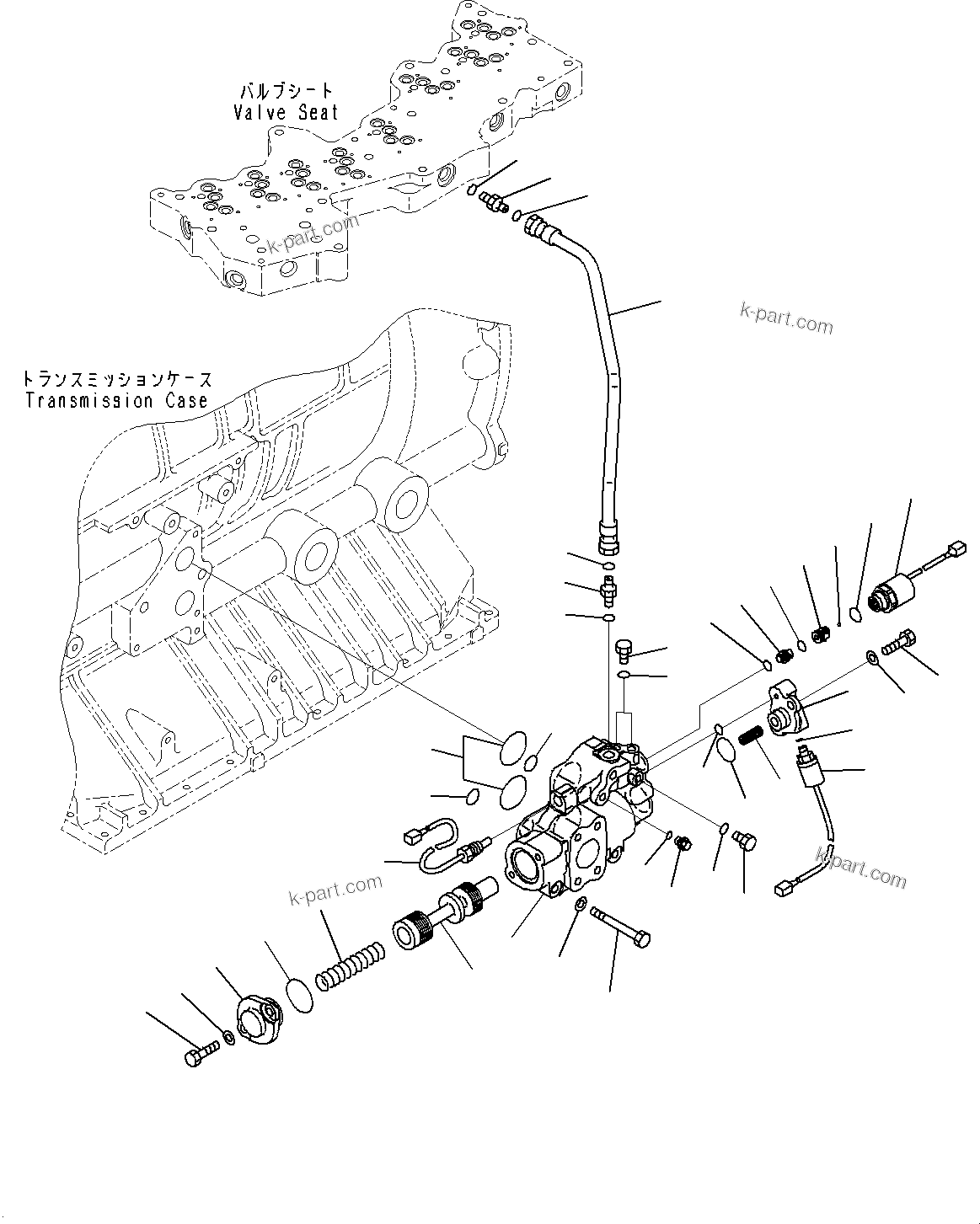

TORQUE CONVERTER AND TRANSMISSION, MAIN FLOW SELECTOR VALVE(#30001-) (F3300-010022) in HD785-7 S/N 37001-UP. Diagram image and parts list.
