AFE78-EZ 930E-5 S/N A40612,A40614 - A40618 KCH

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	58F-54-08150	PLATE, WELD	1
?	MM0606	CAPSCREW - M10 X 1.50 X 30	10
?	MM0713	FLAT WASHER, HARDENED - M10	8
?	MM0461	FLAT WASHER - M10	6
?	EJ4053	PLATE, MOUNTING	1
?	TA4411	INJECTOR ASSEMBLY, REAR - 5 PIECE	1
?	VS1947	INJECTOR (SEE FIG 68822)	5	68822
?	58E-60-20720	ADAPTER, BOLT (1)	5
?	58E-98-10880	MANIFOLD, FIVE INJECTOR	1
?	VW7989	INJECTOR ASSEMBLY, REAR - 4 PIECE	2
?	VS1947	INJECTOR (SEE FIG 68822)	4	68822
?	58E-60-20720	ADAPTER, BOLT (1)	4
?	58E-98-10870	MANIFOLD, FOUR INJECTOR	1
?	VW7990	CAP, PROTECTIVE	13
?	MM0611	CAPSCREW - M10 X 1.50 X 60	6
?	WB0252	FITTING, ELBOW - 90 DEG	13
?	WB0262	FITTING, ELBOW - 90 DEG	1
?	TB8803	NIPPLE, PIPE - 3/8"	2
?	R0086	BUSHING, PIPE - 1/4" X 3/8"	1
?	MM0471	LOCKWASHER - M10	8
?	58F-60-41700	FITTING, TEE	1
?	58E-06-60390	SWITCH, PRESSURE	1
?	C5769	PLUG, PIPE - 1/4"	1
?	58F-60-02201	HOSE (TO UNION FIT)	1
?	HA1146	HOSE (TO BOTTOM OF REAR SUSPENSIONS)	2
?	HA7892	HOSE (TO BOTTOM OF HOIST CYLINDERS)	2
?	HA1413	HOSE (TO LH END OF SWAY BAR)	1
?	HA0197	HOSE (TO TOP OF REAR SUSPENSIONS)	2
?	VD4661	HOSE (TO BODY PIVOT PINS)	2
?	HA2482	HOSE (TO TOP OF HOIST CYLINDERS)	2
?	VW8099	HOSE (TO RH END OF SWAY BAR)	1
?	58F-60-02130	HOSE (TO REAR AXLE PIVOT)	1
?	58F-54-08120	HANDLE, REAR HATCH	1
?	MM0178	NUT - M10 X 1.50	6
?			-1
?		NOTE: (1) TORQUE TO 45-50 FT-LBS.	-1

Komatsu AFE78-EZ 930E-5 S/N A40612,A40614 - A40618 KCH parts catalog PDF

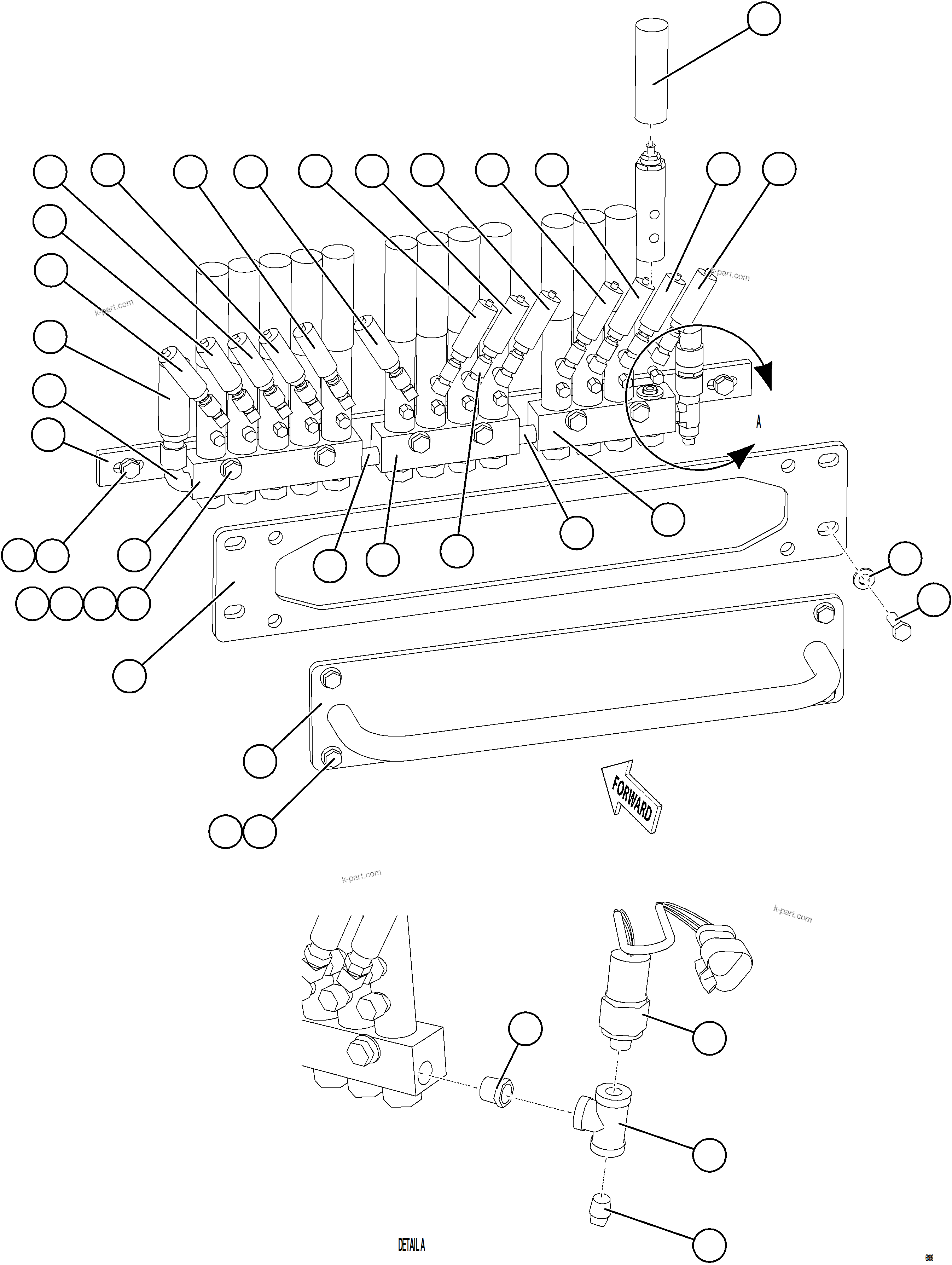

AUTOMATIC LUBRICATION SYSTEM PIPING - REAR 1/2 (68999) in AFE78-EZ 930E-5 S/N A40612,A40614 - A40618 KCH. Diagram image and parts list.
