AFE78-EZ 930E-5 S/N A40612,A40614 - A40618 KCH

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58F-60-80380	COVER, VALVE	1
?	MM0471	LOCKWASHER - M10	9
?	MM0461	FLAT WASHER - M10	9
?	58D-60-80220	VALVE, DIRECTIONAL	1
?	58F-09-00860	CAPSCREW - M10 X 1.50 X 55	2
?	58F-60-20470	HOSE (TO CYLINDER)	1
?	58D-54-10690	FITTING, STRAIGHT	1
?	58F-03-00690	HOSE (TO PORT T2)	1
?	WB0582	FITTING, STRAIGHT	2
?	MM0581	CAPSCREW - M6 X 1.00 X 16	3
?	MM0178	NUT - M10 X 1.50	2
?	WB3922	CLAMP, CUSHIONED - 11/16"	3
?	EL7273	SPACER	1
?	EM1393	SPACER	1
?	WB3092	CLAMP, CUSHIONED - 7/8"	2
?	58B-06-20020	BRACKET	1
?	58F-54-80390	PLATE, MOUNTING	1
?	58F-09-00690	HOSE (TO PORT UP)	1
?	MM0459	FLAT WASHER - M6	3
?	WB3098	CLAMP, CUSHIONED - 3/8"	3
?	58F-80-08270	COVER, SWITCH	1
?	MM0605	CAPSCREW - M10 X 1.50 X 25	4
?	58F-80-05540	PLATE	1
?	MM0610	CAPSCREW - M10 X 1.50 X 50	2
?	426-06-11570	BRACKET	2
?	58F-06-08680	WIRING HARNESS, LADDER SWITCH	1
?	VN7967	GROMMET	1
?	MM0604	CAPSCREW - M10 X 1.50 X 20	1

Komatsu AFE78-EZ 930E-5 S/N A40612,A40614 - A40618 KCH parts catalog PDF

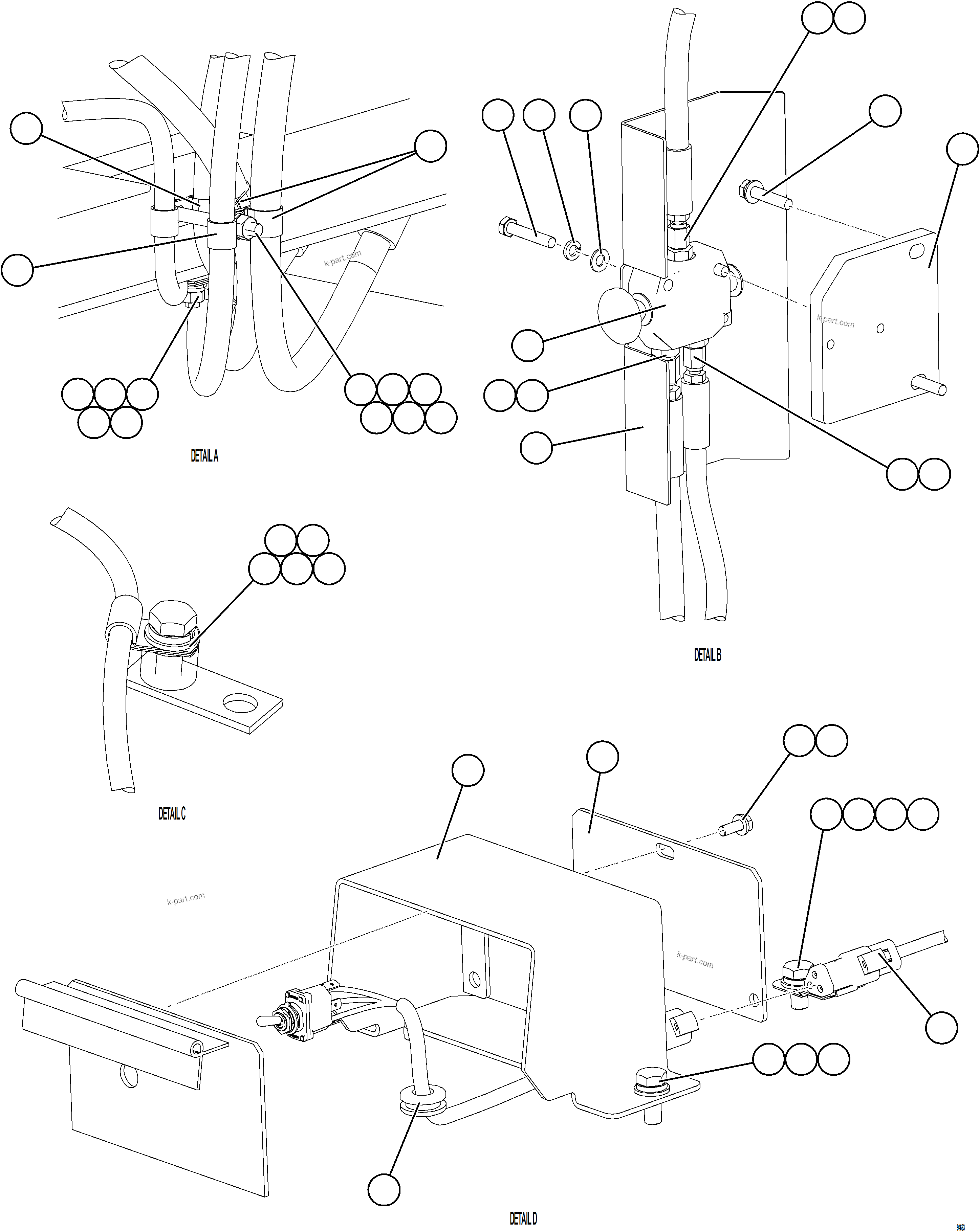

RETRACTABLE LADDER HYDRAULICS 2/2 (94663) in AFE78-EZ 930E-5 S/N A40612,A40614 - A40618 KCH. Diagram image and parts list.
