PC2000-11E0 S/N 31001-UP

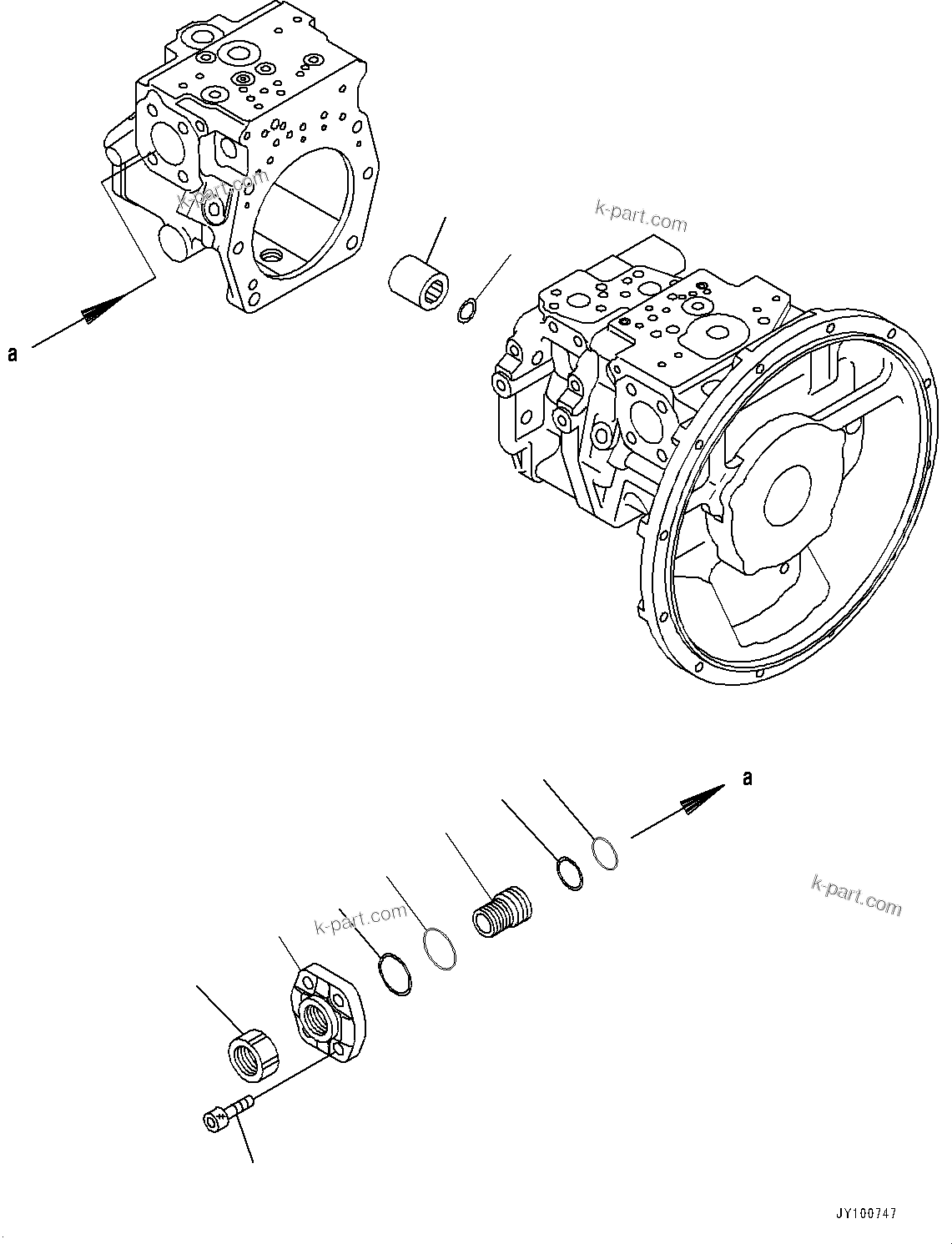

Komatsu parts book diagram for PC2000-11E0 S/N 31001-UP: FAN PUMP, PISTON PUMP (9/11)(#30001-)

? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	708-2L-00280	Pump Assembly	1	SN: 30001-UP
	?	708-2L-01280	Pump Subassembly	1	SN: 30001-UP \| SCC: C2
	?	708-2L-06970	Cover Assembly	1	SN: 30001-UP \| SCC: C2
	?		Screw	1	SN: 30001-UP \| SCC: C1
	?	07000-B3034	O-ring	1	SN: 30001-UP \| SCC: C2
	?	708-2L-35210	Ring, Back-up	1	SN: 30001-UP \| SCC: C2
	?		Nut	1	SN: 30001-UP \| SCC: C1
	?		Cover	1	SN: 30001-UP \| SCC: C1
	?	07000-B3045	O-ring	1	SN: 30001-UP \| SCC: C2
	?	708-2L-35750	Ring, Back-up	1	SN: 30001-UP \| SCC: C2
	?	01252-61440	Bolt, Hexagon Socket Head	4	SN: 30001-UP \| SCC: C2
	?	708-2L-22130	Coupling	1	SN: 30001-UP \| SCC: C2
	?	708-2E-12140	Ring	1	SN: 30001-UP \| SCC: C2
	?		[C1]-This part cannot be supplied as an individual part. It is supplied as an assembly.	-1	SN: UP
	?		[C2]-This part is supplied for authorized Komatsu distributors only. It cannot be supplied as an individual part. It is supplied as an assembly.	-1	SN: UP

Komatsu PC2000-11E0 S/N 31001-UP parts catalog PDF

FAN PUMP, PISTON PUMP (9/11)(#30001-) (H0230-001009) in PC2000-11E0 S/N 31001-UP. Diagram image and parts list.
