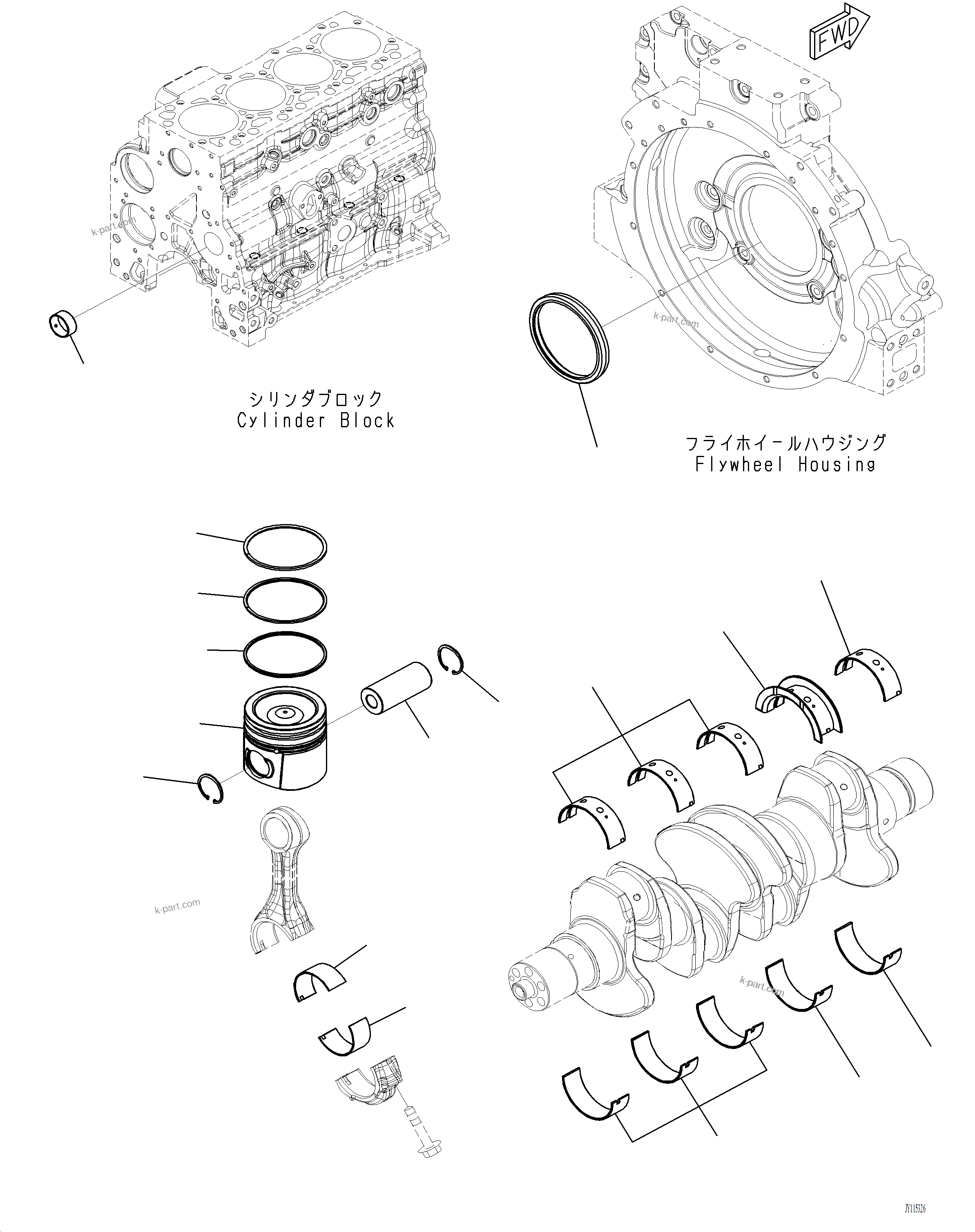

A8110-001001 REPAIR SERVICE PARTS | PC220LCi-12 S/N A15001

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity
?	6736-29-1410	BUSHING, CAMSHAFT,NO.1	1
?	6736-29-1420	BUSHING, CAMSHAFT,NO.2,3,4,5	1
?	6757-39-1110	SEAL KIT, WITH SLEEVED SEAL	1
?	6754-29-8320	BEARING ASSEMBLY, MAIN, UNDERSIZE, 0.25MM	4
?	NSS	BEARING, UPPER	1
?	NSS	BEARING, LOWER	1
?	6754-29-8310	BEARING ASSEMBLY, THRUST, UNDERSIZE, 0.25MM	1
?	NSS	BEARING, UPPER	1
?	6754-29-8130	BEARING	1
?	6754-28-8320	BEARING ASSEMBLY, MAIN, UNDERSIZE, 0.50MM	4
?	NSS	BEARING, UPPER	1
?	NSS	BEARING, LOWER	1
?	6754-28-8310	BEARING ASSEMBLY, THRUST, UNDERSIZE, 0.50MM	1
?	NSS	BEARING, UPPER	1
?	NSS	BEARING	1
?	6754-27-8320	BEARING ASSEMBLY, MAIN, UNDERSIZE, 0.75MM	4
?	NSS	BEARING, UPPER	1
?	NSS	BEARING, LOWER	1
?	6754-27-8310	BEARING ASSEMBLY, THRUST, UNDERSIZE, 0.75MM	1
?	NSS	BEARING, UPPER	1
?	NSS	BEARING	1
?	6754-26-8320	BEARING ASSEMBLY, MAIN, UNDERSIZE, 1.00MM	4
?	NSS	BEARING, UPPER	1
?	NSS	BEARING, LOWER	1
?	6754-26-8310	BEARING ASSEMBLY, THRUST, UNDERSIZE, 1.00MM	1
?	NSS	BEARING, UPPER	1
?	NSS	BEARING	1
?	6754-28-8410	BEARING ASSEMBLY, THRUST, T=0.5MM	1
?	NSS	BEARING, UPPER	1
?	NSS	BEARING	1
?	6754-26-8410	BEARING ASSEMBLY, THRUST, T=1.0MM	1
?	NSS	BEARING, UPPER	1
?	NSS	BEARING	1
?	6738-39-3400	BEARING, LOWER, UNDERSIZE, 0.25MM	4
?	6738-38-3400	BEARING, LOWER, UNDERSIZE, 0.50MM	4
?	6738-37-3400	BEARING, LOWER, UNDERSIZE, 0.75MM	4
?	6738-36-3400	BEARING, LOWER, UNDERSIZE, 1.00MM	4
?	6757-31-2200	PISTON KIT, OVERSIZE 0.50MM	4
?	6732-31-2420	RING	2
?	6754-31-2410	PIN	1
?	NSS	PISTON, OVERSIZE 0.50MM	1
?	6757-31-2010	RING ASSEMBLY, PISTON, OVERSIZE 0.50MM	1
?	NSS	RING, TOP	1
?	NSS	RING, SECOND	1
?	NSS	RING, OIL	1
?	6754-32-3420	BEARING, UPPER, UNDERSIZE, 0.25MM	4
?	6754-32-3430	BEARING, UPPER, UNDERSIZE, 0.50MM	4
?	6754-32-3440	BEARING, UPPER, UNDERSIZE, 0.75MM	4
?	6754-32-3450	BEARING, UPPER, UNDERSIZE, 1.00MM	4
