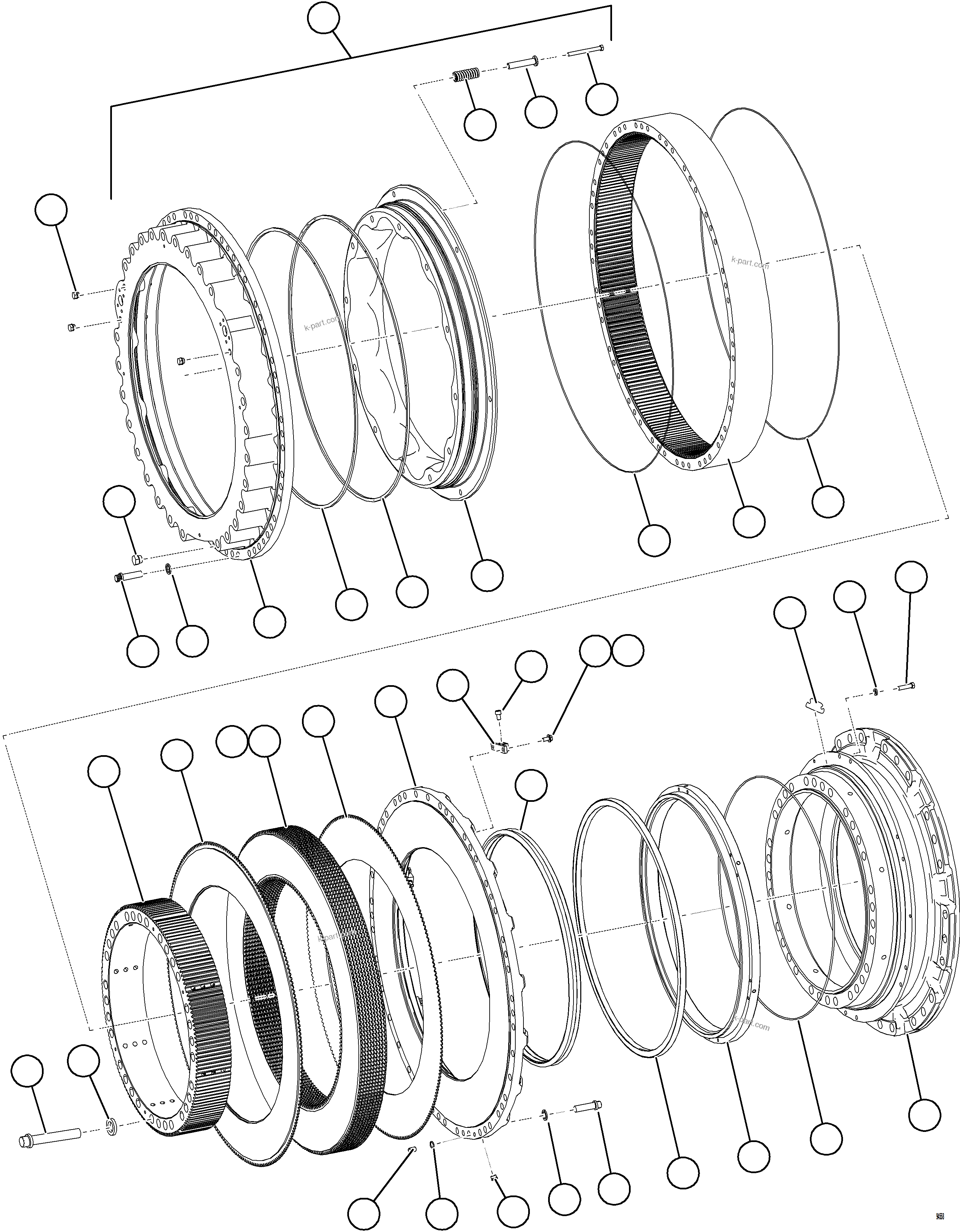

REAR BRAKE ASSEMBLY | AFE78-FD 930E-5 S/N A40629 - A40631 KSA

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE78-FD 930E-5 S/N A40629 - A40631 KSA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58F-33-50081	BRAKE ASSEMBLY - REAR	1
?	NSS	PISTON AND HOUSING ASSEMBLY	1
?	58F-33-50110	HOUSING, PISTON	1
?	58F-33-40000	SEAL (3)	1
?	58F-33-40010	SEAL (3)	1
?	EG4953	PISTON	1
?	PB8864	SPRING (3)	12
?	ED3327	GUIDE, SPRING	12
?	VL1222	CAPSCREW - 1/2" - 13NC X 5"	12
?	VM0315	PLUG (2)/(3)	3
?	WA1589	CAPSCREW, 12 PT - 7/8" - 9NC X 3"	102
?	WA5659	FLAT WASHER, HARDENED	102
?	VM0317	PLUG (2)/(3)	1
?	58F-33-40220	GEAR, RING	1
?	EH7197	O-RING (2)/(3)	2
?	ED3343	GEAR, INNER	1
?	EM8367	DAMPER (1)	2
?	EM8365	DISC, SEPARATOR (1)	9
?	EM8366	DISC, FRICTION (1)	10
?	58F-33-40230	BACK PLATE	1
?	58F-32-40110	SEAL ASSEMBLY, FLOATING	1
?	PC1431	SEAL, OIL (3)	1
?	58F-32-40030	CARRIER, SEAL	1
?	EH7195	O-RING (3)	1
?	58F-33-40052	ADAPTER, HUB	1
?	VN9065	CAPSCREW - 1/2" - 13NC X 2"	12
?	58B-09-50080	FLAT WASHER, HARDENED - 1 1/4"	32
?	ED3755	SHIM - .020" (3)	54
?	ED3756	SHIM - .010"	6
?	WA5660	CAPSCREW, 12 PT - 1 1/4" - 12NF X 7 1/2"	32
?	58F-32-40051	BRACKET, MOUNTING (2)	6
?	D2930	CAPSCREW, SOCKET HEAD - 1/2" - 13NC X 3/4" (2)	6
?	C1612	CAPSCREW - 1/2" - 13NC X 1" (2)/(3)	12
?	WA0360	FLAT WASHER, HARDENED - 1/2" (2)	24
?	PC1427	DOWEL, SPRING	1
?	VG9098	O-RING	1
?	WA4780	PLUG, O-RING	1
?			-1
?	58F-BK-AK100	NOTE: (1) INCLUDED IN 58F-BK-AK100 BRAKE DISC KIT.	-1
?		(2) USED FOR ASSEMBLY AND STORAGE ONLY,	-1
?		REMOVE WHEN INSTALLED ON THE TRUCK.	-1
?	58F-WM-AK150	(3) INCLUDED IN 58F-WM-AK150 WHEEL MOTOR	-1
?		OVERHAUL KIT. BALANCE OF PARTS ON	-1
?		PREVIOUS AND FOLLOWING PAGES.	-1
