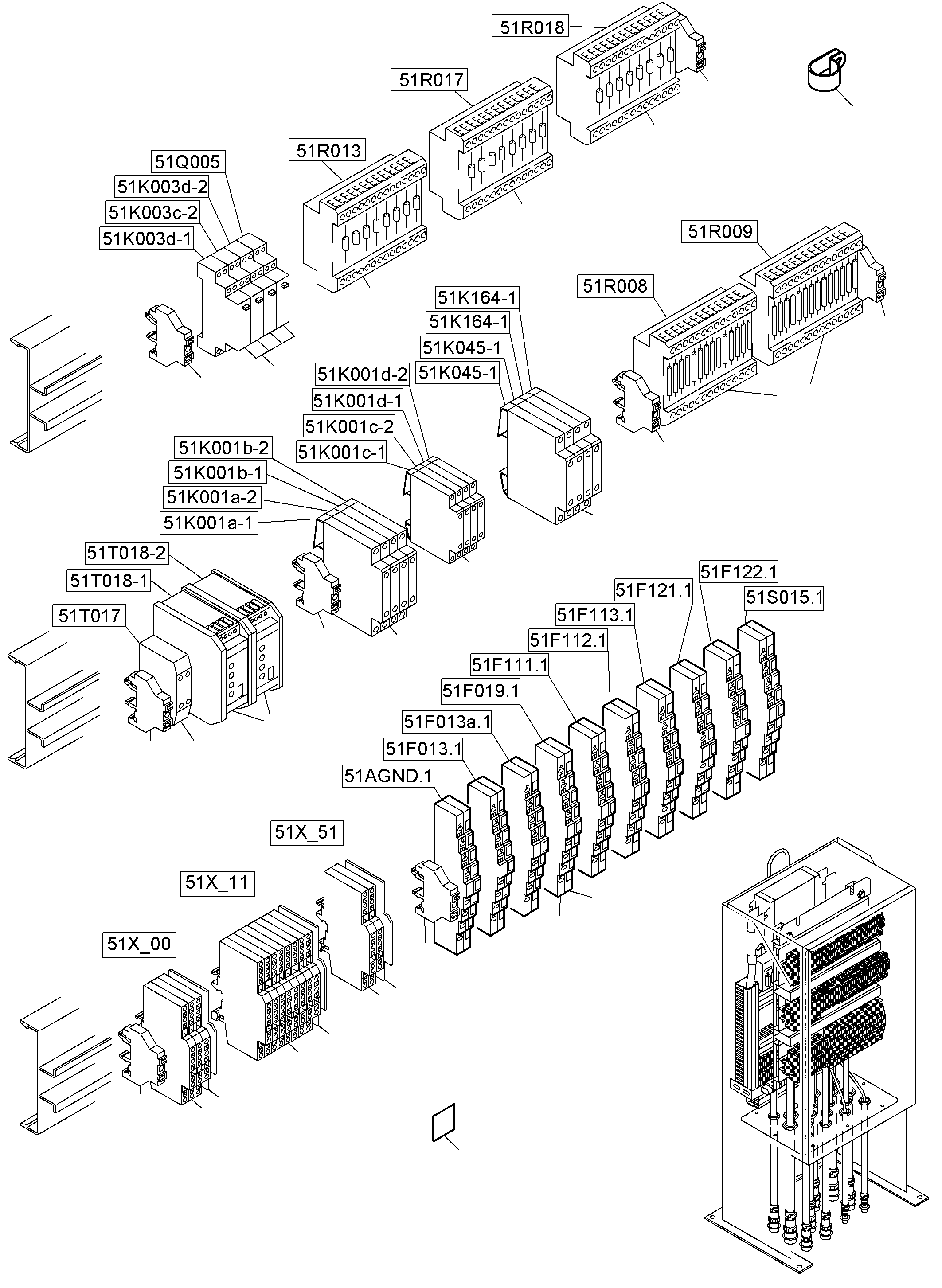

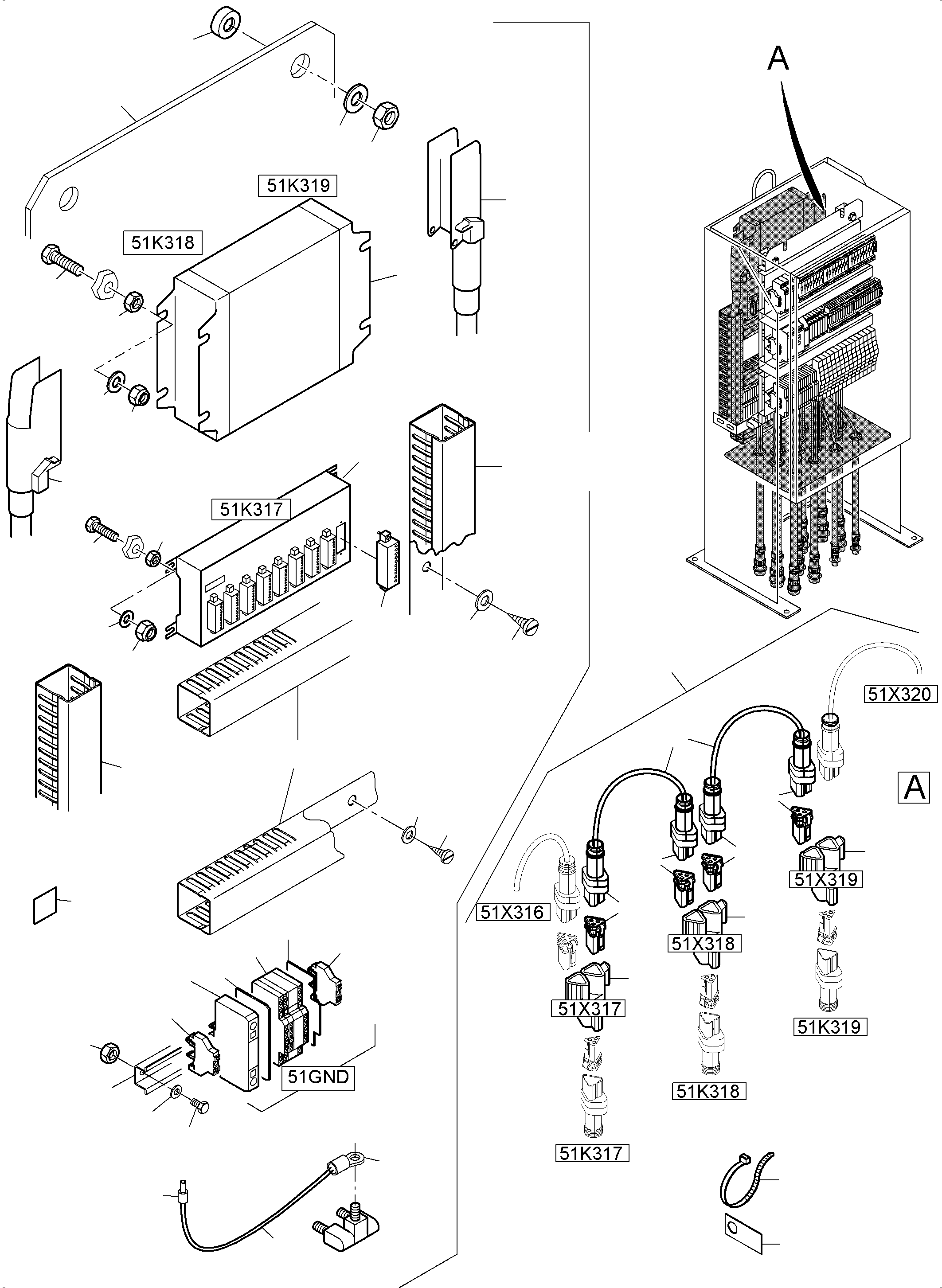

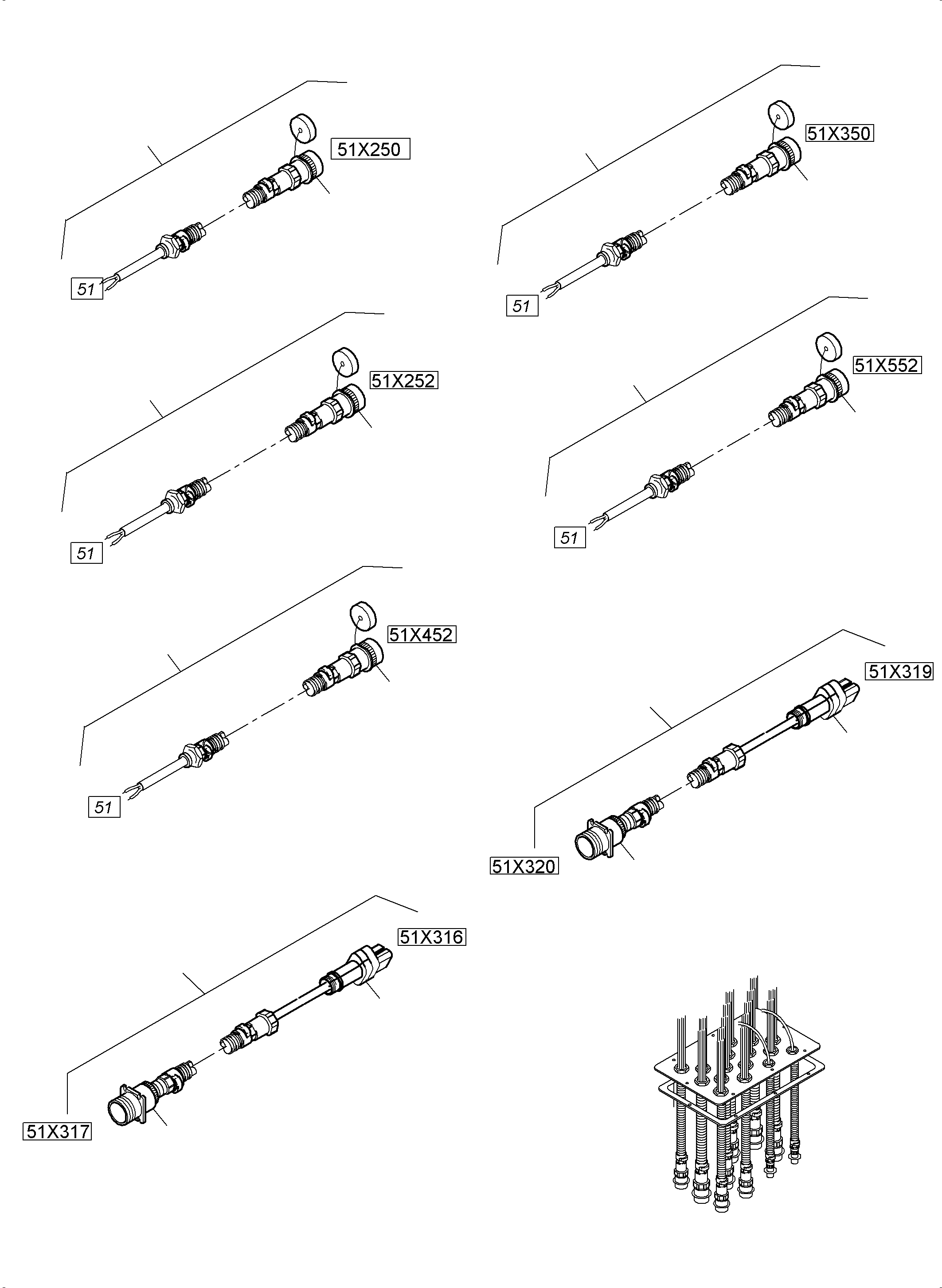

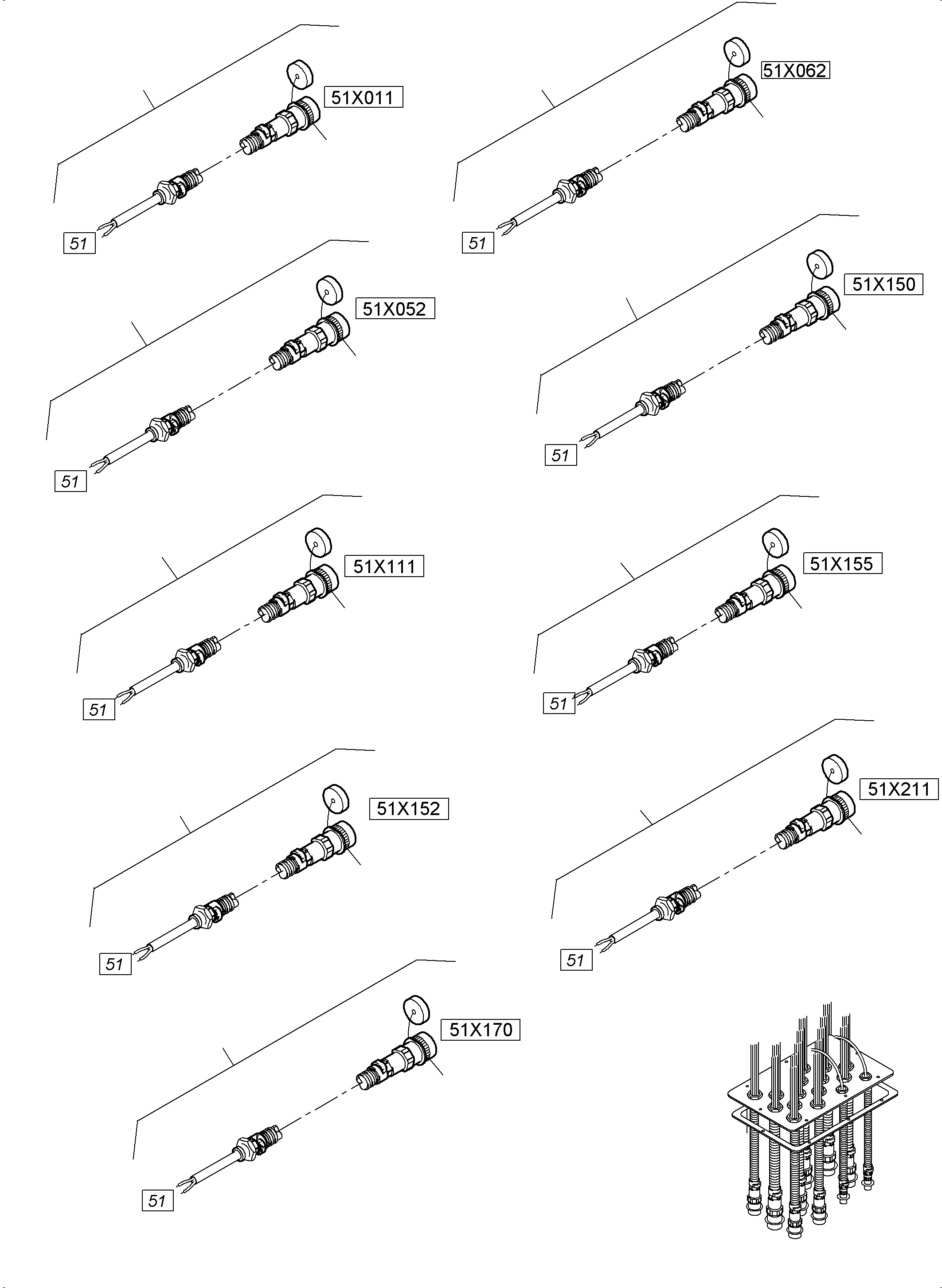

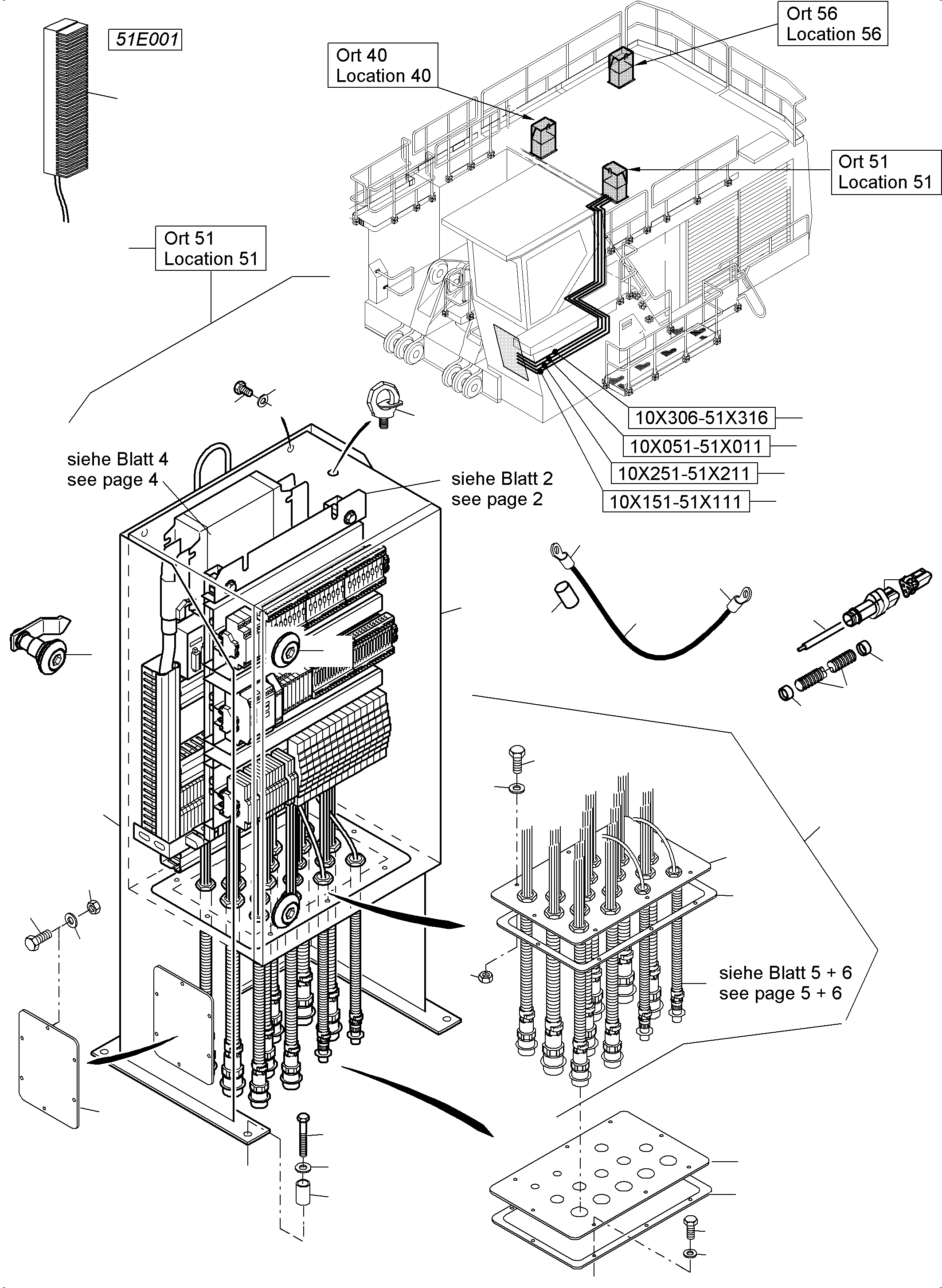

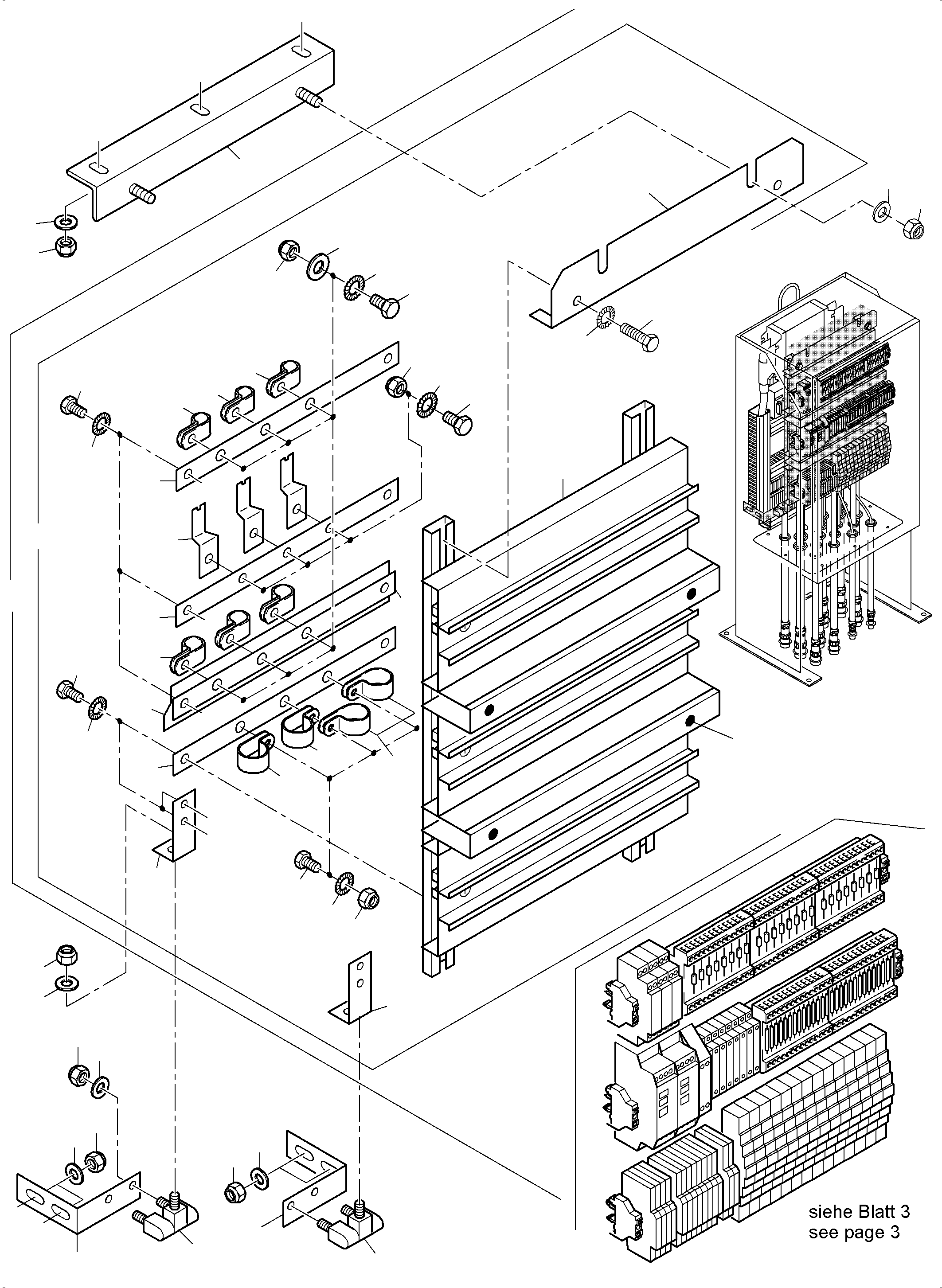

Diagram image 1 of 6

PC5500-6 S/N 15137

01 02 03 04 05 06 07 08 09 12 13 148 15 16 17 18 19 20 200 21 22 23 24 24 25 28 28 30 34 36 37 38 38 42 43 44 45 48 49 49 54

PC5500-6 S/N 15137

100 100 100 101 101 101 102 104 105 106 106 106 108 109 111 112 26 31 32 33 35 35 40 40 40 40 40 41 41 41 41 41 46 47 60 73 73 73 90 91 91 92 93 94 95 95 96 96 97 97 98 99 99 99

PC5500-6 S/N 15137

61 62 62 62 63 64 65 66 67 68 69 69 69 70 70 70 71 72 72 72 72 72 72 72 72 73 74 75 76 77 80 81 82

PC5500-6 S/N 15137

115 116 117 118 119 120 121 121 122 123 124 125 126 127 128 129 130 130 131 131 132 133 134 135 136 137 138 139 140 141 142 143 144 185 185 185 186 186 187 188 27 29 30 30 40 41 42 50 51 51 52 53 55 70 71 72 72

PC5500-6 S/N 15137

149 150 151 152 153 154 155 156 157 168 170 170 170 172 172 174 174 176

PC5500-6 S/N 15137

158 159 160 161 162 163 164 170 170 174 176 176 178 180 186 30

#	Part Number	Partname	Quantity
01	962 921 40	Switch cabinet assy.	1
02	963 130 40	Cable can bus 10x306-51x316	1
03	978 437 40	Cable can bus 10x051-51x011	1
04	978 442 40	Cable can bus 10x251-51x211	1
05	963 129 40	Cable can bus 10x151-51x111	1
06	514 071 98	Bolt	6
07	977 056 40	Socket plate	1
08	957 407 40	Seal	1
09	518 546 98	Lock washer	6
12	963 840 40	Switch cabinet retainer ORT 51	1
13	516 878 98	Bolt	4
15	518 594 98	Washer	4
16	963 841 40	Plate	3
17	506 957 98	Bolt	18
18	340 463 99	Washer	36
19	507 025 98	Nut	18
20	509 648 98	Bolt	5
21	518 547 98	Lock washer	5
22	510 746 98	Resilien sleeve	5
23	799 380 73	Seal	1
24	799 463 73	Handle	2
25	764 948 73	Hinge	2
26	963 125 40	Switch framing assy.	1
27	963 126 40	Mounting plate assy.	1
28	976 606 40	Socket plate	1
28	949 128 40	Seal	1
29	958 936 40	Cable can bus engine	1
30	958 955 40	Can-bushing	3
31	957 071 40	Angle	1
32	957 072 40	Angle	1
33	957 413 40	Angle	1
34	979 200 40	Switch cabinet, empty, incl. Pos. 23-25	1
35	950 187 40	Hinge	2
36	515 253 40	Cord	1
37	940 913 40	Warmth shrink hose	-2
38	517 487 98	Cable shoe	4
40	509 870 98	Nut	11
41	510 321 98	Washer	11
42	950 435 40	Cable	-2
43	506 957 98	Bolt	8
44	515 331 98	Washer	16
45	509 869 98	Nut	8
46	514 921 98	Nut	4
47	518 299 98	Washer	4
48	941 844 40	Protection hose	-2
49	950 211 40	End Grommet	-2
50	269 078 40	Cable end sleeve	1
51	940 914 40	Warmth shrink hose	-2
52	907 554 40	Cable 16mm2	-2
53	654 372 40	Cable shoe	1
54	906 519 40	Eyebolt	2
55	950 682 40	Distance sleeve	4
60	962 927 40	Switch framing	1
61	960 613 40	Resistor array assy.	2
62	655 748 40	Diode array	3
63	906 482 40	Booster	1
64	942 104 40	Engine transmitter	2
65	941 488 40	Semiconductor relay	4
66	941 502 40	Potencial clamp	13
67	941 503 40	Cover plate	13
68	941 685 40	Group plate	13
69	906 612 40	Through clamp 2,5 mm2	13
70	906 613 40	Cover plate	3
71	906 624 40	Marker 1... 10	1
72	940 673 40	Clamp	11
73	0443452711	Clamp	4
74	941 814 40	Semiconductor relay	4
75	950 456 40	Obtokoppler part	4
76	941 487 40	Semiconductor relay	4
77	960 620 40	Cross connection 4 pol.	1
80	906 611 40	Mounting part	1
81	604 733 40	Resistor	15
82	950 466 40	Cross connection	1
90	950 241 40	Frame	1
91	957 439 40	Retainer	2
92	957 440 40	Retainer	1
93	957 441 40	Retainer	1
94	957 442 40	Stop	1
95	957 073 40	Angle	2
96	514 072 98	Screw	8
97	307 445 99	Bolt	6
98	307 629 99	Bolt	6
99	518 594 98	Lock washer	14
100	518 299 98	Washer	12
101	514 921 98	Nut	12
102	966 561 40	Rubber plate	1
104	519 091 98	Washer	6
105	0819320010	Clip	3
106	0443451010	Clamp	3
108	0443550810	Clamp	3
109	500 853 98	Bolt	6
111	940 610 40	Makrolon plate	-2
112	940 061 40	Rivet	6
115	941 432 40	Contoller housing	1
116	963 127 40	Plug aasy	1
117	963 128 40	Plug aasy	1
118	941 430 40	Modul	1
119	941 412 40	Plug connector	18
120	270 873 40	Wiring channel 40x40	-2
121	655 518 40	Wiring channel 40x60	-2
122	505 955 99	Assembly rail	-2
123	950 339 40	Wire clip 4-16 mm2	1
124	950 185 40	Wire clip 2,5 mm2	35
125	906 773 40	Cover plate 16 mm2	1
126	906 625 40	Marker 11... 20	1
127	906 626 40	Marker 21... 30	1
128	906 627 40	Marker 31... 40	1
129	906 628 40	Marker 41... 50	1
130	519 077 98	Screw	15
131	145 743 40	Washer	15
132	307 703 99	Bolt	2
133	518 560 98	Lock washer	2
134	307 640 99	Bolt	4
135	517 183 98	Nut	4
136	340 504 99	Washer	4
137	224 320 99	Bolt	4
138	334 506 99	Nut	4
139	515 331 98	Washer	4
140	906 629 40	Marker 51... 100	1
141	509 860 98	Nut	2
142	334 649 99	Nut	4
143	509 869 98	Nut	4
144	966 609 40	Mounting plate	1
148	976 605 40	Ground plate	1
149	978 439 40	Harness 51X011 - 51	1
150	963 109 40	Harness 51X052 - 51	1
151	963 122 40	Harness 51X062 - 51	1
152	977 070 40	Harness 51X111 - 51	1
153	963 113 40	Harness 51X150 - 51	1
154	963 114 40	Harness 51X152 - 51	1
155	977 095 40	Harness 51X155 - 51	1
156	963 116 40	Harness 51X170 - 51	1
157	978 444 40	Harness 51X211 - 51	1
158	978 441 40	Harness 51X250 - 51	1
159	963 118 40	Harness 51X252 - 51	1
160	963 119 40	Harness 51X350 - 51	1
161	978 427 40	Harness 51X452 - 51	1
162	978 443 40	Harness 51X552 - 51	1
163	958 933 40	Harness 51X316-51X317	1
164	958 934 40	Harness 51X320-51X319	1
168	950 118 40	Socket	1
170	950 125 40	Socket	1
172	950 126 40	Socket	1
174	950 124 40	Socket	1
176	950 146 40	Socket	1
178	950 170 40	Flange plug	-2
180	950 171 40	Flange socket	-2
185	906 647 40	T-Splitter	3
186	958 956 40	CAN-Bushing	2
187	941 777 40	Plate	4
188	174 411 40	Cable strap	8
200	950 717 40	Heater 140W	1
\|$$153			-2
\|$$154			-2
\|$$155			-2
\|$$156			-2
\|$$157			-2
\|$$158			-2
\|$$159			-2
\|$$160			-2
\|$$161			-2
\|$$162			-2
\|$$163			-2
\|$$164			-2
\|$$165			-2
\|$$166			-2
\|$$167			-2

Komatsu PC5500-6 S/N 15137 parts catalog PDF

SWITCH CABINET LOCATION 51 (515-2251e) in PC5500-6 S/N 15137. Diagram image and parts list.
