PC3000-6 S/N 46230

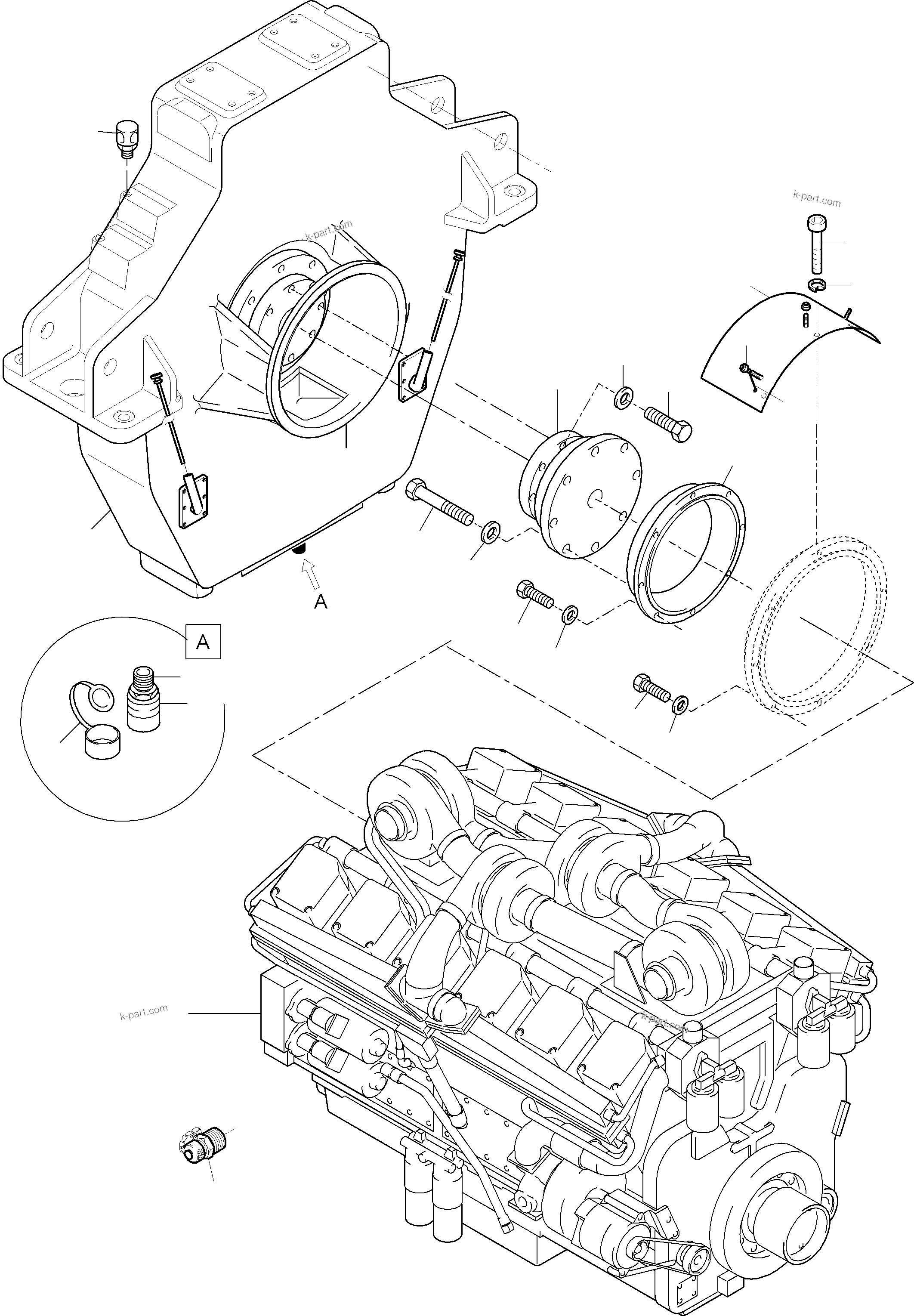

Komatsu parts book diagram for PC3000-6 S/N 46230: DRIVE ASSEMBLY

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	898 132 40	Diesel engine	1
	?	081 496 40	Protection cap	1
	?	081 495 40	Quick disconnect coupling	1
	?	516 235 98	Socket	1
	?	323 460 40	Bleeder valve	1
	?		Pump distributor gear	1		991-0600
	?		Coupling	1		991-0160
	?	487 634 40	Spacer block	1
	?	316 211 99	Washer	12
	?	534 062 99	Bolt (standard)	12
	?	501 108 98	Bolt (cold weather)	12
	?	316 216 99	Washer	16
	?	512 960 98	Bolt (standard)	16
	?	517 879 98	Bolt (cold weather)	16
	?	501 154 98	Bolt (standard)	8
	?	506 851 98	Bolt (cold weather)	8
	?	507 012 98	Washer	18
	?	534 059 99	Bolt (standard)	10
	?	501 106 98	Bolt (cold weather)	10
	?	956 895 40	Cover	1
	?	956 896 40	Wire	3
	?	319 141 99	Screw	3
	?	950 202 40	Lock washer	3
	?	334 599 99	Nut	3
	?	514 694 40	Cover	1
	?	461 390 40	Oil drain valve	1
	?	490 586 40	Oil drain hose	1
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2

Komatsu PC3000-6 S/N 46230 parts catalog PDF

DRIVE ASSEMBLY (485-1218c) in PC3000-6 S/N 46230. Diagram image and parts list.
