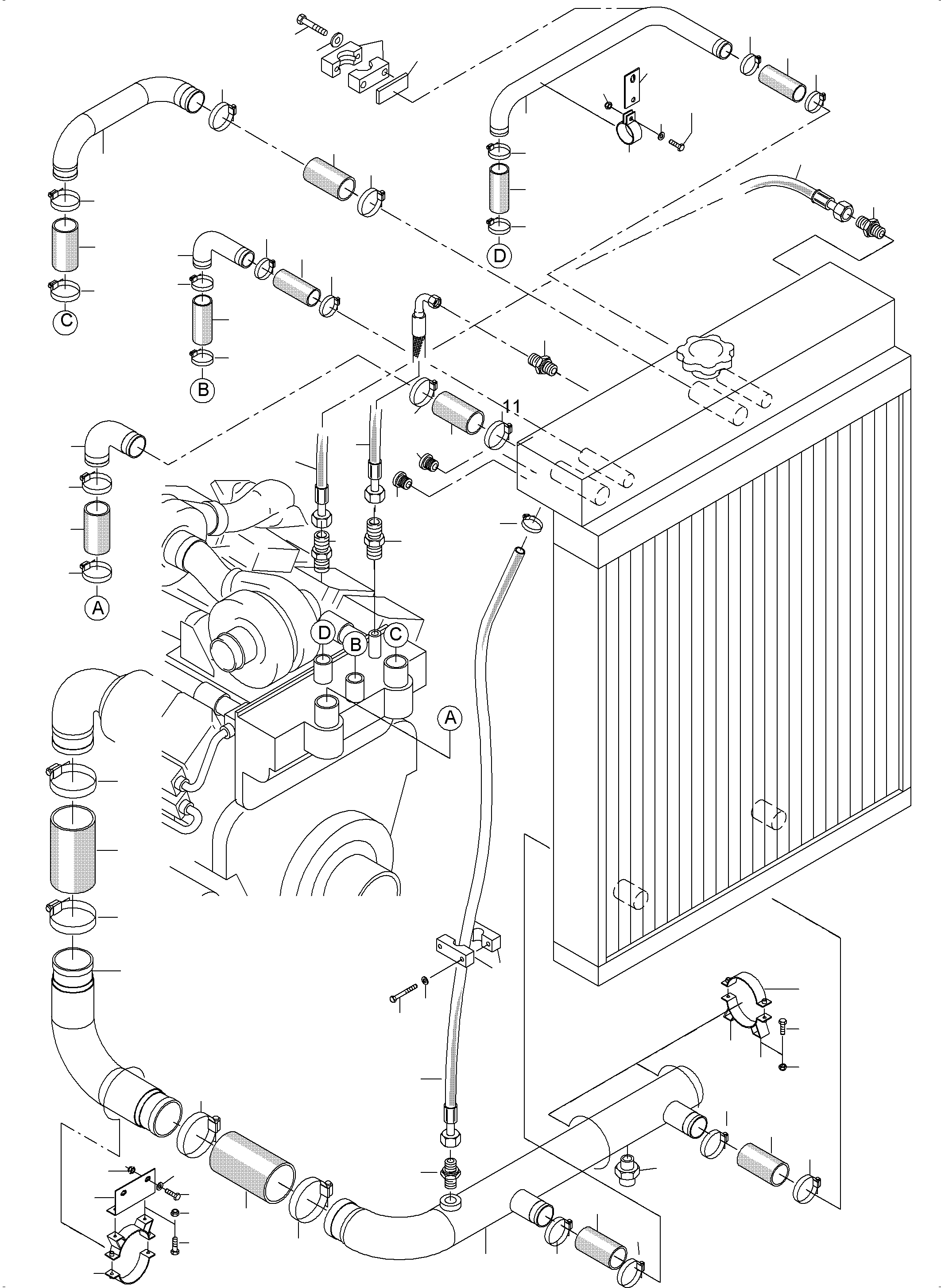

Komatsu parts book diagram for PC3000-6 S/N 46230: COOLANT LINES

01 02 03 04 05 06 06 07 07 07 07 08 08 08 08 09 09 09 09 09 09 10 10 11 11 11 11 11 11 11 11 11 11 11 12 13 14 15 15 16 16 17 18 19 20 21 21 22 23 24 25 28 28 29 30 30 31 32 33 34 35 36 37 38 38 39 39 40 41 41 42 42 43 43 44 45 46

	#	Part Number	Partname	Quantity	Options	Reference
	01	954 631 40	Header	1
	02	954 634 40	Water pipe above	1
	03	954 637 40	Water pipe above	1
	04	891 735 40	Water pipe	1
	05	891 728 40	Water pipe	1
	06	941 363 40	Water hose l=0,29m	1
	07	907 090 40	Clamp	4
	08	255 604 40	Water hose	-2
	09	907 580 40	Hose clamp	6
	10	941 364 40	Cooling water hose	1
	11	907 310 40	Hose clamp	12
	12	954 638 40	Water pipe below	1
	13	518 656 98	Hose assy. DN 32 x 2300	1
	14	374 422 99	Socket	1
	15	514 731 98	Hose assy. DN 8 x 1400	1
	16	517 293 98	Union	3
	17	517 294 98	Union	1
	18	514 732 98	Hose assy. DN 8 x 700	1
	19	517 585 98	Hose clamp	1
	20	518 038 98	Clamp set	6
	21	517 493 98	Hose clamp	2
	22	319 136 99	Screw	6
	23	340 405 99	Washer	6
	24	461 434 40	Drain cock	1
	25	896 662 40	Adapter	1
	28	941 365 40	Water hose l=0,22m	2
	29	255 985 40	Plug	1
	30	941 366 40	Water hose l=0,19m	2
	31	269 742 40	Plug	1
	32	518 039 98	Clamp set	2
	33	319 132 99	Screw	2
	34	340 405 99	Washer	2
	35	533 989 99	Weld on plate	1
	36	891 725 40	Clamp	1
	37	307 780 99	Bolt	1
	38	507 037 98	Nut	7
	39	340 465 99	Washer	4
	40	946 117 40	Plate	1
	41	490 020 40	Clamp	3
	42	307 754 99	Bolt	6
	43	334 599 99	Nut	6
	44	946 198 40	Retainer	1
	45	340 464 99	Washer	12
	46	512 553 98	Bold	3
	\|$$45			-2
	\|$$46			-2
	\|$$47			-2
	\|$$48			-2
	\|$$49			-2
	\|$$50			-2
	\|$$51			-2
	\|$$52			-2
	\|$$53			-2
	\|$$54			-2
	\|$$55			-2
	\|$$56			-2
	\|$$57			-2
	\|$$58			-2
	\|$$59			-2
	\|$$60			-2
	\|$$61			-2
	\|$$62			-2
	\|$$63			-2
	\|$$64			-2

Komatsu PC3000-6 S/N 46230 parts catalog PDF

COOLANT LINES (485-1241e) in PC3000-6 S/N 46230. Diagram image and parts list.
