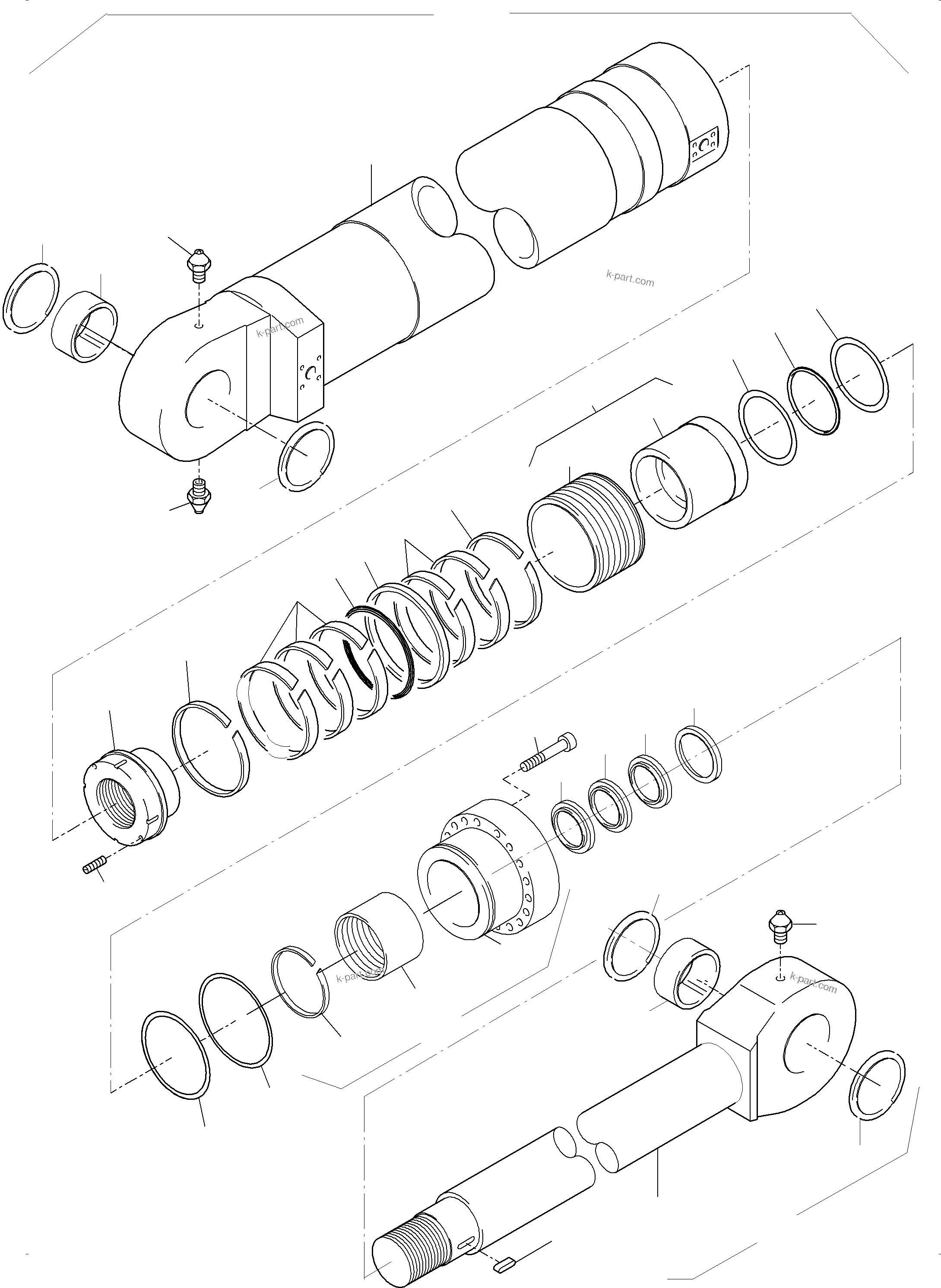

HYDRAULIC CYLINDER | PC3000-6 S/N 46235 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-6 S/N 46235

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	957 695 40	Hydraulic cylinder (Standard)	1
?	962 400 40	Hydraulic cylinder (Cold weather design)	1
?	798 055 73	Cylinder barrel incl. fig-nos. 03,04,05,06	1
?		Cylinder barrel	1
?	947 131 40	Freeze-in bushing with spiral groove	2
?	907 022 40	Seal ring	4
?	004 860 98	Grease nipple	3
?	947 188 40	Thread pin	1
?	947 190 40	Groove nut	1
?	430 964 40	Piston consist. of fig no. 30,31	1
?	269 785 40	Piston guide strap	2
?	269 579 40	Piston guide ring	5
?	256 248 40	O-ring	1
?	896 587 40	Sealing element	1
?	896 400 40	Support ring	2
?	269 217 40	O-ring	1
?	500 990 98	O-ring	1
?	256 561 40	Support ring	1
?	707 512 14 00	Buffer ring	1
?	926 860 40	Sealing flange consist. of fig-no: 20, 21 and 29	1
?	926 862 40	Bearing bush (No field repair item)	1
?		Flanged bush	1
?	514 626 98	Bolt (standard)	18
?	514 625 98	Bolt (Cold weather design)	18
?	707 512 13 00	Rod seal	1
?	707 562 17 60	Dust seal	1
?	501 352 98	Feather key	1
?	793 190 73	Piston rod incl. fig-nos: 04-06, 25, 27	1
?		Piston rod	1
?	517 596 98	Snap ring	1
?	515 858 98	Retainning ring	1
?		Piston	1
?	445 393 40	Piston bush (No field repair item)	1
?	768 261 73	Seal kit - piston consist. of fig-nos: 10-15	1
?	797 941 73	Seal kit - piston rod consist. of fig-nos: 16,17,18,23, 24	1
