Diagram image 1 of 4

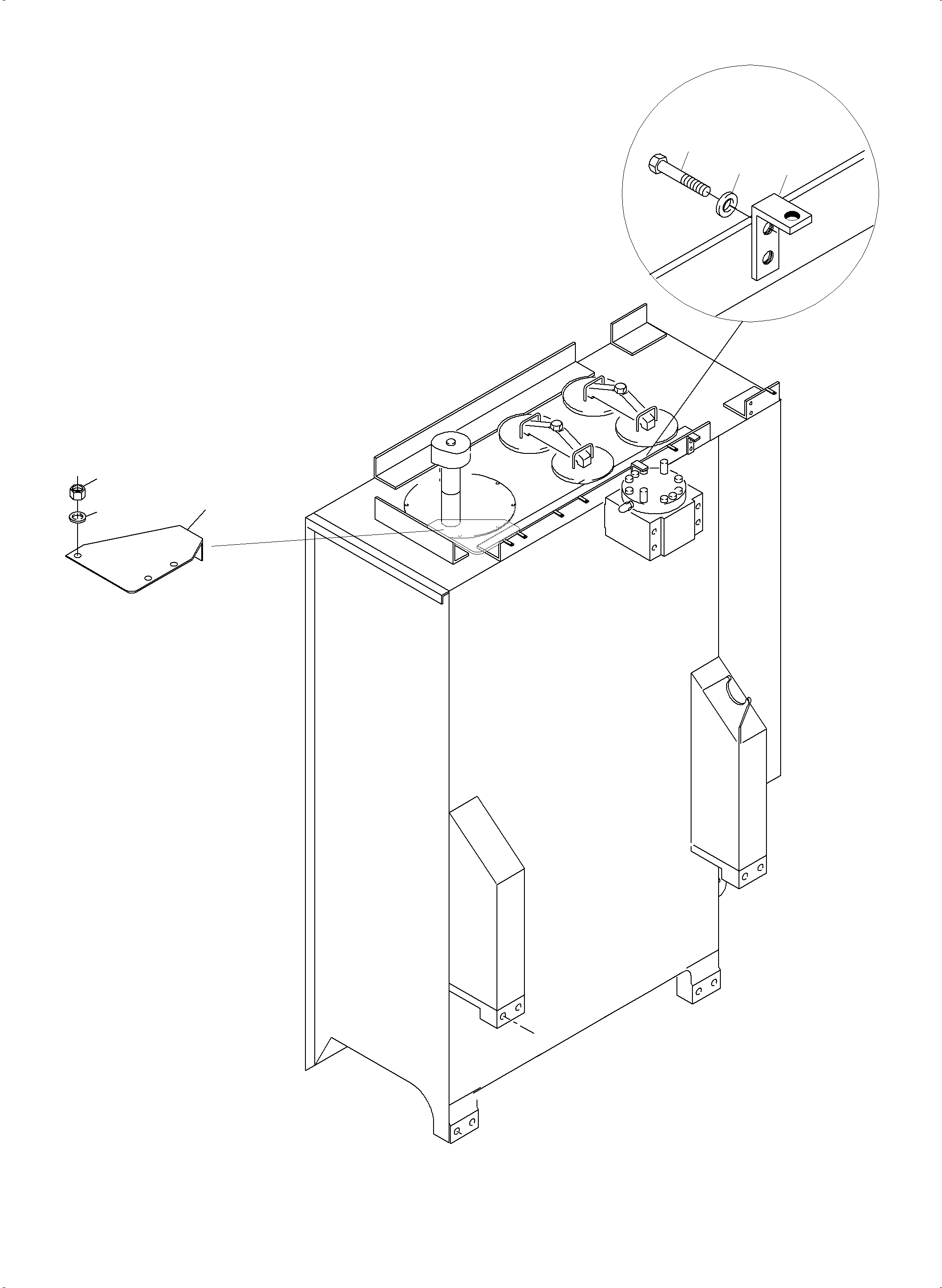

PC3000-6 S/N 46247

01 02 03 101 102 103 104 105 106 108 109 11 110 111 112 12 15 21 22 27 28 29 35 36 37 38 39 42 46 47 48 49 49 50 50 51 51 60 61 62 63 63 75 76 77 78 80 81 81 81 81 82 82 82 90 91

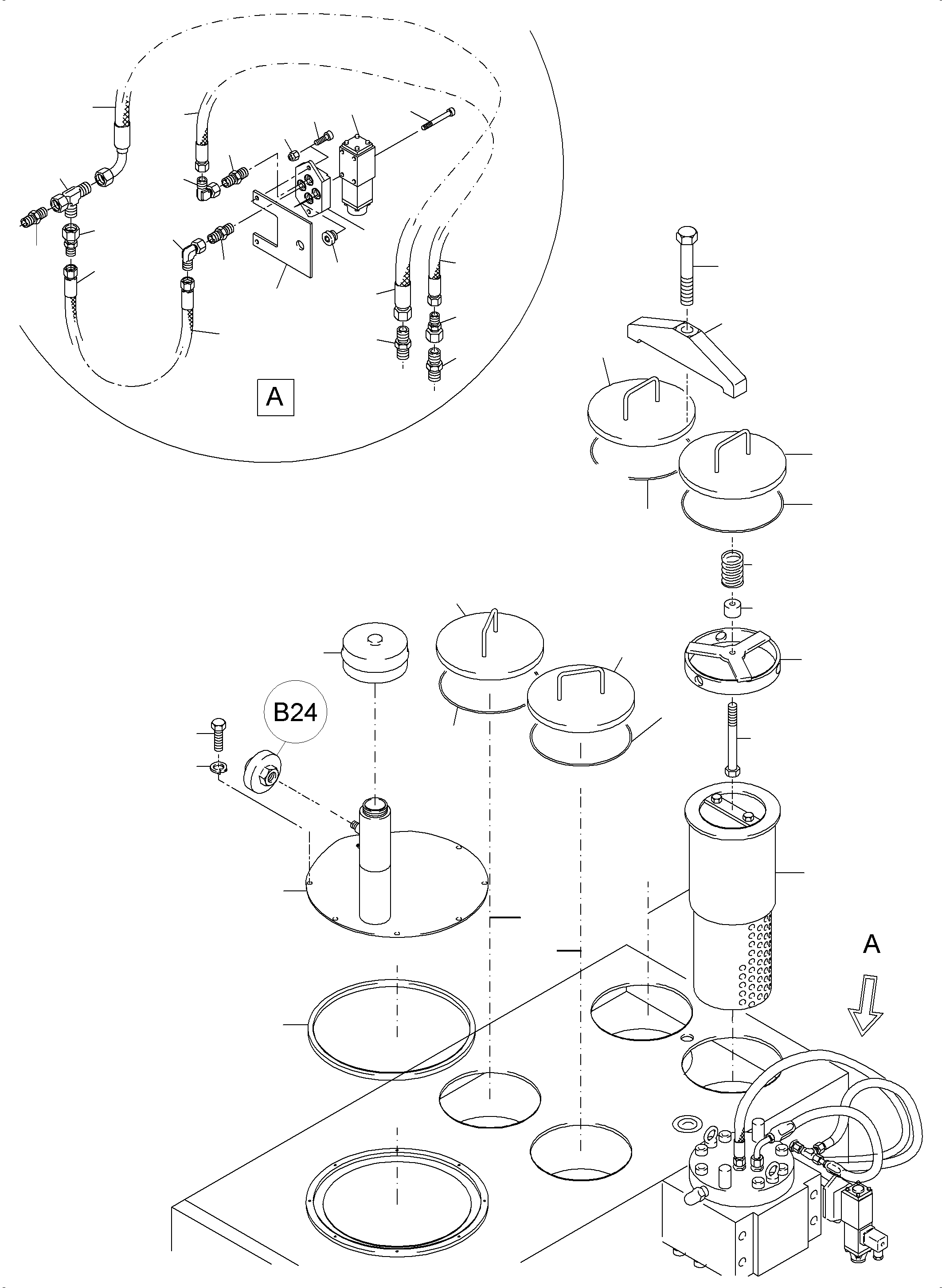

PC3000-6 S/N 46247

04 05 05 05 05 06 07 08 09 13 13 13 14 18 23 23 23 23 26 31 34 40 41 43 44 44 55 56 57 58 59 64 65 68 68 69 71 71 72 72 73 73 74 74 83 83

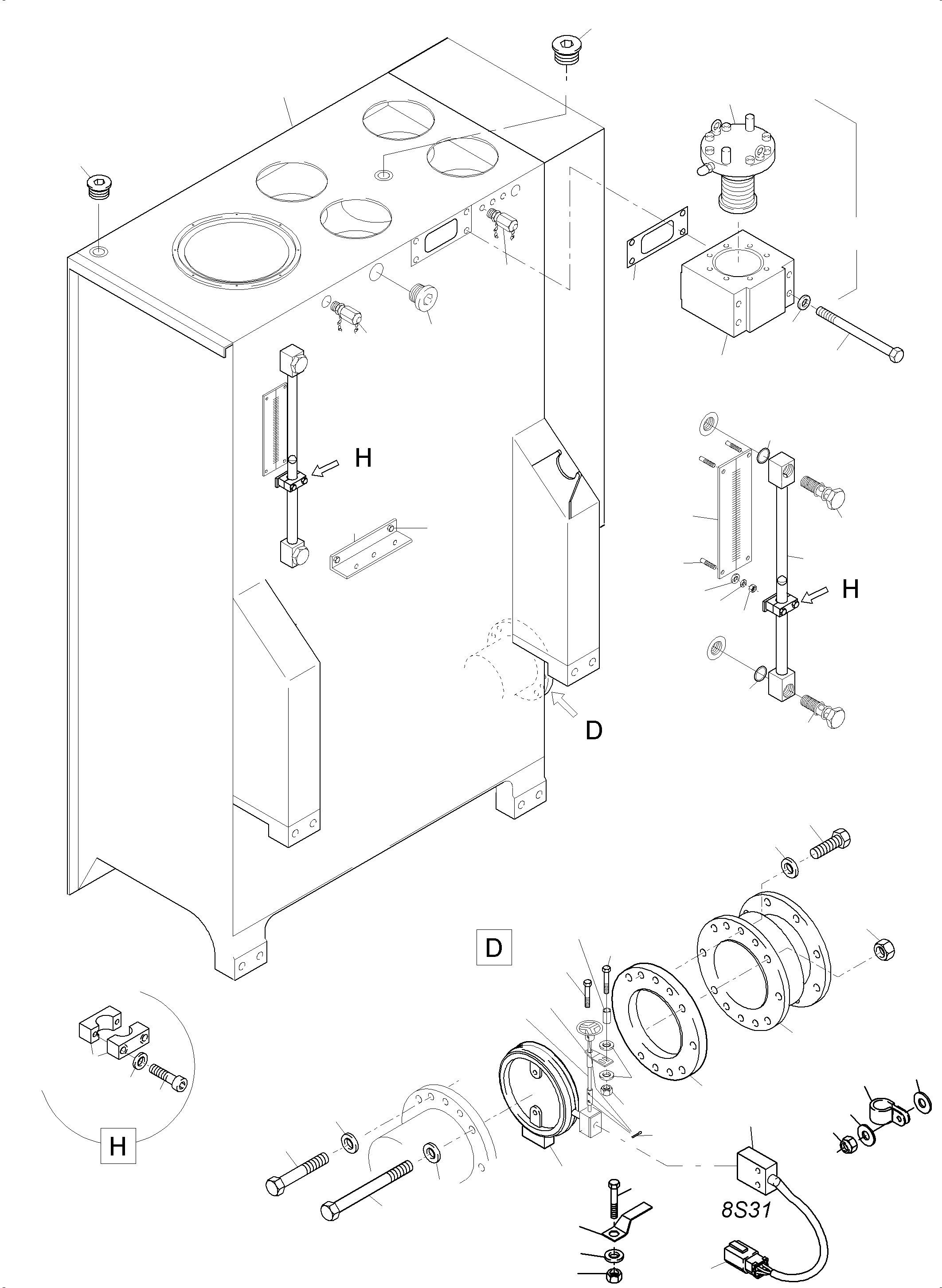

PC3000-6 S/N 46247

100 113 113 114 115 24 25 29 30 66 67 70 79 81 84 85 93 94 95 96 97 98 99

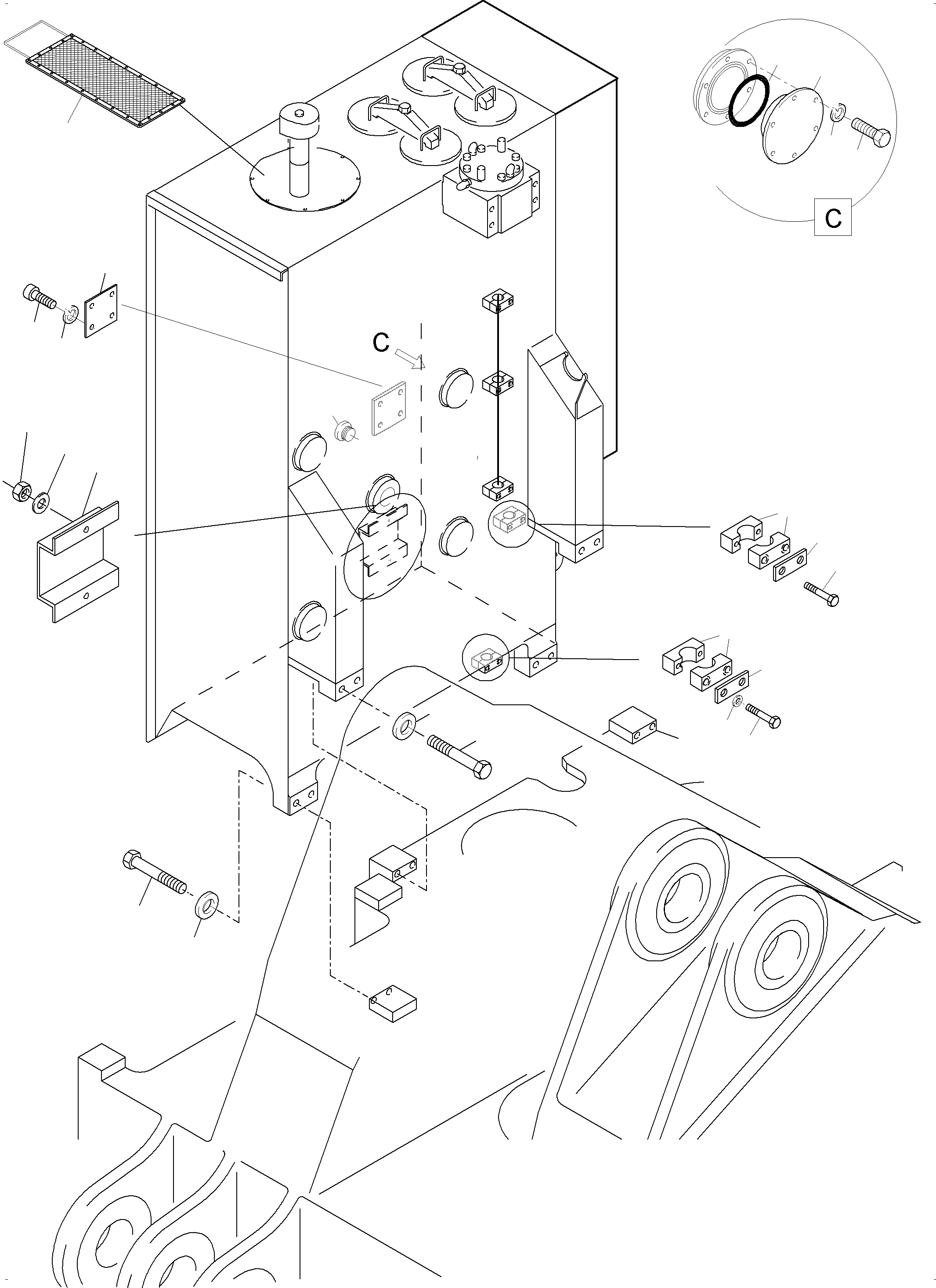

PC3000-6 S/N 46247

81 82 86 87 88 89

#	Part Number	Partname	Quantity	Reference
01	923 710 40	Oil tank MB	1
02	933 882 40	Valve block, incl. fig-nos: 03, 11	1
03	631 091 40	Valve block	1
04	910 951 40	Filter cover	4
05	930 078 40	Cover	4
06	923 744 40	Cover	1
07	436 040 40	U-bolt	2
08	366 504 40	Compression spring	4
09	910 954 40	Bushing	4
11		Pressure relief valve	1	991-0413a
12	255 694 40	Plug	2
13		Return oil filter	3	991-0348
14		Aeration filter, assy.	1	090-5586
15	904 748 40	Annular flap	1
18	916 746 40	Seal	1
21	389 472 40	Seal	1
22	440 723 40	Compensator	1
23	502 119 98	O-ring	4
24	518 036 98	Clamp set	1
25	308 581 99	Bolt	2
26	304 309 99	Bolt	2
27	505 449 98	Bolt	4
28	307 845 99	Bolt	2
29	518 546 98	Lock washer	2
30	534 004 99	Cover plate	1
31	307 752 99	Bolt	8
34	308 874 99	Bolt	4
35	334 686 99	Nut	6
36	907 594 40	Fluid level sensor with swimming ball fig.-nos.: 49,50	1
37	350 562 99	Grease nipple	1
38	316 213 99	Washer	2
39	769 653 73	Limit switch	1
40	255 694 40	Plug	2
41	346 510 99	Lock washer	8
42	955 670 40	Socket assy. with rubber grommet	1
43	374 407 99	Socket	1
44	515 820 98	Hose assy. (standard)	1
44	940 141 40	Hose assy. (Cold weather design)	1
46	518 037 98	Clamp Set	1
47	319 417 99	Screw	2
48	940 022 40	Plug	1
49	511 602 98	Banjo bolt	2
50	972 009	O-ring	2
51	515 812 98	Coupling	2
55	940 730 40	4/2 way directional spool valve	1
56	180 325 40	Base plate	1
57	514 340 98	Screw	4
58	942 484 40	Retainer	1
59	319 132 99	Screw	2
60	308 670 99	Bolt	4
61	308 675 99	Bolt	6
62	500 716 40	Flange	1
63	340 470 99	Washer	12
64		Leakoil filter	1	991-0350
65	507 025 98	Nut	2
66	511 718 98	Clamp	2
67	511 196 98	Cover plate	2
68	515 553 98	Hose assy. (standard)	1
68	932 754 40	Hose assy. (Cold weather design)	1
69	516 175 98	Socket	1
70	308 679 99	Bolt	4
71	551 987 40	Union	2
72	371 459 99	Socket	2
73	516 157 98	Socket	2
74	374 436 99	Socket	2
75	324 741 40	Plug	4
76	959 023 40	Guide	1
77	925 177 40	Extension	1
78	345 052 99	Dowel pin	3
79	926 952 40	Strainer	1
80	930 923 40	Plate	1
81	507 037 98	Nut	12
82	340 465 99	Washer	6
83	516 041 98	Hose assy. (standard)	1
83	940 142 40	Hose assy. (Cold weather design)	1
84	942 441 40	Cap	1
85	340 467 99	Washer	4
86	943 689 40	Cable Cover	1
87	942 485 40	Angle	1
88	517 122 98	Lock washer	4
89	307 777 99	Bolt	2
90	307 779 99	Bolt	1
91	340 465 99	Washer	4
93	970 743 40	Cover	5
94	006 739 98	O-ring	5
95	517 121 98	Lock washer	30
96	307 752 99	Bolt	30
97	324 550 40	Plug	1
98	518 546 98	Lock washer	4
99	319 129 99	Screw	4
100	961 832 40	Cover	1
101	510 741 98	Resilient sleeve	1
102	307 789 99	Bolt	1
103	307 775 99	Bolt	1
104	507 596 98	Washer	2
105	0443451210	Clip D=12,0	2
106	0819320010	Clip	1
108	933 852 40	Decal oil level	1
109	509 875 98	Thread pin	4
110	507 596 98	Washer	4
111	340 507 99	Washer	4
112	334 599 99	Nut	4
113	255 057 40	Washer	8
114	304 306 99	Bolt (standard)	4
114	511 747 98	Bolt (Cold weather design)	4
115	302 552 99	Bolt (standard)	4
115	500 982 98	Bolt (Cold weather design)	4

Komatsu PC3000-6 S/N 46247 parts catalog PDF

MAIN OIL TANK (485-1801f) in PC3000-6 S/N 46247. Diagram image and parts list.
