Diagram image 1 of 5

PC4000-6 S/N 58137

01 02 03 07 07 07 07 07 08 09 10 103 104 106 107 11 11 11 114 114 117 117 117 119 12 12 12 12 12 121 122 124 125 129 129 133 133 14 15 150 154 155 156 157 19 19 20 29 30 31 32 33 34 34 35 36 37 43 45 45 46 46 47 48 49 49 50 51 52 53 54 55 56 57 85 85 86 86 87

PC4000-6 S/N 58137

07 07 07 07 12 12 14 14 14 14 14 14 15 15 15 15 15 15 16 16 17 18 23 24 24 25 26 27 38 38 39 39 40 41 41 42 44

PC4000-6 S/N 58137

06 129 129 13 130 130 131 131 132 132 14 140 140 141 141 142 142 143 143 143 144 145 145 146 146 147 150 151 152 153 58 59 65 66 69 69 70 71 72 73 74 75 76 94 95 95 96 97 97

PC4000-6 S/N 58137

04 05 07 07 07 12 12 60 61 61 62 63 64 67 68 74 75 76 77 78 79 80 81 82 82 83 84 84

PC4000-6 S/N 58137

126 126 127 127 128 128 161 162 163 164 165 21 22 74 75 76

#	Part Number	Partname	Quantity
01	237 129 40	Thread plate	1
02	307 802 99	Bolt	2
03	518 200 98	Washer	2
04	308 605 99	Bolt	16
05	510 744 98	Resilient sleeve	16
06	945 968 40	Battery body assy.	1
07	334 600 99	Nut	167
08	945 978 40	Handle	1
09	956 950 40	Bar	1
10	957 248 40	Plate	1
11	956 953 40	Hinge le	2
12	340 467 99	Washer	192
13	945 966 40	Safety plate	1
14	518 266 98	Clamp set	116
15	534 008 99	Cover plate	116
16	308 615 99	Bolt	130
17	308 434 99	Bolt	88
18	517 118 98	Washer	56
19	308 616 99	Bolt	26
20	956 952 40	Hinge ri	2
21	943 476 40	Cover	1
22	943 477 40	Cover	1
23	946 181 40	Emergency jack	1
24	946 189 40	Retainer	2
25	308 284 99	Bolt	4
26	507 036 98	Nut	4
27	340 461 99	Disc	4
29	954 062 40	Rail	1
30	953 378 40	Plate	1
31	953 376 40	Plate	1
32	948 036 40	Angle	1
33	922 840 40	Rail	1
34	930 245 40	Rail	2
35	954 071 40	Angle	1
36	955 516 40	Angle	1
37	955 504 40	Angle	1
38	518 266 98	Clamp set	36
39	534 008 99	Plate	36
40	308 615 99	Bolt	68
41	512 545 98	Washer	72
42	334 600 99	Nut	72
43	930 246 40	Plate	1
44	308 616 99	Bolt	4
45	953 380 40	Rail	2
46	957 229 40	Rail	1
47	937 594 40	Rail	1
48	922 802 40	Rail	1
49	960 931 40	Rail	1
50	904 372 40	Rail	1
51	931 179 40	Rail	1
52	949 097 40	Rail	1
53	949 099 40	Rail	1
54	922 821 40	Rail	1
55	956 859 40	Rail	1
56	943 475 40	Rail	1
57	916 497 40	Emergency Ladder	1
58	931 186 40	Platform left	1
59	931 185 40	Platform right	1
60	901 007 40	Console	1
61	901 004 40	Console	1
62	904 313 40	Console	2
63	954 102 40	Sheet metal	1
64	961 348 40	Angle	1
65	906 866 40	Grating	1
66	461 755 40	Grating	1
67	956 694 40	Grating	1
68	904 310 40	Grating	1
69	915 146 40	Grating	2
70	308 403 99	Bolt	6
71	513 152 98	Resilient sleeve	6
72	308 637 99	Bolt	16
73	510 733 98	Resilient sleeve	16
74	317 319 40	Threaded block	60
75	317 318 40	Wing nut, plastic	60
76	502 354 98	Bolt	60
77	334 599 99	Nut	8
78	307 754 99	Bolt	8
79	905 087 40	Grating	1
80	939 450 40	Plate	1
81	307 804 99	Bolt	2
82	937 598 40	Console	2
83	912 731 40	Grating	1
84	507 121 98	Thread pin	6
85	517 122 98	Washer	16
86	307 775 99	Bolt	16
87	308 608 99	Bolt	1
94	270 192 40	Grating	1
95	930 236 40	Grating	2
96	323 315 40	Grating	1
97	930 237 40	Grating	2
103	931 002 40	Sheet metal	1
104	957 246 40	Sheet metal	1
106	957 244 40	Sheet metal	1
107	931 187 40	Angle	4
114	931 454 40	Plate	2
117	307 805 99	Bolt	8
119	081 282 40	Silent block	2
121	319 135 99	Bolt	2
122	507 025 98	Nut	2
124	953 418 40	Plate	1
125	953 419 40	Plate	1
126	907 854 40	Thread pin	8
127	507 037 98	Nut	8
128	340 508 99	Washer	8
129	081 320 40	Hinge	4
130	943 807 40	Hinge pin	4
131	518 151 98	Lubricating nipple	4
132	334 599 99	Nut	4
133	081 480 40	Hinge pin	4
140	956 861 40	Battery cover	1
141	956 862 40	Battery cover	1
142	943 809 40	Hinge assy.	2
143	943 808 40	Hinge assy.	2
144	511 744 98	Yoke handle	2
145	308 608 99	Bolt	4
146	510 741 98	Resilient sleeve	4
147	907 371 40	Sealing profile	-2
150	930 234 40	Plate	1
151	472 509 99	Chain	-2
152	341 271 99	Trigger snap	2
153	191 538 40	Shackle	4
154	957 242 40	Door le.	1
155	960 932 40	Door ri.	1
156	953 384 40	Rail	1
157	953 387 40	Rail	1
161	116 402 40	Step pad 200x300	17
162	180 990 40	Bordering seal 150ml	2
163	539 862 40	Step pad 305x450	27
164	955 505 40	Step pad 125x300	1
165	955 506 40	Step pad 170x450	2

Komatsu PC4000-6 S/N 58137 parts catalog PDF

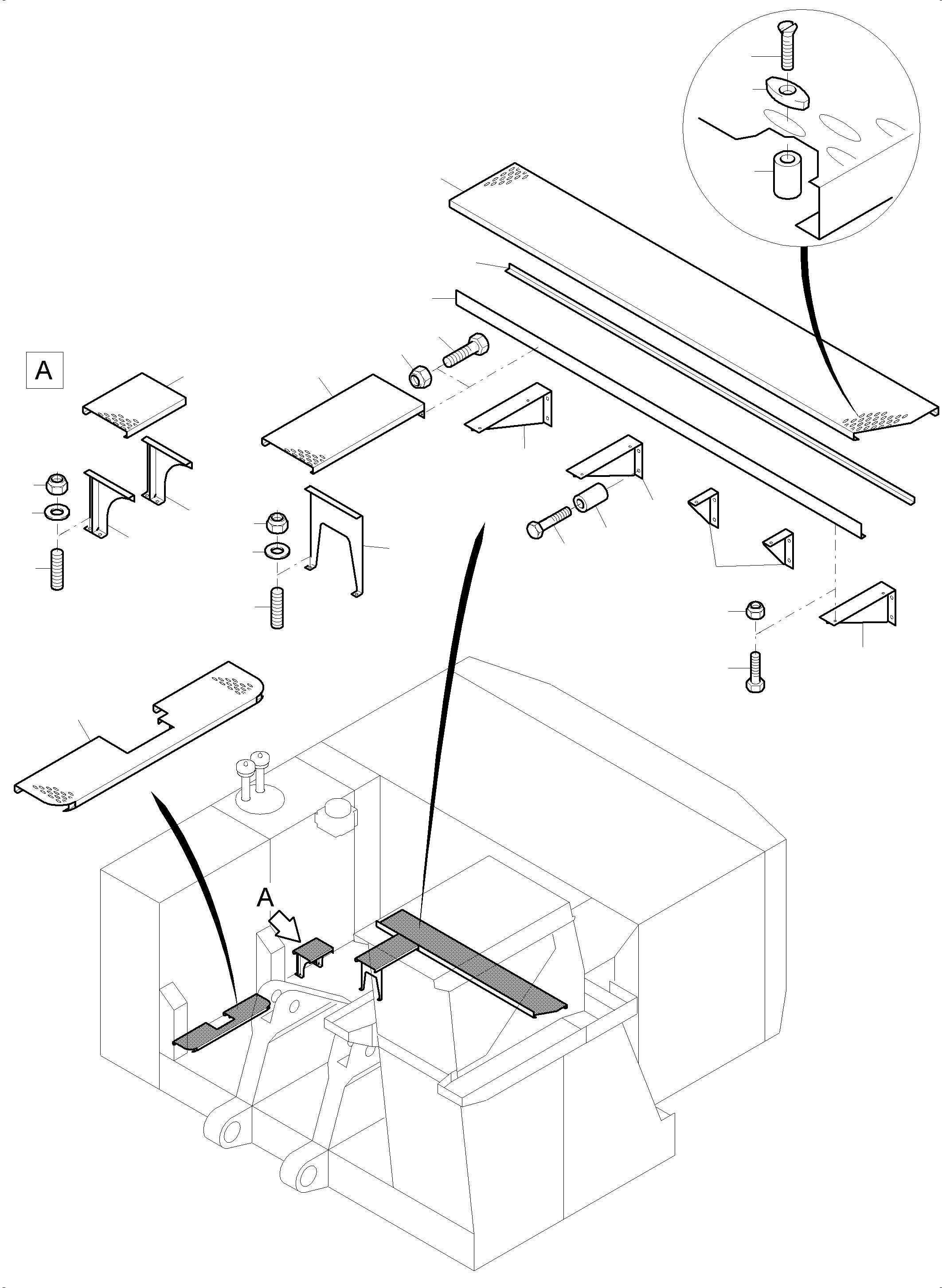

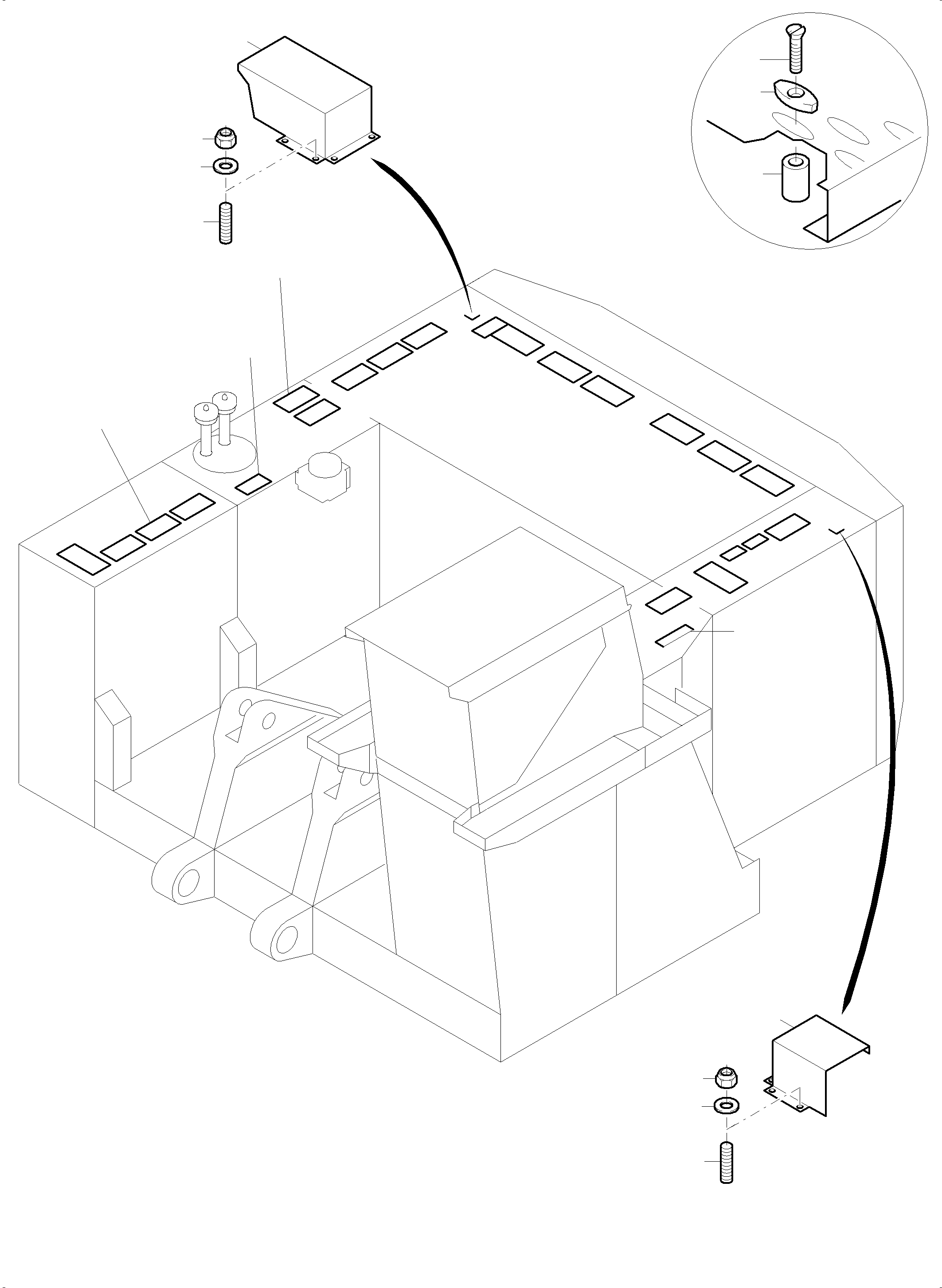

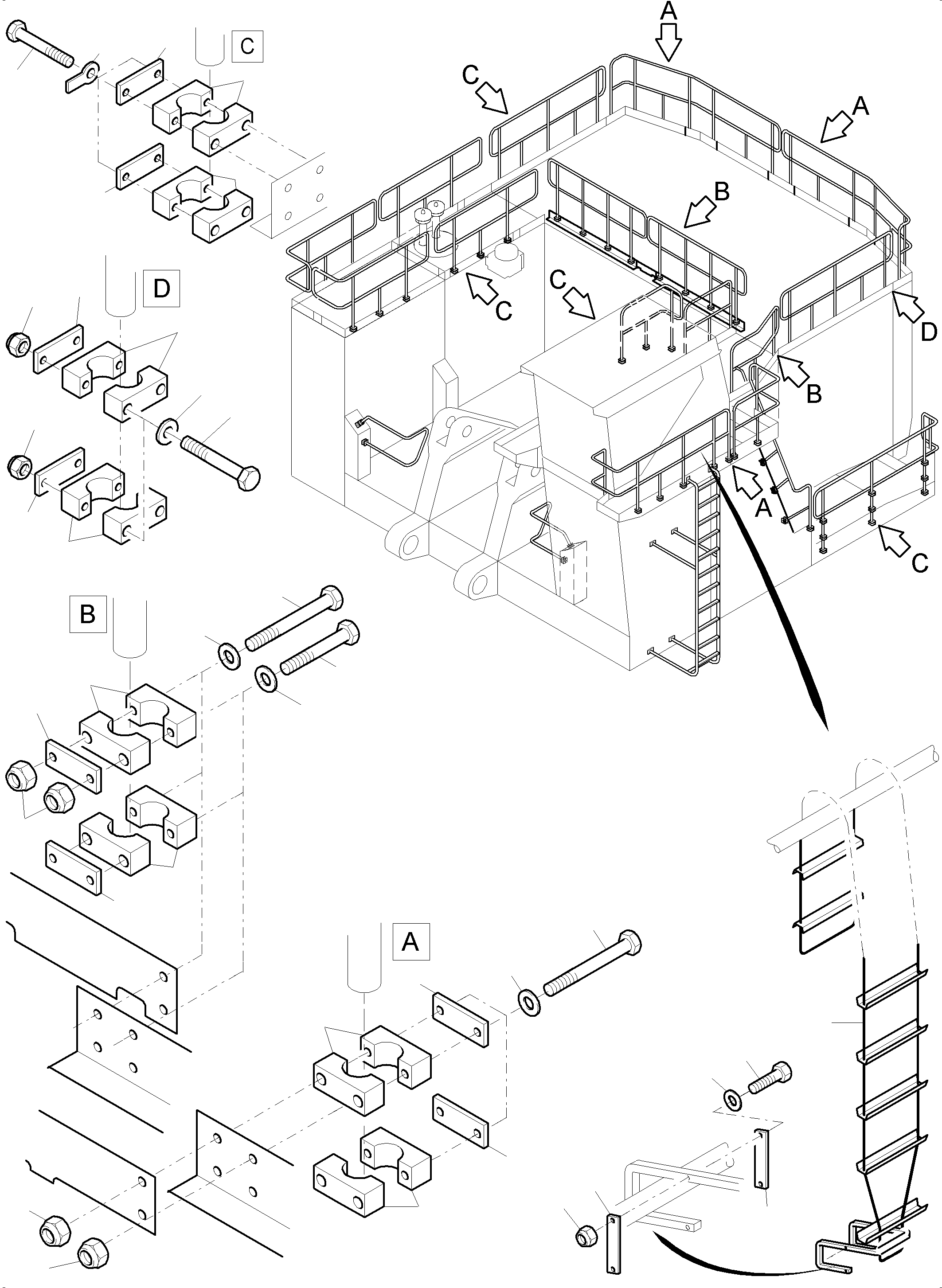

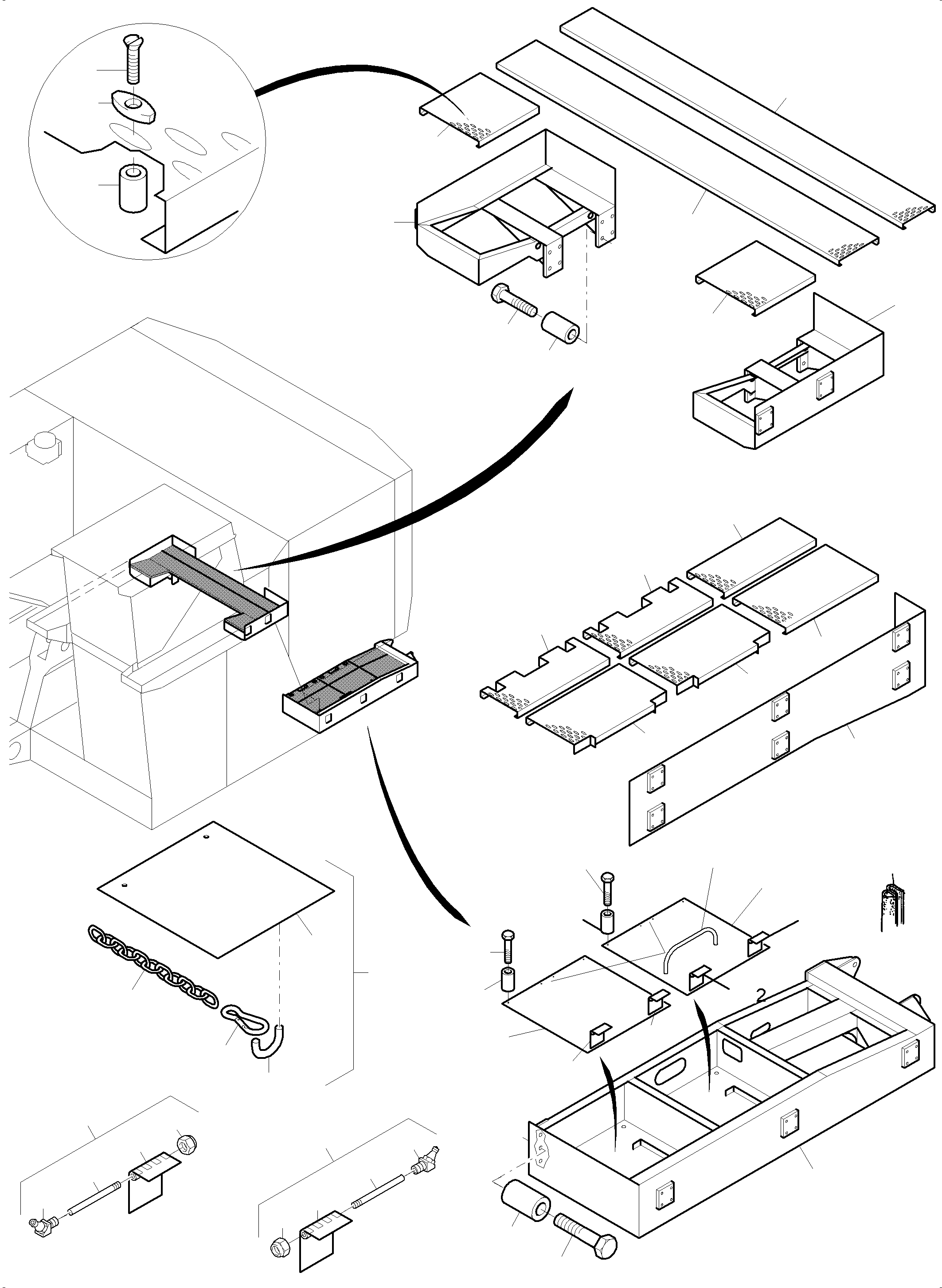

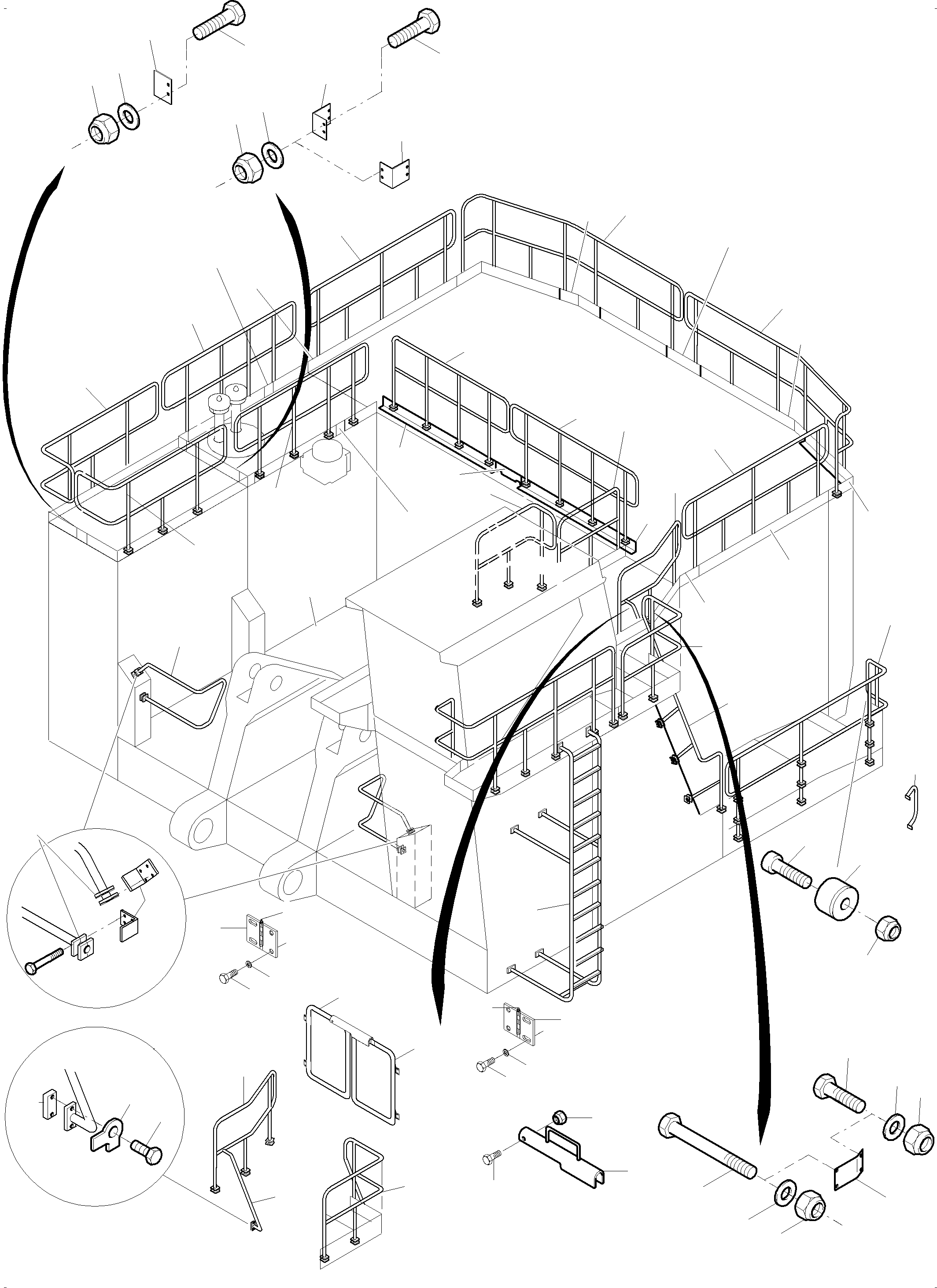

RAILS AND PLATFORMS (355-1021k) in PC4000-6 S/N 58137. Diagram image and parts list.
