Diagram image 1 of 4

PC4000-6 S/N 58137

07 100 102 102 103 103 104 105 106 106 107 107 109 109 112 113 113 113 113 113 114 115 116 119 120 120 121 122 123 123 127 128 129 13 13 13 130 140 27 33 34 35 38 38 42 45 46 47 76 79 80 80 81 81 85 85 87 87 91

PC4000-6 S/N 58137

01 02 03 04 05 06 101 107 108 110 111 117 118 119 124 125 126 15 15 150 151 152 152 152 153 154 155 156 156 157 157 16 16 17 17 18 18 19 19 20 20 21 22 22 22 22 23 24 25 25 26 27 27 32 37 40 90 91 92 93

PC4000-6 S/N 58137

08 09 10 11 12 14 28 29 30 31 35 36 41 49 55 55 56 57 58 59

PC4000-6 S/N 58137

132 132 133 133 48 49 50 51 51 52 52 53 53 54 54 58 61 64 65 66 67 68 69 69 72 73 74 75 95

#	Part Number	Partname	Quantity
01	949 318 40	Door without hinge	1
02	949 392 40	Wall	1
03	949 320 40	Door without hinge	1
04	949 326 40	Door	1
05	949 329 40	Wall	1
06	949 395 40	Wall	1
07	949 332 40	Door	1
08	949 309 40	Post	1
09	949 307 40	Post	1
10	949 317 40	Post	1
11	949 314 40	Post	1
12	949 315 40	Post	1
13	946 165 40	Hinge assy.	6
14	970 547 40	Catch	1
15	949 349 40	Angle	1
16	949 361 40	Flat steel	1
17	949 360 40	Flat steel	1
18	949 350 40	Flat steel	1
19	949 351 40	Flat steel	1
20	948 764 40	Strip	1
21	308 614 99	Bolt	2
22	940 906 40	Fastener LH	3
23	307 822 99	Bolt	9
24	517 123 98	Washer	9
25	940 907 40	Fastener RH	1
26	308 610 99	Bolt	19
27	334 600 99	Nut	25
28	304 369 99	Bolt	32
29	510 725 98	Resilient sleeve	32
30	510 742 98	Resilient sleeve	12
31	308 404 99	Bolt	12
32	307 752 99	Bolt	2
33	902 019 40	Pipe	2
34	307 808 99	Bolt	4
35	952 038 40	Plate	1
36	949 359 40	Angle	2
37	308 608 99	Bolt	1
38	332 334 99	Nut	14
40	949 339 40	Catch	1
41	949 331 40	Post	1
42	946 173 40	Pin	9
45	340 612 99	Washer	18
46	342 061 99	Cotter pin	9
47	350 562 99	Grease nipple	9
48	954 065 40	Roof section	1
49	953 330 40	Roof section	1
50	953 331 40	Roof section	1
51	953 322 40	Threaded rail	2
52	953 323 40	Threaded rail	2
53	953 324 40	Threaded rail	2
54	953 326 40	Threaded rail	2
55	936 075 40	Threaded rail	2
56	936 074 40	Threaded rail	2
57	936 070 40	Exhaust air hood	1
58	308 426 99	Bolt	22
59	510 733 98	Resilient sleeve	22
61	940 627 40	Plug	1
64	592 259 40	Gista-Profile	-2
65	490 694 40	Moulding material	-2
66	950 523 40	Plug	13
67	940 628 40	Plug	11
68	953 332 40	Roof section	1
69	953 327 40	Threaded rail	2
72	304 172 99	Bolt	12
73	255 056 40	Washer	12
74	954 123 40	Roof frame	1
75	324 741 40	Locking stopple	4
76	902 030 40	Deflector	1
79	930 938 40	Deflector	1
80	440 821 40	Moulding material 30x30	-2
81	507 037 98	Nut	40
85	511 263 98	Thread pin	20
87	340 605 99	Washer	20
90	949 340 40	Door	1
91	081 282 40		1
92	319 135 99	Bolt	1
93	507 025 98	Nut	1
95	510 730 98	Resilient sleeve	8
100	946 151 40	Hinge assy.	2
101	345 071 99	Pin	1
102	340 007 99	Washer	30
103	307 777 99	Bolt	25
104	946 164 40	Hinge assy.	4
105	949 345 40	Door	1
106	949 370 40	Hinge assy.	3
107	517 122 98	Washer	33
108	517 121 98	Washer	2
109	307 804 99	Bolt	58
110	512 545 98	Washer	21
111	510 741 98	Resilient sleeve	13
112	307 802 99	Bolt	15
113	517 118 98	Washer	77
114	949 344 40	Door	1
115	949 394 40	Hinge assy.	2
116	320 441 99	Bolt	10
117	949 385 40	Pin	4
118	955 534 40	Plate	4
119	307 779 99	Bolt	20
120	507 037 98	Nut	22
121	954 114 40	Angle assy.	1
122	954 115 40	Angle assy.	1
123	308 611 99	Bolt	4
124	340 405 99	Washer	1
125	308 579 99	Bolt	2
126	607 492 40	Resilient sleeve	2
127	960 960 40	Angle assy.	1
128	960 958 40	Angle assy.	1
129	307 822 99	Bolt	10
130	517 123 98	Washer	10
132	307 821 99	Bolt	5
133	517 123 98	Spring ring	5
140	081 480 40	Hinge Pin	8
150	941 444 40	Handle	2
151	941 445 40	Handle	2
152	941 563 40	Axle	2
153	941 447 40	Collar	2
154	941 450 40	Closing cam	2
155	941 451 40	Collar	2
156	941 448 40	Accessory l.h.	1
157	941 449 40	Accessory r.h.	1

Komatsu PC4000-6 S/N 58137 parts catalog PDF

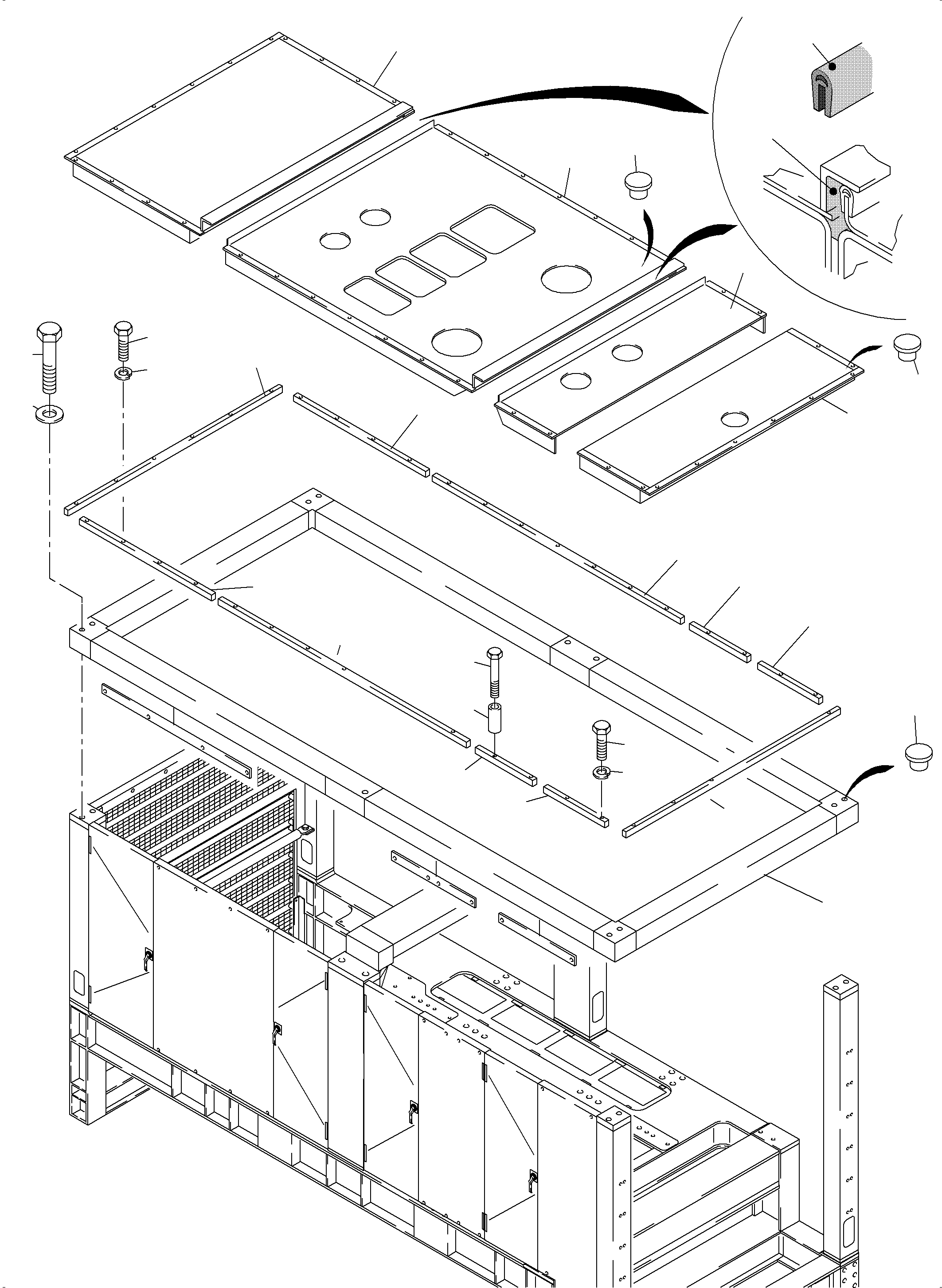

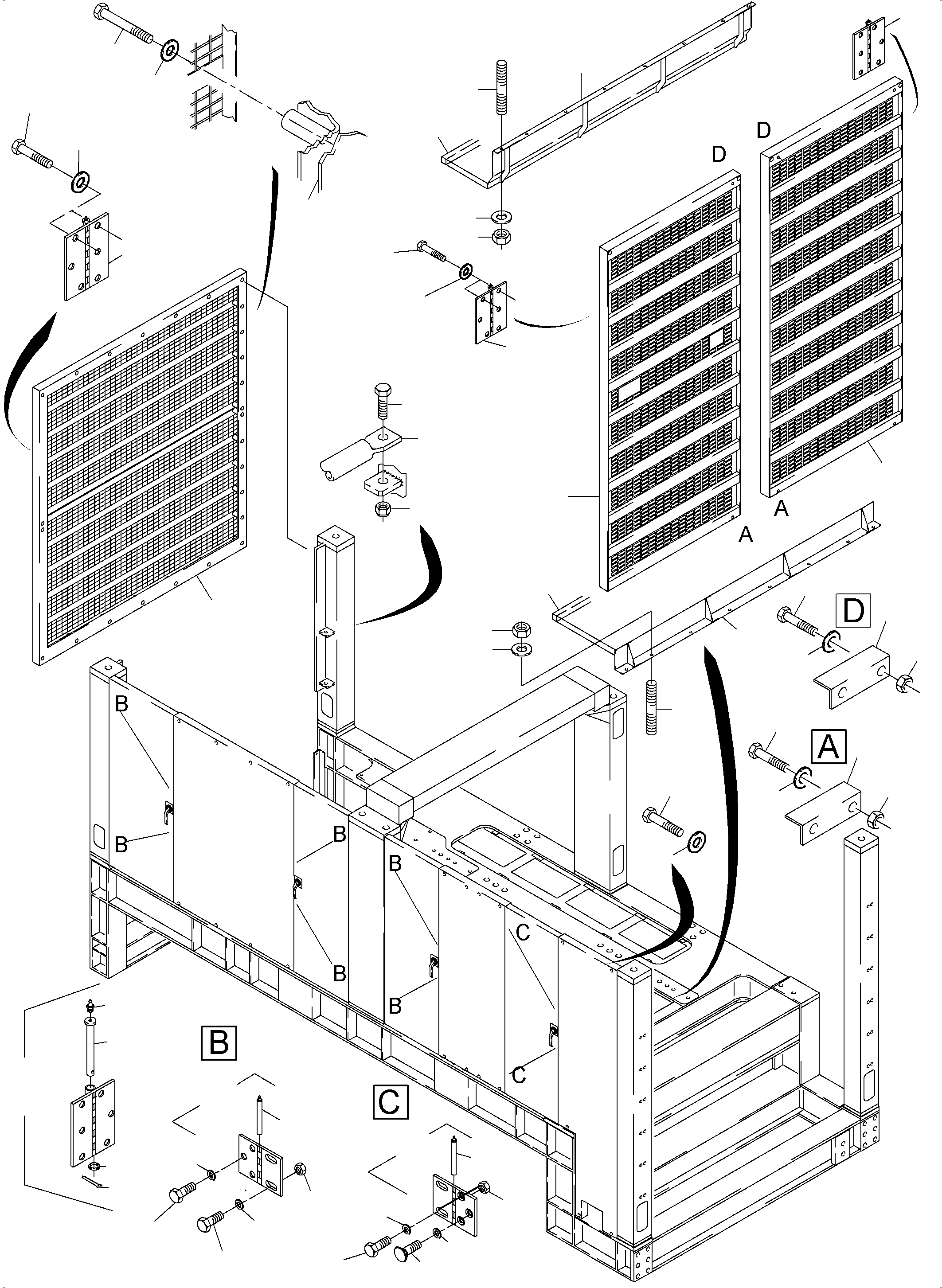

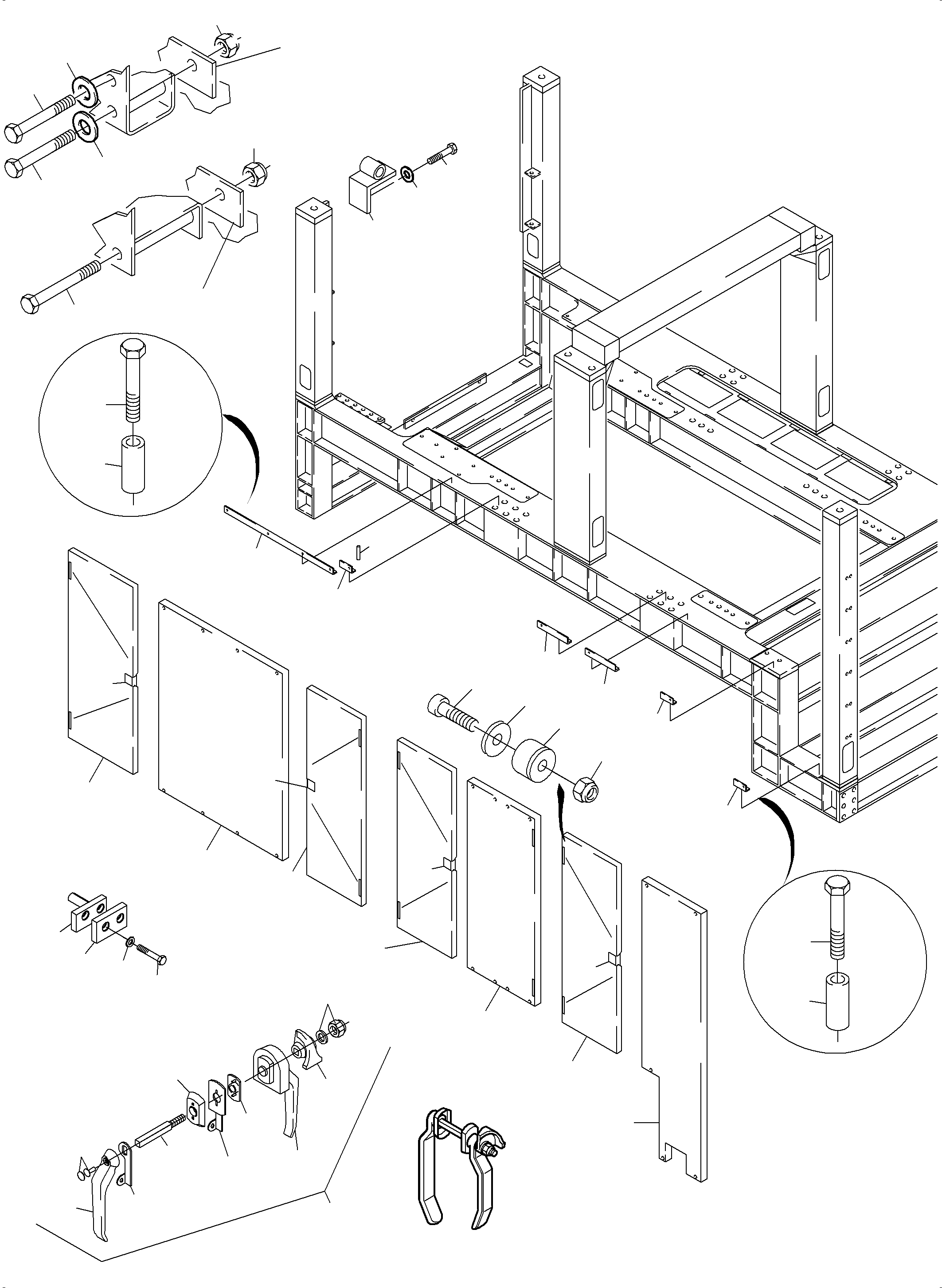

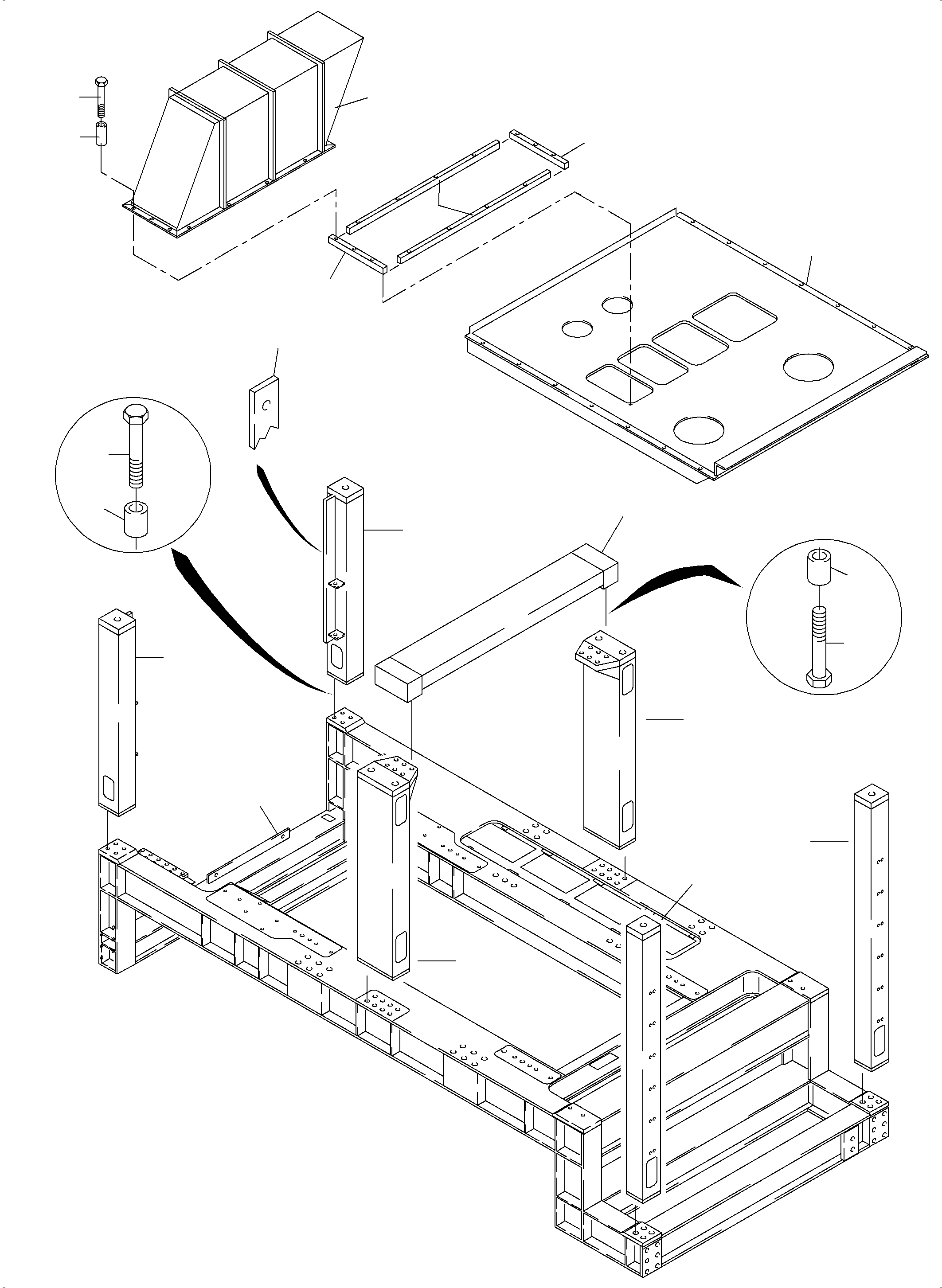

COVERING, ENGINE HOUSING (355-1030l) in PC4000-6 S/N 58137. Diagram image and parts list.
