PC300LC-8M0 S/N Y301001-UP

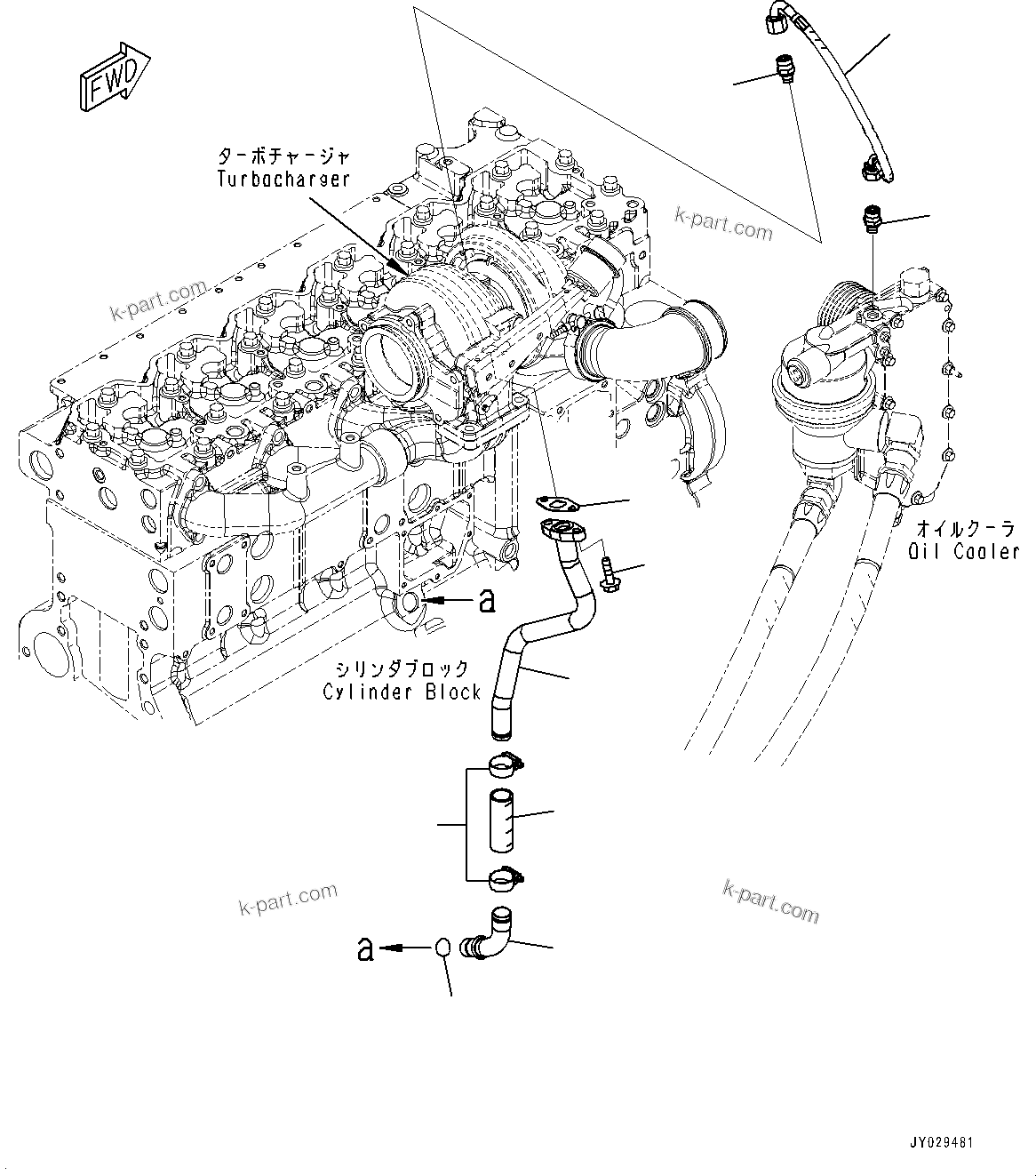

Komatsu parts book diagram for PC300LC-8M0 S/N Y301001-UP: TURBOCHARGER OIL PIPING

? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	6745-51-8130	HOSE	1	Field_2: 26866736 \| Field_5: 1 \| Field_6: TP97218 \| Field_7: TURBOCHARGER OIL PIPING
	?	6745-61-8160	CONNECTOR ASSEMBLY	2	Field_2: 26866736 \| Field_5: 2 \| Field_6: TP97218 \| Field_7: TURBOCHARGER OIL PIPING
	?	6737-51-8770	O-RING	1	Field_2: 26866736 \| Field_5: 3 \| Field_6: TP97218 \| Field_7: TURBOCHARGER OIL PIPING
	?	6732-81-8860	O-RING	1	Field_2: 26866736 \| Field_5: 4 \| Field_6: TP97218 \| Field_7: TURBOCHARGER OIL PIPING
	?	6732-51-8370	HOSE	1	Field_2: 26866736 \| Field_5: 5 \| Field_6: TP97218 \| Field_7: TURBOCHARGER OIL PIPING
	?	07281-00359	CLAMP,HOSE	2	Field_2: 26866736 \| Field_5: 6 \| Field_6: TP97218 \| Field_7: TURBOCHARGER OIL PIPING
	?	6745-51-8110	TUBE	1	Field_2: 26866736 \| Field_5: 7 \| Field_6: TP97218 \| Field_7: TURBOCHARGER OIL PIPING
	?	6731-51-8150	O-RING	1	Field_2: 26866736 \| Field_5: 8 \| Field_6: TP97218 \| Field_7: TURBOCHARGER OIL PIPING
	?	6745-51-8120	CONNECTOR	1	Field_2: 26866736 \| Field_5: 9 \| Field_6: TP97218 \| Field_7: TURBOCHARGER OIL PIPING
	?	01435-60820	BOLT	2	Field_2: 26866736 \| Field_5: 10 \| Field_6: TP97218 \| Field_7: TURBOCHARGER OIL PIPING
	?	6207-51-7690	GASKET	1	Field_2: 26866736 \| Field_5: 11 \| Field_6: TP97218 \| Field_7: TURBOCHARGER OIL PIPING

Komatsu PC300LC-8M0 S/N Y301001-UP parts catalog PDF

TURBOCHARGER OIL PIPING (|AA00014) in PC300LC-8M0 S/N Y301001-UP. Diagram image and parts list.
