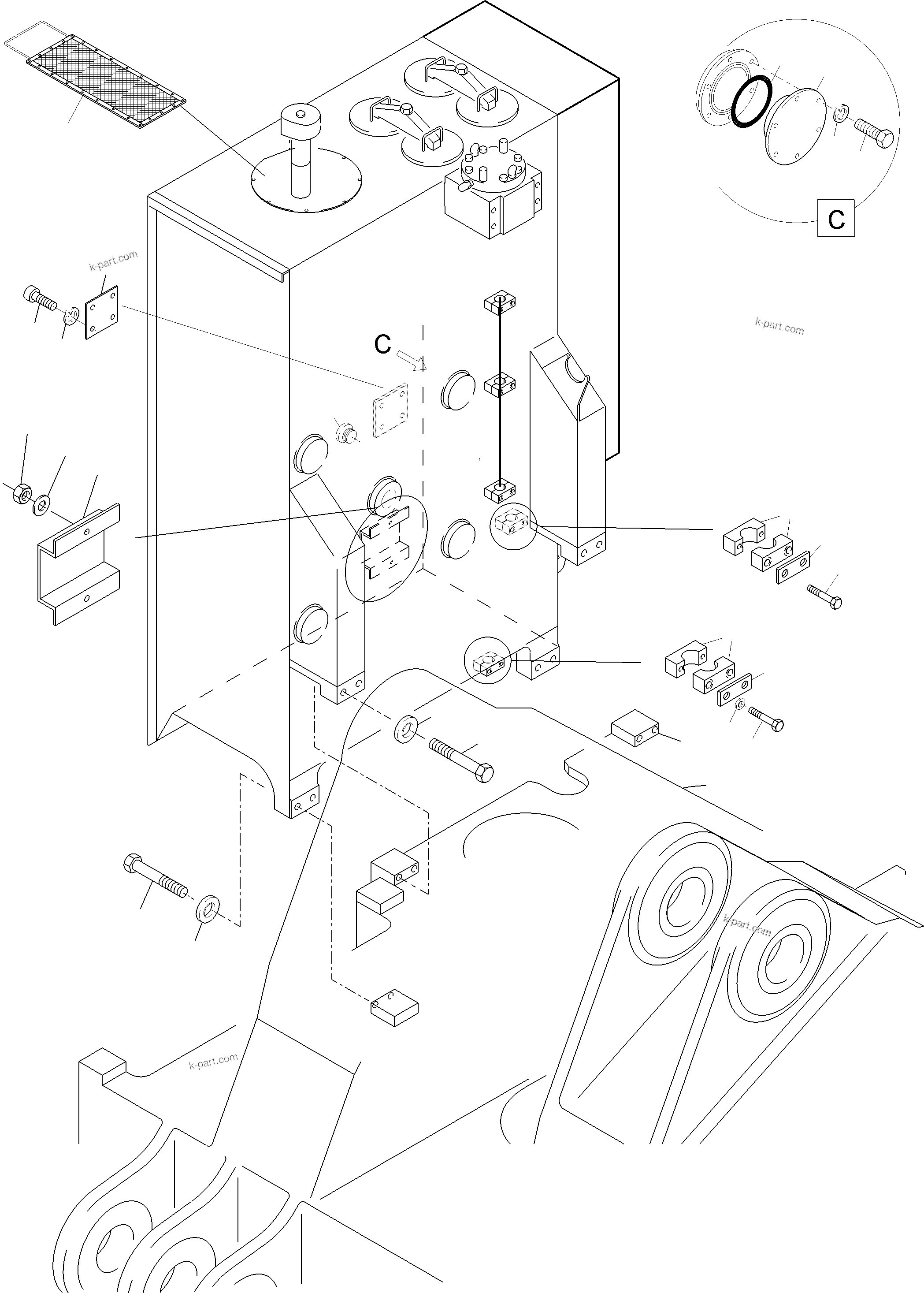

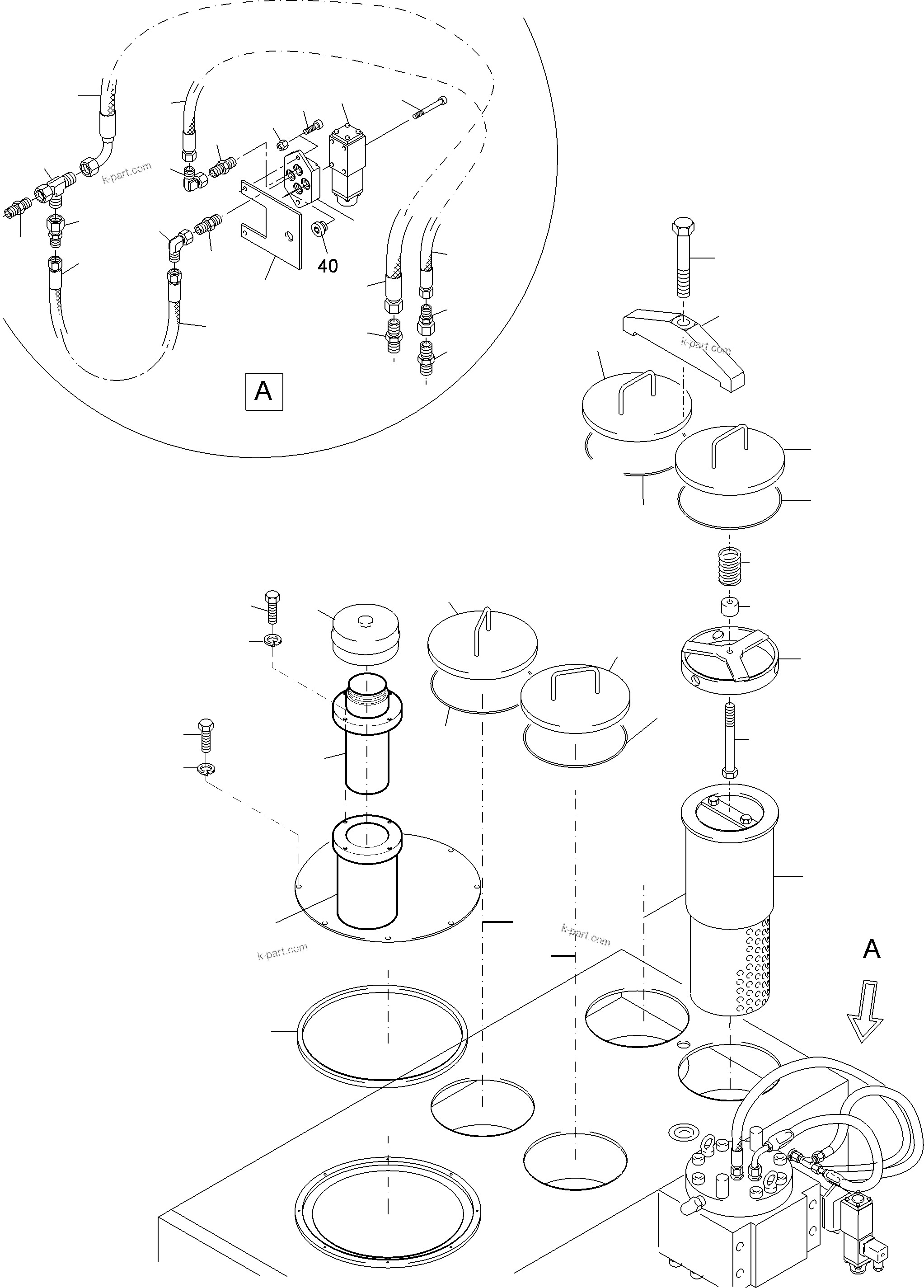

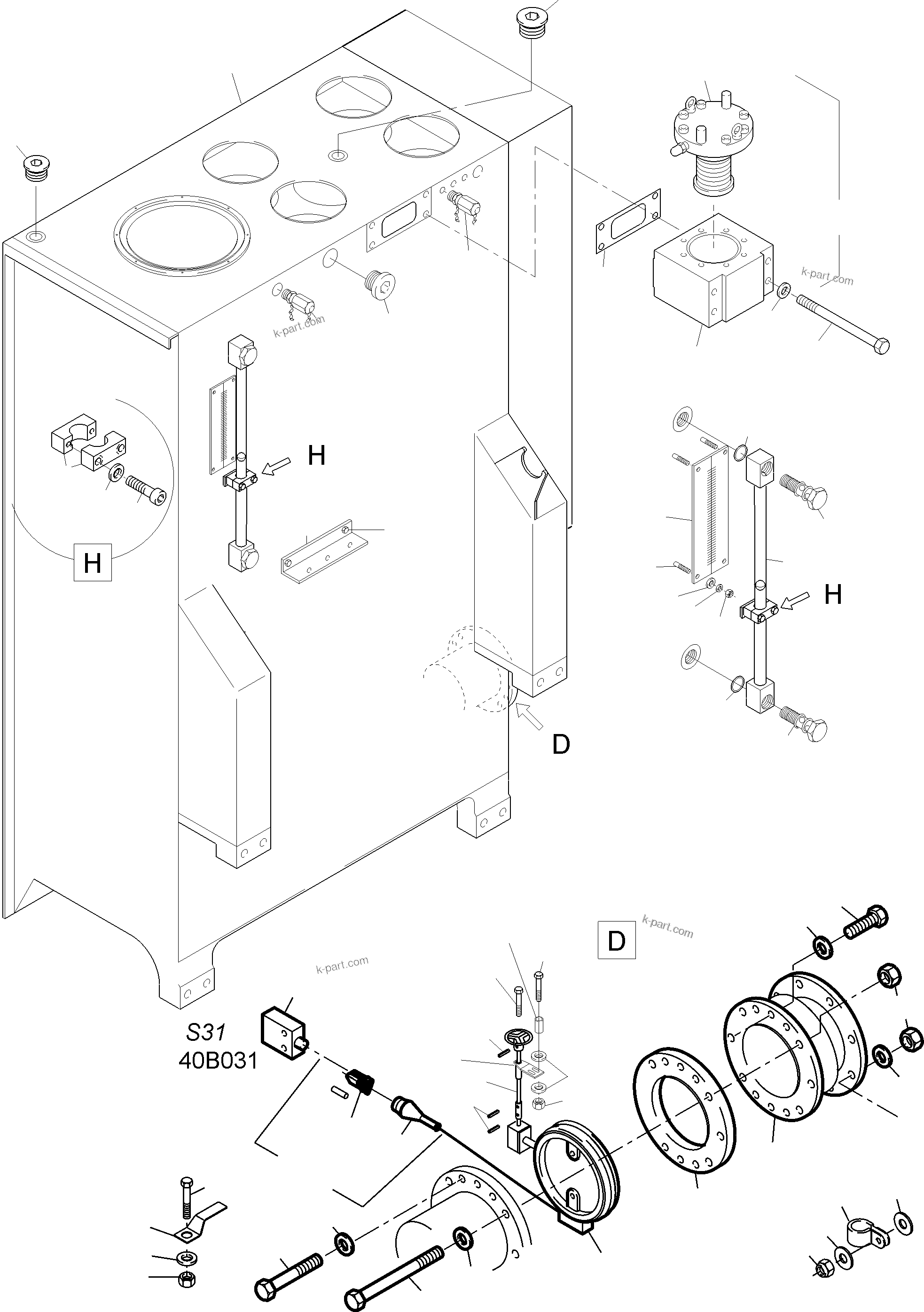

Diagram image 1 of 4

PC3000-6 S/N 06330

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 06330

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 06330

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 06330

? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	994 015 40	Oil tank MB	1
?	933 882 40	Valve block, incl. fig-nos: 120, 121	1
?	999 187 40	Oil aerosol separator	1
?	910 951 40	Filter cover	4
?	930 078 40	Cover Oil aerosol separator assy.	4
?	975 150 40	Cover plate	1
?	436 040 40	U-bolt	2
?	366 504 40	Compression spring	4
?	910 954 40	Bushing	4
?	255 694 40	Plug	2
?	906 469 40	Return oil filter	3	991-0348
?		Aeration filter, assy.	1	090-5586
?		Annular flap assy.	1
?	916 746 40	Seal	1
?	389 472 40	Seal	1
?	440 723 40	Compensator	1
?	502 119 98	O-ring	4
?	518 036 98	Clamp set	1
?	308 581 99	Bolt	2
?	304 309 99	Bolt	2
?	505 449 98	Bolt	4
?	307 845 99	Bolt	2
?	518 546 98	Lock washer	2
?	534 004 99	Cover plate	1
?	307 752 99	Bolt	38
?	308 874 99	Bolt	4
?	334 686 99	Nut	6
?	907 594 40	Fluid level sensor with swimming ball fig.-nos.: 49, 50	1
?	350 562 99	Grease nipple	1
?	316 213 99	Washer	2
?	769 653 73	Switch	1
?	517 121 98	Lock washer	38
?	374 407 99	Socket	1
?	515 820 98	Hose assy. (standard)	1
?	940 141 40	Hose assy. (Cold weather design)	1
?	518 037 98	Clamp Set	1
?	319 417 99	Screw	2
?	940 022 40	Plug	1
?	511 602 98	Banjo bolt	2
?	972 009 00	O-ring	2
?	515 812 98	Coupling	2
?	940 730 40	4/2 way directional spool valve	1
?	797 167 73	Solenoid for fig-no.55	-2
?	796 627 73	Sealkit	-2
?	180 325 40	Base plate	1
?	514 340 98	Screw	4
?	942 484 40	Retainer	1
?	319 132 99	Screw	2
?	308 670 99	Bolt	4
?	308 675 99	Bolt	6
?	500 716 40	Flange	1
?	340 470 99	Washer	12
?		Return oil filter	1	991-1225
?	507 025 98	Nut	2
?	511 718 98	Clamp	2
?	511 196 98	Cover plate	2
?	515 553 98	Hose assy. (standard)	1
?	932 754 40	Hose assy. (Cold weather design)	1
?	516 175 98	Socket	1
?	308 679 99	Bolt	4
?	551 987 40	Union	2
?	371 459 99	Socket	2
?	516 157 98	Socket	2
?	374 436 99	Socket	2
?	324 741 40	Plug	4
?	959 023 40	Guide	1
?	925 177 40	Extension	1
?	345 052 99	Dowel pin	3
?	926 952 40	Strainer	1
?	930 923 40	Plate	1
?	507 037 98	Nut	12
?	340 465 99	Washer	6
?	516 041 98	Hose assy. (standard)	1
?	940 142 40	Hose assy. (Cold weather design)	1
?	942 441 40	Cap	1
?	340 467 99	Washer	4
?	943 689 40	Cable Cover	1
?	942 485 40	Angle	1
?	517 122 98	Lock washer	8
?	307 777 99	Bolt	2
?	307 779 99	Bolt	1
?	340 465 99	Washer	4
?	970 743 40	Cover	5
?	006 739 98	O-ring	5
?	324 550 40	Plug	1
?	518 546 98	Lock washer	4
?	319 129 99	Screw	4
?	961 832 40	Cover	1
?	510 741 98	Resilient sleeve	1
?	307 789 99	Bolt	1
?	307 775 99	Bolt	1
?	507 596 98	Washer	2
?	0443451210	Clamp D=12,0	2
?	0819320010	Clip	1
?	933 852 40	Decal oil level	1
?	509 875 98	Thread pin	4
?	507 596 98	Washer	4
?	340 507 99	Washer	4
?	334 599 99	Nut	4
?	255 057 40	Washer	8
?	304 306 99	Bolt (standard)	4
?	511 747 98	Bolt (Cold weather design)	4
?	302 552 99	Bolt (standard)	4
?	500 982 98	Bolt (Cold weather design)	4
?	631 091 40	Valve block	1
?		Pressure relief valve	1	991-0413b
?	904 748 40	Annular flap	1
?	955 670 40	Socket assy. with rubber grommet	1
?	955 669 40	Socket assy.	1
?	941 791 40	Rubber grommet	1
?	799 975 73	Filter element with o-ring	1

Komatsu PC3000-6 S/N 06330 parts catalog PDF

MAIN OIL TANK (485-1801g) in PC3000-6 S/N 06330. Diagram image and parts list.
