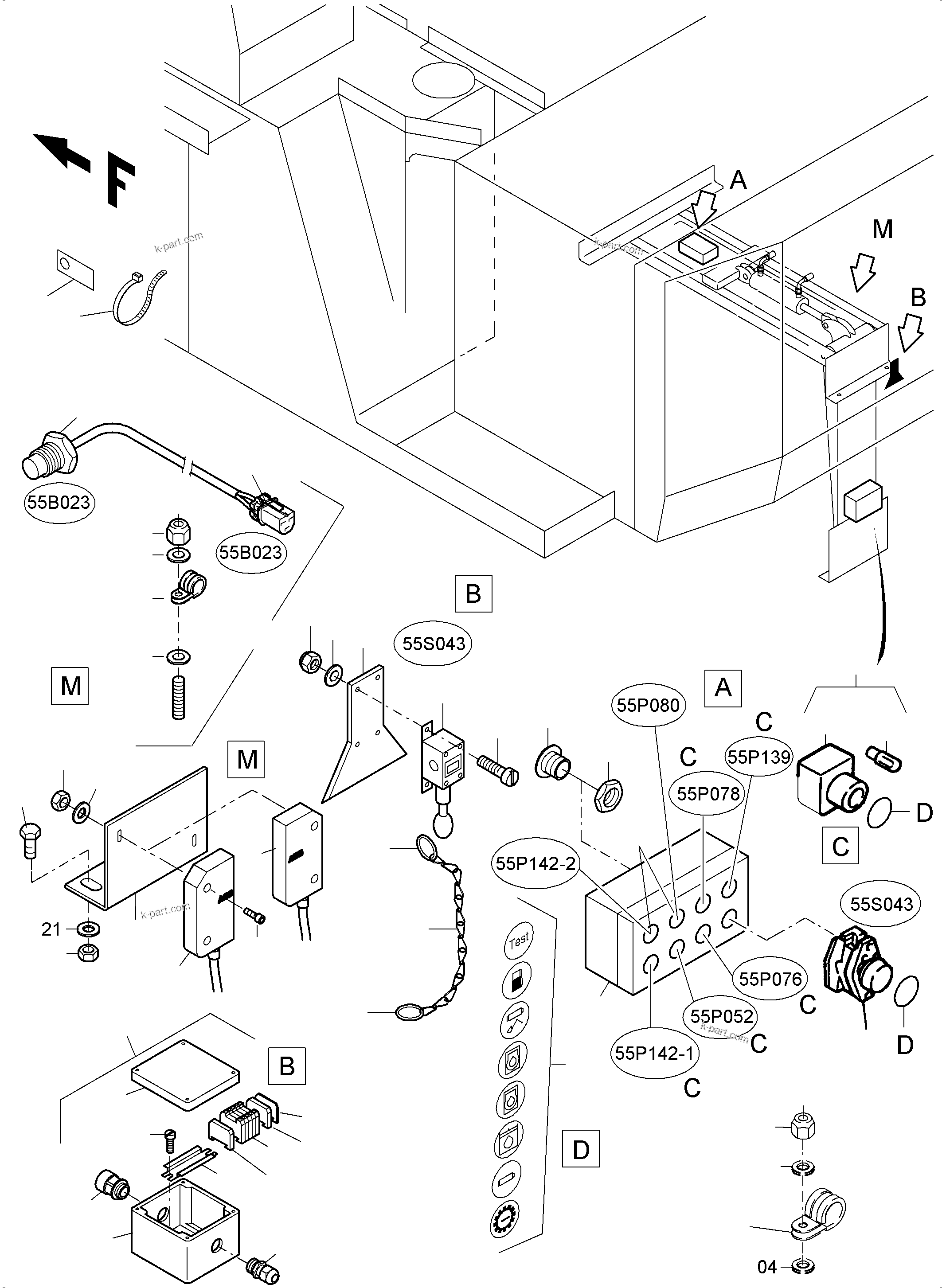

ELECTRIC PARTS - REFUELING | PC4000-6 S/N 08237

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC4000-6 S/N 08237

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	910 026 40	Plate	1
?	977 306 40	Terminal box assy.	1
?	255 680 40	Pull switch	1
?	472 688 99	Chain	2
?	098 955 40	Ring	2
?	926 528 40	Switch assy.	1
?	950 912 40	Sensor	1
?	950 913 40	Sensor	1
?	975 562 40	Retainer	1
?	0443451210	Clip Ш 12	1
?	0443451210	Clip Ш 12	4
?	0443451510	Clip Ш 15	9
?	0443451910	Clip Ш 19	4
?	0443452711	Clip Ш 27	1
?	0819320010	Clip	1
?	507 596 98	Washer	20
?	519 470 98	Screw	4
?	518 314 98	Lock washer	4
?	518 560 98	Lock washer	3
?	307 741 99	Bolt	3
?	518 547 98	Lock washer	22
?	332 202 99	Nut	4
?	332 292 99	Nut	3
?	332 113 99	Nut	22
?	323 430 40	Box, aluminium	1
?	942 119 40	Indicator lamp with LED, red	7
?	903 423 40	Graphical symbol	1
?	255 328 40	Circuit element	1
?	323 677 40	Press button adapter	1
?	950 726 40	Plug	1
?	517 322 98	Cable nut	1
?	358 291 40	Plug	4
?	323 675 40	Indicator light, red	1
?	940 735 40	Light emitting diode, red	1
?	977 309 40	Terminal box	1
?	907 623 40	Cable union NW 12	1
?	951 117 40	Cable union	1
?	507 783 98	Assembly rail	-2
?	940 722 40	Clamp	2
?	490 925 40	Clamp	5
?	414 498 40	Cover plate	1
?	320 986 99	Bolt	2
?	955 670 40	Plug	1
?	940 016 40	Switch	1
?	941 777 40	Plate	1
?	174 411 40	Cable strap	2
