Diagram image 1 of 2

PC4000-6 S/N 08237

03 04 05 05 06 06 07 07 08 08 09 10 10 101 11 11 111 112 113 114 115 116 117 118 119 12 120 121 122 13 14 14 14 15 15 16 16 16 16 17 17 17 17 17 18 18 18 19 20 21 21 22 22 23 23 23 24 24 24 25 26 27 27 27 28 28 29 30 31 31 31 31 31 31 32 33 33 34 34 35 35 36 36 36 37 37 38 39 40 41 42 44 45 46 47 47 47 48 49 50 51 52 53 54 55 56 57 57 58 59 59 60 61 62 62 63 65 66 66 67 68 68 68 68 69 70 71 73 74 75 76 77 78 79 81 81 85 85 85 87 87 89 89 90 90 91 91 93 94 99

PC4000-6 S/N 08237

100 101 15 16 16 17 17 17 18 18 21 22 25 26 28 29 31 31 31 33 34 35 36 37 47 47 51 52 57 58 59 60 62 63 64 64 68 72 74 80 81 81 81 81 82 83 84 85 85 85 85 86 87 87 87 87 88 89 89 90 91 92 93 94 95 96 96 97 98 99 99

#	Part Number	Partname	Quantity	Reference
03	269 880 40	Valve	1	991-0091
04	270 131 40	Metering valve	1	991-0091
05	654 130 40	Protection cap	6
06	308 555 99	Bolt	3
07	517 121 98	Lock washer	3
08	906 981 40	Union	6
09	512 273 98	Socket	1
10	906 984 40	Union	2
11	518 355 98	Hose assy. DN 8x700	1
12	634 481 40	Union	1
13	516 834 98	Union	1
14	374 443 99	Union	1
15	371 271 99	Union nut	13
16	907 080 40	Olive	31
17	515 028 40	Collet	28
18	515 029 40	Hose connection	12
19	936 979 40	Thread plate	1
20	936 978 40	Thread plate	1
21	371 257 99	Union nut	16
22	515 027 40	Hose connection	16
23	371 264 99	Union nut 25	4
24	906 868 40	Olive 25	5
25	371 260 99	Union nut 20	5
26	906 351 40	Olive 20	5
27	517 122 98	Lock washer	10
28	308 579 99	Bolt	10
29	517 291 98	Union	12
30	374 428 99	Union	4
31	576 160 40	Hose DN 4	-2
32	655 649 40	Cable protection hose DN 10 DN 10	-2
33	0443551210	Twin Clip Ш12	24
34	0443451210	Clip Ш12	19
35	340 111 99	Washer	43
36	907 854 40	Thread pin	43
37	340 465 99	Washer	43
38	502 618 98	Half clamp	2
39	534 005 99	Weld on plate	2
40	534 004 99	Cover plate	2
41	504 926 98	Grommet	2
42	308 581 99	Bolt	4
44	929 431 40	Clamp	4
45	634 978 40	Cover plate	8
46	512 055 98	Thread pin	8
47	334 600 99	Nut	37
48	936 962 40	Pipe	1
49	942 827 40	Pipe assy.	1
50	936 991 40	Pipe assy. Ш25	1
51	907 334 40	Hose assy. DN 16 x 1500	2
52	907 377 40	Hose protection	2
53	512 672 98	Hose assy. DN 20 x 4400	1
54	942 824 40	Angle	4
55	923 356 40	Plate	1
56	634 271 40	Union	1
57	504 224 98	Half clamp	6
58	0443453412	Clip Ш34	1
59	507 121 98	Thread pin	1
60	340 467 99	Washer	2
61	931 897 40	Guard plate	1
62	534 001 99	Cover plate	4
63	534 002 99	Weld on plate	3
64	909 206 40	Cover tube	2
65	307 805 99	Bolt	4
66	517 118 98	Lock washer	12
67	511 773 98	Thread pin	2
68	507 037 98	Nut	43
69	324 672 40	Plug	1
70	0443451510	Clip Ш15	1
71	907 378 40	Swivel union	1
72	517 561 98	Union	1
73	923 369 40	Pipe assy. Ш 20	1
74	374 442 99	Union	3
75	957 651 40	Lubrication pipe protection, left	1
76	957 652 40	Lubrication pipe protection, right	1
77	957 653 40	Thread plug	8
78	307 824 99	Bolt	8
79	371 867 99	Breech block	1
80	933 085 40	Pipe assy. Ш 20	1
81	269 881 40	Valve	10	991-0323a
82	933 083 40	Plate	1
83	923 366 40	Plate	1
84	957 641 40	Thread pin	4
85	502 303 98	Socket	6
86	517 148 98	Socket	1
87	654 496 40	Protection cap	10
88	957 617 40	Plate	1
89	655 268 40	Union	4
90	907 151 40	Olive 16	12
91	371 263 99	Union nut 16	12
92	517 255 98	Union	1
93	950 511 40	Clamp	40
94	634 774 40	Cover plate	20
95	907 341 40	Straight swivel union	1
96	428 861 40	Pipe assy. Ш 16	3
97	308 612 99	Bolt	24
98	509 308 98	Locking plate	2
99	517 560 98	Union	10
100	307 830 99	Bolt	4
101	517 123 98	Lock washer	12
111	942 823 40	Lower Plate	1
112	308 611 99	Bolt	8
113	942 851 40	Weld on plate	1
114	652 383 40	Shackle	2
115	516 183 98	Socket	1
116	516 173 98	Socket	1
117	551 615 40	Union	1
118	371 861 99	Breech block	1
119	551 456 40	Union	1
120	634 546 40	Union	1
121	516 700 98	Union	1
122	341 754 40	Ultimate pressure control	1

Komatsu PC4000-6 S/N 08237 parts catalog PDF

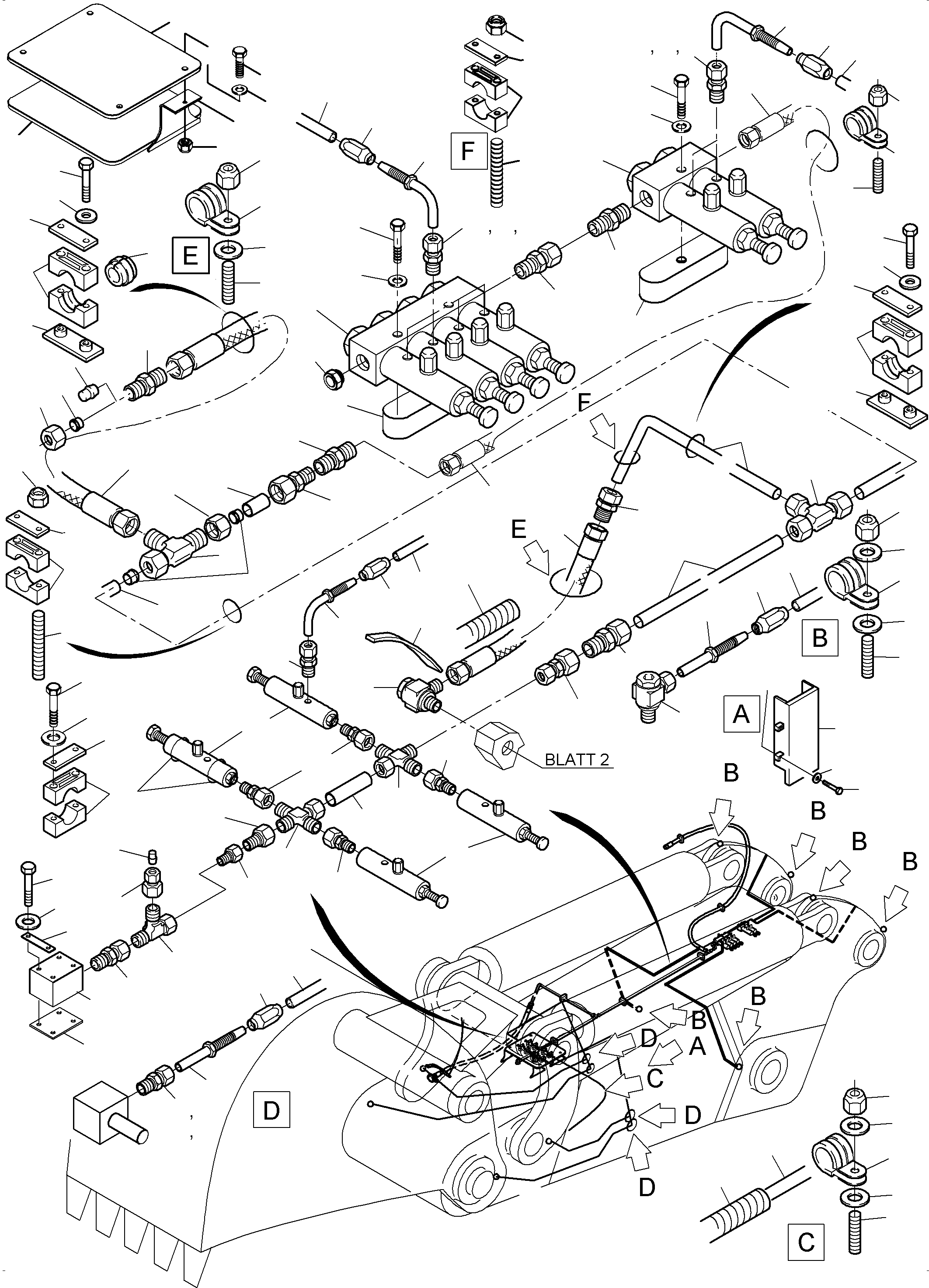

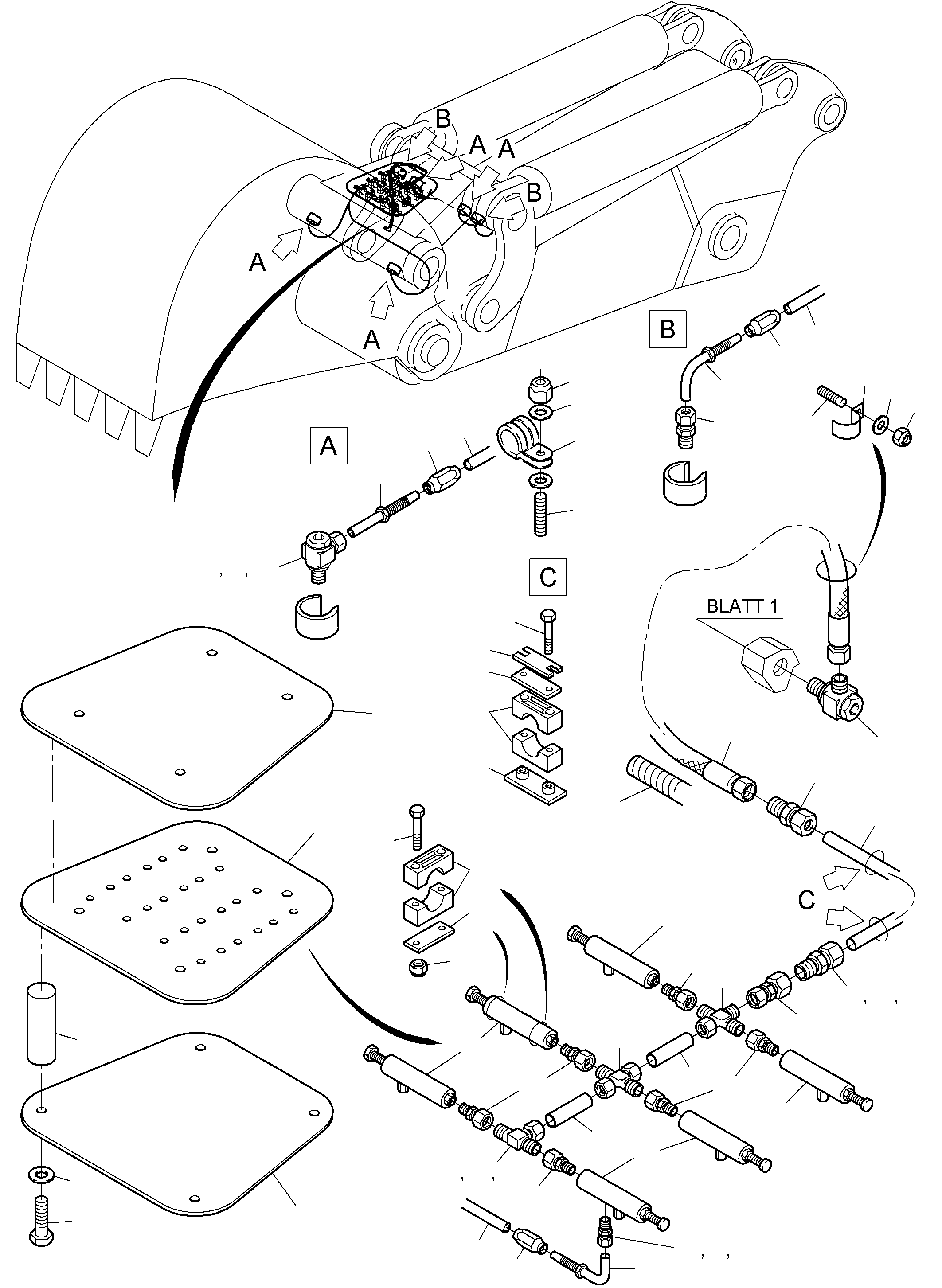

STICK - LUBRICATION 4,5 M (355-2372i) in PC4000-6 S/N 08237. Diagram image and parts list.
