PUMP DISTRIBUTOR GEAR, 50HZ | PC5500-6E S/N 15134

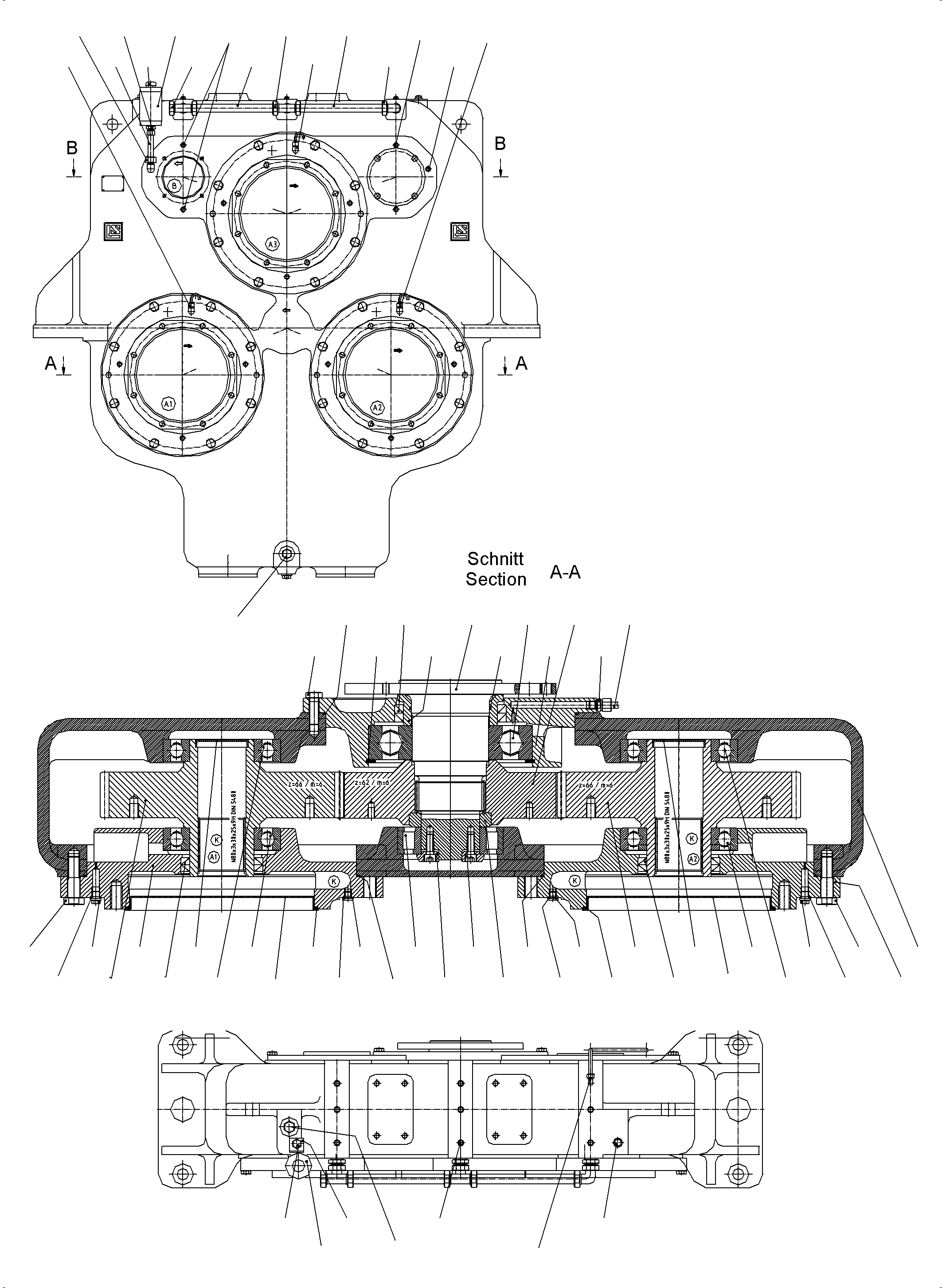

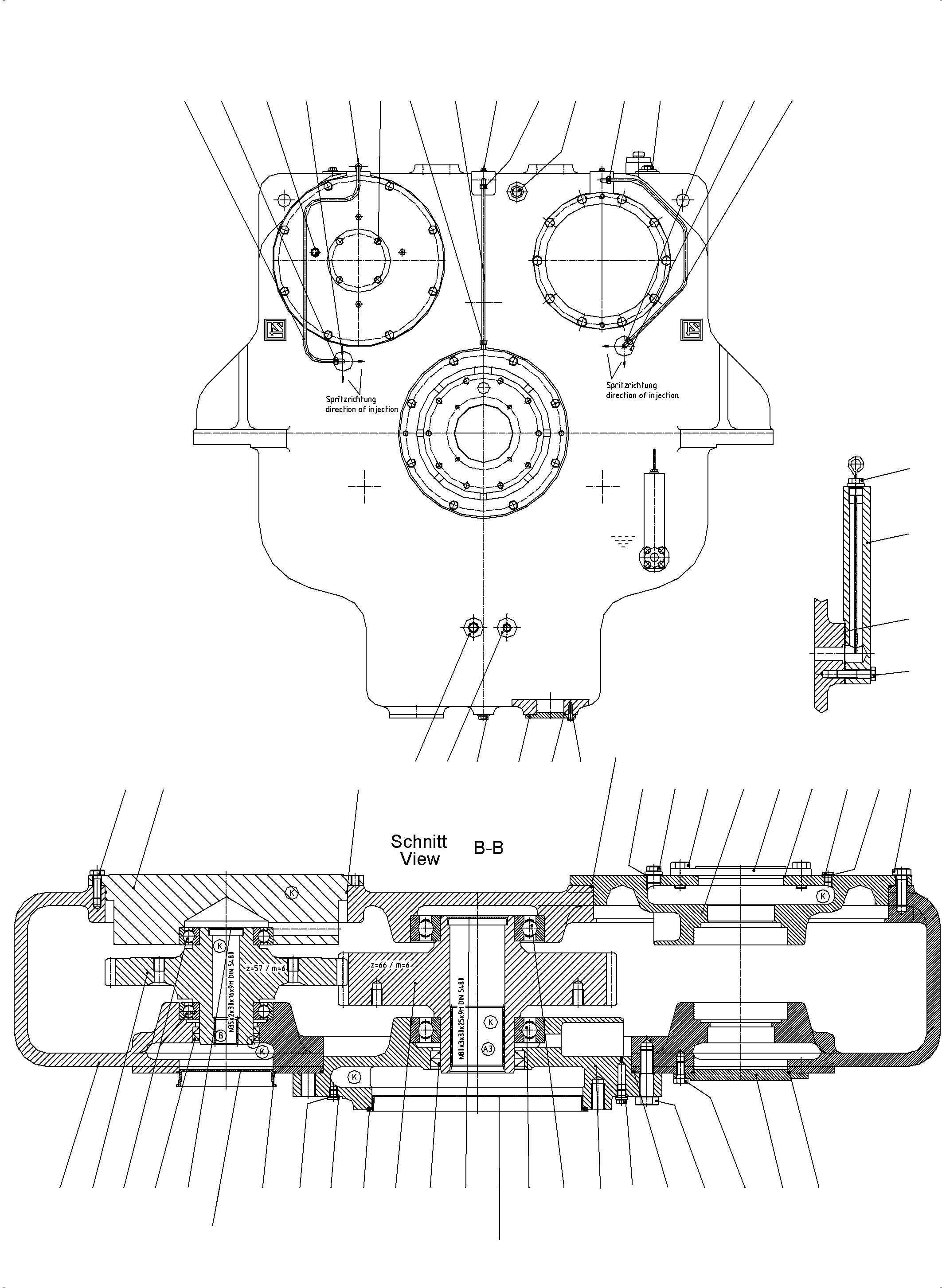

Diagram image 1 of 2

PC5500-6E S/N 15134

01 02 03 04 04 09 102 102 103 11 112 113 114 115 115 116 117 119 12 123 124 125 125 15 15 26 26 26 26 29 30 30 33 36 36 37 37 38 38 39 45 46 46 48 52 52 52 52 52 56 57 57 58 58 58 58 58 59 60 60 62 62 66 67 67 67 68 68 68 69 69 69 71 72 78 79 79 80 81 81 81

PC5500-6E S/N 15134

01 04 06 100 110 110 111 125 126 13 130 132 15 16 17 20 22 23 24 26 26 28 35 36 37 38 40 40 41 42 43 44 46 47 49 50 50 51 52 52 53 54 54 54 55 57 58 58 59 59 60 61 62 63 67 67 68 68 71 71 71 71 71 72 78 78 78 87 88 99

#	Part Number	Partname	Quantity
\|$$1	918 850 40	Pump distributor gear assy. 50Hz	1
\|$$2	798 758 73	Drive shaft unit (incl. pos. 02,03,09,11,12,29,30,33,38,39,45,66,119,123,124)	-2
01	793 006 73	Housing (not available)	1
02	766 913 73	Joint shaft flange	1
03	793 007 73	Drive gear	1
04	793 008 73	Spur gear	3
06	793 009 73	Spur gear	1
09	806 760 73	Intermediate ring	1
11	806 974 73	Retainer	1
12	763 772 73	Bearing cap	1
13	805 529 73	Cover	2
15	763 775 73	Flange	3
16	806 977 73	Flange	1
17	793 010 73	Cover	1
20	793 011 73	Cover	1
22	806 232 73	Meter unit	1
23	806 233 73	Seal	1
24	793 012 73	Oil dipstick	1
26	513 595 98	Roller bearing	6
28	368 218 99	Roller bearing	2
29	517 315 98	Roller bearing	1
30	508 999 98	Cylindrical roller bearing	1
33	797 694 73	Radial seal	2
35	086 388 00	Radial seal	2
36	367 058 99	Radial seal	6
37	172 570 40	O-ring	3
38	513 592 98	O-ring	3
39	504 588 98	O-ring	1
40	971 177 00	O-ring	2
41	500 388 98	O-ring	1
42	504 595 98	O-ring	1
43	006 657 98	O-ring	1
44	082 821 00	O-ring	2
45	319 157 99	Bolt	4
46	308 666 99	Bolt	24
47	307 825 99	Bolt	8
48	307 825 99	Bolt	8
49	307 781 99	Bolt	8
50	307 468 99	Bolt	4
51	307 822 99	Bolt	2
52	313 395 99	Plug	20
53	511 498 98	Plug	1
54	331 322 99	Plug	1
55	508 923 98	Plug	1
56	313 122 99	Plug	1
57	313 126 99	Plug	2
58	339 879 99	Seal ring	20
59	339 907 99	Seal ring	3
60	339 967 99	Seal ring	2
61	340 103 99	Seal ring	1
62	763 782 73	Tube pole cap	3
63	806 259 73	Tube pole cap	1
66	342 707 99	Circlip	1
67	313 199 99	Plug	8
68	340 275 99	Seal ring	8
69	372 732 99	Union	3
71	763 762 73	Union	5
72	370 312 99	Union	1
78	214 768 99	Precision tubing Ш 10x1,5	-2
79	215 037 99	Precision tubing 1,5m lgth. Ш 28x2	-2
80	215 812 99	Precision tubing 0,1m lgth. Ш 16x1,5	-2
81	806 236 73	Pipe	3
87	763 767 73	Spray pipe	1
87	763 768 73	Union	1
87	513 589 98	Sealing washer	1
88	763 769 73	Spray pipe	1
88	763 768 73	Union	1
88	513 589 98	Sealing washer	1
99	308 604 99	Bolt	4
100	340 002 99	Seal ring	1
102	806 276 73	Union	2
103	763 785 73	Union	1
110	313 316 99	Plug	1
111	340 323 99	Seal ring	1
112	770 120 73	Toothed washer	1
113	514 132 98	Bolt	1
114	770 121 73	Locking plate	1
115	806 278 73	Expansion tank	1
116	806 978 73	Breather with dipstick	1
\|$$80	339 998 99	Seal ring	-2
117	372 035 99	Union	1
119	763 763 73	Union	1
123	763 773 73	Intermediate ring	1
124	512 711 98	O-ring	1
125	763 787 73	Plug	3
126	806 244 73	Plug	2
130	307 805 99	Bolt	10
132	793 013 73	Cover	1
\|$$89	799 355 73	Seal kit consist. of pos. 33,35,36,37,38,39,40,41,42,43,44,58,59,60,61,68,100,124	1
\|$$90	799 356 73	Bearing kit consist. of pos.26,28,29,30	1
