HYDRAULIC PUMP | PC5500-6E S/N 15134 | Komatsu parts book catalogue

Diagram image 1 of 4

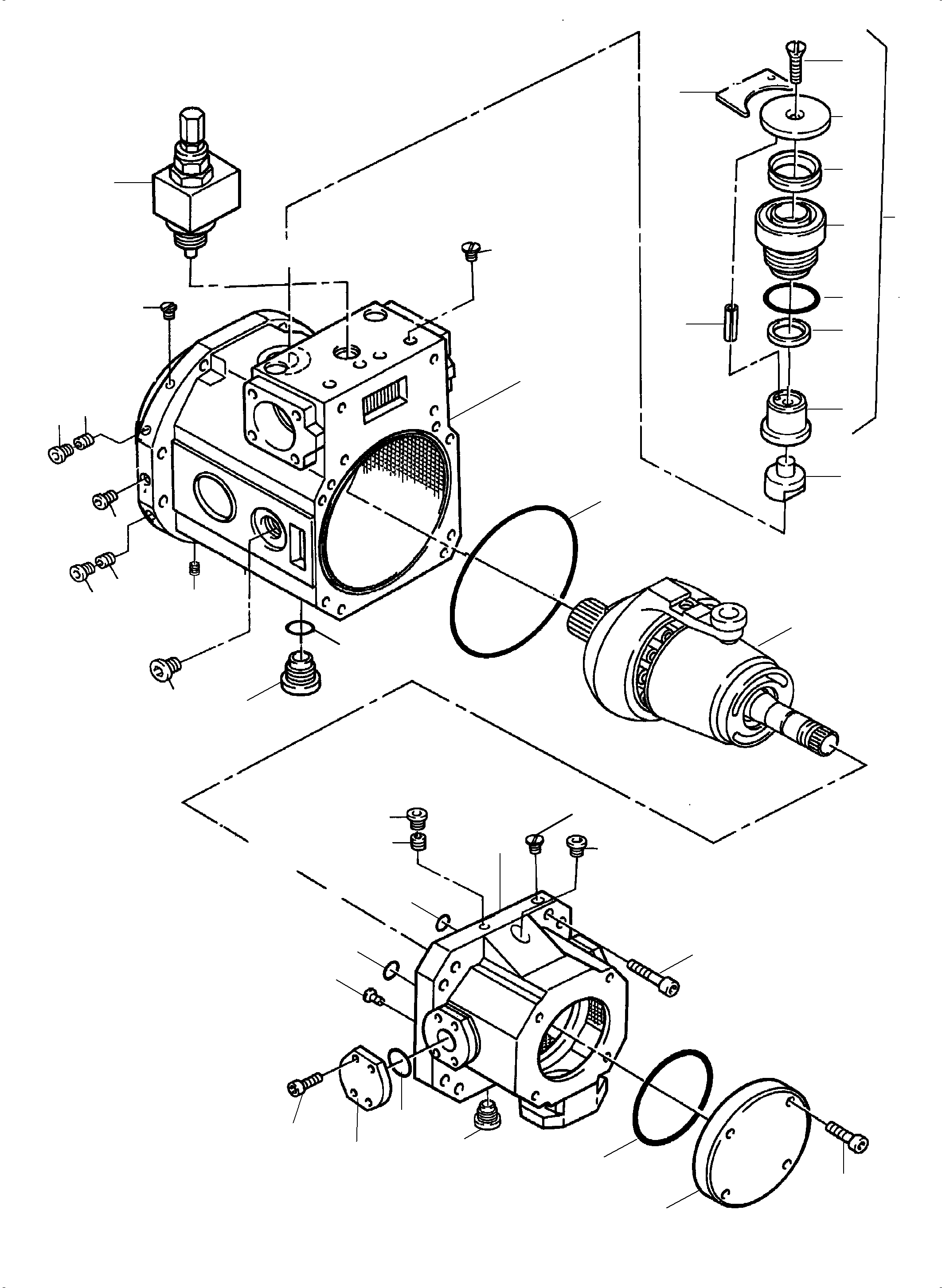

PC5500-6E S/N 15134

01 02 05 05 05 05 06 06 07 07 08 09 09 11 11 13 13 14 14 183 20 20 21 21 22 22 31 32 32 33 33 33 33 34 34 35 36 36 37 39 39 40 40 42 43 44 45 46 47 48 49 57 57

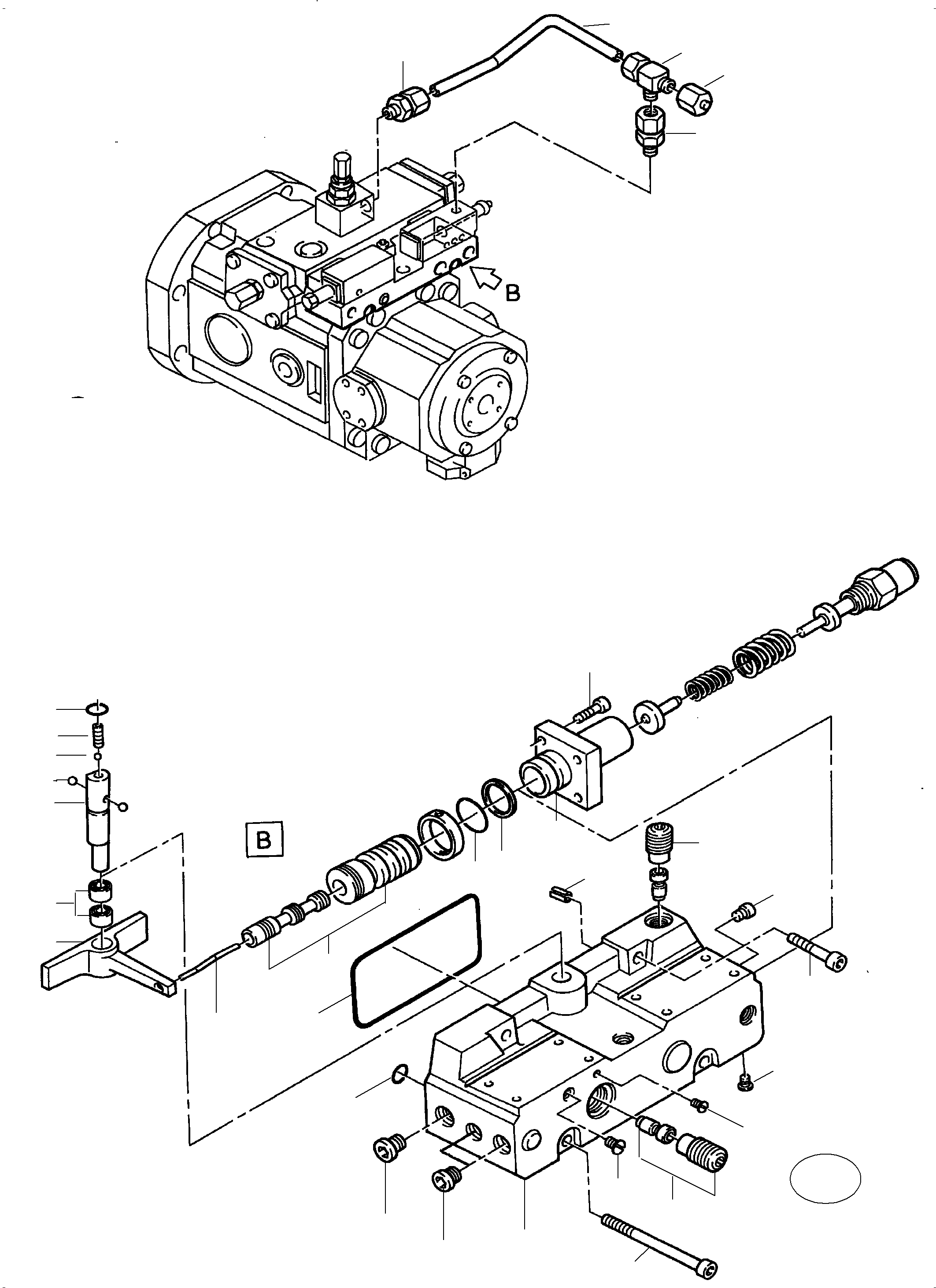

PC5500-6E S/N 15134

05 20 21 22 50 50 51 52 53 54 55 56 57 58 59 60 62 63 64 65 66 67 68 69 70 71 72 73 74 75 75 76 77 78

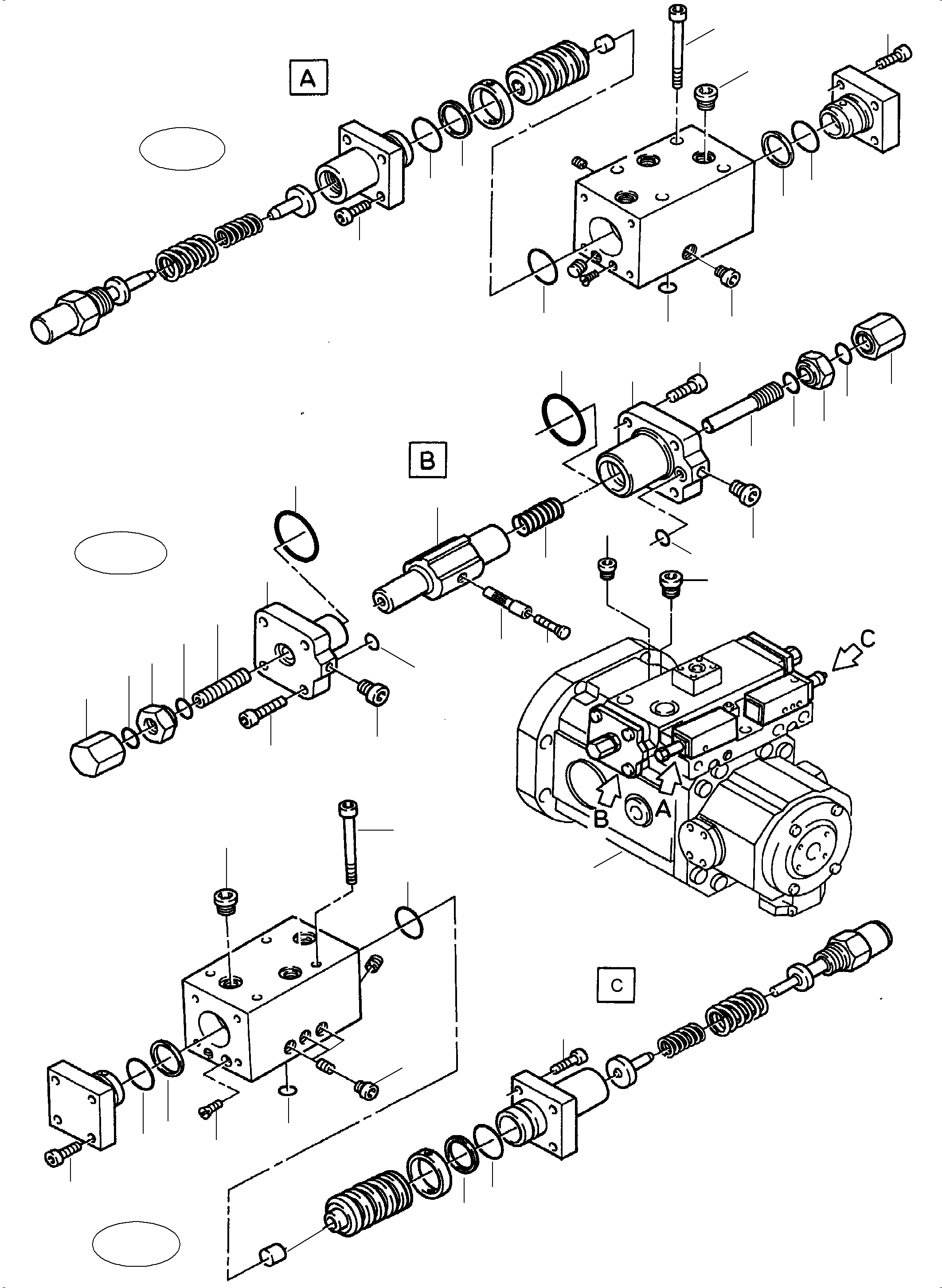

PC5500-6E S/N 15134

100 102 103 104 105 106 107 108 110 111 112 120 121 122 122 122 123 124 125 126 127 128 129 129 129 129 130 131 132 133 133 134 135 136 137 140 141 142 143 145 182 184 185

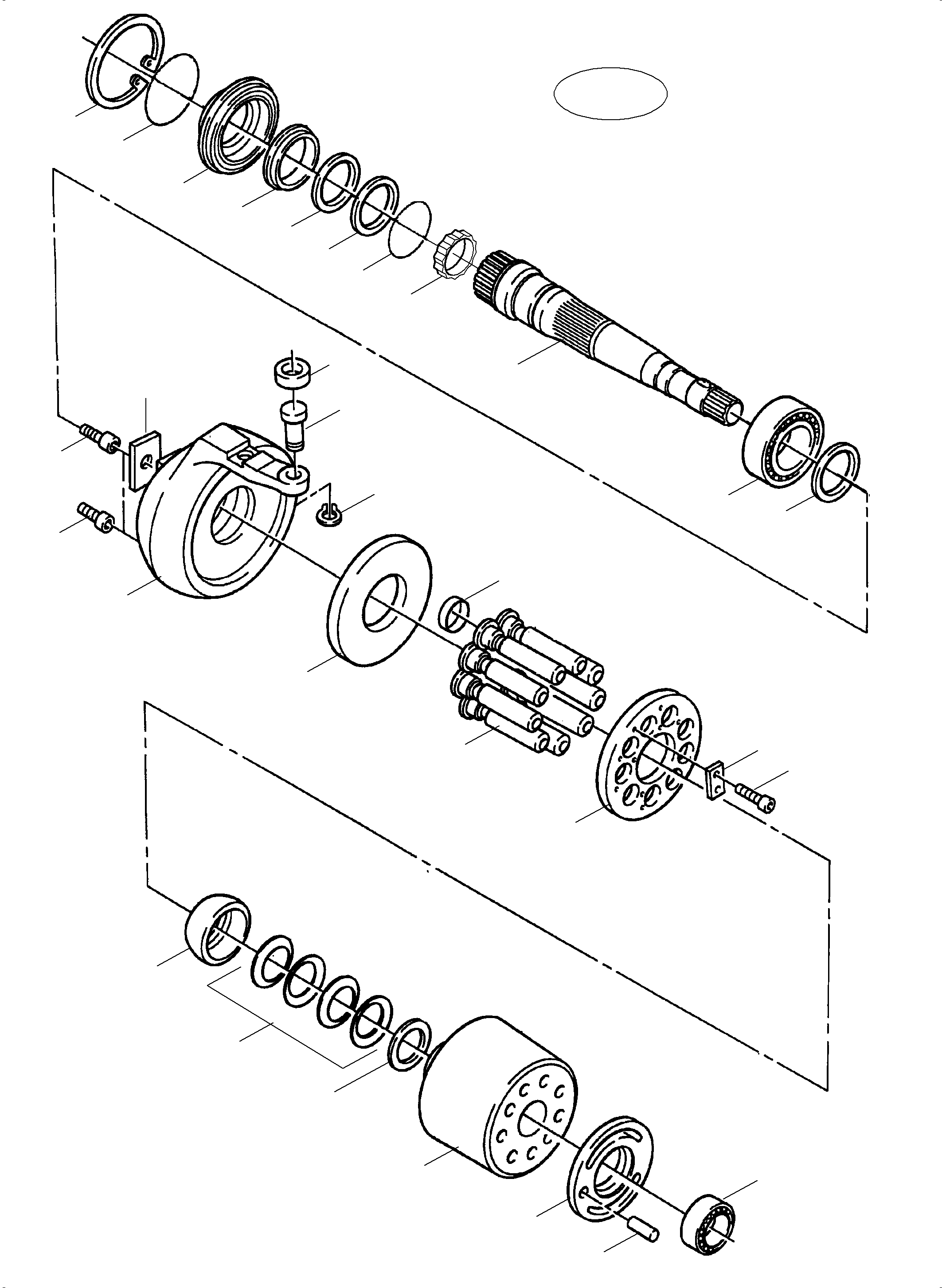

PC5500-6E S/N 15134

126 150 151 152 153 154 156 157 159 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 190

#	Part Number	Partname	Quantity
01	959 318 40	Hydro pump, to be adjusted by customer according to working altitude and KM AH 06542b	1
02	763 522 73	Pilot valve assy	1
05	319 540 99	Bolt	16
06	767 054 73	O-ring	2
07	767 055 73	Support ring	2
08	431 031 73	Plug	3
09	255 985 40	Plug	4
11	319 248 99	Bolt	8
13	798 831 73	Plug	10
14	511 561 98	O-ring	10
20	767 065 73	Support ring	2
21	767 066 73	O-ring	2
22	767 067 73	O-ring	6
31	763 523 73	Pilot valve assy	1
32	767 075 73	Nut	2
33	767 076 73	O-ring	4
34	767 077 73	Nut	2
35	767 078 73	Treaded pin	1
36	320 153 99	Bolt	8
37	767 079 73	Piston housing	1
39	767 080 73	O-ring	2
40	767 081 73	O-ring	2
42	798 324 73	Set piston	1
43	766 693 73	Bushing	1
44	767 085 73	Guide shoe	1
45	767 086 73	Spring	1
46	767 087 73	Threaded pin	1
47	767 088 73	Piston housing	1
48	173 493 40	Bolt	2
49		Bolt	1
50	766 694 73	Valve assy.	1
51	766 695 73	Valve housing	1
52	255 985 40	Plug	3
53	173 493 40	Plug	2
54	767 092 73	O-ring	4
55	767 093 73	O-ring	1
56	319 265 99	Bolt	2
57	767 094 73	Breaking plug	3
58	765 466 73	Breaking plug	3
59	794 402 73	Breaking plug	3
60	319 259 99	Bolt	2
62	796 778 73	Non return valve	1
63	345 040 99	Dowel sleeve	1
64	766 697 73	Non return valve	1
65	767 724 73	O-ring	1
66	509 633 98	Threaded pin	1
67	363 539 99	Ball	1
68	363 424 99	Ball	2
69	767 098 73	Eccentric stud	1
70	756 820 73	Needle cage	2
71	767 099 73	Lever	1
72	767 100 73	Parallel pin	1
73	767 101 73	Sleeve	1
74		Bolt	1
75	767 103 73	Union	2
76	215 390 99	Pipe Ш 8	-2
77	767 104 73	Union	1
78	767 105 73	Plug	1
100	766 698 73	Indicator assy	1
102	319 417 99	Bolt	1
103	766 699 73	Pointer	1
104	766 700 73	Seal	1
105		Scale	1
106	766 701 73	Threaded pin	1
107	767 120 73	O-ring	1
108	767 121 73	Quad-ring	1
110	766 706 73	Pivot	1
111	767 124 73	Joint part	1
112	345 370 99	Dowel sleeve	1
120	767 125 73	Pilot valve	1
\|$$71	767 160 73	Seal kit, pilot valve fig. no. 120	1
121	768 659 73	Pump housing (not available)	1
122	173 493 40	Plug	3
123	767 128 73	Plug	3
124	767 129 73	Thread pin	1
125	767 130 73	O-ring	1
126	768 658 73	Power unit (not available)	1
127	763 177 73	O-ring	1
128	763 178 73	O-ring	2
129		Plug	3
130		Dummy flange	1
131	767 133 73	Housing	1
132	319 310 99	Bolt	8
133	767 094 73	Plug	2
134	519 533 98	O-ring	1
135	767 136 73	Cover	1
136	319 156 99	Bolt	2
137	340 467 99	Washer	2
140	768 660 73	Throttle Screw	1
141	768 661 73	Throttle Screw	1
142	767 901 73	Throttle Screw	1
143	768 662 73	Throttle Screw	1
145	765 465 73	Plug	1
150	342 686 99	Ring	1
151	768 666 73	Sealing flange	1
152	799 659 73	Ring	1
153	516 067 98	O-ring	1
154	767 140 73	Drive shaft	1
156	769 130 73	Bearing	1
157	342 566 99	Ring	1
159	767 927 73	Bolt	2
160		Sealing bush	1
161	767 144 73	Sliding block	1
162	767 145 73	Pivot	1
163	342 528 99	Ring	1
164		Slider	1
165	767 147 73	Balancer	1
166	767 148 73	Segment	4
167	769 131 73	Piston / guide shoe	9
168	769 132 73	Plate	1
169	767 151 73	Spacer block	4
170	319 422 99	Bolt	8
171	768 665 73	Ball	1
172	768 673 73	Spring package	1
173	768 668 73	Washer	1
174	768 672 73		1
175		Washer	1
176	768 667 73	Washer	1
177	798 327 73	Cylinder with bushing	1
178	769 134 73	Distribution plate	1
179	319 140 99	Screw	6
180	769 135 73	Bearing	1
181	767 159 73	Bushing	2
182	767 410 73	O-ring	1
183	769 136 73	Adjustment assy.	1
184	320 153 99	Bolt	4
185	767 409 73	O-ring	1
190	516 066 98	O-ring	1
\|$$129	798 834 73	Seal kit pump without valves concist. of fig no.33,39,40 104,107,108,125,127,128,134 153,182	1
\|$$130	767 164 73	Seal kit adjustment assy. fig. no. 183	1
\|$$131	798 832 73	Seal kit, pilot valve concist. of fig no 06,07,09 10,13,14,20,21,22	1
\|$$132	798 833 73	Repair kit valve concist. of fig no. 52,53,54 55,,65,20,21,22	1
