PC5500-6E S/N 15134

01 32 32 33 33 35 35 45 46 46 46 47 47 48 49 49 50 51 52 52 53 54 55 56 57 58 59 59 60 61 62 62 63 63 64 64 71 71 72 72 75 75 76 76

PC5500-6E S/N 15134

01 101 12 12 26 26 26 27 27 28 29 29 29 30 30 31 35 36 37 37 38 39 80 81 82 82 84 85 86 87 88 89 90 90 90 91 91 93 94 95 95 96 96 97 98 99

PC5500-6E S/N 15134

03 04 05 06 07 08 08 08 09 09 09 10 10 11 11 11 12 12 12 12 12 12 13 14 14 14 14 14 14 14 15 16 17 18 18 19 19 20 21 22 23 23 23 23 23 23 24 25 25 25 25 67 68 70

PC5500-6E S/N 15134

105 106 107 107 108 109 111 111 111 112 112 112 112 113 115 115 116 116 120 121 122 123 124 125 126 130

#	Part Number	Partname	Quantity	Reference
01	958 084 40	Grease barrel assy.	1
03	936 874 40	Retainer	1
04	970 350 40	Retainer	1
05	974 547 40	Retainer	1
06	974 546 40	Retainer	1
07	974 545 40	Retainer	2
08	518 036 98	Clamp set	5
09	515 669 98	Clamp set	4
10	518 037 98	Clamp set	2
11	534 056 98	Clamp set	3
12	534 004 99	Cover plate	8
13	308 444 99	Bolt	8
14	308 582 99	Bolt	16
15	518 053 98	Clamp set	1
16	969 592 40	Retainer	1
17	308 537 99	Bolt	2
18	319 417 99	Screw	8
19	319 132 99	Screw	4
20	332 355 99	Nut	8
21	510 733 98	Resilient sleeve	8
22	316 211 99	Washer	8
23	517 122 98	Lock washer	16
24	517 120 98	Lock washer	2
25	340 405 99	Washer	12
26	516 615 98	Union	3
27	516 618 98	Union	3
28	516 962 98	Union	1
29	509 272 98	Nut	3
30	506 954 98	Nut	3
31	509 267 98	Nut	1
32	516 616 98	Socket	2
33	907 051 40	Union	2
35	513 495 98	Hose assy. DN 20x1630	2
36	647 867 40	Hose assy. DN 10x1540	1
37	255 400 40	Hose assy. DN 20x1500	2
38	517 172 98	Hose assy. DN 20x2100	1
39	519 516 98	Hose assy. DN 20x1520	1
45	913 486 40	Grease barrel	1
46		Lube pump station	3	991-1230
47		Pressure filter	2	991-0839
48	516 322 98	Valve	2
49	516 173 98	Socket	2
50	515 765 98	Socket	1
51	510 537 98	Socket	1
52	516 175 98	Socket	2
53	515 862 98	Socket	1
54	516 824 98	Socket	1
55	510 746 98	Resilient sleeve	8
56	308 578 99	Bolt	8
57	307 754 99	Bolt	12
58	340 464 99	Washer	12
59	374 412 99	Socket	2
60	516 181 98	Socket	1
61	374 410 99	Union	3
62	958 086 40	Pipe Ш 30	1
63	958 085 40	Pipe Ш 30	1
64	969 571 40	Pipe Ш 30	1
67	504 677 98	Clamp set	2
68	534 001 99	Cover plate	1
70	507 037 98	Nut	2
71	592 090 40	Hose assy. DN 12x750	2
72	653 512 40	Hose assy. DN 08x770	2
75	371 265 99	Union nut	-2
76	906 352 40	Olive	-2
80	518 239 98	Hose assy., with fire protection coating DN 10x9000	1
81	518 206 98	Hose assy., with fire protection coating DN 20x13300	1
82	512 962 98	Hose assy. DN 20x6700	2
84	516 248 98	Socket	1
85	502 641 98	Clamp set	5
86	534 009 99	Weld on plate	5
87	534 008 99	Plate	5
88	308 613 99	Bolt	10
89	343 006 99	Washer	10
90	504 923 98	Clamp set	8
91	534 005 99	Weld on plate	6
93	504 788 98	Screw	4
94	504 789 98	Locking plate	4
95	308 581 99	Bolt	18
96	343 005 99	Washer	12
97	374 431 99	Socket	1
98	551 345 40	Union	1
99	516 161 98	Socket	1
101	516 820 98	Hose assy. DN 20x5400	1
105	512 672 98	Hose assy. 20X 4400	1
106	374 443 99	Union	1
107	518 058 98	Clamp set	2
108	534 001 99	Plate	2
109	308 579 99	Bolt	4
111	518 036 98	Clamp set	12
112	534 004 99	Cover plate	12
113	308 581 99	Bolt	12
115	906 868 40	Olive	2
116	371 264 99	Union nut	2
120	308 269 99	Bolt	6
121	507 037 98	Nut	6
122	516 837 98	Union	1
123	504 585 98	Screw	4
124	504 586 98	Locking plate	2
125	511 003 98	Hose assy. 20X 5750	1
126	939 177 40	Pipe	1
130	534 005 99	Weld on plate	5

Komatsu PC5500-6E S/N 15134 parts catalog PDF

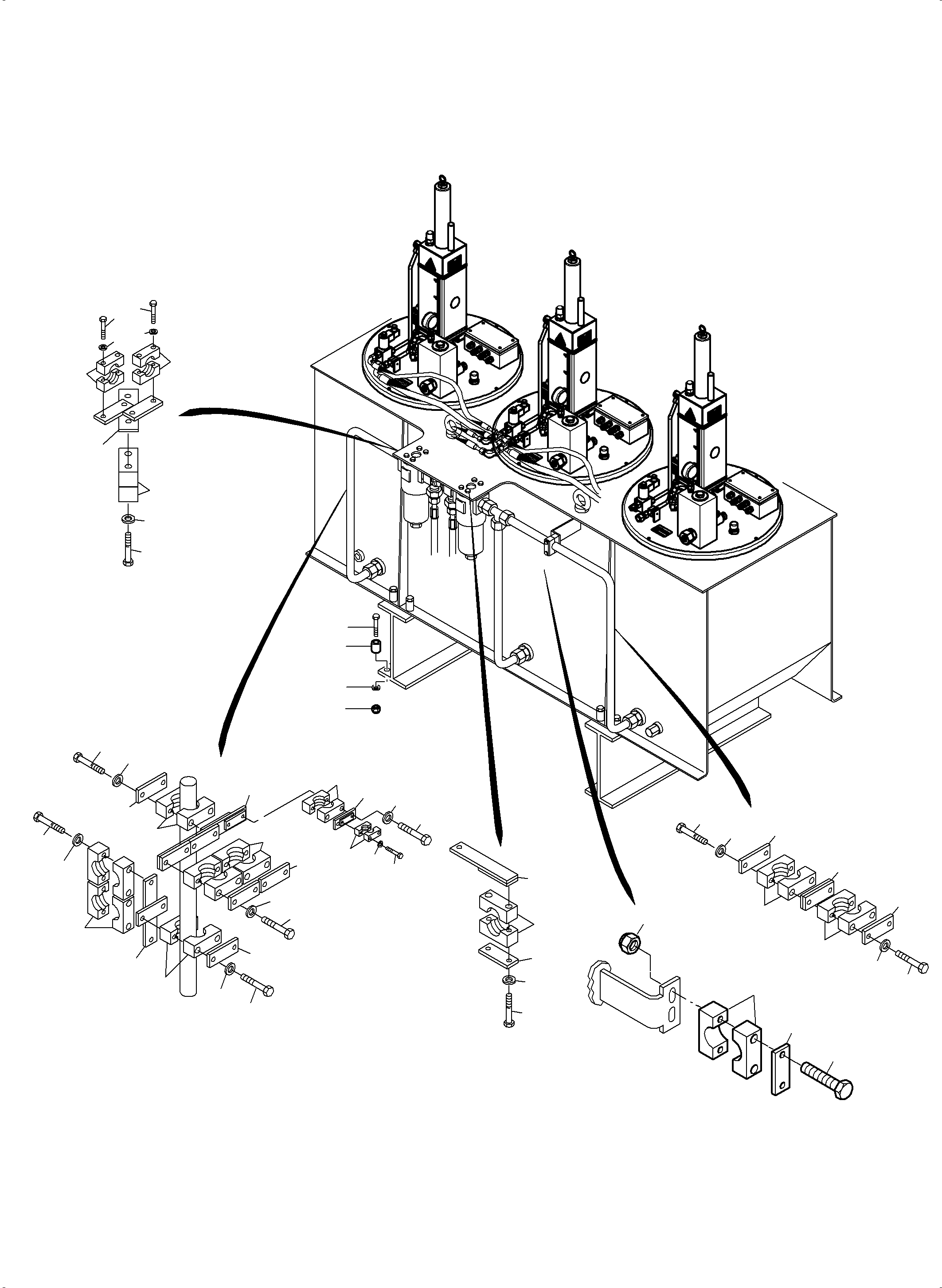

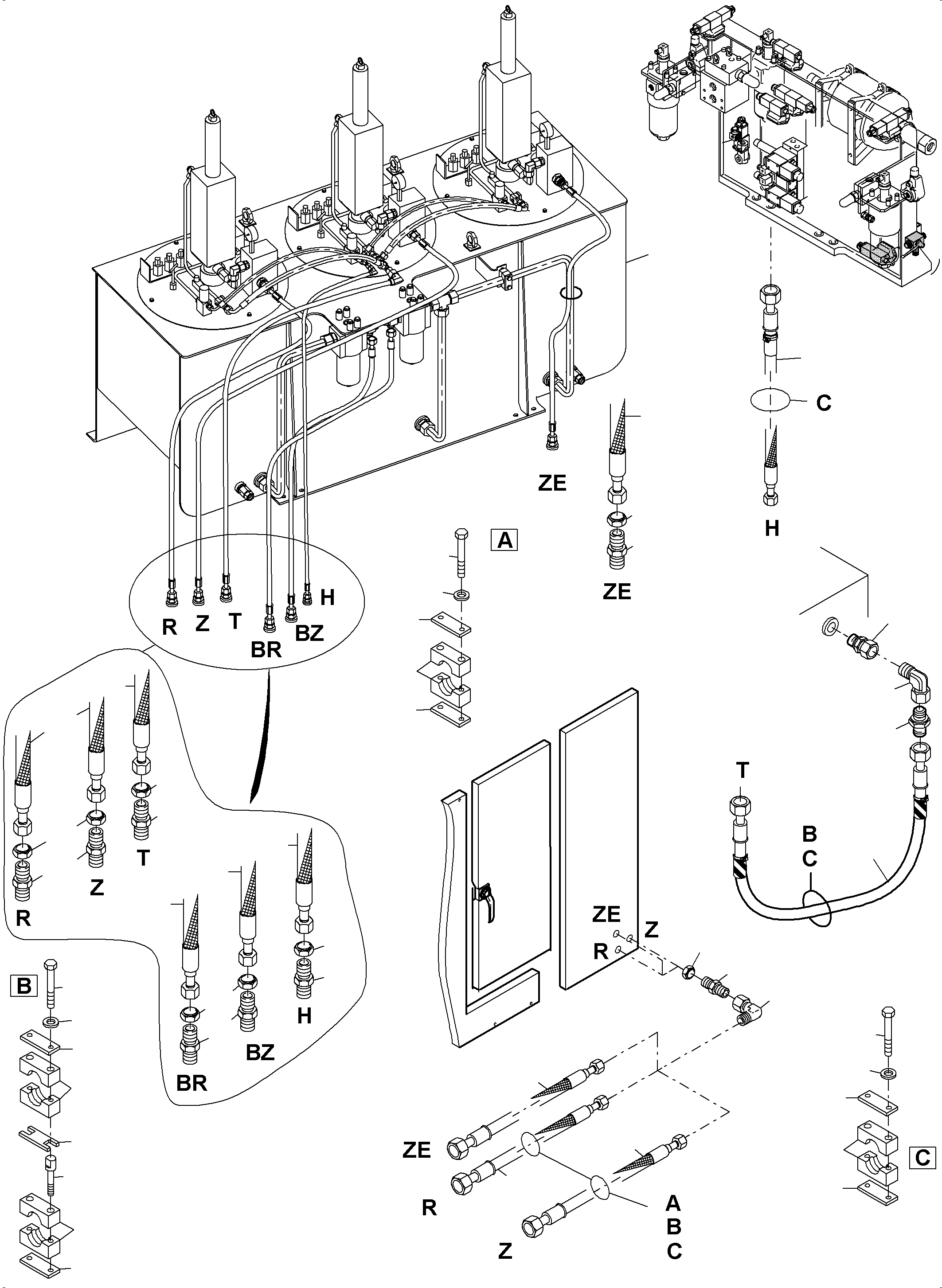

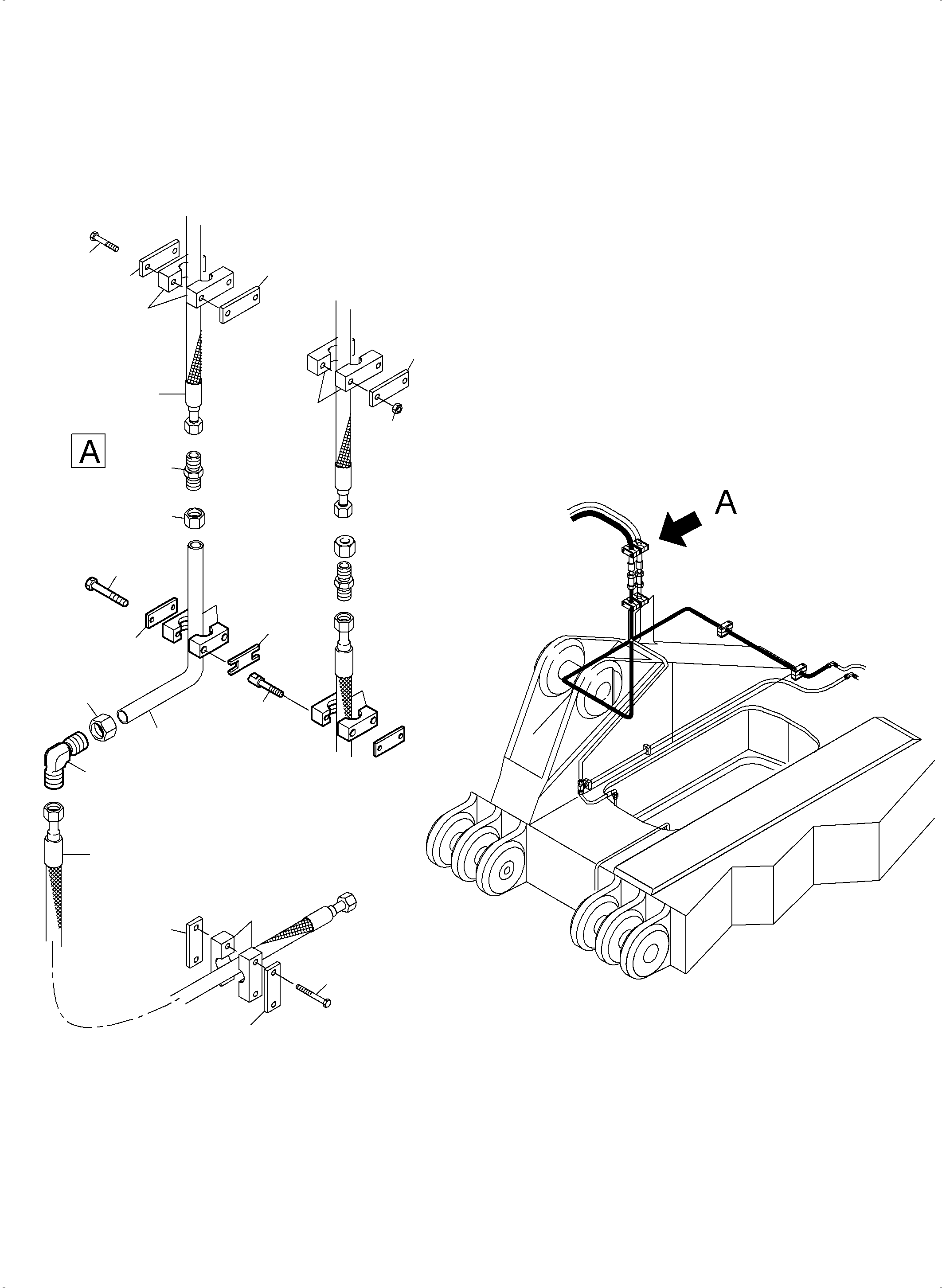

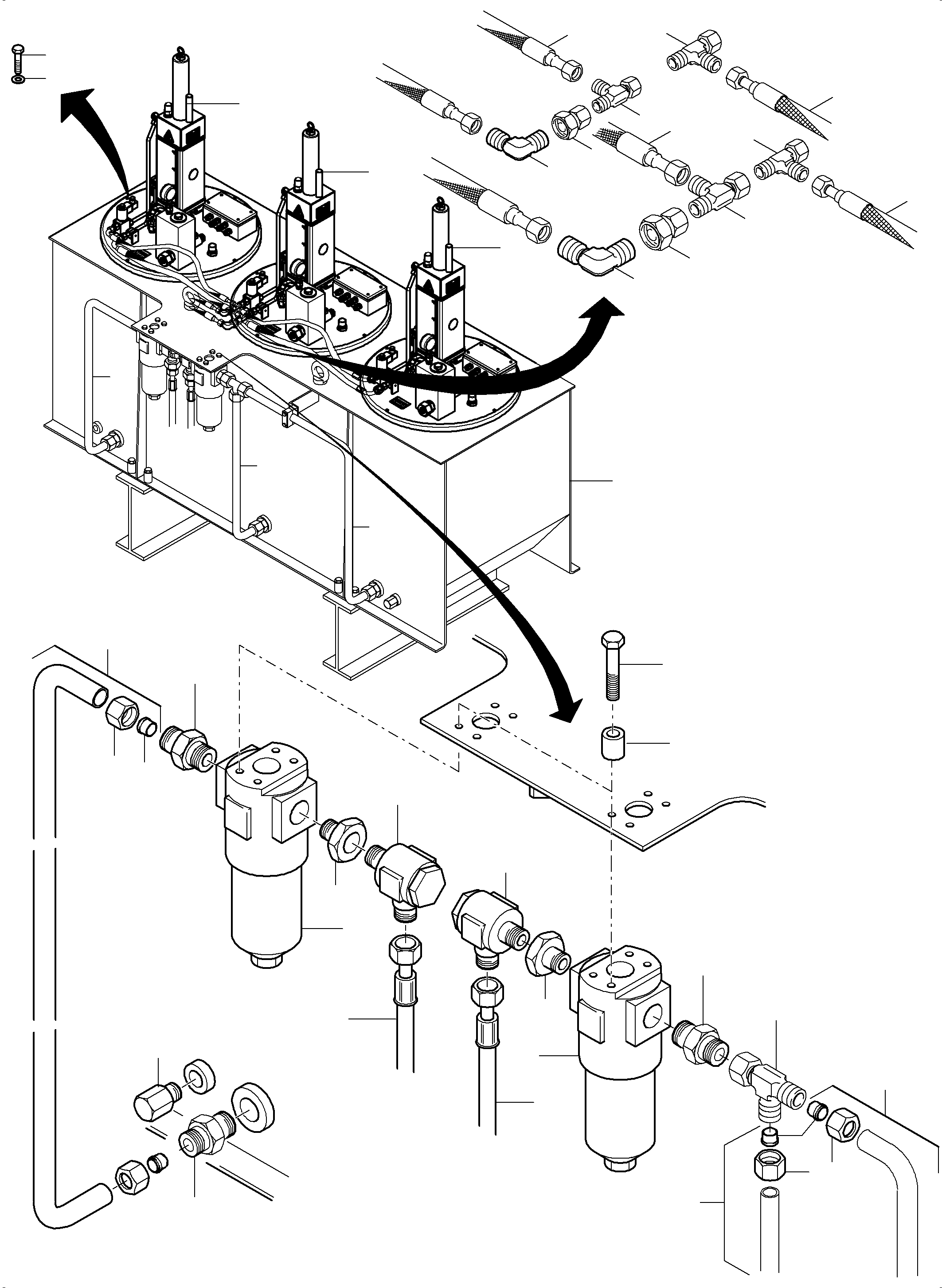

LUBE STATION ARRANGEMENT AND GREASE PIPE (515-2314i) in PC5500-6E S/N 15134. Diagram image and parts list.
