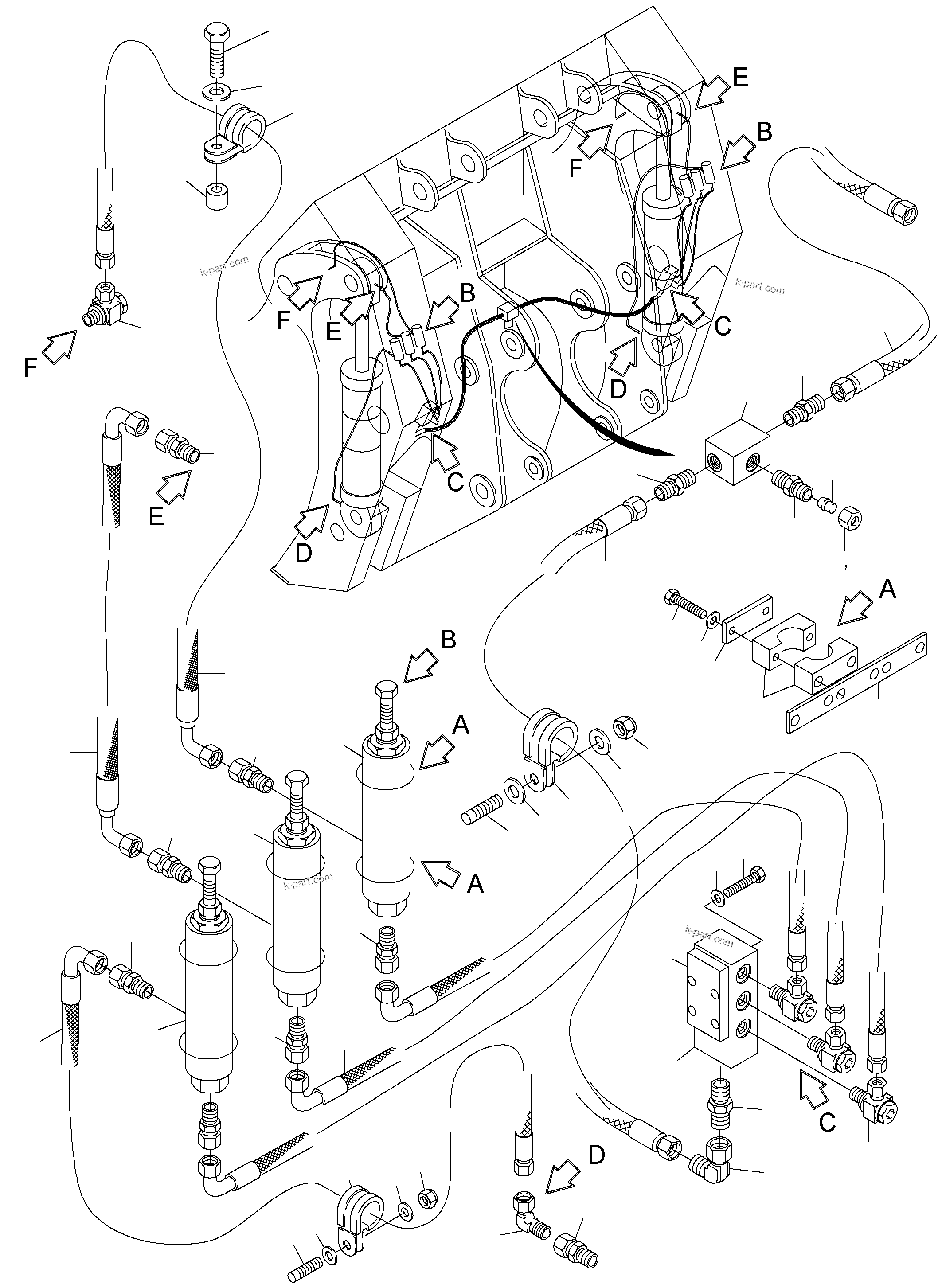

CENTRAL LUBRICATION - BULLCLAM, BR4570 | PC5500-6E S/N 15134

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC5500-6E S/N 15134

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?		Valve	6	991-0323a
?	654 496 40	Protection cap	6
?	950 511 40	Half clamp	24
?	634 774 40	Cover plate	12
?	308 611 99	Bolt	24
?	943 317 40	Thread plate	4
?	918 206 40	Distribution block	2
?	308 608 99	Bolt	8
?	517 118 98	Lock washer	32
?	923 648 40	T-Block	1
?	941 622 40	Hose assy. DN 08x2130	2
?	941 623 40	Hose assy. DN 08x1030	2
?	941 624 40	Hose assy. DN 08x2980	2
?	941 625 40	Hose assy. DN 08x1160	2
?	941 626 40	Hose assy. DN 08x960	2
?	941 605 40	Hose DN 08x780	2
?	340 111 99	Washer	30
?	340 465 99	Washer	30
?	0443453411	Clip NW 34	4
?	0443451510	Clip NW 15	26
?	942 802 40	Thread plate	2
?	953 807 40	Thread plug	8
?	307 773 99	Bolt	8
?	517 122 98	Lock washer	8
?	907 152 40	Union	4
?	517 073 98	Union	2
?	654 153 40	Union	6
?	517 604 98	Union	6
?	517 605 98	Union	6
?	374 414 99	Socket	5
?	516 248 98	Socket	2
?	371 867 99	Breech block	1
?	517 606 98	Hose DN 20x2580	2
?	907 854 40	Thread pin	30
?	507 037 98	Nut	30
?	371 264 99	Union nut	1
?	906 868 40	Olive	1
?	516 157 98	Socket	2
