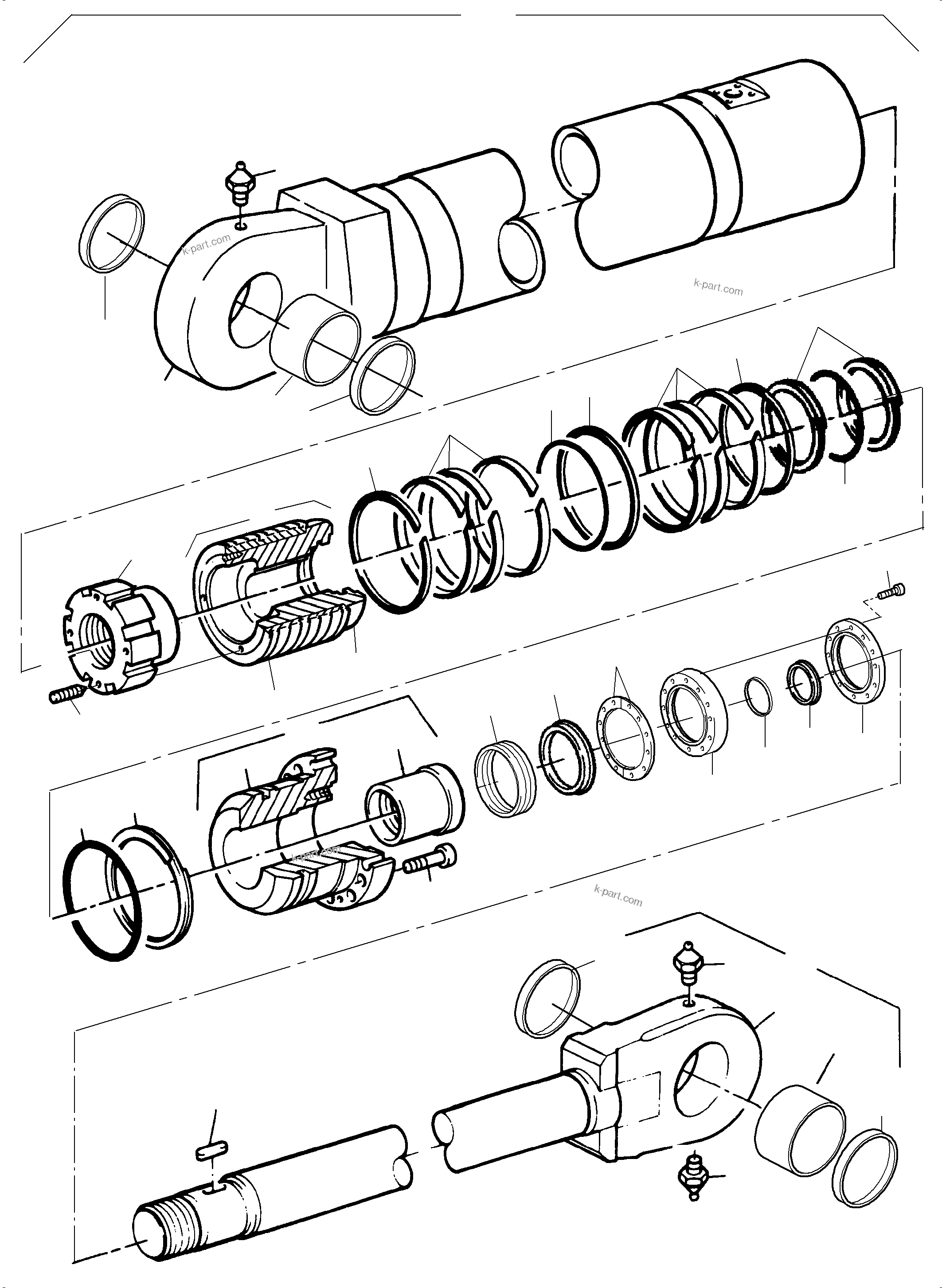

HYDR. CYLINDER | PC5500-6 S/N 15164 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC5500-6 S/N 15164

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	932 450 40	Hydraulic Cylinder ( Cold weather design )	1
?		Cylinder barrel	1
?	798 087 73	Cylinder barrel cpl., fig-nos: Bild-Nr. 03,04,06,31	1
?	960 216 40	Freeze in bushing	1
?	907 026 40	Seal ring	2
?	004 860 98	Grease nipple	4
?	795 426 73	Piston rod assy. incl. fig-nos. 05,06,08,09,27	1
?		Piston rod	1
?	960 213 40	Freeze in bushing	1
?	953 855 40	Sealing flange assy. incl. fig-nos. 11+12	1
?		Flanged bush	1
?	953 853 40	Bearing bush	1
?	932 445 40	Piston assy. fig-nos. 34 and 35	1
?	947 197 40	Groove nut	1
?	917 043 40	Cover	1
?	907 317 40	Support ring	1
?	324 468 40	Seal ring	1
?	324 465 40	O-ring	1
?	950 384 40	Piston guide ring	6
?	324 905 40	Piston guide strap	2
?	517 111 98	Seal kit	1
?	907 318 40	Scraper	1
?	504 779 98	O-ring	1
?	324 467 40	Support ring	1
?	502 119 98	O-ring	1
?	907 320 40	Support ring	2
?	501 352 98	Feather key	1
?	514 759 98	Bolt Cold weather design	28
?	502 572 98	Bolt Cold weather design	16
?	947 188 40	Threaded pin	1
?	907 025 40	Seal ring	2
?		Piston	1
?	395 620 40	Liner	1
?	917 046 40	Half shim	12
?	907 319 40	Support ring for fig. no. 22	1
?	917 042 40	Cover ring	1
?	795 427 73	Seal kit - piston consist. of fig-nos: 17-20,25,26	1
?	795 428 73	Seal kit - piston rod, with slited seals, consist. of fig-nos: 16,21-24,37	1
?	797 327 73	Seal kit - piston rod, with non slited seals consist. of fig-nos: 16,21-24,38	1
