01 |
915 830 40
|
Hydraulic cylinder assy. |
1 |
|
|
|
|
02 |
795 537 73
|

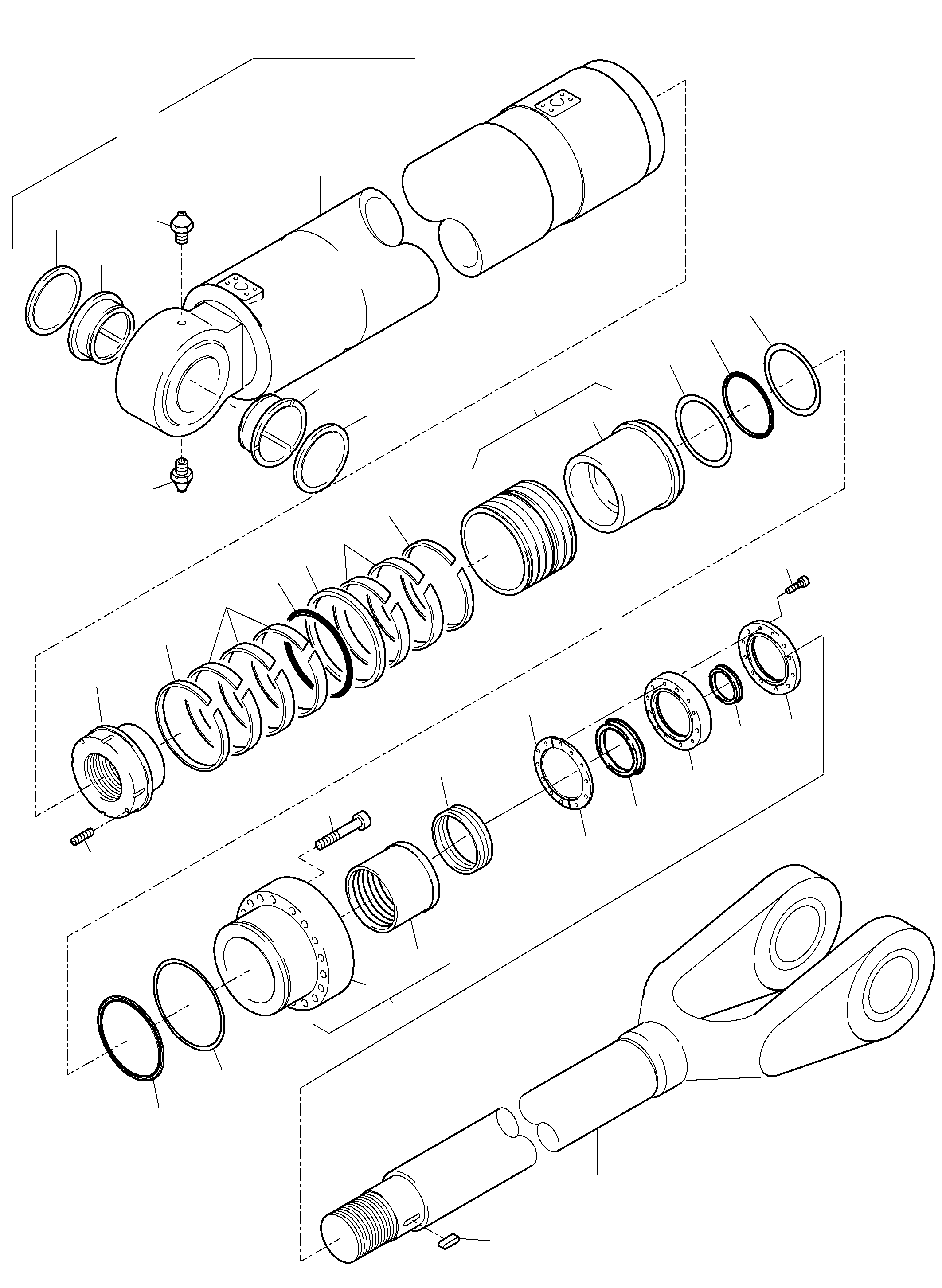

Cylinder assy. fig-nos: 03-05, 34 |
1 |
|
|
|
|
03 |
|
Cylinder |
1 |
|
|
|
|
04 |
970 653 40
|
Freeze-in bush |
2 |
|
|
|
|
05 |
004 860 98
|
Nipple |
2 |
|
|
|
|
06 |
947 188 40
|
Thread pin |
1 |
|
|
|
|
07 |
948 406 40
|
Groove nut |
1 |
|
|
|
|
08 |
324 906 40
|
Piston slyding strip 1070mm |
2 |
|
|
|
|
09 |
950 382 40
|
Piston wear ring |
5 |
|
|
|
|
10 |
324 479 40
|
O-ring |
1 |
|
|
|
|
11 |
324 442 40
|
Seal |
1 |
|
|
|
|
12 |
904 507 40
|
Piston assy. fig-nos. 13 and 14 (finish work after bush is ( installed) |
1 |
|
|
|
|
13 |
970 715 40
|
Piston bush |
1 |
|
|
|
|
14 |
|
Piston |
1 |
|
|
|
|
15 |
504 768 98
|
O-ring |
1 |
|
|
|
|
16 |
907 484 40
|
Support ring |
2 |
|
|
|
|
17 |
500 117 98
|
O-ring |
1 |
|
|
|
|
18 |
323 486 40
|
Support ring |
1 |
|
|
|
|
19 |
953 849 40
|
Sealing flange fig-nos: 20 and 21 (finish work after bush is installed) |
1 |
|
|
|
|
20 |
|
Bush |
1 |
|
|
|
|
21 |
970 670 40
|
Bush |
1 |
|
|
|
|
22 |
516 599 98
|
Screw |
22 |
|
|
|
|
23 |
324 440 40
|
Seal kit |
1 |
|
|
|
|
24 |
906 591 40
|
Support ring |
1 |
|
|
|
|
25 |
909 367 40
|
Cover |
1 |
|
|
|
|
26 |
501 395 98
|
Screw |
16 |
|
|
|
|
27 |
906 542 40
|
Stripper |
1 |
|
|
|
|
28 |
354 534 99
|
Feather key |
1 |
|
|
|
|
29 |
795 536 73
|
Piston rod assy. fig-nos: 28 ,30 |
1 |
|
|
|
|
30 |
|
Piston rod |
1 |
|
|
|
|
32 |
891 819 40
|
Half shim |
12 |
|
|
|
|
33 |
909 364 40
|
Cover ring |
1 |
|
|
|
|
34 |
907 024 40
|
Seal ring |
2 |
|
|
|
|
35 |
906 730 40
|
Support ring for stripper fig no 27 |
1 |
|
|
|
|
|$$35 |
768 605 73
|
Seal kit for piston fig-nos. 08-11,15 and 16 |
-2 |
|
|
|
|
|$$36 |
792 130 73
|
Seal kit for sealing flange, with slited seals, fig-nos: 17,18,23, 27 and 35 |
-2 |
|
|
|
|
|$$37 |
797 321 73
|
Seal kit for sealing flange, with non slited seals, fig-nos: 17,18,23, 27 and 35 |
-2 |
|
|
