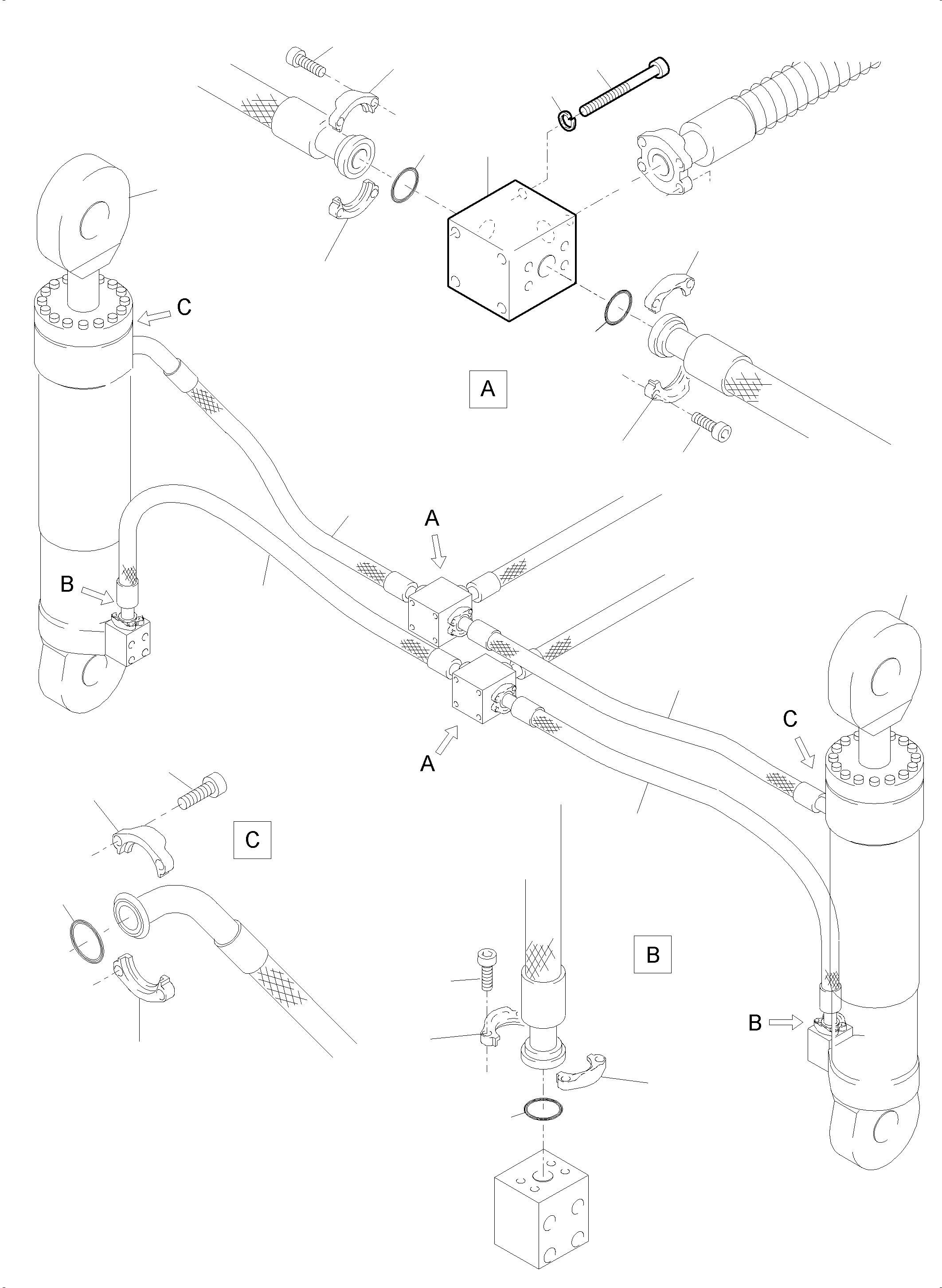

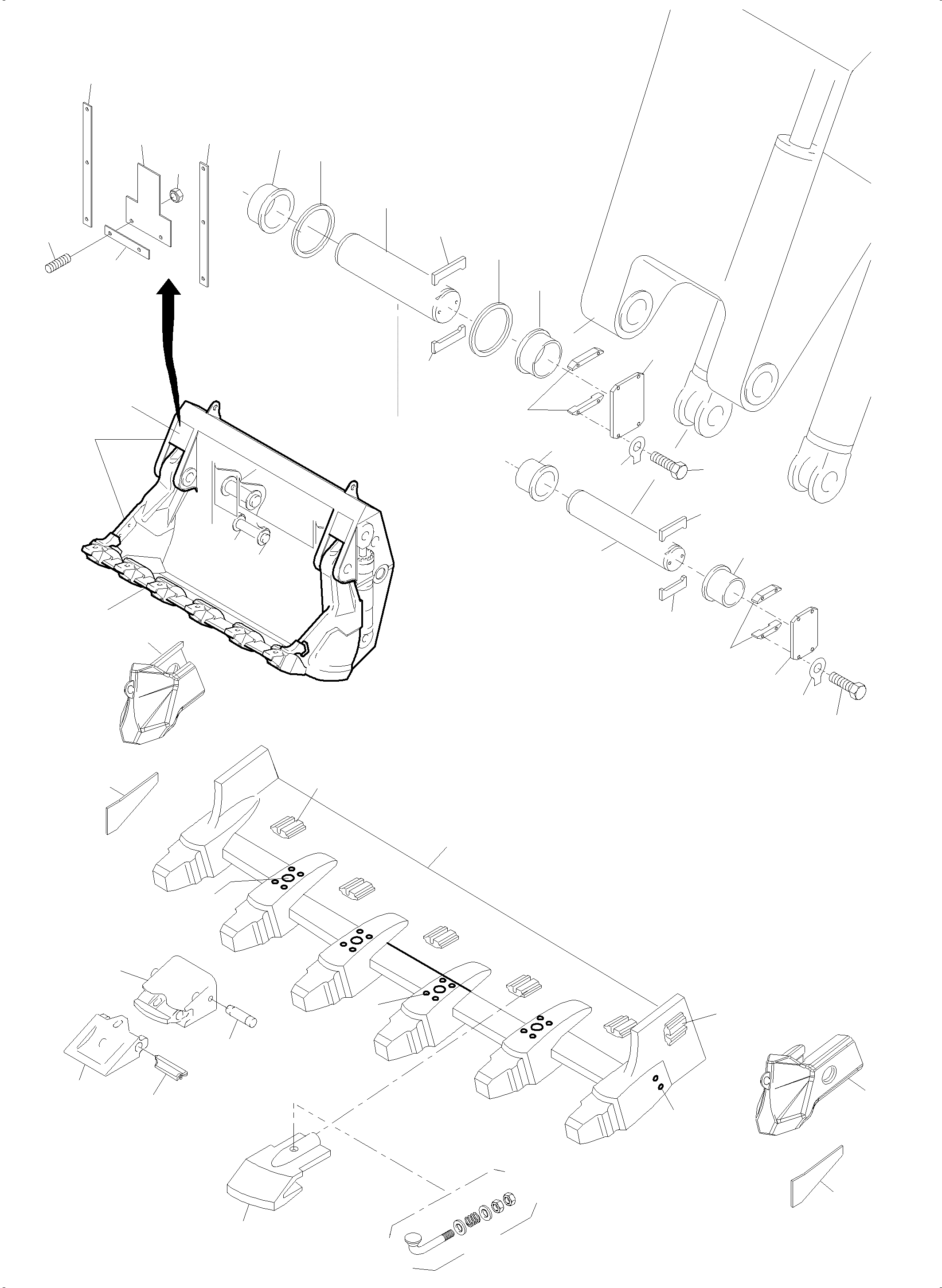

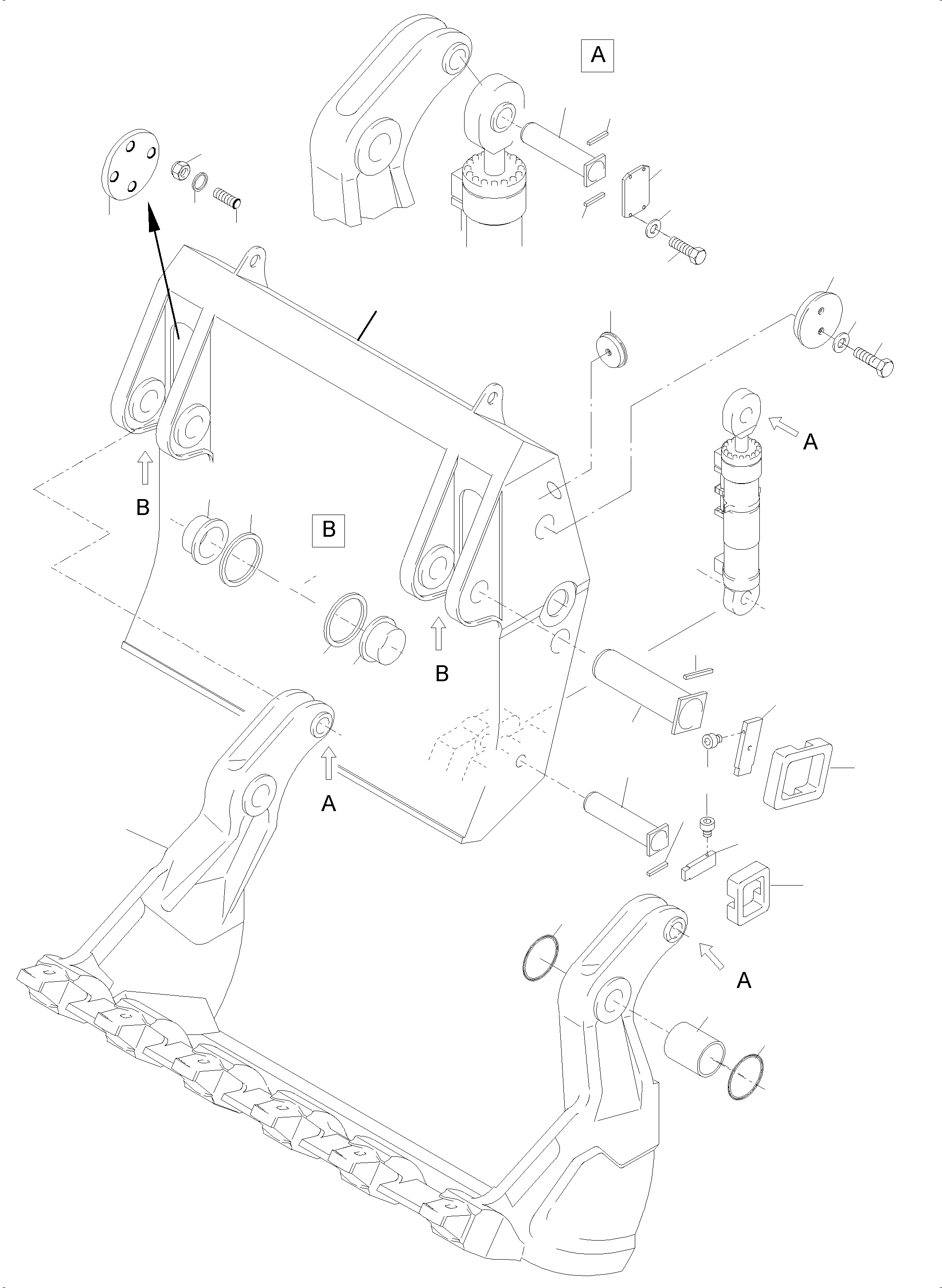

KLAPPSCHAUFEL 29,0 CBM | PC5500-6 S/N 15166 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Reference
01	933 528 40	Bullclam bucket w./o. lip	1
02	927 705 40	Bullclam bucket wall incl. fig. nos 17-61	1
03		Bucket clam	1
04	922 371 40	Plate	2
05	958 718 40	Strip	4
06	922 373 40	Strip	2
07	922 374 40	Protection rubber	2
08	511 263 98	Thread pin	20
09	507 037 98	Nut	20
10	936 399 40	Pin with plate	2
11	970 728 40	Freeze-in bushing	2
12	936 396 40	Shackle	2
13	936 397 40	Catch	4
14	307 824 99	Bolt	8
15	517 123 98	Lock washer	8
16	907 023 40	Pin seal ring	4
17		Clam cylinder with piping	2	515-5035d
18	923 274 40	Pin with plate	2
19	923 271 40	Pin with plate	2
20	923 266 40	Pin	2
21	923 269 40	Pin	2
22	890 924 40	Collar bush	4
23	923 268 40	Collar bush	4
24	923 267 40	Collar bush	4
25	890 921 40	Protective frame	4
26	319 444 99	Bolt	8
27	890 884 40	Square	4
28	895 099 40	Square	4
29	890 916 40	Catch	4
30	334 600 99	Nut	8
31	923 265 40	Catch	4
32	900 749 40	Catch	4
33	923 263 40	Axle stirrup	4
34	900 750 40	Axle stirrup	4
35	923 264 40	Shackle	2
36	900 751 40	Shackle	2
37	923 241 40	Manifold	2
38	517 600 98	Hose assy. DN 32x1640	1
39	517 601 98	Hose assy. DN 32x1840	1
40	517 602 98	Hose assy. DN 32x2480	1
41	517 603 98	Hose assy. DN 32x2280	1
42	517 192 98	Lock washer	8
43	519 453 98	Flange seal	2
44	319 288 99	Bolt	8
45	923 262 40	Ring	4
46	934 094 40	Ring	4
47	320 374 99	Bolt	4
48	307 826 99	Bolt	16
49	517 123 98	Lock washer	16
50	978 964 40	Plate	2
51	896 665 40	Plug	4
53	510 213 98	Thread pin	8
54	517 118 98	Lock washer	8
55	911 196 40	Cover	2
56	517 122 98	Lock washer	6
57	307 775 99	Screw	6
58	519 452 98	Flange Seal	6
59	319 209 99	Bolt	24
60	006 638 98	Half clamp	12
61	006 639 98	Half clamp	4
70	951 148 40	Cast Lip assy , incl. pos. 71 - 85	1
71	950 247 40	Cast Lip	1
72	951 142 40	Tooth adapter	6
73	951 143 40	Pin	6
74	951 209 40	Pin	6
75	941 342 40	Tooth tip	6
76	950 252 40	Wear button	4
77	906 988 40	Wear button	20
78	950 253 40	Shroud	5
79	960 884 40	Weld base	5
80	950 630 40	J-Bolt Assembly	7
81	950 254 40	Lower wing shroud l.h.	1
82	950 255 40	Lower wing shroud r.h.	1
83	950 256 40	Weld base	2
84	950 340 40	Side protection l.h	1
85	950 341 40	Side protection r.h	1
