Diagram image 1 of 5

PC4000-6 S/N 58141

01 02 03 05 07 08 09 10 11 170 171 173 21 22 23 24 25 75 76 78

PC4000-6 S/N 58141

08 15 15 16 17 172 174 175 176 177 18 18 18 18 19 19 19 19 20 26 27 28 28 29 30 31 32 32 33 33 34 36 36 37 38 38 42 42 42 43 43 43 45 45 45 46 47 47 48 49 49

PC4000-6 S/N 58141

09 10 50 51 52 53 54 55 56 57 58 59 60 61 61 62 63 64 65 67 68 69 70 71 72 73 74 75 76 77 80 81 82 83 84 85 86 87 97 98

PC4000-6 S/N 58141

110 111 111 112 113 116 117 119 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 14 26 61 61 61 61 61 61 61 61

PC4000-6 S/N 58141

12 13 13 14 140 141 142 145 145 150 155 156 160 161 161 161 165 165 165 81 82 83 84 85 86

#	Part Number	Partname	Quantity
01	960 130 40	Switch cabinet assy. ORT 56	-2
02	966 601 40	Switch cabinet retainer	1
03	307 629 99	Bolt	4
05	340 464 99	Washer	4
07	984 420 40	Switch cabinet	1
08	975 579 40	Switch framing assy.	1
09	960 574 40	Mounting plate assy.	1
10	988 845 40	Switch cabinet plate assy. with harnesses	1
11	949 128 40	Seal	1
12	957 470 40	Cable can bus P-room	1
13	958 955 40	CAN-Bushing	5
14	950 435 40	Cable	-2
15	950 187 40	Hinge	2
16	957 071 40	Angle	1
17	957 413 40	Angle	1
18	332 332 99	Nut	11
19	518 594 98	Washer	11
20	957 072 40	Angle	1
21	515 253 40	Cord 500lg	-2
22	517 487 98	Cable shoe	1
23	906 947 40	Cable shoe	1
24	940 913 40	Warmth shrink hose	-2
25	318 603 99	Bolt	8
26	975 578 40	Switch framing assy.	1
27	951 885 40	Frame	1
28	957 439 40	Retainer	2
29	957 440 40	Retainer	1
30	957 441 40	Retainer	1
31	957 442 40	Stop	1
32	957 073 40	Angle	2
33	307 639 99	Bolt	14
34	307 445 99	Bolt	12
36	518 594 98	Lock washer	14
37	507 596 98	Washer	6
38	514 921 98	Nut	12
42	0819320010	Clip	3
43	0443451010	Clamp	3
45	0443550810	Clamp	3
46	966 561 40	Ruber Mat	1
47	518 299 98	Washer	12
48	513 924 40	Bolt	6
49	0443452711	Clamp	4
50	941 432 40	Contoller housing	1
51	960 567 40	Plug aasy	1
52	941 430 40	Modul	2
53	941 412 40	Plug connector	9
54	270 873 40	Cable channel	-2
55	655 518 40	Cable channel	-2
56	519 860 98	Mounting rail	-2
57	950 339 40	Clip	1
58	950 185 40	Protective wire clip	35
59	906 773 40	Cover plate	1
60	906 613 40	Cover plate	3
61	940 673 40	Clamp	11
62	906 624 40	Marker	7
63	906 625 40	Marker	2
64	906 626 40	Marker	2
65	906 627 40	Marker	3
67	501 670 98	Bolt	15
68	145 743 40	Washer	15
69	320 816 99	Bolt	2
70	518 560 98	Lock washer	2
71	307 671 99	Bolt	8
72	332 202 99	Nut	8
73	518 314 98	Washer	8
74	224 320 99	Bolt	4
75	332 331 99	Nut	8
76	518 546 98	Washer	12
77	960 568 40	Plug aasy	1
78	966 609 40	Mounting plate	1
80	957 490 40	Switch cabinet plate	1
81	960 116 40	Harness 51X011 - 56	1
82	975 575 40	Harness 51X111 - 56	1
83	975 576 40	Harness 51X157-56	1
84	975 577 40	Harness 51X257-56	1
85	957 468 40	Harness 56x313-56x314	1
86	957 469 40	Harness 56x313-56x317	1
87	989 266 40	Cable 56x357-56	1
97	950 727 40	Plug	3
98	517 323 98	Nut	3
110	901 392 40	Resistor array assy.	1
111	655 748 40	Diode array	2
112	910 027 40	PWM-Converter	1
113	941 487 40	Semiconductor relay	14
116	941 502 40	Potencial clamp	7
117	941 503 40	Cover plate	7
119	941 685 40		7
120	519 647 98	Cable 4x1,0	-2
121	515 213 40	Cable 1,0	-2
122	515 214 40	Cable 2,5	-2
123	655 873 40	Cable 1,5	-2
124	940 169 40	Cable 4x1	-2
125	907 553 40	Cable 16	-2
126	519 644 98	Cable 1x0,75	-2
127	500 090 98	Wire end ferrule 0,75-6	50
128	635 042 40	Wire end ferrule 1,5	73
129	907 640 40	Wire end ferrule 2,5	10
130	269 078 40	Wire end ferrule H16/28,7	5
131	950 456 40	Optokoppler part	14
132	951 284 40	Safty relay	3
133	906 612 40	Through clamp	2
140	950 118 40	Socket	1
141	941 777 40	Plate	19
142	174 411 40	Cable strap	38
145	950 125 40	Socket	4
150	950 143 40	Socket	3
155	950 170 40	Socket	1
156	958 956 40	CAN bushing	1
160	950 171 40	Socket	1
161	958 955 40	CAN bushing	1
165	906 647 40	T-Splitter	2
170	941 844 40	Hose	-2
171	950 211 40	End grommet	1
172	340 508 99	Washer	4
173	950 682 40	Distance sleeve	4
174	507 037 98	Nut	4
175	980 055 40	Cable	1
176	509 869 98	Nut	1
177	0443450810	Clamp	1

Komatsu PC4000-6 S/N 58141 parts catalog PDF

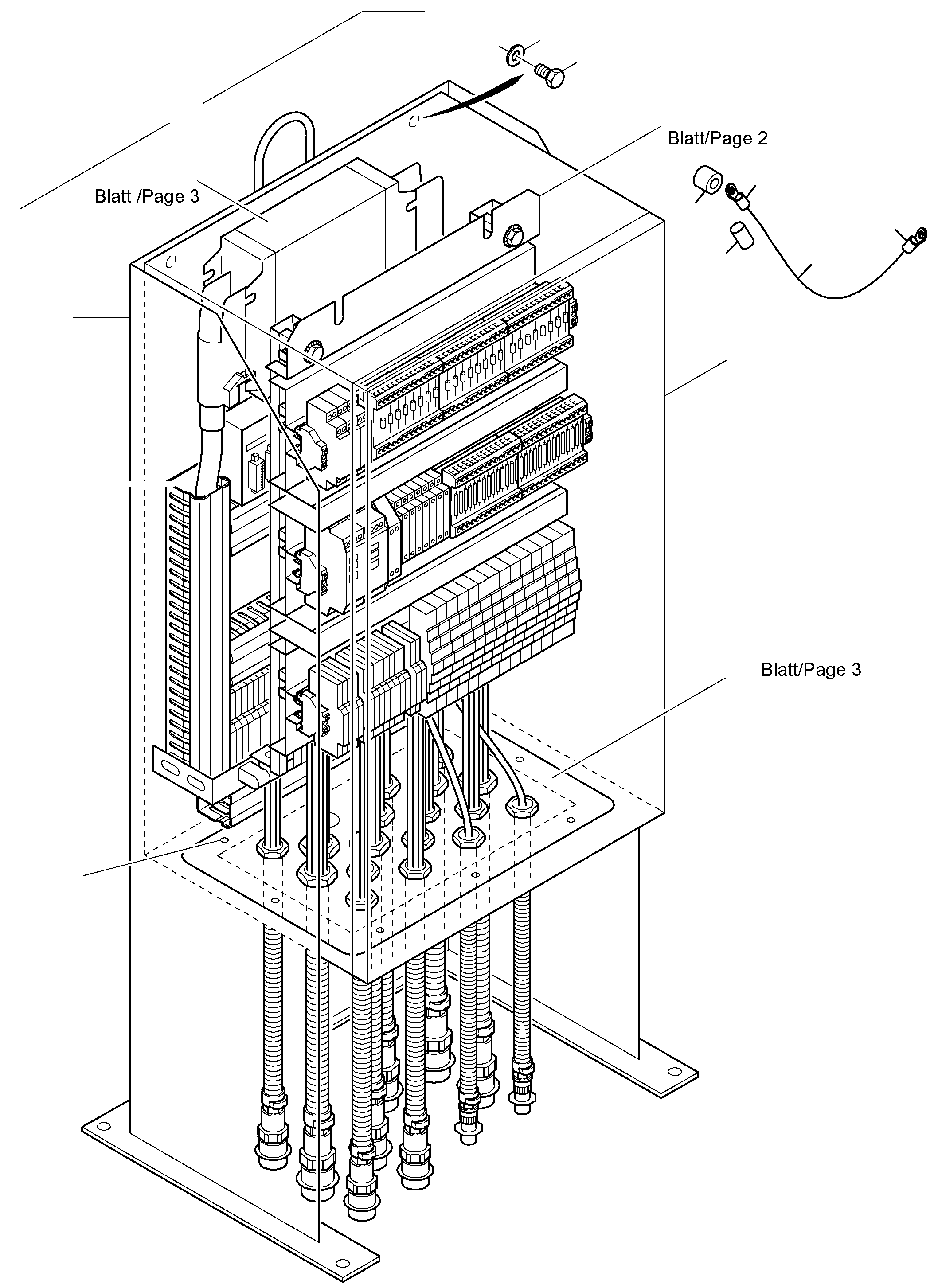

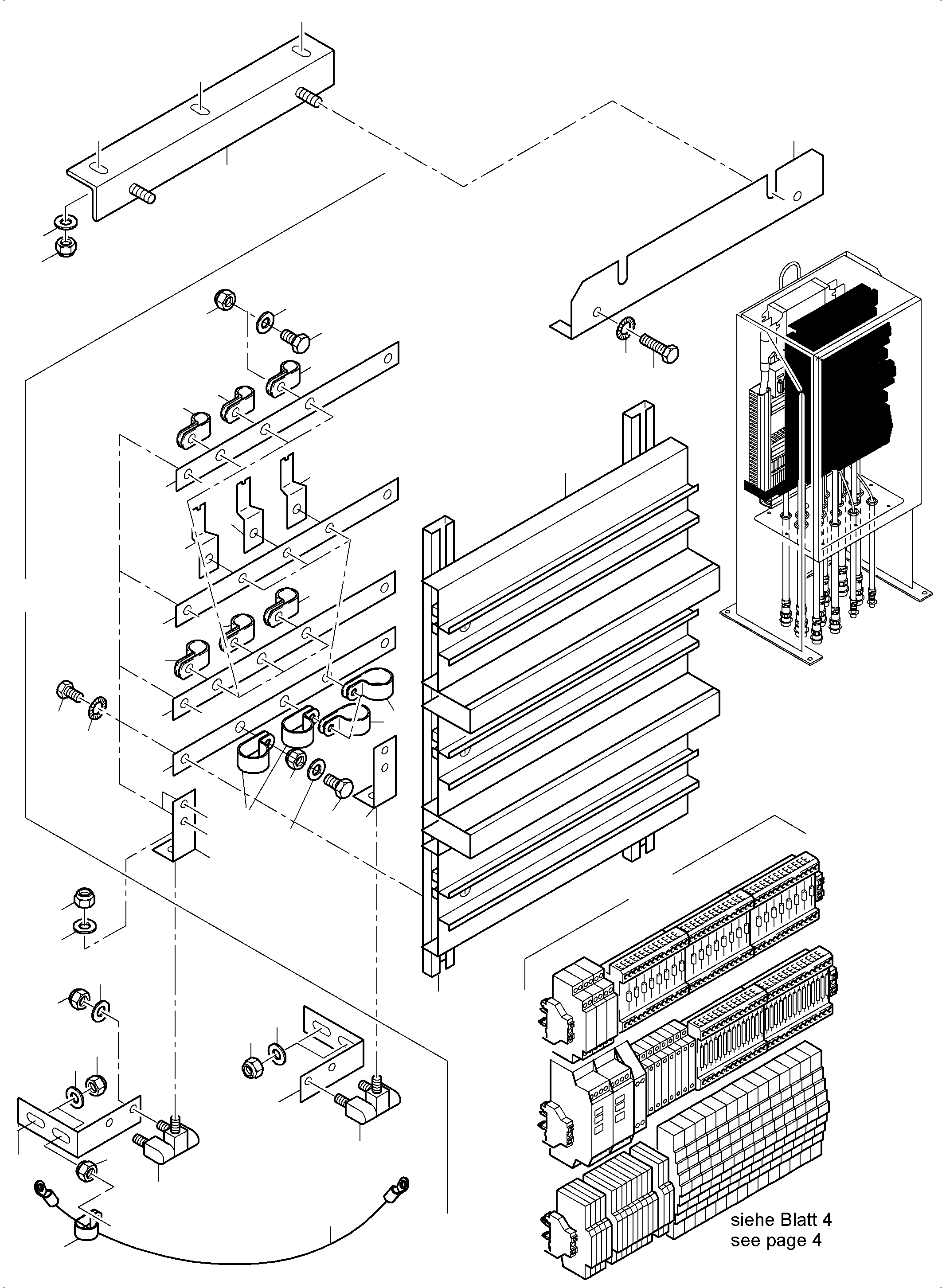

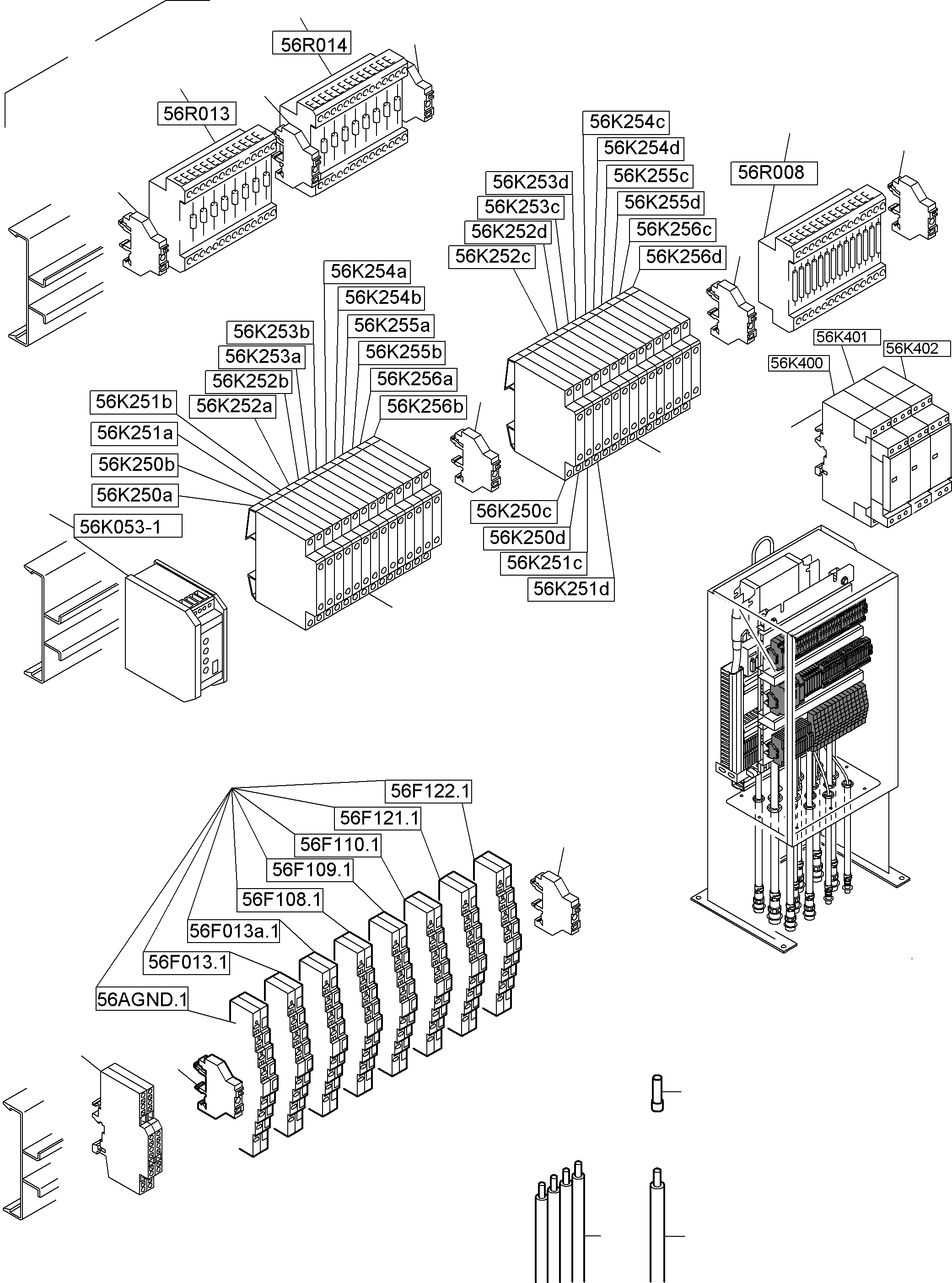

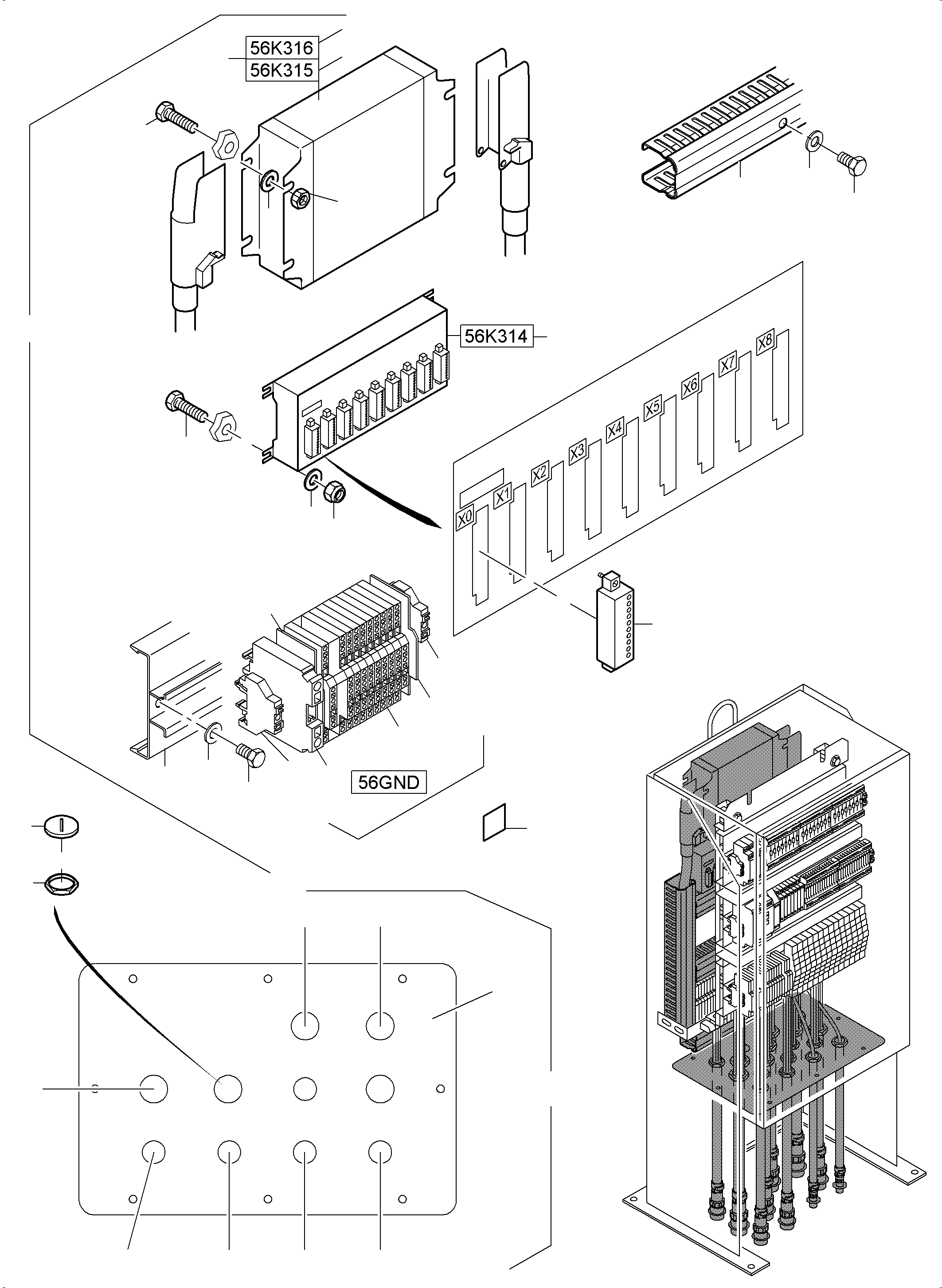

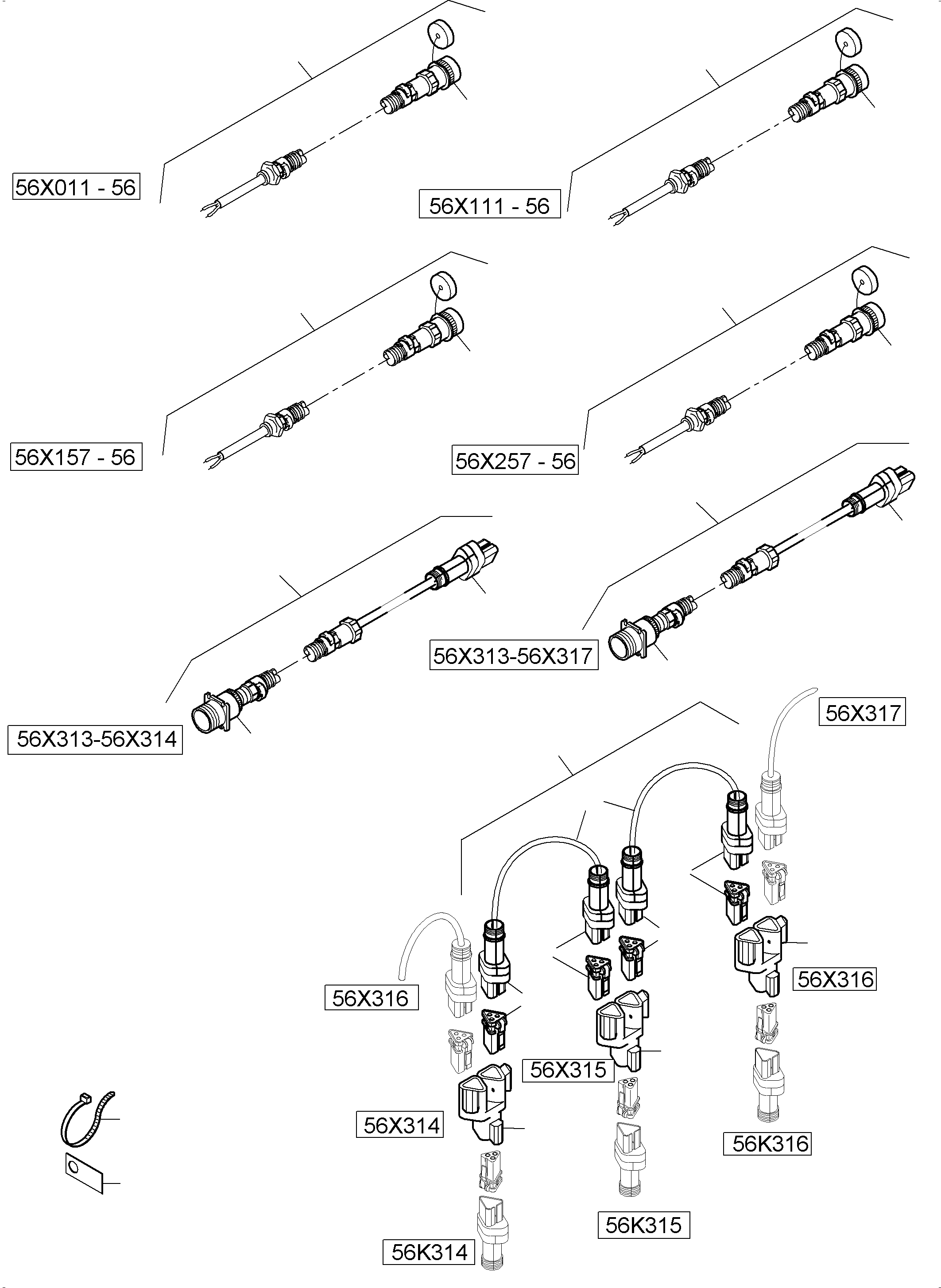

SWITCH CABINET ORT 56 (355-2276-1c) in PC4000-6 S/N 58141. Diagram image and parts list.
