H455-SD S/N 15009

01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 15 16 17 18 19 20 21 22 23 23 23 23 23 23 24 24 24 24 24 25 25 25 26 27 28 29 30 31 31 32 33 34 35 36 36 37 37 38 39 40 41 42 43 44 45 46 46 47 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

#	Part Number	Partname	Quantity	Options
01	903 346 40	Operation panel fig-nos. 02-50	1	InternKon: 903 344 40 / 2
02	674 959 40	Control box w/o electr. parts	1	InternKon: 903 346 40 / 1
03	674 961 40	Control box	1	InternKon: 674 959 40 / 1
04	637 515 40	Instrument panel	1	InternKon: 674 959 40 / 2
05	318 383 99	Bolt	8	InternBDB: M6x30 /963 \| InternKon: 674 959 40 / 4
06	640 417 40	Antiglare device	1	InternKon: 674 959 40 / 3
07	674 962 40	Switch box	1	InternKon: 674 961 40 / 1
08	898 366 40	Console	1	InternKon: 674 961 40 / 2
09	307 735 99	Bolt	6	InternBDB: M6x35 /933 \| InternKon: 674 961 40 / 3
10	332 110 99	Nut	6	InternBDB: M 6 /934 \| InternKon: 674 961 40 / 4
11	340 463 99	Washer	6	InternBDB: 6,4 /125 \| InternKon: 674 961 40 / 5
12	659 805 40	Instrumental board	1	InternKon: 903 346 40 / 2
13	903 347 40	Switch plate	1	InternKon: 903 346 40 / 4
14	659 807 40	Instrumental board	1	InternKon: 903 346 40 / 5
15	318 575 99	Screw	16	InternBDB: M4x16 /964 \| InternKon: 903 346 40 / 9
16	431 153 40	Remote thermometer (cooling water)	2	InternBDB: Moto-Meter 641.012.1001 \| InternKon: 903 346 40 / 11
17	431 154 40	Pressure gauge 10 bar	2	InternBDB: 644.060.1015 \| InternKon: 903 346 40 / 12
18	908 318 40	Display	1	InternBDB: E-ST /655 600 40 \| InternKon: 903 346 40 / 13
19	431 160 40	Hour meter	1	InternBDB: 634.003.1019 \| InternKon: 903 346 40 / 14
20	440 307 99	Socket	1	InternKon: 903 346 40 / 16
21	385 213 40	Cigarette lighter	1	InternBDB: Hella 8 EZ 004 595 011 \| InternKon: 903 346 40 / 17
22	431 152 40	Remote thermometer (hydraulic oil)	1	InternBDB: 641.012.1000 \| InternKon: 903 346 40 / 19
23	324 400 40	Turn switch	9	InternBDB: 261 000 \| InternKon: 903 346 40 / 22
24	324 401 40	Turn switch 1-stage	4	InternBDB: 260 490 \| InternKon: 903 346 40 / 23
25	324 402 40	Turn switch 2-stage	2	InternBDB: 263 490 \| InternKon: 903 346 40 / 24
26	414 866 40	Ignition switch	1	InternBDB: 327 052 \| InternKon: 903 346 40 / 25
27	698 239 73	Ignition key	1	InternBDB: 14644
28	891 033 40	Emerg. shutdown switch assy.	1	InternKon: 903 346 40 / 26
29	635 115 40	Contact element	1	InternBDB: EF 220 F.1 \| InternKon: 891 033 40 / 3
30	635 652 40	Contact element	1	InternBDB: EF 303 F.2 \| InternKon: 891 033 40 / 4
31	659 871 40	Connecting cable display	1	InternKon: 903 346 40 / 29
32	655 331 40	Insert ashtray	1	InternBDB: GHE 550 0107 \| InternKon: 903 346 40 / 36
33	631 556 40	Graphical symbol	1	InternBDB: TL \| InternKon: 903 346 40 / 37
34	056 055 40	Grommet	1	InternBDB: KT 29 \| InternKon: 903 346 40 / 39
35	056 054 40	Grommet	1	InternBDB: KT 21 \| InternKon: 903 346 40 / 40
36	399 702 40	Turn switch	1	InternBDB: 262 000 \| InternKon: 903 346 40 / 42
37	490 518 40	Alarm transmitter	1	InternBDB: 14810902 Lumitas \| InternKon: 903 346 40 / 45
38	551 272 40	Ignition switch	1	InternBDB: 327 050 M 601 Merit \| InternKon: 903 346 40 / 47
39	764 535 73	Key	1	InternBDB: M 601
40	515 300 40	Push hood, clear	4	InternBDB: 51-955.7 \| InternKon: 903 346 40 / 48
41	592 661 40	Bulb	4	InternBDB: 41-963.48 \| InternKon: 903 346 40 / 49
42	515 299 40	Luminous touch contact	4	InternBDB: 51-151.022 \| InternKon: 903 346 40 / 50
43	641 393 40	Visor	1	InternKon: 903 346 40 / 51
44	674 975 40	Plate	1	InternKon: 903 346 40 / 52
45	674 976 40	Plate	1	InternKon: 903 346 40 / 53
46	896 473 40	Toggle switch	1	InternBDB: Kissling 08.1.2.10 F \| InternKon: 903 346 40 / 27
47	318 603 99	Bolt	8	InternBDB: M6x16 /912 \| InternKon: 903 346 40 / 7
48	440 151 99	Tab 1	-2
49	055 115 40	Tab 1	-2
50	697 269 73	Tab, yellow 4	-2	InternBDB: Hella 8 KW 700 142-001
51	324 718 40	Potential divider for radio	1	InternBDB: 7 607 363 510 Bosch \| InternKon: 903 346 40 / 54
52	461 564 40	Standard console for radio	1	InternBDB: 7 608 002 376 Bosch \| InternKon: 903 346 40 / 3
53	903 395 40	Switch plate	1	InternKon: 903 346 40 / 55
54	655 686 40	Impact key	1	InternBDB: Elan EDRR 40 RT 027 1270 \| InternKon: 891 033 40 / 1
55	655 676 40	Spring element	1	InternBDB: Elan EFR 028 0287 \| InternKon: 891 033 40 / 2
56	896 613 40	Hinge	2	InternBDB: 368 Niro Petersen \| InternKon: 674 959 40 / 5
57	515 586 98	Bolt	8	InternBDB: M4x15 /965 \| InternKon: 674 959 40 / 6
58	334 649 99	Nut	8	InternBDB: M 4 /985 \| InternKon: 674 959 40 / 7
59	340 459 99	Washer	8	InternBDB: 4,3 /125 \| InternKon: 674 959 40 / 12
60	896 614 40	Magnet	2	InternBDB: 13 157 Hettich \| InternKon: 674 959 40 / 8
61	515 587 98	Bolt	2	InternBDB: M3x10 /965 \| InternKon: 674 959 40 / 9
62	515 588 98	Nut	2	InternBDB: M 3 /985 \| InternKon: 674 959 40 / 10
63	515 589 98	Washer	2	InternBDB: 3,2 /9021 \| InternKon: 674 959 40 / 11
64	891 087 40	Prostat assy.	1	InternKon: 903 344 40 / 84

Komatsu H455-SD S/N 15009 parts catalog PDF

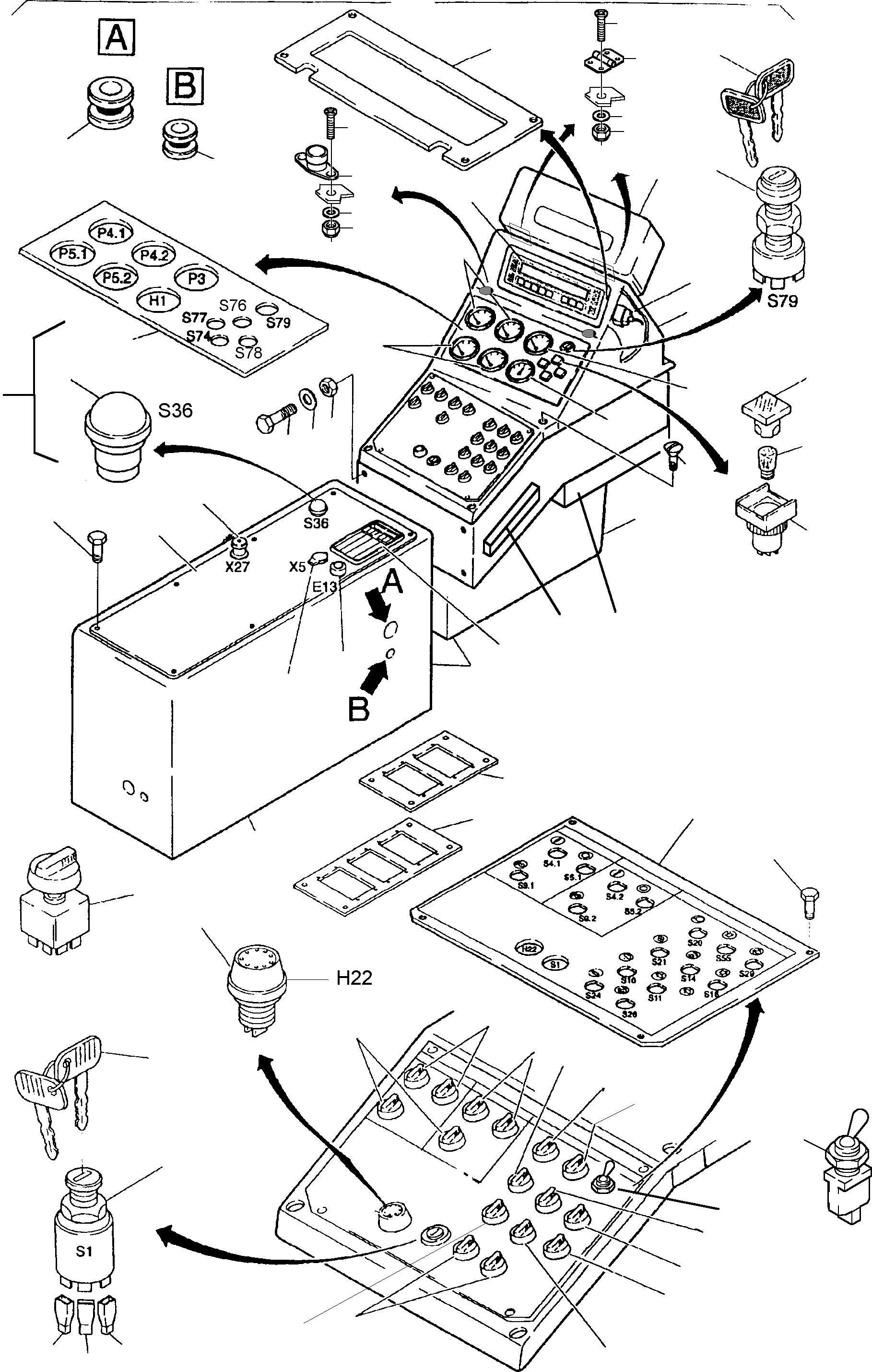

OPERATION PANEL (515-1920d) in H455-SD S/N 15009. Diagram image and parts list.
