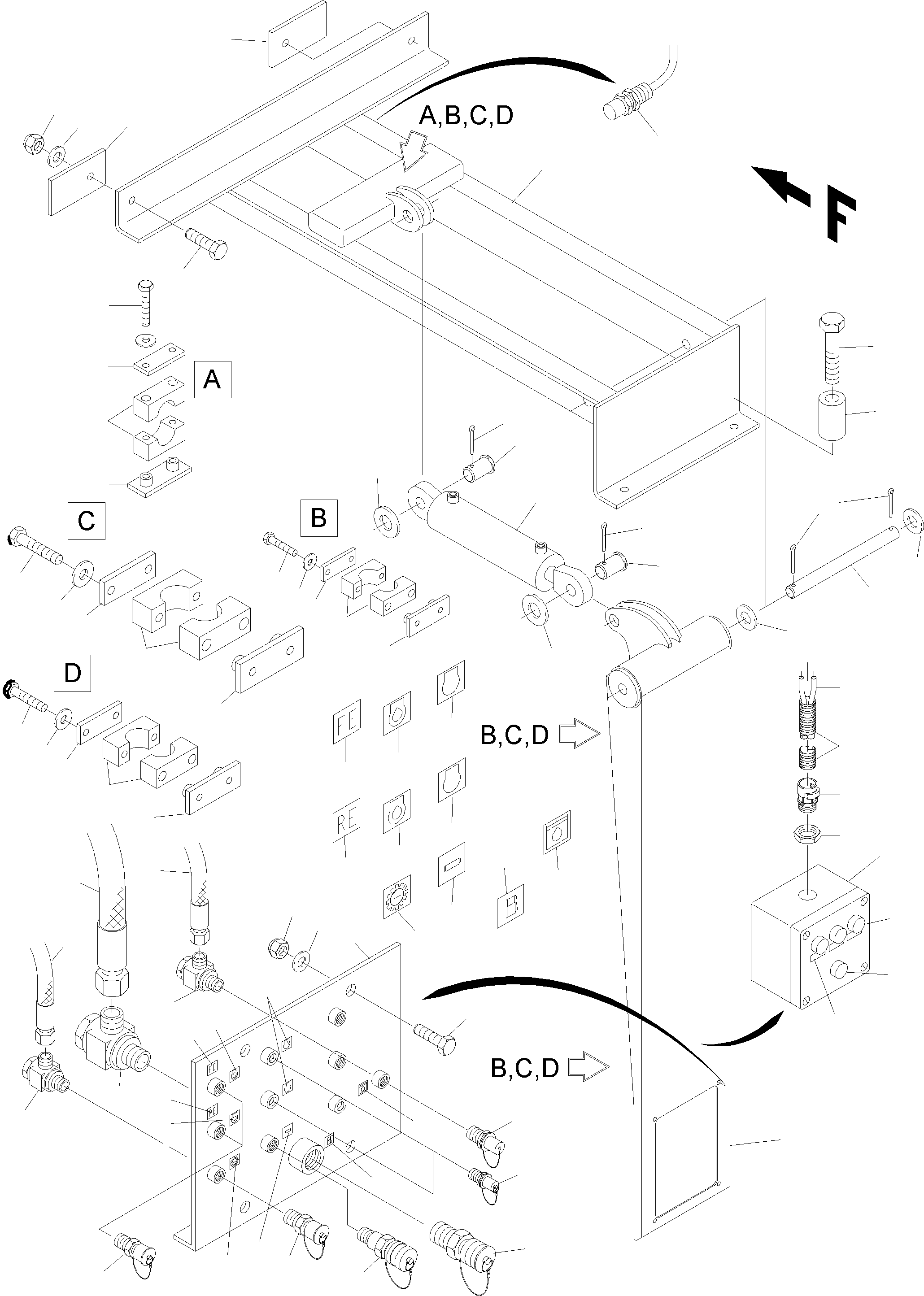

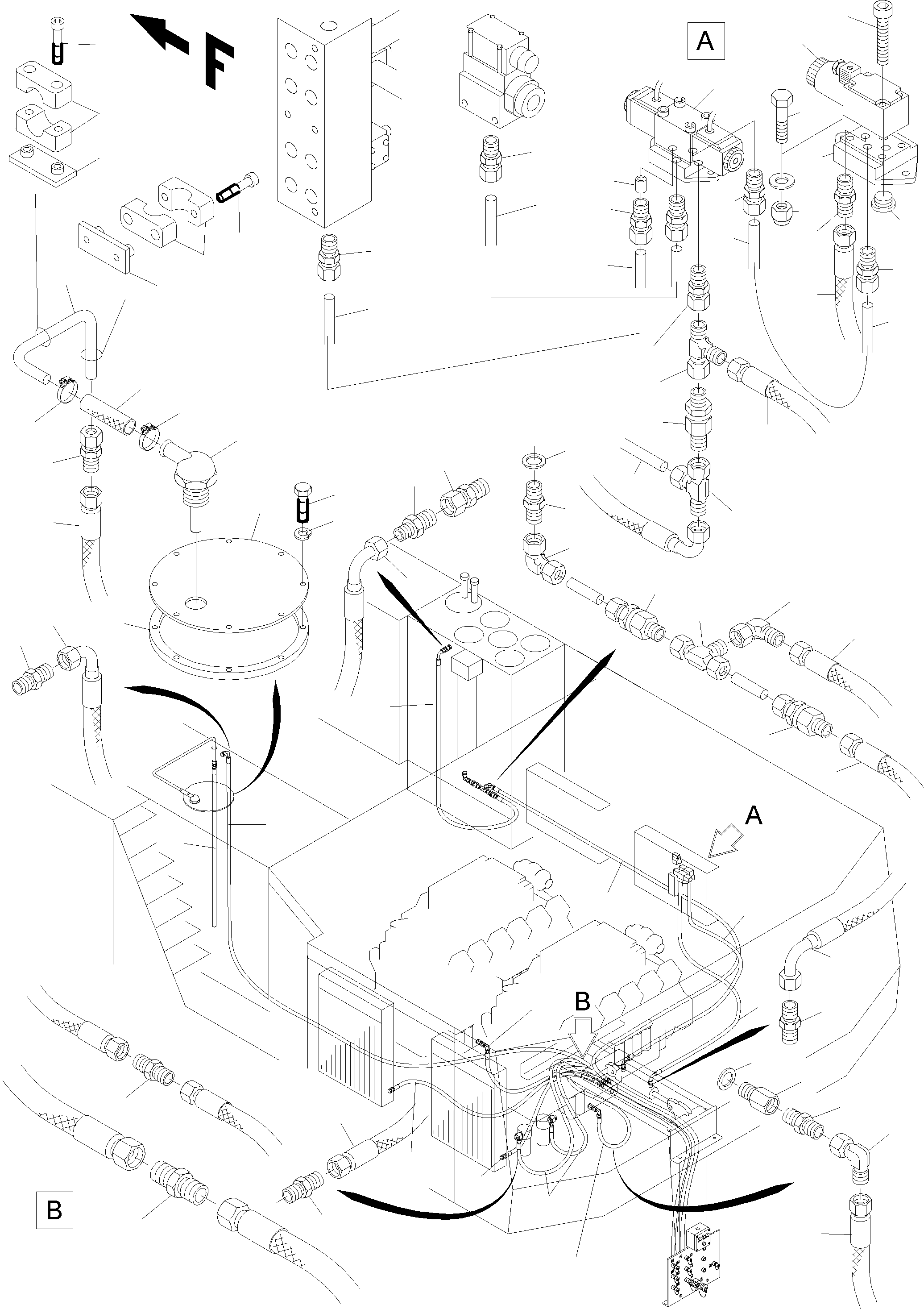

Diagram image 1 of 2

H455-SD S/N 15009

01 02 03 03 04 05 06 07 07 08 08 08 08 09 09 09 10 11 12 13 14 15 16 17 18 19 19 20 20 21 21 22 24 24 25 37 38 39 40 41 42 43 44 44 44 44 45 45 46 46 46 47 51 52 53 54 55 56 57 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 73 74 74 75 76 84 85 86 87 88 89 90 91 92 92 92 92

H455-SD S/N 15009

100 101 101 102 102 103 104 105 106 107 108 109 109 109 110 110 110 111 111 111 111 111 111 112 113 114 116 117 118 118 118 118 118 118 119 120 120 121 122 23 23 26 26 27 28 28 29 29 30 31 31 31 32 32 33 34 34 34 35 36 48 49 49 50 50 77 78 79 80 81 82 83 83 93 94 95 96 97 97 98 98 99 115

#	Part Number	Partname	Quantity	Options
01	903 255 40	Supporting beam	1	InternKon: 903 254 40 / 1
02	903 256 40	Lifting beam	1	InternKon: 903 254 40 / 2
03	903 218 40	Console	2	InternKon: 903 254 40 / 5
04	903 232 40	Plate	1	InternKon: 903 254 40 / 3
05	903 258 40	Pin	1	InternKon: 903 254 40 / 6
06	903 262 40	Hydraulic cylinder	1	InternBDB: TL / Burnside \| InternKon: 903 254 40 / 4
07	515 827 98	Pin	1	InternBDB: 40F7x75x60 /1434 \| InternKon: 903 254 40 / 7
08	500 995 98	Washer	4	InternBDB: 41 /125 \| InternKon: 903 254 40 / 8
09	342 125 99	Cotter pin	4	InternBDB: 8x71 /94 \| InternKon: 903 254 40 / 9
10	308 631 99	Bolt	4	InternBDB: M16x55 /931 \| InternKon: 903 254 40 / 48
11	308 321 99	Bolt	2	InternBDB: M16x90 /931 10.9 \| InternKon: 903 254 40 / 49
12	308 666 99	Bolt	2	InternBDB: M20x70 /931 \| InternKon: 903 254 40 / 50
13	896 538 40	Switch	1	InternBDB: IFM IGB 5717 Induktiv-Sensor \| InternKon: 901 345 40 / 4
14	340 470 99	Washer	4	InternBDB: 21 /125 \| InternKon: 903 254 40 / 53
15	504 662 98	Nut	2	InternBDB: M 20 /934 \| InternKon: 903 254 40 / 51
16	334 601 99	Nut	4	InternBDB: M 16 /985 \| InternKon: 903 254 40 / 52
17	340 510 99	Washer	8	InternBDB: 17 /125 \| InternKon: 903 254 40 / 54
18	510 733 98	Resilient sleeve	2	InternBDB: 17/30x50 \| InternKon: 903 254 40 / 55
19	515 923 98	Graphical symbol RE	1	InternKon: 903 254 40 / 56
20	515 924 98	Graphical symbol FE	1	InternKon: 903 254 40 / 57
21	006 893 98	Union	7	InternBDB: Voss 22-LM \| InternKon: 903 254 40 / 10
22	007 137 98	Union	1	InternBDB: Voss 42-LM \| InternKon: 903 254 40 / 11
23	653 524 40	Hose assy. DN 20x640	1	InternBDB: DOL 22 /DOL 22-90 \| InternKon: 903 254 40 / 60
24	903 259 40	Hose assy. D 20	7	InternBDB: TL / Dunlop \| InternKon: 903 254 40 / 29
25	903 260 40	Hose assy. D 50	1	InternBDB: TL / Dunlop \| InternKon: 903 254 40 / 30
26	515 584 40	Hose assy. DN 20x1900	1	InternBDB: DOL 22 /DOL 22-90 \| InternKon: 903 254 40 / 59
27	324 572 40	Washer	2	InternBDB: Cummi 67946 \| InternKon: 903 254 40 / 73
28	650 712 40	Hose assy. DN 20x2650	1	InternBDB: DOL 22 /DOL 22 \| InternKon: 903 254 40 / 61
29	513 482 98	Hose assy. DN 20x2800	1	InternBDB: DOL 22 /DOL 22 \| InternKon: 903 254 40 / 62
30	513 150 98	Hose assy. DN 20x4000	2	InternBDB: DOL 22 /DOL 22 \| InternKon: 903 254 40 / 63
31	512 951 98	Hose assy. DN 20x6800	1	InternBDB: DOL 22 /DOL 22 \| InternKon: 903 254 40 / 67
32	604 478 40	Hose assy. DN 20x7100	1	InternBDB: DOL 22 /DOL 22-90 \| InternKon: 903 254 40 / 65
33	324 571 40	Adapter	2	InternBDB: Cummi 196 155 \| InternKon: 903 254 40 / 72
34	372 175 99	Union	4	InternBDB: DDL 22 /2353 \| InternKon: 903 254 40 / 74
35	372 476 99	Union	2	InternBDB: GE 22-PL / 3/4 NPT 010 880 99 \| InternKon: 903 254 40 / 71
36	373 703 99	Union	1	InternBDB: GR 28/22-L \| InternKon: 903 254 40 / 78
37	504 987 98	Half clamp	2	InternBDB: L-2-G-18 /3015 \| InternKon: 903 254 40 / 33
38	533 989 99	Plate	1	InternBDB: L-AP-K-2 /3015 \| InternKon: 903 254 40 / 31
39	308 537 99	Screw	6	InternBDB: M6x45 /931 \| InternKon: 903 254 40 / 42
40	323 905 40	Filler, engine oil	2	InternBDB: ON-2 \| InternKon: 903 254 40 / 19
41	324 437 40	Cap	2	InternBDB: Doedijns OC-12 E \| InternKon: 903 254 40 / 20
42	270 861 40	Filler, hydr.-oil	1	InternBDB: Wiggins 6005 A 12 \| InternKon: 903 254 40 / 16
43	270 862 40	Cap	1	InternBDB: Doedijns 6008-12 \| InternKon: 903 254 40 / 17
44	515 873 98	Graphical symbol (engine oil)	2	InternKon: 903 254 40 / 26
45	515 877 98	Graphical symbol (hydraulic oil)	1	InternKon: 903 254 40 / 23
46	515 875 98	Graphical symbol (cooling water)	1	InternKon: 903 254 40 / 25
47	511 855 98	Cover plate	1	InternBDB: L-2 /3015 \| InternKon: 903 254 40 / 32
48	340 086 99	Seal ring	1	InternBDB: A 30x38 /7603 \| InternKon: 903 254 40 / 79
49	370 306 99	Union	7	InternBDB: EL 22 /2353 \| InternKon: 903 254 40 / 69
50	515 912 98	Valve	2	InternBDB: RHD 22-PL \| InternKon: 903 254 40 / 80
51	515 669 98	Half clamp	6	InternBDB: L-4-G-26,9 /3015 \| InternKon: 903 254 40 / 47
52	501 584 98	Plate	3	InternBDB: L-AP-K4 /3015 \| InternKon: 903 254 40 / 45
53	511 857 98	Cover plate	3	InternBDB: DP-L4 /3015 \| InternKon: 903 254 40 / 46
54	502 501 98	Bolt	6	InternBDB: M6x100 /931 \| InternKon: 903 254 40 / 41
55	896 748 40	Filler, fuel	1	InternBDB: ZN 2 B \| InternKon: 903 254 40 / 12
56	324 436 40	Cap	1	InternBDB: Doedijns ZC-20 E \| InternKon: 903 254 40 / 18
57	515 872 98	Graphical symbol (fuel)	1	InternKon: 903 254 40 / 24
58	341 711 40	Filler neck (greasing)	1	InternBDB: 6000 B 12 \| InternKon: 903 254 40 / 13
59	655 577 40	Box, aluminium	1	InternBDB: Bopla A 115 \| InternKon: 659 887 40 / 1
60	323 675 40	Indicator light, red	3	InternBDB: Lumitas 704-000.2 \| InternKon: 659 887 40 / 4
61	507 382 99	Bulb	3	InternBDB: BA 9 S / 24V 2 Watt
62	320 932 99	Screw	2	InternBDB: AM 4x20 /84 \| InternKon: 659 887 40 / 2
63	332 442 99	Nut	2	InternBDB: M 4 /934 \| InternKon: 659 887 40 / 3
64	504 546 99	Counter nut	1	InternBDB: PG 9 / 46258
65	655 621 40	Cable union DN 10	1	InternBDB: BVNV-P 090 T \| InternKon: 659 887 40 / 1
66	655 649 40	Protecting hose DN 10 Bulk ware, state length required	-2	InternBDB: VCST-10 B
67	515 213 40	Cable 1,0 Bulk ware, state length required	-2
68	323 677 40	Press button adapter, red	1	InternBDB: Lumitas 040 122 \| InternKon: 659 887 40 / 5
69	255 328 40	Circuit element	1	InternBDB: 04.910.50 \| InternKon: 659 887 40 / 6
70	891 027 40	Graphical symbol	1	InternKon: 659 887 40 / 10
71	360 856 40	Protection cap	1	InternBDB: 6009-12 \| InternKon: 903 254 40 / 14
72	341 710 40	Filler neck (pinion greasing)	1	InternBDB: OSP 2 \| InternKon: 903 254 40 / 15
73	515 878 98	Graphical symbol (greasing)	1	InternKon: 903 254 40 / 28
74	515 879 98	Graphical symbol (pinion greasing)	1	InternKon: 903 254 40 / 27
75	323 906 40	Filler neck (water)	2	InternBDB: EC 285 A8 \| InternKon: 903 254 40 / 21
76	324 438 40	Protection cap	2	InternBDB: 1208-8 \| InternKon: 903 254 40 / 22
77	372 428 99	Union	2	InternBDB: CL 22 E /2353 \| InternKon: 903 254 40 / 75
78	372 431 99	Union	1	InternBDB: CL 42 E /2353 \| InternKon: 903 254 40 / 76
79	371 941 99	Socket	1	InternBDB: EVGE 28-LM-ED \| InternKon: 903 254 40 / 77
80	372 407 99	Union	1	InternBDB: EL 42 /2353 \| InternKon: 903 254 40 / 70
81	371 956 99	Union	1	InternBDB: FFL 22 /2353 \| InternKon: 903 254 40 / 81
82	515 882 98	Union	1	InternBDB: GV 22-LR \| InternKon: 903 254 40 / 82
83		Hose assy.	1	InternKon: 903 254 40 / 68
84	515 828 98	Weld on plate	3	InternBDB: L-AP-K 7 /3015 \| InternKon: 903 254 40 / 34
85	515 829 98	Cover plate	3	InternBDB: L-7 /3015 \| InternKon: 903 254 40 / 35
86	515 831 98	Half clamp	6	InternBDB: L-7-G-63,5 /3015 \| InternKon: 903 254 40 / 36
87	502 512 98	Weld on plate	3	InternBDB: L-AP-K-6 /3015 \| InternKon: 903 254 40 / 37
88	505 712 98	Cover plate	3	InternBDB: L-6 /3015 \| InternKon: 903 254 40 / 38
89	505 701 98	Half clamp	12	InternBDB: L-6-R-50,8 /3015 \| InternKon: 903 254 40 / 39
90	308 942 99	Bolt	6	InternBDB: M6x140 /931 \| InternKon: 903 254 40 / 40
91	308 542 99	Bolt	2	InternBDB: M6x70 /931 \| InternKon: 903 254 40 / 43
92	343 003 99	Washer	20	InternBDB: 6,4 /93 \| InternKon: 903 254 40 / 44
93	903 940 40	Pipe assy.	1	InternKon: 903 941 40 / 1
94	674 979 40	Cover	1	InternKon: 903 941 40 / 2
95	551 704 40	Vent valve	1	InternBDB: ZV 10 A \| InternKon: 903 941 40 / 3
96	896 671 40	Hose DN 32 Bulk ware, state length required	-2	InternBDB: 32x5 Gewehr \| InternKon: 903 941 40 / 4
97	650 712 40	Hose assy. DN 20x2650	1	InternBDB: DOL 22 /DOL 22 \| InternKon: 903 941 40 / 5
98	374 921 99	Clamp	2	InternBDB: A 25-40x9 /3017 \| InternKon: 903 941 40 / 9
99	500 942 98	Half clamp	4	InternBDB: L-3-R-22 /3015 \| InternKon: 903 941 40 / 7
100	533 991 99	Half clamp	4	InternBDB: L-3-R-20 /3015 \| InternKon: 903 941 40 / 8
101	533 992 99	Weld on plate	4	InternBDB: L-AP-K-3 /3015 \| InternKon: 903 941 40 / 6
102	319 133 99	Bolt	8	InternBDB: M6x30 /912 \| InternKon: 903 941 40 / 12
103	307 752 99	Bolt	8	InternBDB: M8x20 /933 \| InternKon: 903 941 40 / 11
104	346 510 99	Lock washer	8	InternBDB: 8 /128 \| InternKon: 903 941 40 / 14
105	561 892 40	Seal	1	InternKon: 903 941 40 / 13
106	180 325 40	Base plate	2	InternBDB: G 342/1 \| InternKon: 903 943 40 / 1
107	896 619 40	Switch valve	1	InternBDB: Rexroth M3 SED 6 UK 1X /350 CG 24 K4 \| InternKon: 903 943 40 / 2
108	896 531 40	4/3-Directional spool valve	1	InternBDB: Vickers DG 4V-3-2C-M-KUP3-H7-60-EN125 \| InternKon: 903 943 40 / 3
109	643 879 40	Hose assy. DN 10x4250	1	InternBDB: DOL 12 /DOL 12-90 \| InternKon: 903 943 40 / 4
110	512 336 98	Hose assy. DN 10x4600	1	InternBDB: DOL 12 /DOL 12-90 \| InternKon: 903 943 40 / 5
111	215 424 99	Pipe Ш 12 Bulk ware, state length required	-2	InternBDB: 12x1,5 /2391 \| InternKon: 903 943 40 / 6
112	896 680 40	Throttle	1	InternBDB: Vickers 694347 2,0 mm \| InternKon: 903 943 40 / 10
113	319 174 99	Screw	8	InternBDB: M5x50 /912 10.9 \| InternKon: 903 943 40 / 11
114	514 343 98	Bolt	4	InternBDB: M6x80 /561 \| InternKon: 903 943 40 / 12
115	507 025 98	Nut	4	InternBDB: M 6 /985 \| InternKon: 903 943 40 / 13
116	340 506 99	Washer	4	InternBDB: 6,4 /125 \| InternKon: 903 943 40 / 14
117	370 503 99	Union	2	InternBDB: CL 12 E /2353 \| InternKon: 903 943 40 / 15
118	370 313 99	Union	5	InternBDB: DL 12 E /2353 \| InternKon: 903 943 40 / 16
119	171 253 40	Union	1	InternBDB: EVGE 12 LR-ED \| InternKon: 903 943 40 / 18
120	371 953 99	Union	2	InternBDB: FFL 12 /2353 \| InternKon: 903 943 40 / 19
121	500 366 98	Valve	1	InternBDB: RHD 12-PL 0,2 bar \| InternKon: 903 943 40 / 20
122	255 694 40	Plug	1	InternBDB: Vsti R 3/8 ED \| InternKon: 903 943 40 / 17

Komatsu H455-SD S/N 15009 parts catalog PDF

REFUELING EQUIPMENT (515-2305) in H455-SD S/N 15009. Diagram image and parts list.
