Diagram image 1 of 4

PC4000-6E S/N 08265

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6E S/N 08265

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6E S/N 08265

? ? ? ? ?

PC4000-6E S/N 08265

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	993 158 40	MV-switch cabinet assy.	1
?	967 345 40	MV switch cabinet incl fig no 03-30	1
?	967 312 40	MV switch cabinet incl fig no 31-33	1
?	939 280 40	Cotter pin	2
?	969 367 40	Transformer foot	2
?	964 243 40	Cover	1
?	964 312 40	Cover	1
?	964 206 40	Flange plate	1
?	964 491 40	Catch	1
?	939 281 40	Plate	2
?	964 266 40	Block	8
?	940 906 40	Fastener, l.h.	2
?	964 264 40	Moulding material	1
?	345 178 99	Dowel pin	1
?	517 122 98	Lock washer	30
?	307 779 99	Bolt	4
?	964 265 40	Moulding material	1
?	307 774 99	Bolt	16
?	307 777 99	Bolt	10
?	517 121 98	Lock washer	4
?	307 752 99	Bolt	4
?	517 118 98	Lock washer	6
?	307 810 99	Bolt	6
?	334 600 99	Nut	6
?	906 003 40	Grating	2
?	317 318 40	Wing nut, plastic	8
?	502 354 98	Bolt	8
?	317 319 40	Threaded block	8
?	592 259 40	Profiled joint	-2
?		see Fire extinguishing equipment	1
?	166 575 40	Profiled joint	-2
?	964 261 40	Door	1
?	964 275 40	Flap	3
?	390 199 40	Hinge	8
?	621 108 40	Pin	1
?	390 600 40	Bushing	2
?	390 601 40	Bushing	1
?	340 612 99	Washer	1
?	342 061 99	Cotter pin	1
?	350 562 99	Grease nipple	1
?	941 444 40	Handle	2
?	941 445 40	Handle	2
?	941 563 40	Axle	2
?	941 447 40	Collar	2
?	941 450 40	Closing cam	2
?	941 451 40	Collar	2
?	941 448 40	Accessory l.h.	1
?	793 534 73	Potential transformer	1
?		Fuse	3
?	796 789 73	Excess-voltage dicharger	3
?	766 625 73	Fuse 250A	3
?	797 766 73	Vacuum contactor	1
?	792 868 73	Overvoltage limiter	3
?	795 394 73	Current transformer	3
?		AC-dry transformer	1
?	764 584 73	Sensor	2
?	951 320 40	Lamp	1
?	950 189 40	Plug	1
?	796 766 73	Heater 2000 W	2
?	795 023 73	Thermostat	1
?		Instrument box	1
?	761 576 73	Thermostat	2
?	766 506 73	Hydrostat	1
?	798 396 73	Heater	1
?	696 867 73	Silencer	6
?	340 508 99	Washer	18
?	346 500 99	Lock washer	18
?	307 775 99	Screw	18
?	693 151	Silencer	12
?	694 195	Insulator	12
?	765 910 73	Terminal marker	3
?	940 673 40	Clamp	5
?		Series terminal	8
?	906 612 40	Protective wire clip	27
?		Protective wire clip	1
?	950 185 40	Protective wire clip 2,5mmІ	1
?	502 709 98	Assembly rail	-2
?	790 481 73	Endresistaor	1
?		Temperatire sensor	2
?		Head shield	2
?	798 446 73	Lock	1
?	798 445 73	Key	1

Komatsu PC4000-6E S/N 08265 parts catalog PDF

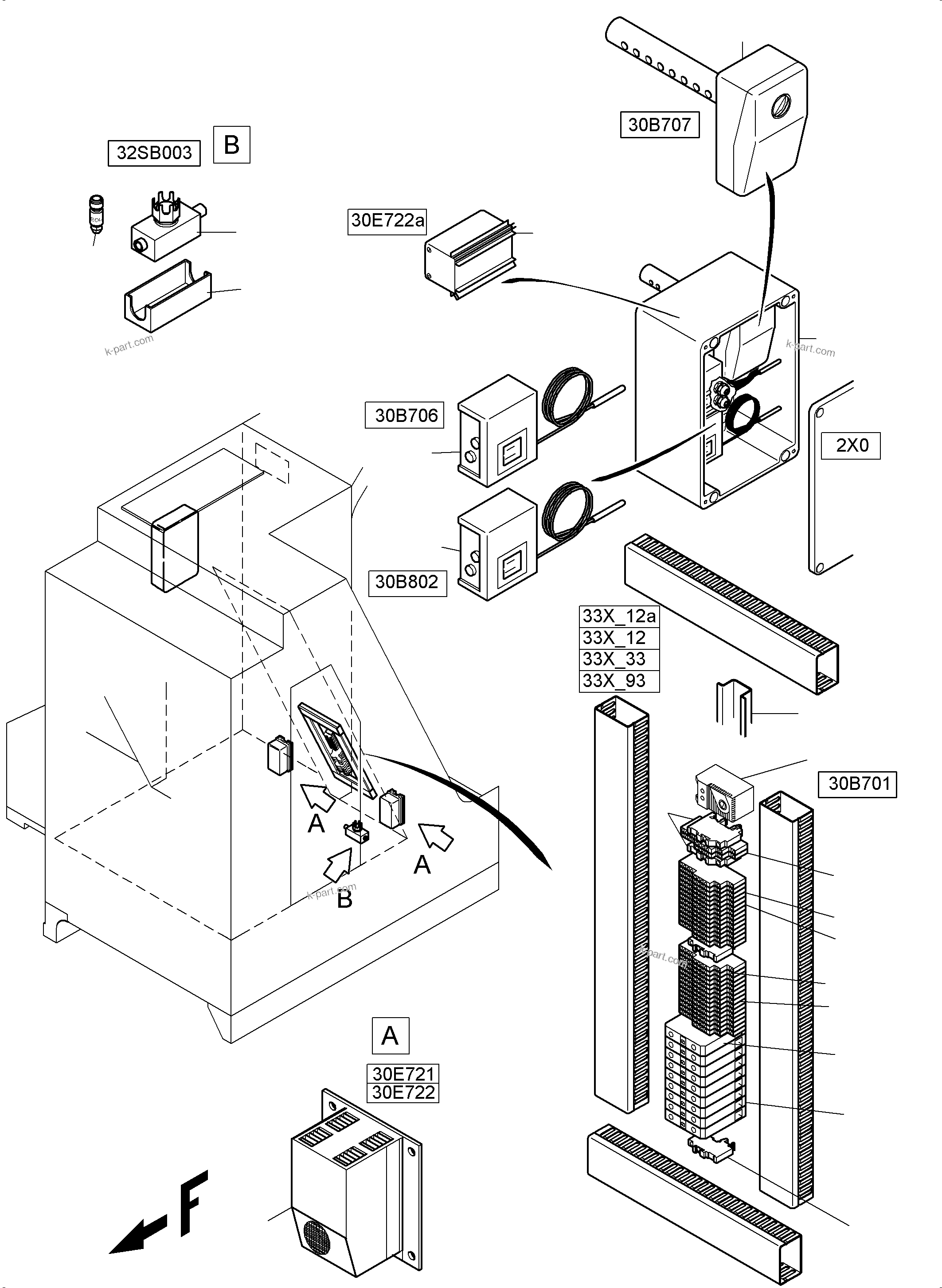

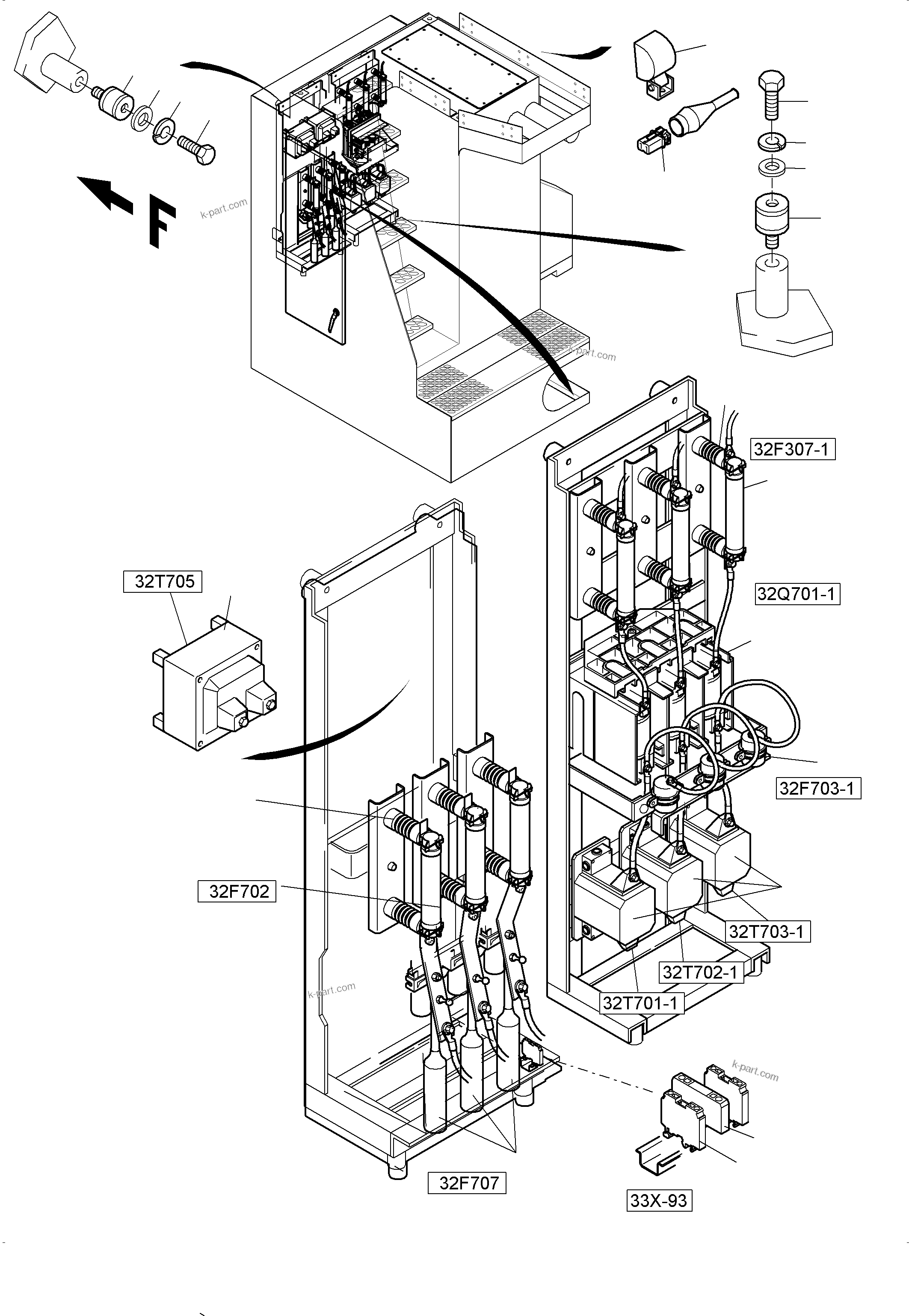

SWITCH CABINET (MS) (991-1574) in PC4000-6E S/N 08265. Diagram image and parts list.
