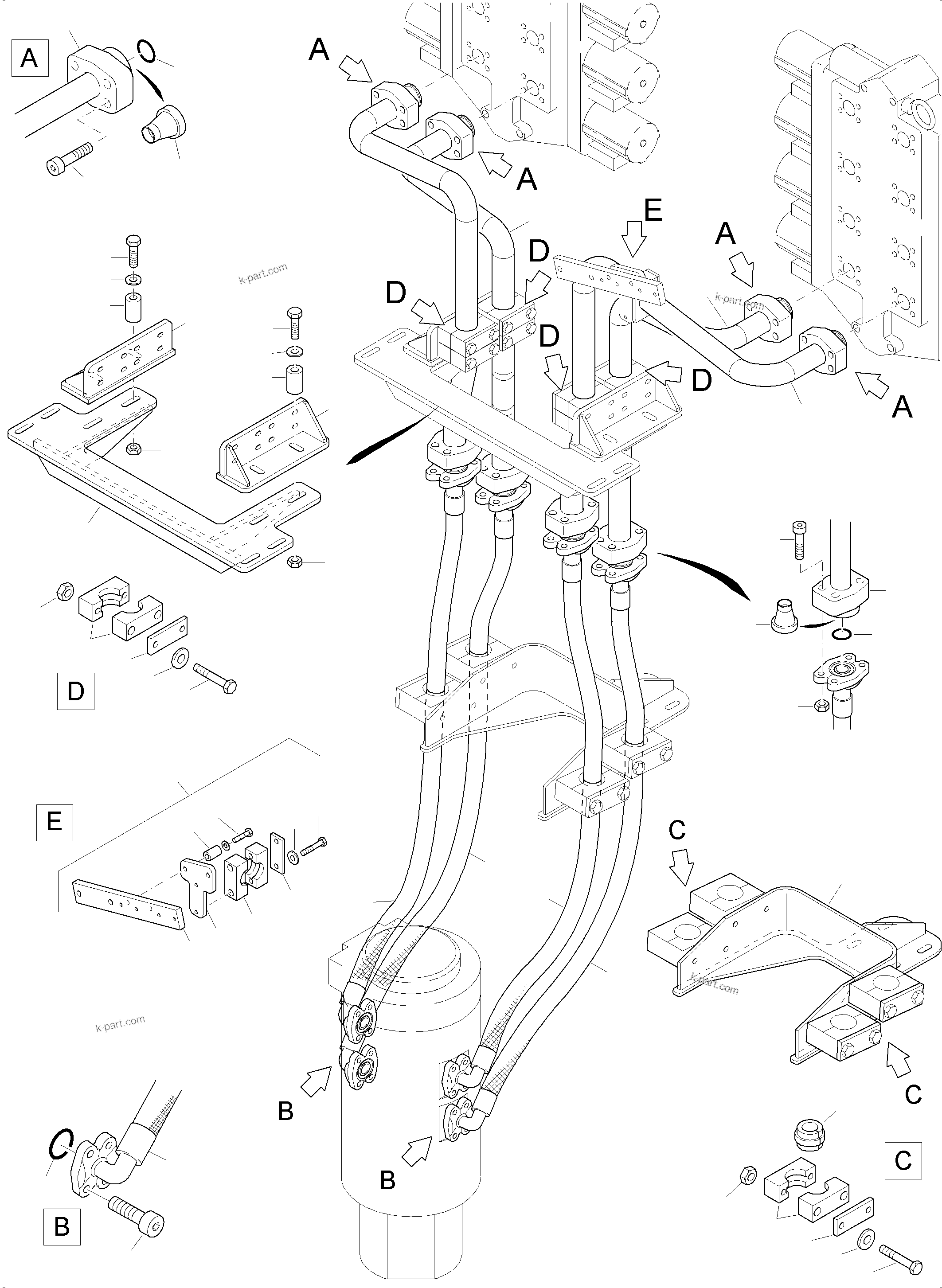

PIPES,- AND HOSES ASSY., CONTROL BLOCKS - ROTARY JOINT | PC 7000-6E 35 003 11.06.2019

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC 7000-6E 35 003 11.06.2019

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	965 180 40	Retainer	1
?	519 454 98	Flange seal	12
?	509 064 98	Clamp set	5
?	500 398 98	Cover plate	5
?	516 024 98	Grommet	4
?	940 368 40	Hose assy. DN 50x1980	1
?	940 370 40	Hose assy. DN 50x2100	1
?	332 338 99	Nut	16
?	519 587 98	Bolt	16
?	320 035 99	Bolt	16
?	308 645 99	Bolt	8
?	517 123 98	Lock washer	16
?	940 367 40	Hose assy. DN 50x1900	1
?	940 369 40	Hose assy. DN 50x2050	1
?	965 160 40	Retainer	2
?	965 164 40	Crosshead	1
?	965 156 40	Pipe assy. Ш 65	1
?	965 157 40	Pipe assy. Ш 65	1
?	965 158 40	Pipe assy. Ш 65	1
?	965 159 40	Pipe assy. Ш 65	1
?	971 410 40	Retainer assy.	1
?	504 446 98	Clamp set	8
?	502 965 98	Cover plate	4
?	505 440 98	Clamp set	1
?	534 008 99	Cover plate	1
?	517 958 98	Resilient sleeve	4
?	319 323 99	Bolt	16
?	308 616 99	Bolt	16
?	517 118 98	Lock washer	34
?	332 334 99	Nut	16
?	340 688 99	Washer	4
?	332 336 99	Nut	12
?	308 444 99	Bolt	4
?	308 434 99	Bolt	2
?	504 461 98	Collar ring	4
?	504 448 98	Flange	8
?	504 449 98	Collar ring	4
?	971 451 40	Plate	1
?	971 452 40	Plate	1
?	510 745 98	Resilient sleeve	2
?	308 782 99	Bolt	2
