3D74E-3A S/N 00101-UP

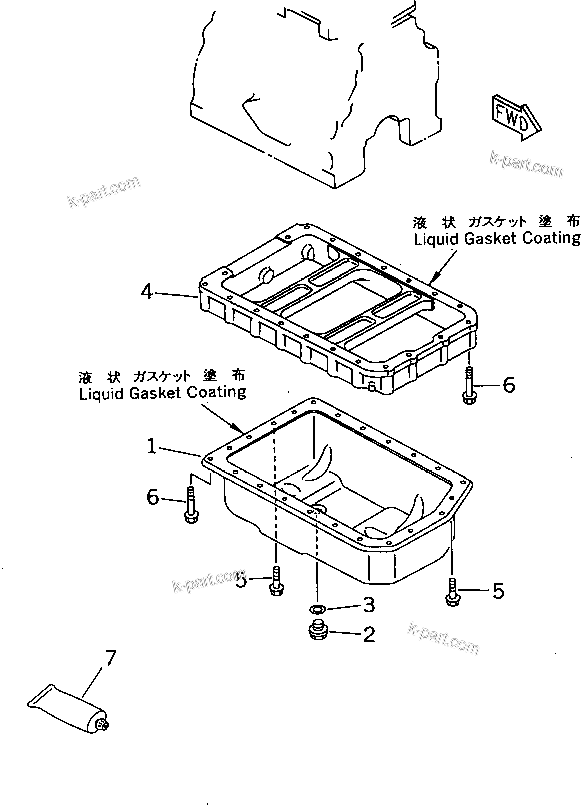

Komatsu parts book diagram for 3D74E-3A S/N 00101-UP: OIL PAN

	#	Part Number	Partname	Quantity	Options	Reference
	?	YM719631-01770	OIL PAN ASS'Y	1	SN: 00101-UP
	?	YM119640-01640	PLUG,DRAIN	1	SN: 00101-UP
	?	YM22190-220002	SEAL,RING (KIT)	1	SN: 00101-UP
	?	YM119600-01722	SPACER	1	SN: 00101-UP
	?	YM26106-060122	BOLT	3	SN: 00101-UP
	?	YM26106-060452	BOLT	20	SN: 00101-UP
	?	YM977770-01212	LIQUID GASKET	-2	SN: 00101-UP

Komatsu 3D74E-3A S/N 00101-UP parts catalog PDF

OIL PAN (0211) in 3D74E-3A S/N 00101-UP. Diagram image and parts list.
