3D74E-3A S/N 00101-UP

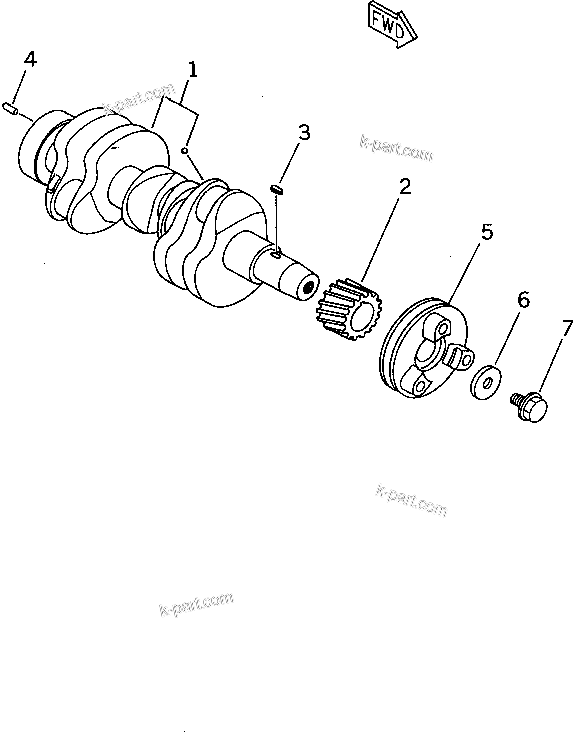

Komatsu parts book diagram for 3D74E-3A S/N 00101-UP: CRANKSHAFT

	#	Part Number	Partname	Quantity	Options	Reference
	?	YM119623-21700	CRANKSHAFT ASS'Y	1	SN: 00101-UP
	?	YM119644-21200	GEAR,CRANK	1	SN: 00101-UP
	?	YM22512-040120	KEY	1	SN: 00101-UP
	?	YM129100-01580	PIN	1	SN: 00101-UP
	?	YM119649-21650	PULLEY,CRANK	1	SN: 00101-UP
	?	YM119620-21941	WASHER	1	SN: 00101-UP
	?	YM119621-21680	BOLT	1	SN: 00101-UP

Komatsu 3D74E-3A S/N 00101-UP parts catalog PDF

CRANKSHAFT (0231) in 3D74E-3A S/N 00101-UP. Diagram image and parts list.
