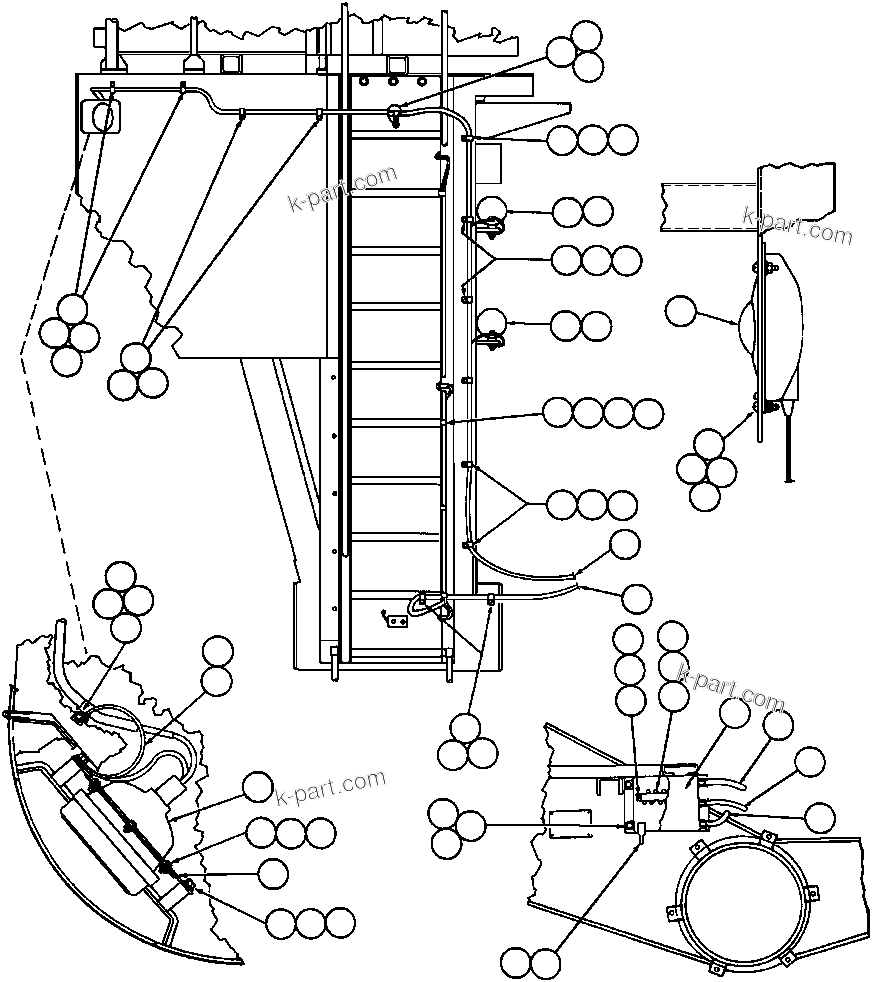

RIGHT UPRIGHT ELECTRICAL GROUP | AFE32-BA 830E ARCH MINERAL

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE32-BA 830E ARCH MINERAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VH9969	WELD STUD - 3/8" - 16NC X 3/4"	3
?	TC1231	LOCKWASHER - 3/8"	20
?	TC1233	NUT - 3/8" - 16NC	18
?	424243	CLAMP	7
?	VN5153	WIRE, GROUND	1
?	SP6153	LOCKWASHER - 3/8" (EXTERNAL/INTERNAL TOOTH)	6
?	AK1027	SERVICE LIGHT ASSM	2
?	AK1068	HOUSING	2
?	AK1030	BULB - 24V/60W	2
?	AK1095	LENS, PLASTIC	2
?	EC2521	HARNESS, LADDER LIGHT	1
?	TG2568	CLAMP	7
?	EB8230	HARNESS - RIGHT UPRIGHT/DECK	1
?	TZ2413	LADDER LIGHT ASSM (SEE INDEX)	3
?	TZ8352	FRONT TURN & CLEARANCE LIGHTS	1
?	AK1041	HOUSING, UNIVERSAL	1
?	AK1031	FLANGE	1
?	AK1043	RING, RUBBER	1
?	AK1030	BULB, 24V/60W	1
?	AK1093	LENS, REFLECTOR	1
?	DC5004	MACHINE SCREW - #12 - 24NC X 1/2"	3
?	VD2047	LOCKWASHER - #12	3
?	TR8580	NUT - #12 - 24NC	3
?	TY7470	PLATE, MOUNTING	1
?	C1601	CAPSCREW - 3/8" - 16NC X 3/4"	4
?	C0312	LOCKWASHER - 3/8"	4
?	DF3042	FLAT WASHER - 3/8"	4
?	EB5963	JUNCTION BOX ASSM - R.H.	1
?	WA3367	NUT ASSM	24
?	EB5966	BOX	1
?	SR8325	SWITCH, TOGGLE (ENGINE MAINTENANCE LIGHTS)	1
?	PB3324	BOOT, TOGGLE SWITCH	1
?	VS8479	BOARD, TERMINAL	1
?	VF2231	MACHINE SCREW - #10 - 24NC X 3/8"	4
?	DC3101	LOCKWASHER - #10	4
?	WA6684	STRIP, CIRCUIT IDENTIFICATION (TB 16)	1
?	VM2951	SET SCREW - #6 - 32NC X 5/16"	2
?	TD1548	CAPSCREW - 1/4" - 20NC X 5/8"	4
?	DC3584	LOCKWASHER - 1/4"	4
?	SP8417	FLAT WASHER - 1/4"	4
?	EC2542	HARNESS - RIGHT FRAME RAIL	1
?	DF0017	NUT - #10 - 24NC	9
?	TG1929	MACHINE SCREW - #10 - 24NC X 1/2"	9
?	VC5344	FLAT WASHER - #10	9
?	VN5153	WIRE, GROUND (1)	1
?	VH9969	WELD STUD - 3/8" - 16NC X 3/4" (1)	2
?	SP6153	LOCKWASHER - 3/8" (EXTERNAL/INTERNAL TOOTH) (1)	2
?	TC1233	NUT - 3/8" - 16NC (1)	2
?		NOTE: (1) RIGHT DECK TO SUB-FRAME AT HORSECOLLAR.	65535
