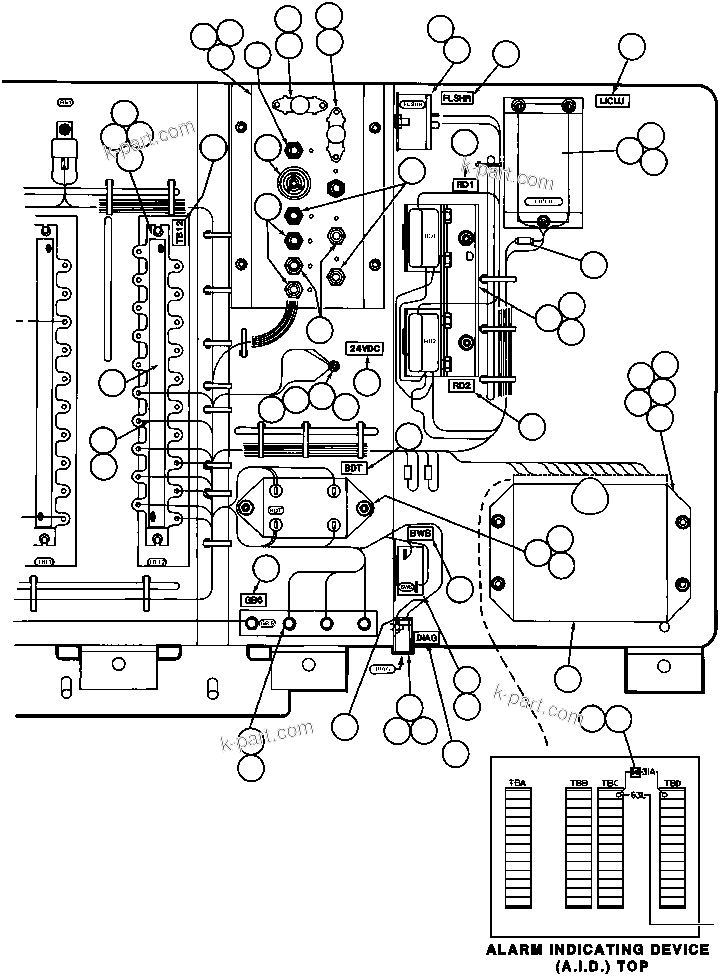

ELECTRICAL COMPARTMENT - 24 VOLT - 1 | AFE32-BA 830E ARCH MINERAL

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE32-BA 830E ARCH MINERAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EB0899	SHEET, BENT	1
?	DC3101	LOCKWASHER - #10	9
?	DF0017	NUT - #10 - 24NC	9
?	TZ8159	HOLDER, FUSE	1
?	PB1951	SIGNAL, SONALARM	1
?	TZ7324	NAME PLATE - BWB	1
?	TZ7376	NAME PLATE - DIAG	1
?	TZ7317	NAME PLATE - TB12	1
?	PB3702	FLASHER	1
?	VN9751	LOCKNUT - 1/4" - 20NC	7
?	DC3584	LOCKWASHER - 1/4"	4
?	PB6072	BREAKER, CIRCUIT - 5 AMP	2
?	PB7863	BREAKER, CIRCUIT	1
?	WA3298	MACHINE SCREW - #6 - 32NC X 3/8"	4
?	PB3758	BREAKER, CIRCUIT	1
?	FB5170	TAILLIGHT RESISTOR - DIODE ASSM	1
?	PB5712	RESISTOR - DIODE	2
?	TS0753	BRACKET	1
?	C5747	CAPSCREW - 5/16" - 18NC X 3/4"	4
?	C1538	LOCKWASHER - 5/16"	4
?	C1520	NUT - 5/16" - 18NC	4
?	SC4174	LOCKWASHER - 5/16"	4
?	TD1684	NUT - 5/16" - 18NC	2
?	PB7004	ALARM MODULE	1
?	VE3422	BOX (W/O CARDS)	1
?	VS5162	COVER	1
?	VE1407	KNOB	1
?	VJ8805	CARD, FLASHER/ COOLANT LEVEL	1
?	VJ8806	CARD, TEMPERATURE	1
?	VJ9023	CARD, DIODE (W/SOUND)	1
?	VJ9024	CARD, DIODE (W/O SOUND)	1
?	PB5672	CARD, SINGLE TEMPERATURE LATCH	1
?	TY7846	HOUSING	1
?	TZ0951	HOUSING, LEVEL	1
?	TS0299	RESISTOR	2
?	VJ9025	CARD - SLOTS 3 & 4 (1)	2
?	TF1207	BUZZER - 24 VOLT	1
?	PB7036	CONNECTOR, DIAGNOSTIC	1
?	PB4435	TIMER, STEERING BLEED	1
?	TD1548	CAPSCREW - 1/4" - 20NC X 5/8"	4
?	TA7409	INSULATOR, STAND - OFF	1
?	PB6074	BREAKER, CIRCUIT - 30 AMP	1
?	PB6073	BREAKER, CIRCUIT - 15 AMP	1
?	EB8238	STRIP, CIRCUIT IDENTIFICATION	1
?	VM2951	SET SCREW - #6 - 32NC	2
?	WA3367	NUT - #10 - 32NF	20
?	VS8193	BOARD, TERMINAL	1
?	VF2231	MACHINE SCREW - #10 - 24NC X 3/8"	2
?	TD1809	CAPSCREW - 1/4" - 20NC X 3/8"	1
?	VC5344	FLAT WASHER - #10	2
?	DC3584	LOCKWASHER - 1/4"	2
?	SP8417	FLAT WASHER - 1/4"	1
?	TZ7318	NAME PLATE - FLASHER	1
?	TZ7321	NAME PLATE - LICLU	1
?	TZ7319	NAME PLATE - RD1	1
?	TZ7320	NAME PLATE - RD2	1
?	TZ7377	NAME PLATE - 24VDC	1
?	TZ7323	NAME PLATE - BDT	1
?	TZ7325	NAME PLATE - GB6	1
?	PB7039	LOCK	2
?	PB0839	TIMER (USED W/AUTOMATIC LUBE SYSTEM)	1
?	TY6623	HOLDER, FUSE	1
?	TX1817	HOUSING	1
?	VZ3250	DIODE	1
?		NOTE: (1) NOT INCLUDED IN PB7004 ALARM MODULE ASSM.	65535
