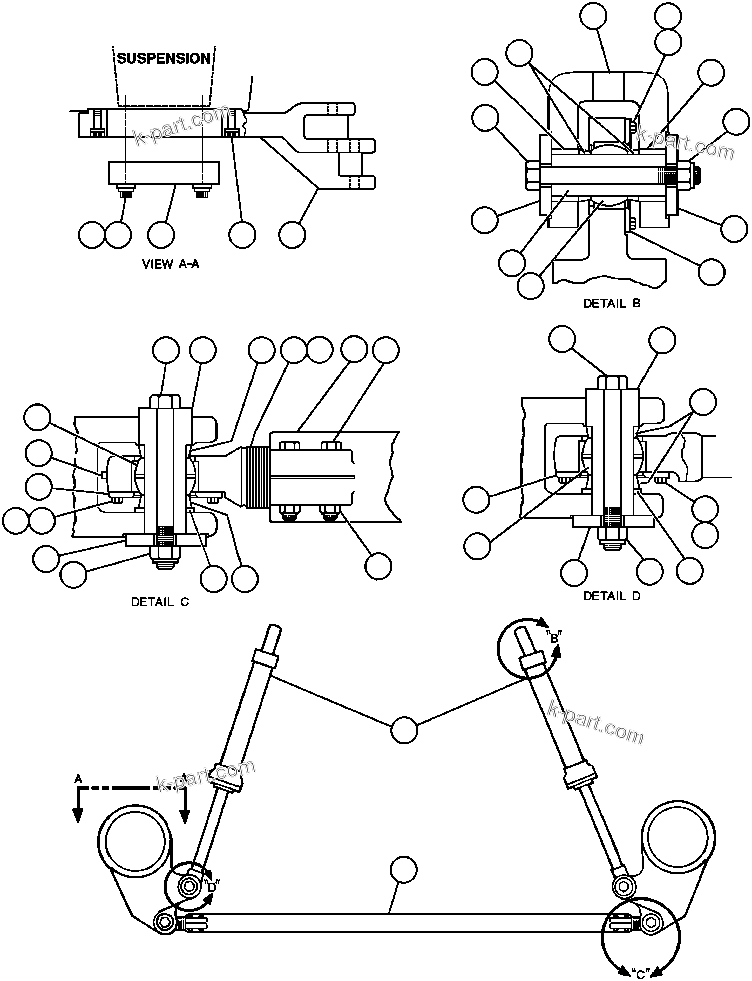

STEERING ARMS & LINKAGE | AFE32-ED 830E COLLAHUASI

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE32-ED 830E COLLAHUASI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EF7974	TIE ROD ASSM	1
?	EB8801	ROD, TIE	1
?	TY2245	ROD END, THREADED - L.H.	1
?	EB8804	ROD END, THREADED - R.H.	1
?	VN9140	CAPSCREW - 3/4" - 10NC X 4" - G8	4
?	VL2993	NUT, LOCK 3/4" - G8	4
?	PB8545	BUSHING, BALL (2)	2
?	TY2171	RETAINER	2
?	C0312	LOCKWASHER - 3/8"	8
?	C1602	CAPSCREW - 3/8" - 16NC X 1"	16
?	TG3397	ADAPTOR (LUB HOLE)	2
?	TY2240	SPACER (1) (2)	12
?	EF7970	WASHER - (HARDENED) (1)	4
?	EF7971	PIN (1)	4
?	TY2239	RETAINER (2)	4
?	KC7131	CAPSCREW - 1" - 8NC X 10 1/2" - G8 (1) (2)	6
?	VN9755	NUT, LOCK - 1" - G8 (1) (2)	6
?	PB8545	BUSHING, BALL (1)	2
?	TY9714	RETAINER	2
?	C0312	LOCKWASHER - 3/8"	16
?	C1602	CAPSCREW - 3/8" - 16NC X 1"	16
?	TY2241	PIN (2)	2
?	TY2243	SLEEVE, BRACKET - STEERING CYLINDER (2)	4
?	TY3260	MOUNT, STEERING CYL., - L.H.	1
?	TY3261	MOUNT, STEERING CYL., - R.H.	1
?	EF7973	ARM, STEERING - L.H.	1
?	EF7972	ARM, STEERING - R.H.	1
?	WA4817	CAPSCREW - 1 1/4" 7NC X 5" (12 PT)	24
?	TY2228	PLATE, RETAINER	1
?	TY2149	FLAT WASHER - (HARDENED)	24
?	EC4587	ASSM, STEERING CYLINDER (SEE FIG 41117)	2
?	WA4819	CAPSCREW, 1 1/4" - 12NF X 4"	19
?	EG1853	RETAINER (1)	4
?	AK3802	NOTE: (1) INCLUDED IN AK3802 TIE ROD	1
?		AND STEERING PIN KIT.	65535
?	AK7269	(2) INCLUDED IN AK7269 STEERING CYL. PIN KIT.	1
