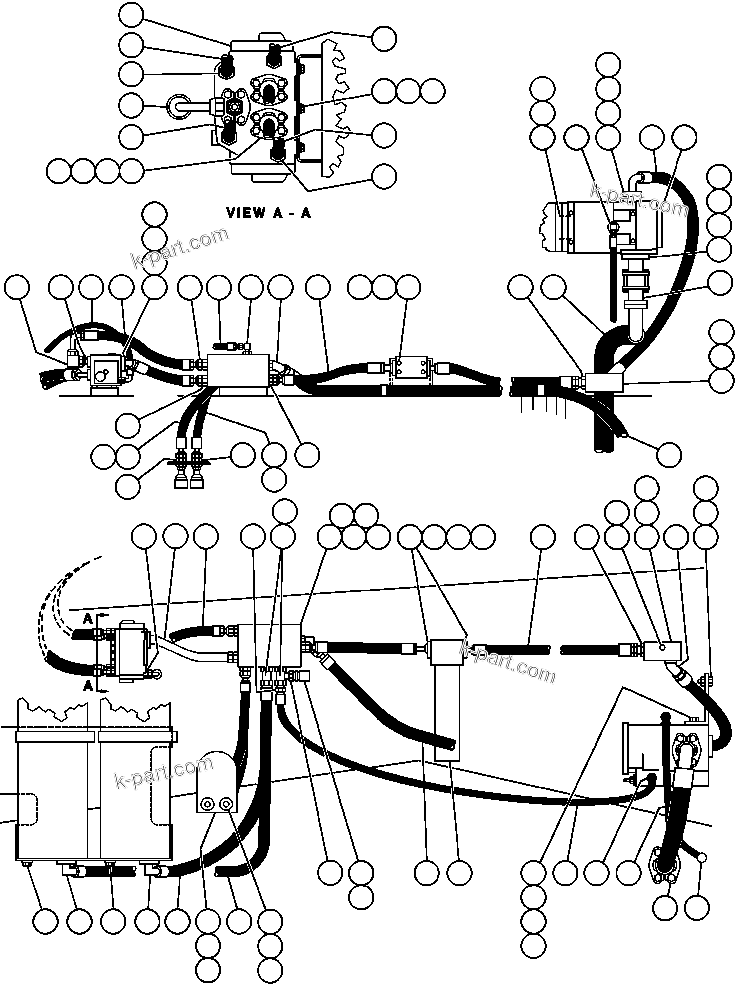

STEERING SYSTEM PIPING - 1 | AFE32-ED 830E COLLAHUASI

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE32-ED 830E COLLAHUASI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	WB0378	FITTING, ELBOW - 90 DEG	1
?	WA4850	FITTING	1
?	HA6225	HOSE	1
?	HA6226	HOSE	1
?	TF3237	CLAMP, SPLIT FLANGE	2
?	VG9096	SEAL, O-RING	1
?	C1609	CAPSCREW - 7/16" - 14NC X 1 1/2"	4
?	C5775	LOCKWASHER - 7/16"	11
?	WB0600	FITTING, STRAIGHT ADAPTOR	1
?	HA6295	HOSE	1
?	WB0510	FITTING, ELBOW - 90 DEG	2
?	WB0549	FITTING, ELBOW - 45 DEG	2
?	HA6937	HOSE	1
?	WA5629	CLAMP, HALF	2
?	VG9097	SEAL, O-RING	3
?	C1631	CAPSCREW - 5/8" - 11NC X 2 1/4"	4
?	VC1390	LOCKWASHER - 5/8"	4
?	TF8077	FLANGE, SPLIT	6
?	PB9875	PISTON PUMP ASSM (SEE INDEX)	1
?	TY8353	SHUT-OFF VALVE ASSM (SEE INDEX)	1
?	EC4888	MANIFOLD	1
?	WA2551	CAPSCREW - 3/8" - 16NC X 3 1/2"	2
?	TC1231	LOCKWASHER - 3/8"	2
?	VH6718	FLANGE, SPLIT	4
?	WA0232	SEAL, O-RING	3
?	C1615	CAPSCREW - 1/2" - 13NC X 1 3/4"	8
?	C1540	LOCKWASHER - 1/2"	13
?	WA0878	CAPSCREW - 3/4" - 10NC X 2 1/2" (12 POINT)	4
?	HA6227	HOSE	1
?	HA6833	HOSE	1
?	WA0720	FLAT WASHER - 3/8" (HARDENED)	4
?	HA4165	HOSE	1
?	WB0601	ADAPTOR, STRAIGHT	3
?	HA6242	HOSE	1
?	WB0433	FITTING, BULKHEAD STRAIGHT	1
?	WB0432	FITTING, BULKHEAD STRAIGHT	1
?	HA0155	HOSE	1
?	WB0602	FITTING, STRAIGHT ADAPTOR	1
?	WB0593	ADAPTOR, STRAIGHT	1
?	WB0599	ADAPTOR, STRAIGHT	1
?	WB0574	FITTING, STRAIGHT ADAPTOR	1
?	TZ5905	TUBE	1
?	VN3308	ADAPTOR, SWIVEL	2
?	PB4683	COUPLING, QUICK DISCONNECT (FEMALE)	1
?	PB4686	PLUG, DUST	1
?	PB4685	COUPLING, QUICK DISCONNECT (FEMALE)	1
?	WA3568	FITTING, TUBE	1
?	TA2968	PLUG, DUST	1
?	HA2404	HOSE	1
?	PB6923	BLEEDDOWN MANIFOLD VALVE (SEE INDEX)	1
?	C1628	CAPSCREW - 1/2" - 13NC X 7"	2
?	WA0360	FLAT WASHER - 1/2" (HARDENED)	2
?	C1523	NUT - 1/2" - 13NC	2
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	8
?	TF8090	FLANGE, SPLIT	4
?	VG9095	SEAL, O-RING	3
?	PB7056	HIGH-PRESSURE FILTER ASSM	1
?		HEAD ASSM (1)	1
?	VE1750	KIT, SEAL	1
?	VE4206	INDICATOR - 24V DC	1
?	VE3431	KIT, SEAL	1
?	VE0731	ELEMENT	1
?	VE4207	HOUSING	1
?	VE3434	PLUG	1
?	VE3435	O-RING	1
?	HA6458	HOSE	1
?	VL5418	SEAL, O-RING	1
?	VG9058	RING, SEATING	4
?	PB6528	COUPLING, DIAGNOSTIC	1
?	PB6041	CAP, DUST	1
?	EC8707	BRACKET	1
?	DC7524	CAPSCREW - 3/8" - 16NC X 7/8"	2
?	WA0720	FLAT WASHER - 3/8" (HARDENED)	2
?	C0312	LOCKWASHER - 3/8"	18
?	HA6235	HOSE (SEE FIG 40587)	2
?	WB0584	FITTING, STRAIGHT ADAPTOR	3
?	HA6238	HOSE (SEE FIG 40587)	1
?	PB6908	FLOW AMPLIFIER (SEE INDEX)	1
?	HA6236	HOSE (SEE FIG 40587)	1
?	C1603	CAPSCREW - 3/8" - 16NC X 1 1/4"	6
?	C1608	CAPSCREW - 7/16" - 16NC X 1"	3
?	PB1255	FLAT WASHER - 7/16"	3
?	WB0537	FITTING, 0-RING - 45 DEG	1
?	C1629	CAPSCREW - 5/8" - 11NC X 1 3/4"	2
?	WA0361	FLAT WASHER - 5/8" (HARDENED)	4
?	VN9952	LOCKNUT - 5/8" - 11NC	2
?	HA7161	HOSE	1
?	VM0317	PLUG, O-RING	2
?	WB0516	FITTING - O-RING - 90 DEG.	2
?	HA5441	HOSE	1
?	VZ1061	ADAPTOR	1
?	WB0560	FITTING - O-RING - TEE	2
?	WA3043	FITTING, ADAPTOR	1
?	EG1092	BOSS	1
?	PB7557	SWITCH (LOW STEERING PRESSURE)	1
?	WB0580	FITTING, ADAPTOR	1
?	HA5822	HOSE	1
