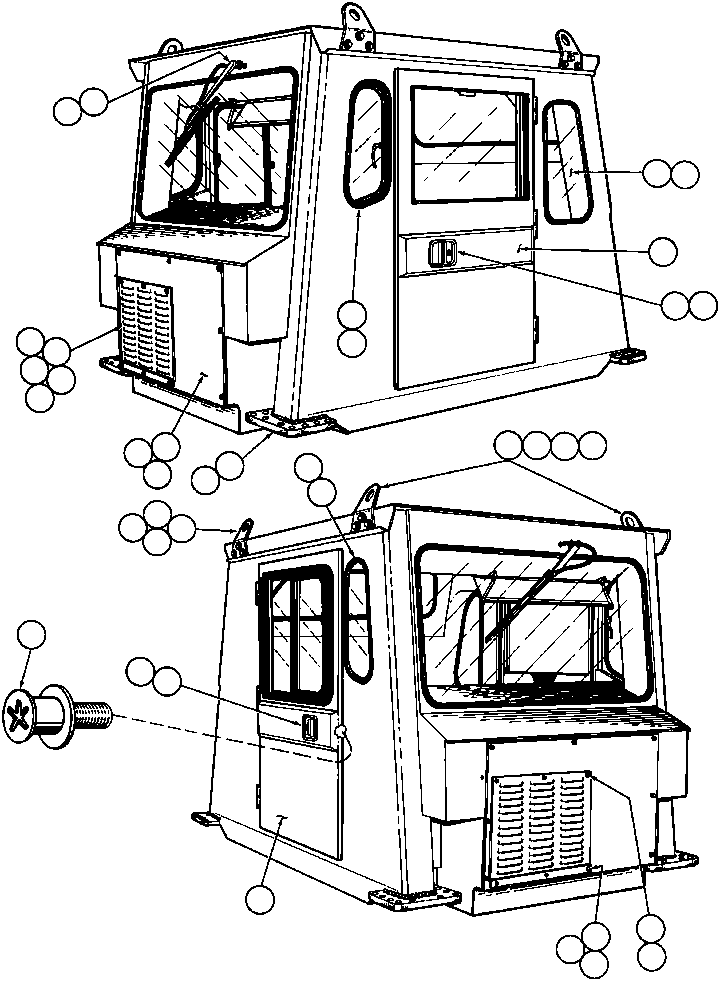

CAB ASSM - 1 (EF7079) | AFE32-ED 830E COLLAHUASI

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE32-ED 830E COLLAHUASI

1 2 3 4 9 5 6 7 8 9 10 11 12 13 14 15 16 17 18 10 18 19 20 21 22 23 24 25 26 27 28 29 11 17 1 2 3 4

#	Part Number	Partname	Quantity
1	TZ0655	EYE, LIFTING	4
2	C1616	CAPSCREW - 1/2" - 13NC X 2"	12
3	DD5640	FLAT WASHER - 1/2"	12
4	TR5445	LOCKWASHER - #6	16
5	PB7524	ARM, WIPER (SEE FIG 40063)	1
6	PB7523	BLADE, WIPER (SEE FIG 40063)	1
7	VE6686	GLASS, REAR SIDE	1
8	VE6687	CHANNEL, RUBBER	1
9	VE6684	DOOR ASSM - R.H. (SEE INDEX)	1
9	BF2300	DOOR ASSM - L.H. (SEE INDEX)	1
10	VS6018	HANDLE, OUTSIDE DOOR - R.H.	1
10	VS6010	HANDLE, OUTSIDE DOOR - L.H.	1
11	VS6021	LOCK W/ 2 KEYS	2
11	VS6259	KEY	2
12	VE6689	GLASS, LEFT FRONT	1
13	VE5812	HANDLE	1
14	VM2203	CAPSCREW - 1" - 8NC X 3"	40
15	TY2148	FLAT WASHER (HARDENED)	40
16	VE6688	PANEL, ACCESS	1
16	VE6695	KIT, SEAL	1
17	TD0794	CAPSCREW - 5/16" - 18NC X 3/4"	10
18	TV0177	FLAT WASHER - 5/16"	10
19	VE6690	COVER, AIR FILTER	1
19	VE6695	KIT, SEAL	1
20	PB7001	FILTER, AIR	1
21	VE6694	HINGE	1
22	TD1809	CAPSCREW - 1/4" - 20NC X 3/4"	4
23	SP8417	FLAT WASHER - 1/4"	4
24	SH7597	CAPSCREW - 1/4" - 20NC X 1/2"	3
25	SD4235	LOCKWASHER - 1/4" (EXTERNAL TOOTH)	3
26	VE0453	NUT, ACORN - 1/4" - 20NC	3
27	VE6691	GLASS, RIGHT FRONT (INSULATED)	1
28	VE6692	CHANNEL, RUBBER	1
29	VS6013	STRIKER, DOOR	2
29	TZ0201	CAP (BRAKE CABINET MOUNTING HARDWARE)	2
29	VC4898	CAPSCREW - 1/2" - 13NC X 2 1/2"	4
29	TR5445	LOCKWASHER - #6	4
29	PB2850	BRACKET (FIRE EXTINGUISHER) (OPTIONAL)	1
29	PB2849	FIRE EXTINGUISHER (OPTIONAL)	1
29	C0312	LOCKWASHER - 3/8"	3
29	H8524	CAPSCREW - 3/8" - 16NC X 5/8"	3
