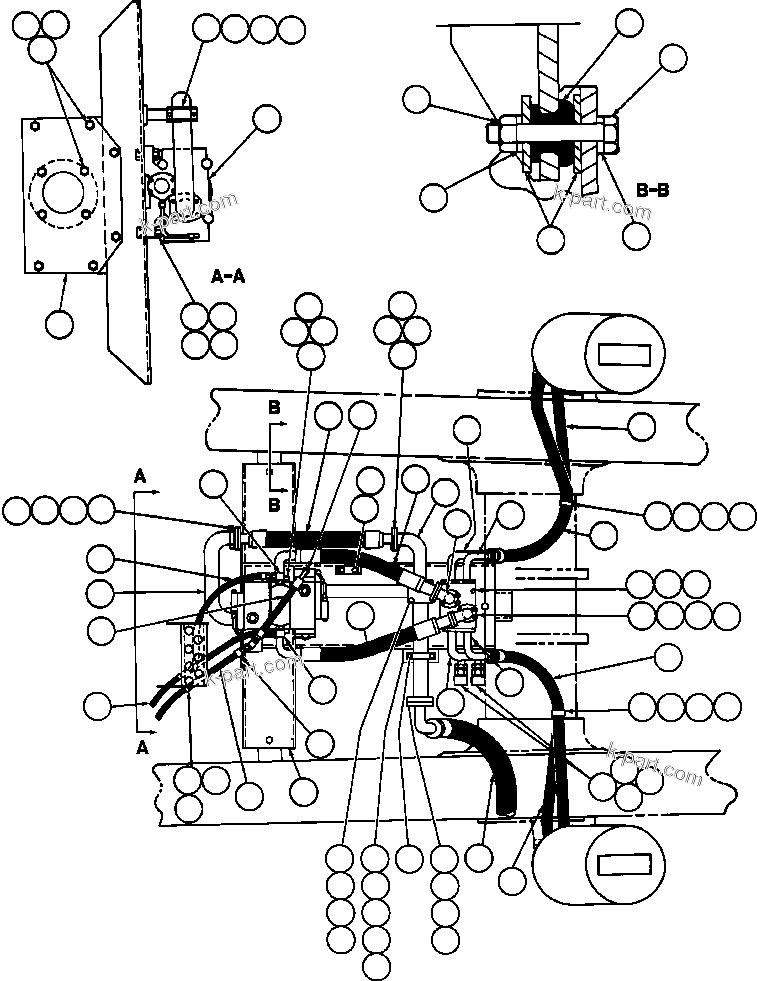

HOIST VALVE & CYLINDER PIPING | AFE32-FA 830E COLLAHUASI

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE32-FA 830E COLLAHUASI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	C1629	CAPSCREW - 5/8" - 11NC X 1 3/4"	8
?	WA0361	FLAT WASHER - 5/8" (HARDENED)	12
?	VN9952	LOCKNUT - 5/8" - 11NC	8
?	EB6439	BRACKET	1
?	TA0440	PAD, TAPPED	1
?	WA0720	FLAT WASHER - 3/8" (HARDENED)	4
?	DC7524	CAPSCREW - 3/8" - 16NC X 7/8"	2
?	ED6180	BRACKET, TUBE	1
?	PB6921	HOIST CONTROL VALVE ASSEMBLY (SEE INDEX)	1
?	C1663	CAPSCREW - 7/8" - 9NC X 3"	3
?	C1543	LOCKWASHER - 7/8"	3
?	C1529	NUT - 7/8" - 9NC	3
?	WA0363	FLAT WASHER - 7/8" (HARDENED)	3
?	VG7000	MOUNT, CENTER BONDED	3
?	C1637	CAPSCREW - 5/8" - 11NC X 3 3/4"	3
?	WA0361	FLAT WASHER - 5/8" (HARDENED)	3
?	TD5915	WASHER	6
?	C1541	LOCKWASHER - 5/8"	7
?	C1525	NUT - 5/8" - 11NC	3
?	VH6718	FLANGE, SPLIT	8
?	WA0232	SEAL, O-RING	4
?	C1615	CAPSCREW - 1/2" - 13NC X 1 3/4"	16
?	C1540	LOCKWASHER - 1/2"	32
?	HA6330	HOSE	2
?	C1602	CAPSCREW - 3/8" - 16NC X 1"	12
?	HE5611	LOCKNUT - 3/8" - 16NC	12
?	VC7673	CLAMP	2
?	VL9602	CLAMP	2
?	HA6340	HOSE	2
?	C5759	CAPSCREW - 1/2" - 13NC X 5"	2
?	TY8867	BLOCK, MANIFOLD	1
?	TF3231	FLANGE, SPLIT	6
?	WA0187	SEAL, O-RING	6
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	12
?	TZ5046	TUBE	1
?	TZ5047	TUBE	1
?	HA6228	HOSE	1
?	TY9637	TUBE	1
?	TY9636	TUBE	1
?	VL9963	FLANGE, SPLIT	6
?	WA0237	SEAL, O-RING	3
?	C1629	CAPSCREW - 5/8" - 11NC X 1 3/4"	12
?	ED6195	BRACKET, PUMP-VALVE	1
?	H9918	CAPSCREW - 3/8" - 16NC X 4 1/2"	2
?	C1521	NUT - 3/8" - 16NC	2
?	WA5686	CLAMP, TUBE	1
?	C0312	LOCKWASHER - 3/8"	2
?	HA6586	HOSE	1
?	WB0508	FITTING, ELBOW - 90 DEG	2
?	WB0375	FITTING, ELBOW - 90 DEG	1
?	HA6343	HOSE	1
?	EB6440	TUBE	1
?	HA6231	HOSE	1
?	HA6763	HOSE	1
?	VN9908	CLAMP	3
?	H0595	CAPSCREW - 3/8" - 16NC X 2 1/4"	1
?	HA6432	HOSE	1
?	WB0584	FITTING, STRAIGHT ADAPTOR	3
?	WA3559	CHANNEL	1
?	WA4712	CLAMP	1
?	HA6251	HOSE	1
?	TY8372	TUBE	1
?	PB8318	ELBOW - 90 DEG	1
?	PB4685	COUPLING, QUICK DISCONNECT (FEMALE)	2
?	WA3568	FITTING, TUBE	2
?	TA2968	PLUG, DUST	2
?	WB0378	FITTING, ELBOW - 90 DEG	2
?	HA7536	HOSE	1
?	ED1767	HOIST PUMP INSTALLATION (SEE FIG 40251)	1
?	WA0360	FLAT WASHER - 1/2"	4
?	C1523	NUT - 3/8" - 16NC	2
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	2
